Powersoft

Powersoft Mezzo 322 AD 320W/2-channel Compact Amplifier with DSP and Dante

$0.00 -

Mezzo 322 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. The 320 W versions of Mezzo can also be mounted in air handling spaces, such as ceilings or wall boxes. Two-channel versions of Mezzo also feature 2 line-level outputs, further extending routing options

View Product Features

  • 2-channel amplification: Flexible power delivery across two outputs.
  • Total 320W output: Efficient power handling for distributed systems.
  • Integrated Dante networking: Seamless integration into networked audio systems.
  • Advanced onboard DSP: Comprehensive sound processing and system tuning capabilities.
  • Auto-setup functionality: Simplified configuration for quick installation.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Powersoft Mezzo 322 AD 320W/2-channel Compact Amplifier with DSP and Dante

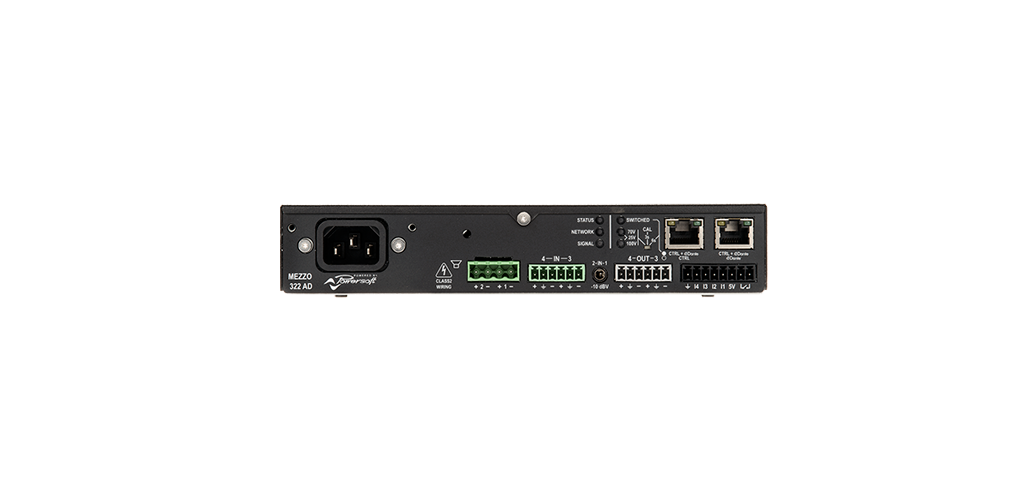

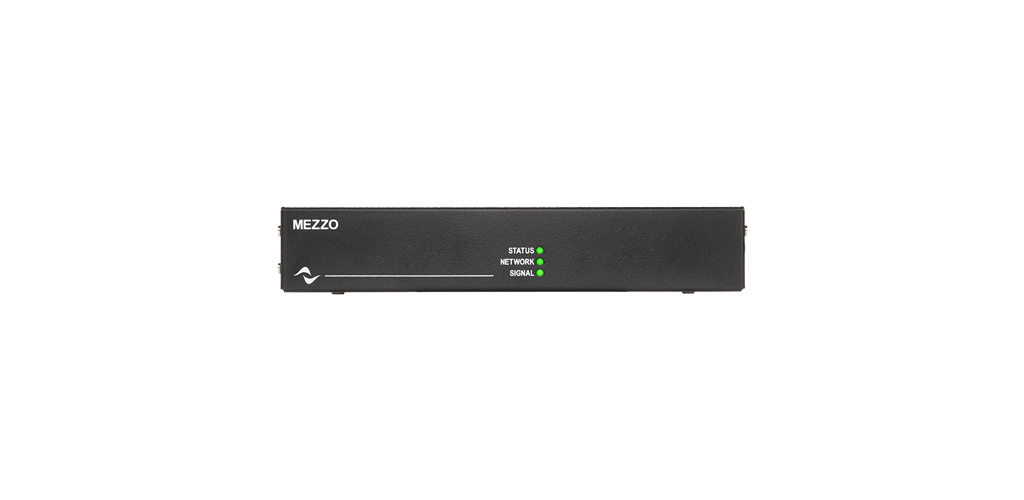

The Powersoft Mezzo 322 AD is a compact, feature-rich two-channel amplifier that integrates efficient amplification, comprehensive digital signal processing, and Dante networking into a streamlined 1U rack-mount unit. Designed for smaller-scale fixed installation applications such as conference rooms, classrooms, retail stores, and background music systems, this amplifier delivers clean, reliable power with a focus on simplicity and networked audio integration. It utilizes Powersoft's efficient amplifier technology to provide high-quality sound with low heat generation and reduced energy consumption, making it an economically sound choice for systems that operate for extended periods. The compact form factor allows for easy deployment in space-constrained racks or enclosures.

A defining characteristic of the Mezzo 322 AD is its complete integration of DSP and Dante audio-over-IP technology. The onboard DSP provides per-channel control with a full suite of professional tools, including parametric EQ, crossover filtering, dynamics compression, limiting, and delay. This allows system integrators to perfectly tailor the audio output to the specific loudspeakers and acoustics of the installation without requiring external processors. The native Dante interface enables the amplifier to receive digital audio directly over a standard Ethernet network, seamlessly integrating it into modern AV systems. This eliminates the need for analog audio cabling from a central mixer or DSP, simplifying installation, reducing potential noise, and allowing for flexible, scalable system design.

Built for reliability and ease of management, the amplifier includes remote monitoring and control capabilities via a network connection to Powersoft's ArmoníaPlus software. This enables installers to configure settings, adjust parameters, and monitor the health of the amplifier—such as temperature and output status—from a central computer. The combination of its modest power rating, integrated high-quality processing, and native Dante networking makes the Mezzo 322 AD an ideal, all-in-one solution for networked audio zones where performance, ease of installation, and system simplicity are key requirements.

Key Features

  • 2-channel amplification: Flexible power delivery across two outputs.
  • Total 320W output: Efficient power handling for distributed systems.
  • Integrated Dante networking: Seamless integration into networked audio systems.
  • Advanced onboard DSP: Comprehensive sound processing and system tuning capabilities.
  • Auto-setup functionality: Simplified configuration for quick installation.

Powersoft Mezzo 322 AD 320W/2-channel Compact Amplifier with DSP and Dante Specs

Amplifier Output
Channels
2
Power per Channel (4Ω)
320 W
Power per Channel (8Ω)
160 W
Total Power (4Ω)
640 W
Frequency Response
20 Hz - 20 kHz (+0/-1 dB)
Signal Processing & Network
DSP Architecture
Fully Configurable, 96 kHz
Audio Network
Dante
Dante Channels
2 Input, 2 Output
Processing Features
EQ, Crossover, Delay, Dynamics per Channel
Control & Monitoring
Control Interface
Ethernet (RJ45)
Management Software
ArmoníaPlus
Protection Circuits
Thermal, Short Circuit, Overload
Electrical Specifications
Mains Voltage
100-240V AC, 50/60 Hz
Typical Efficiency
>90%
Power Consumption (Idle)
<15 W
Physical Specifications
Rack Units
1U
Dimensions
483 mm x 44 mm x 230 mm
Weight
2.8 kg
Cooling
Convection

Key Features

  • 2-channel amplification: Flexible power delivery across two outputs.
  • Total 320W output: Efficient power handling for distributed systems.
  • Integrated Dante networking: Seamless integration into networked audio systems.
  • Advanced onboard DSP: Comprehensive sound processing and system tuning capabilities.
  • Auto-setup functionality: Simplified configuration for quick installation.
