SKU: C2041-220

PSC Power Star Mini Power Distribution System

$199.95

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

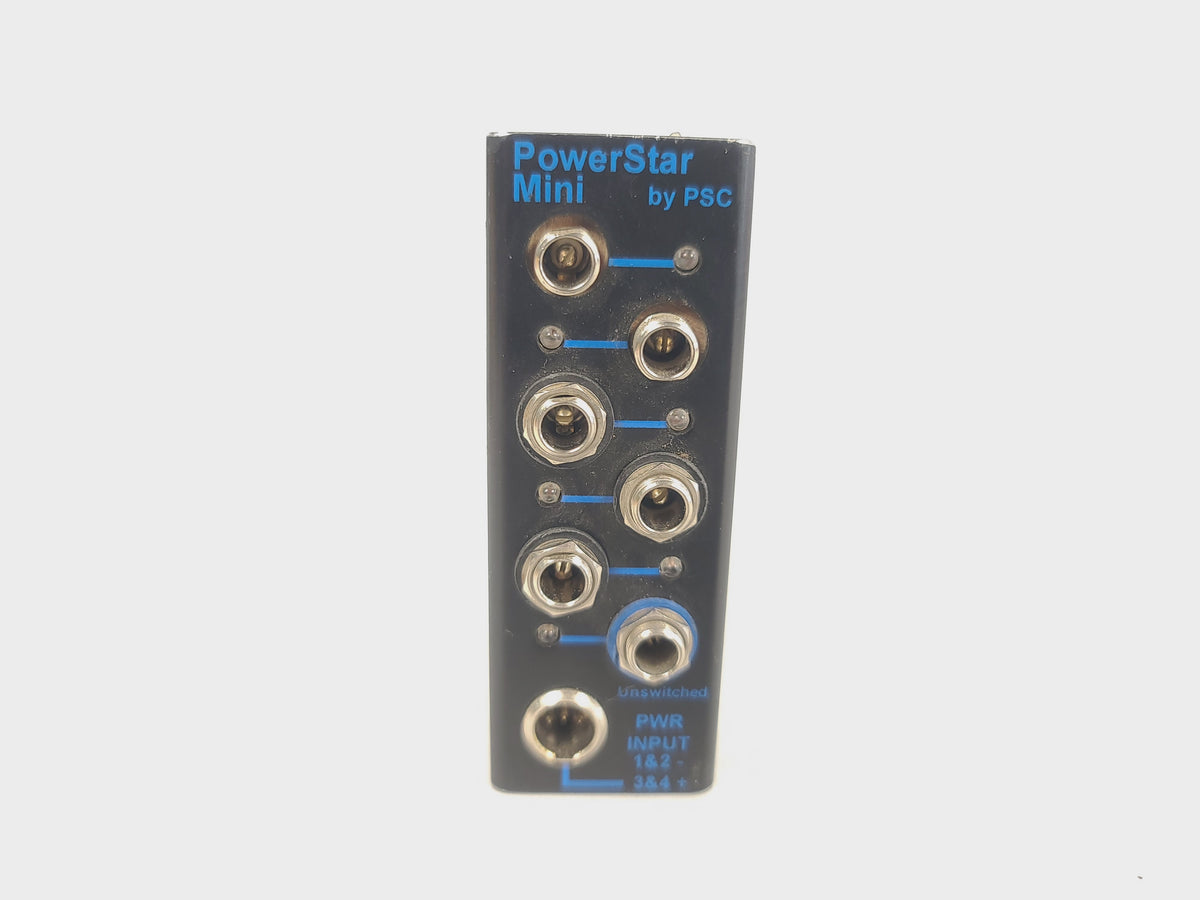

The Power Star Mini from PSC is a compact and convenient power distribution system designed to provide 12VDC power to all of your ENG audio components from a single rechargeable battery. The unit has a 4-pin XLR power input and 6 outputs. Each output can deliver up to 3 amps of current, with a global total current of 5 amps. A top panel power switch controls 5 of the 6 outlets, while the 6th switch has an option of being controlled by the master switch or being in an always-on state. The Power Star Mini uses PSC's exclusive Silent Power Technology, which filters out unwanted switch mode noise and RF interference. This ensures clean, quiet recordings with minimal intermodulation noise, RF interference, and other noise. Additionally, each of the outputs is individually polyfuse protected and monitored for short circuits. Built-in status LEDs allow you to visually detect when an output is overloaded. The unit also has reverse polarity protection and genuine Switchcraft connectors, all in a sturdy aircraft aluminum body with a powder coat finish. A removable stainless steel belt clip is included for portability. Read more

Features

Provides 12VDC power to up to 6 devices from a single power source

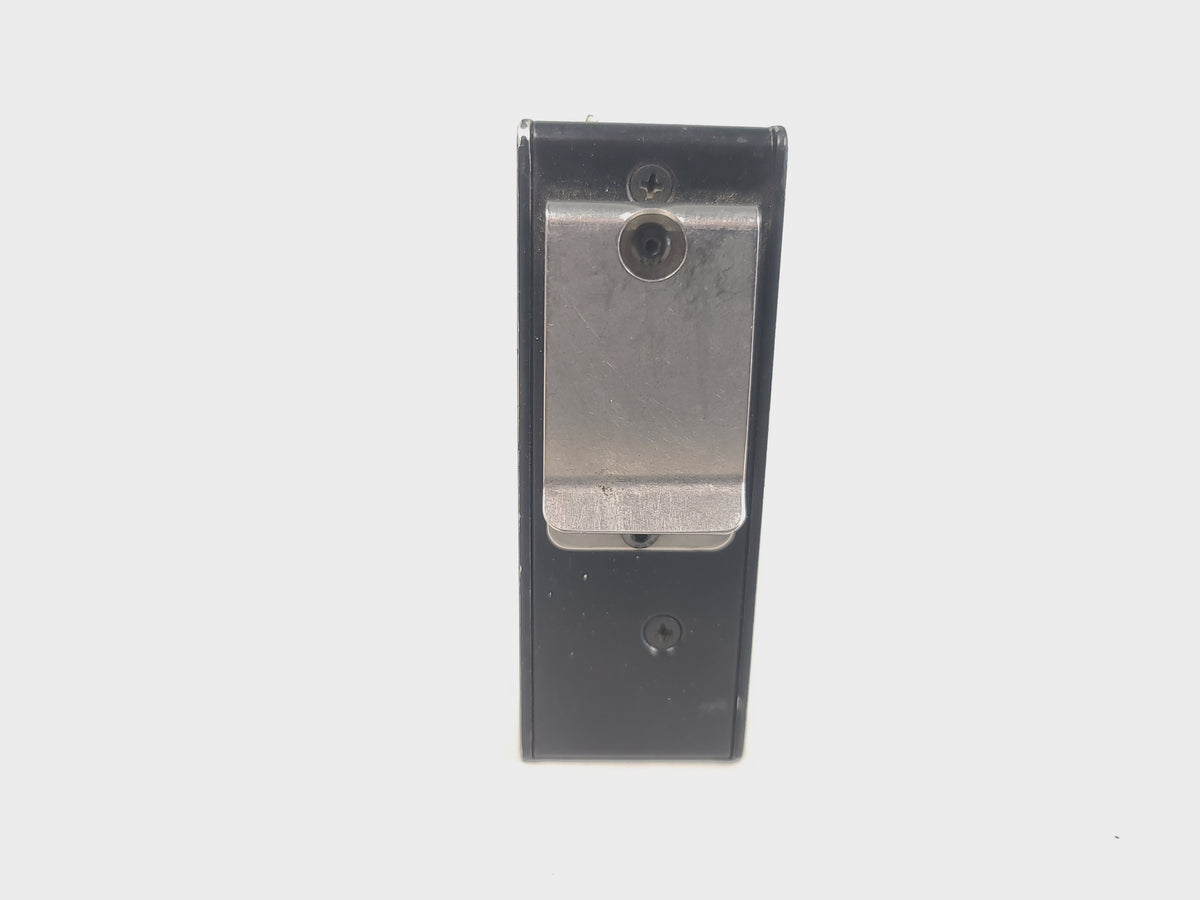

Compact and durable aircraft aluminum case with a powder coat finish and a removable stainless steel belt clip
Genuine Switchcraft connectors, with a 4-pin XLR power input and 6 coaxial power outputs
Each output can deliver up to 3 amps of current, with a global total current of 5 amps
Each of the outputs is individually polyfuse protected and monitored for short circuits
Built-in status LEDs allow you to visually detect when an output is overloaded
Integrated reverse polarity protection

Business Financing Options Avaiable

View Available Financing

Features

Provides 12VDC power to up to 6 devices from a single power source
Compact and durable aircraft aluminum case with a powder coat finish and a removable stainless steel belt clip
Genuine Switchcraft connectors, with a 4-pin XLR power input and 6 coaxial power outputs
Each output can deliver up to 3 amps of current, with a global total current of 5 amps
Each of the outputs is individually polyfuse protected and monitored for short circuits
Built-in status LEDs allow you to visually detect when an output is overloaded
Integrated reverse polarity protection

No products currently in stock

About the PSC Power Star Mini Power Distribution System

The Professional Sound Corporation (PSC) Power Star Mini is a compact, rugged power distribution system engineered specifically for location sound recordists and Electronic News Gathering (ENG) professionals. Instead of relying on dozens of individual AA batteries to power various wireless receivers, recorders, and mixers inside a sound bag, the Power Star Mini allows a sound mixer to run their entire rig from a single, high-capacity rechargeable battery (such as an NP-1 or smart battery) distributing clean 12V DC power to up to six separate devices.

Because audio recording is highly sensitive to electronic interference, PSC built this unit with their proprietary "Silent Power Technology." This internal circuitry actively filters out RF interference and the high-frequency whine often caused by switch-mode power supplies, ensuring clean, artifact-free audio on location. Furthermore, it acts as a robust safety net for expensive audio gear; every single output port is actively monitored and protected by its own auto-resetting polyfuse to prevent a short circuit in one wireless receiver from taking down the entire sound bag.

Key Features

Provides 12VDC power to up to 6 devices from a single power source
Compact and durable aircraft aluminum case with a powder coat finish and a removable stainless steel belt clip
Genuine Switchcraft connectors, with a 4-pin XLR power input and 6 coaxial power outputs
Each output can deliver up to 3 amps of current, with a global total current of 5 amps
Each of the outputs is individually polyfuse protected and monitored for short circuits
Built-in status LEDs allow you to visually detect when an output is overloaded
Integrated reverse polarity protection
