QSC

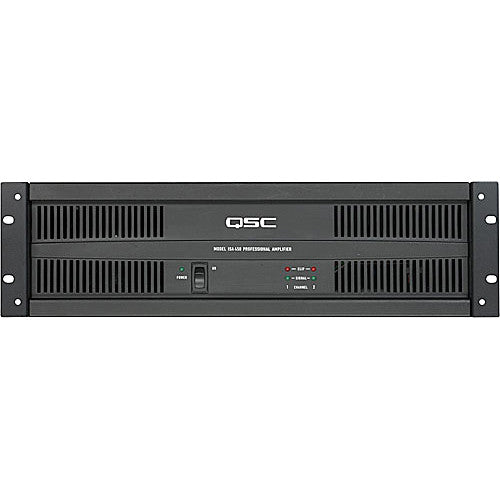

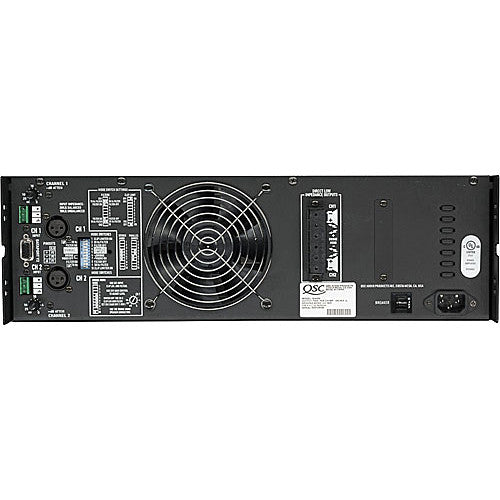

QSC ISA300Ti Commercial Power Amplifier

$0.00

The ISA Installed System Amplifiers are designed to meet the needs of sound system designers and contractors worldwide. Three models feature isolated 25, 70, and 100 volt outputs for distributed sound systems, while four low impedance models are rated for 2 ohm operation. The ISA 1350 drives 70 volt lines directly with 1500 watts per channel. Versatile loading options and a comprehensive set of features make the ISA Series a rugged, cost-effective power solution for any permanently installed sound system.

View Product Features

  • Low-impedance outputs plus isolated 25, 70, and 100 volt outputs for distributed audio systems
  • Rear panel gain controls for tamper resistance; 2-dB detents allow for quick and repeatable settings
  • XLR and detachable Euro-style input connectors
  • DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and
  • DSP-3/DSP-4 (with external power supply)
  • Independent defeatable clip limiters for reduced distortion
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the QSC ISA300Ti Commercial Power Amplifier

The QSC ISA300Ti is a commercial-grade power amplifier designed specifically for the rigorous demands of 70V/100V distributed audio systems and low-impedance applications in fixed installations. It is engineered to deliver reliable, high-fidelity amplification in environments such as schools, airports, retail centers, offices, and hospitality venues, where continuous operation and system longevity are critical. The amplifier leverages a robust toroidal transformer-based power supply paired with a high-current Class AB output stage, a design chosen for its proven reliability, excellent sonic performance, and ability to deliver stable power into reactive loads. This combination ensures clean audio reproduction and the capacity to drive extensive speaker networks over long cable runs without performance degradation.

A key feature of the ISA300Ti is its integrated "Intelligent System Architecture," which includes comprehensive onboard signal processing and system protection. The amplifier provides adjustable input sensitivity, selectable crossover filters (for bi-amplified applications), and built-in limiters to protect both the amplifier and the connected loudspeakers from damage due to overload. Its design focuses on intuitive setup and operation, with front-panel controls for level adjustment and status indicators for signal, clipping, and thermal conditions. The amplifier is also equipped with a ground-correct circuit to prevent ground loop hum, a common issue in complex installed systems, contributing to a noise-free audio signal.

Constructed for durability in commercial environments, the ISA300Ti is housed in a ventilated steel chassis with a convection cooling system, allowing for quiet operation suitable for noise-sensitive areas. It offers versatile connectivity with balanced XLR and 1/4-inch TRS inputs, and its output section includes both binding posts for low-impedance (4-16 ohm) loads and a terminal block for constant-voltage (70V/100V) speaker lines. By combining dependable power, integrated processing, and commercial-grade build quality, the QSC ISA300Ti serves as a core amplification component for system integrators, providing a robust and sonically transparent solution for a wide variety of background music, paging, and sound reinforcement applications.

Key Features

  • Low-impedance outputs plus isolated 25, 70, and 100 volt outputs for distributed audio systems
  • Rear panel gain controls for tamper resistance; 2-dB detents allow for quick and repeatable settings
  • XLR and detachable Euro-style input connectors
  • DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and
  • DSP-3/DSP-4 (with external power supply)
  • Independent defeatable clip limiters for reduced distortion

QSC ISA300Ti Commercial Power Amplifier Specs

Amplifier Performance
Channels
2
Amplifier Class
Class AB (Toroidal)
Power (8Ω Stereo)
150W per channel
Power (4Ω Stereo)
225W per channel
Power (70V/100V)
300W total
System Processing
Crossover Filters
High-pass & Low-pass
Limiters
Peak and RMS
Input Sensitivity
Adjustable (0.775V, 1.0V, 1.4V)
Input & Output
Input Connectors
XLR & 1/4" TRS
Low-Z Output
Binding Posts
Constant Voltage Output
Terminal Block (70V/100V)
Electrical Specifications
Frequency Response
20 Hz - 20 kHz (±0.1 dB)
Signal-to-Noise Ratio
>100 dB
Damping Factor
>200 @ 8Ω
Physical & Thermal
Cooling
Convection (fanless)
Rack Spaces
2U
Dimensions
89 mm H x 483 mm W x 400 mm D
Weight
15.9 kg

Key Features

  • Low-impedance outputs plus isolated 25, 70, and 100 volt outputs for distributed audio systems
  • Rear panel gain controls for tamper resistance; 2-dB detents allow for quick and repeatable settings
  • XLR and detachable Euro-style input connectors
  • DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and
  • DSP-3/DSP-4 (with external power supply)
  • Independent defeatable clip limiters for reduced distortion
