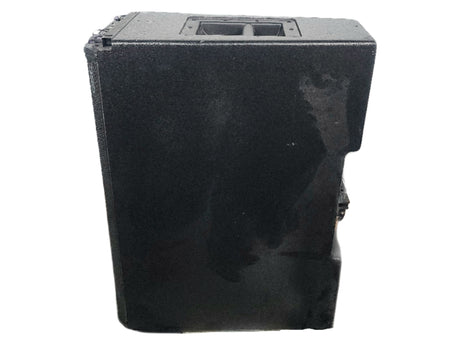

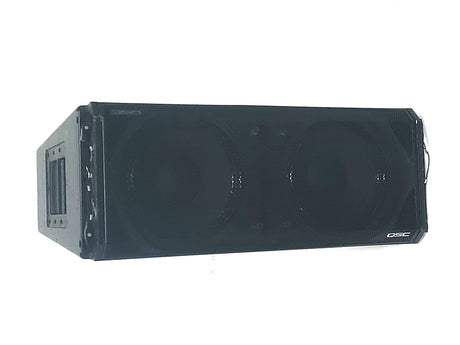

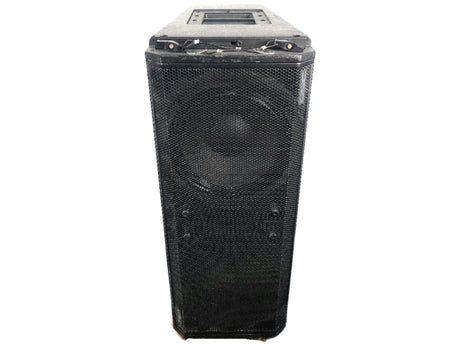

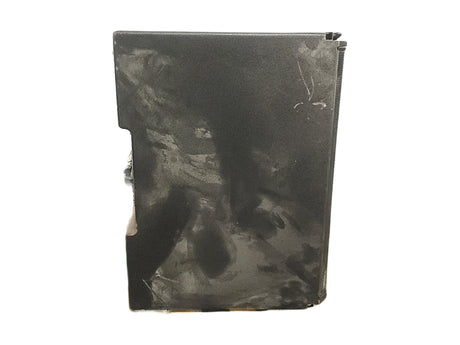

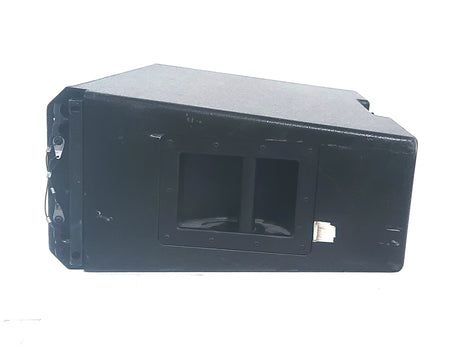

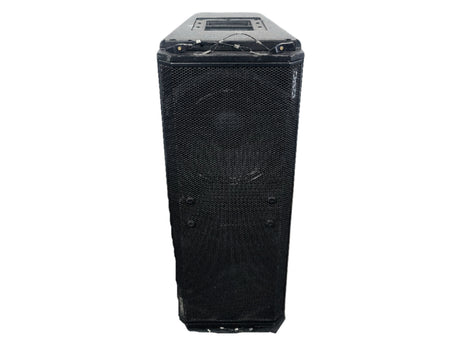

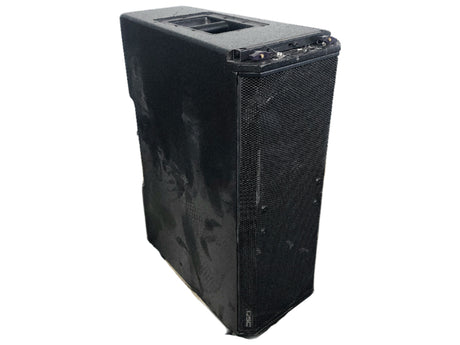

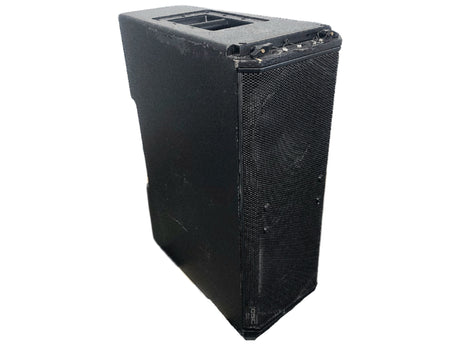

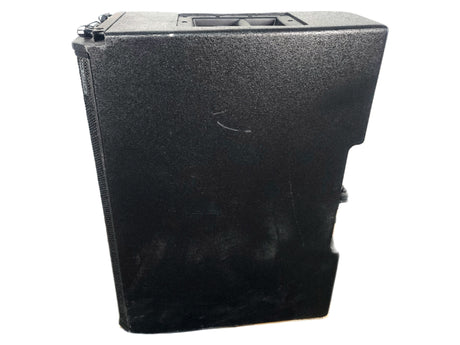

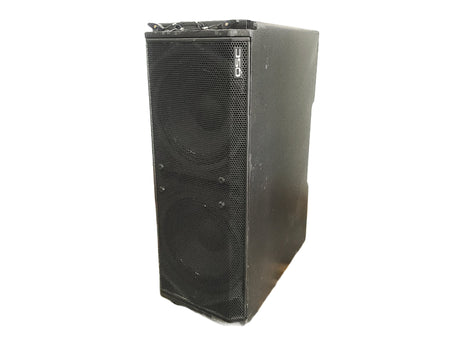

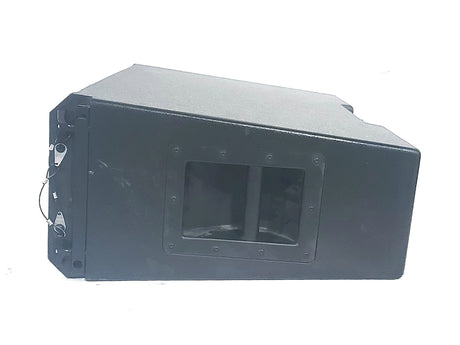

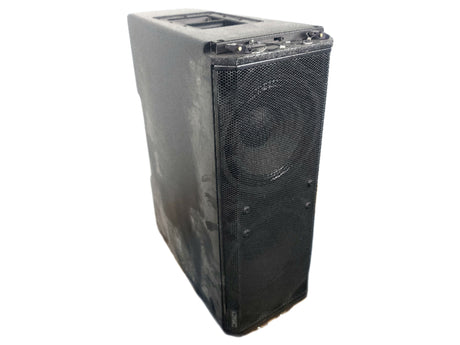

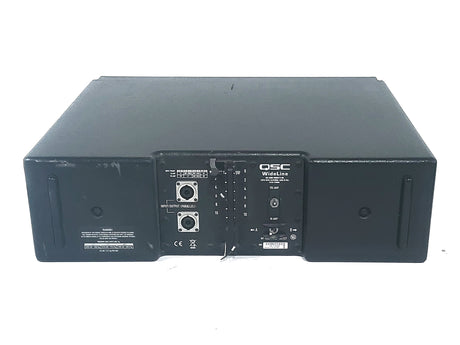

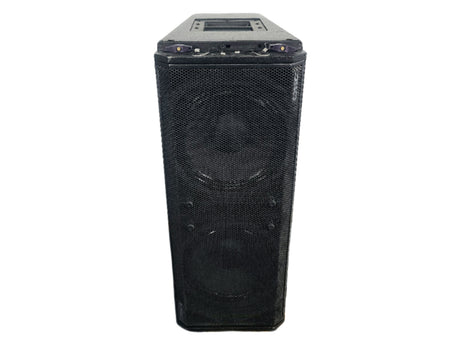

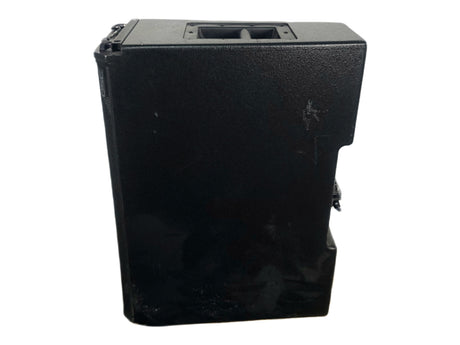

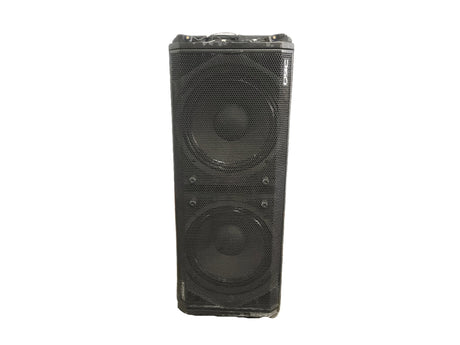

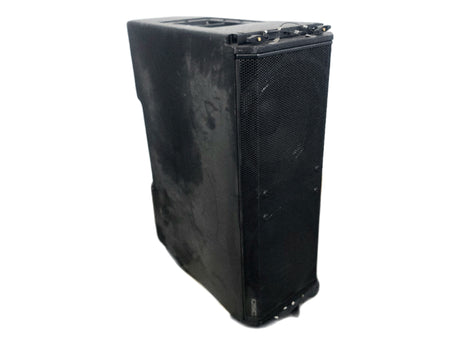

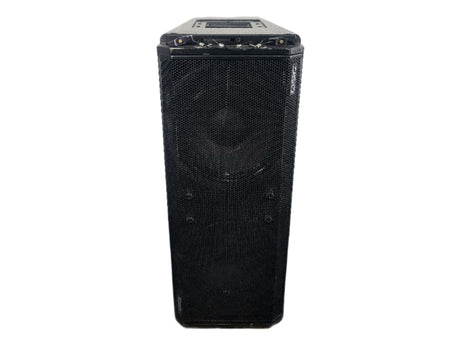

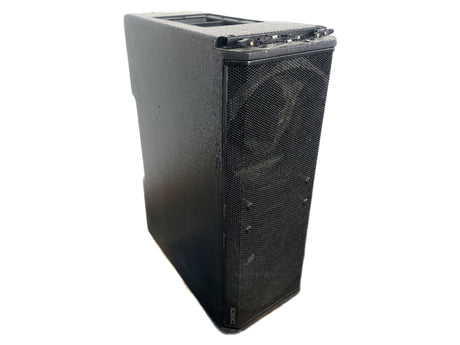

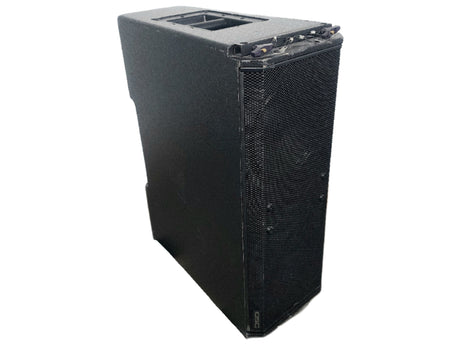

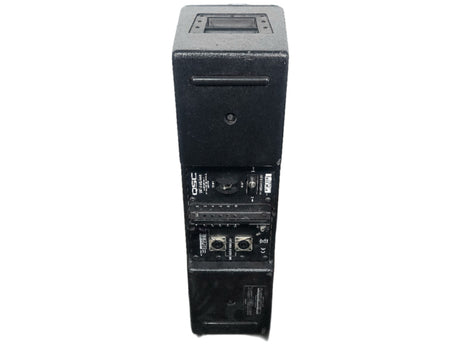

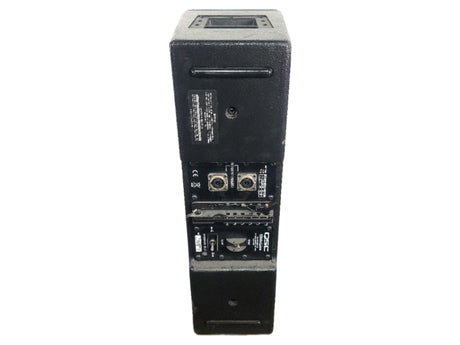

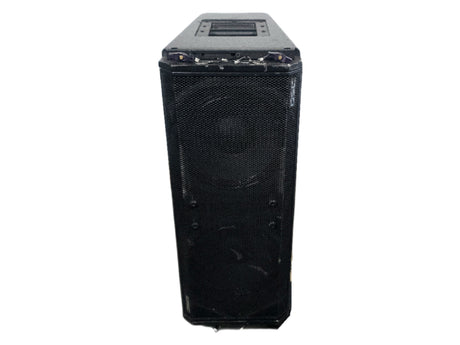

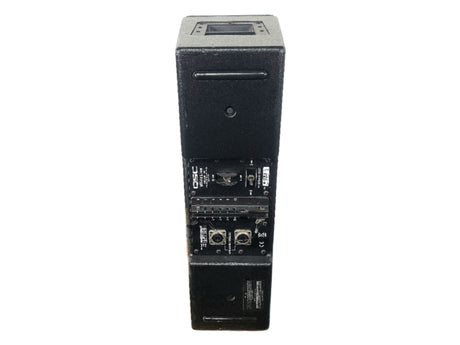

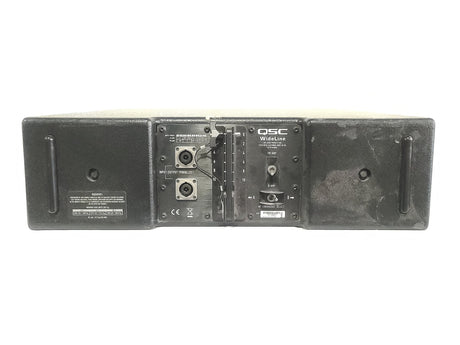

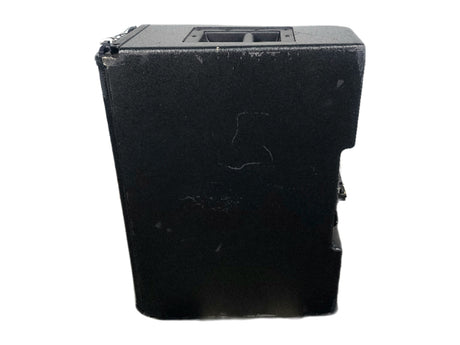

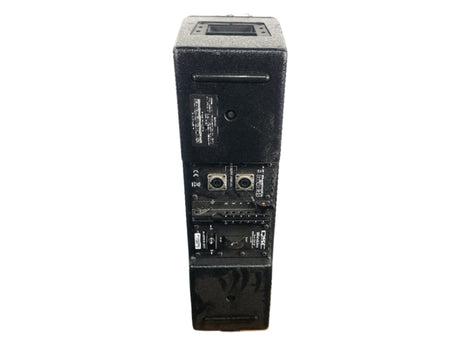

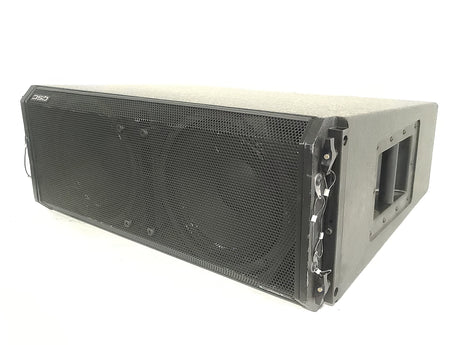

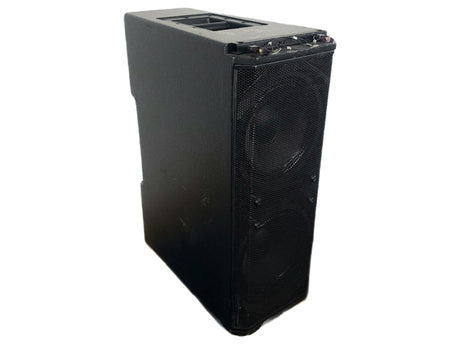

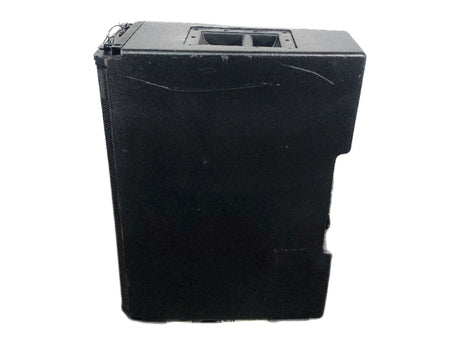

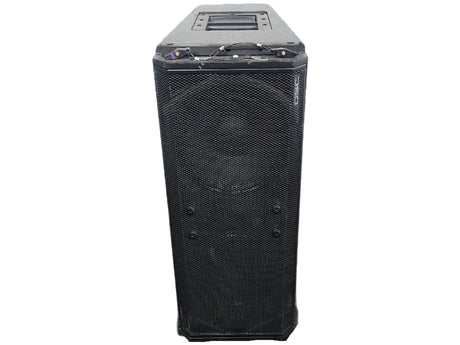

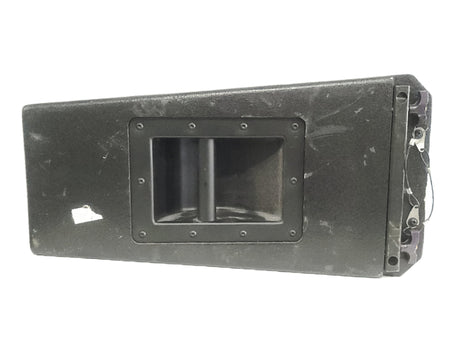

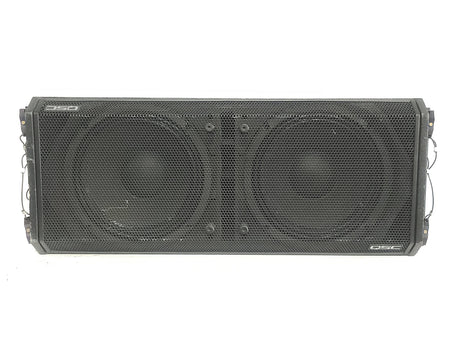

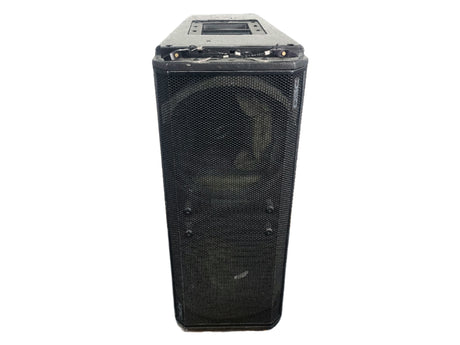

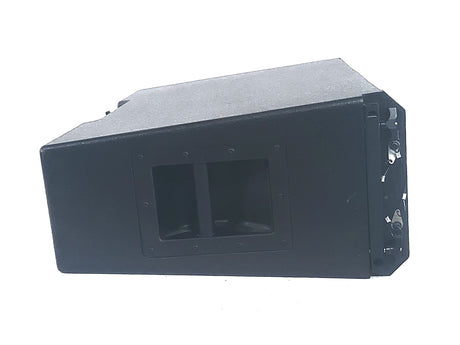

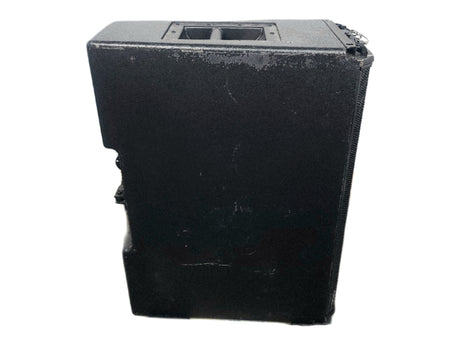

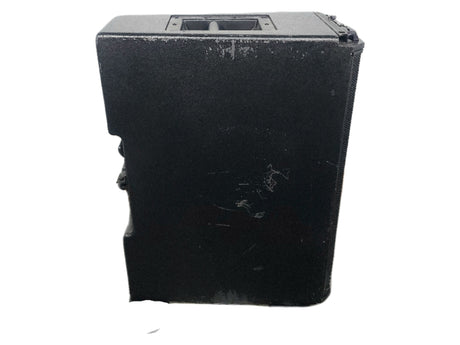

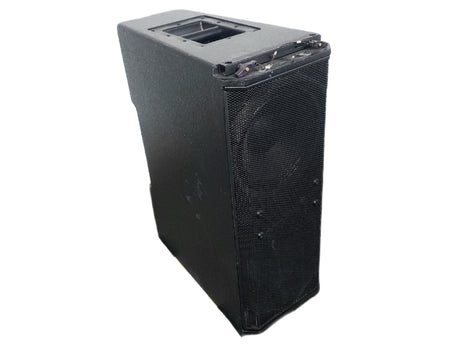

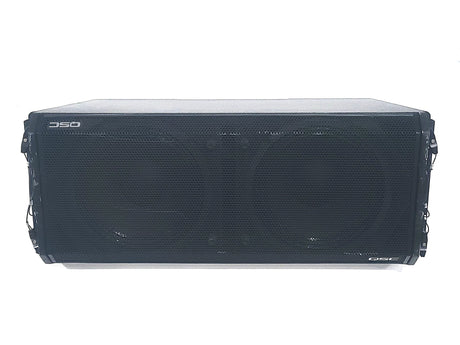

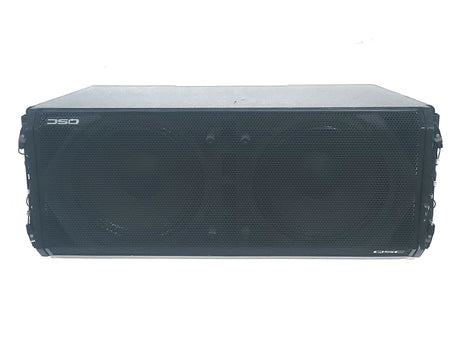

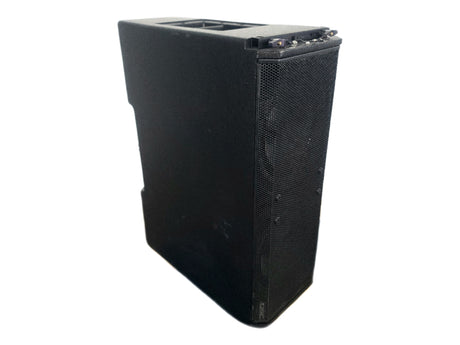

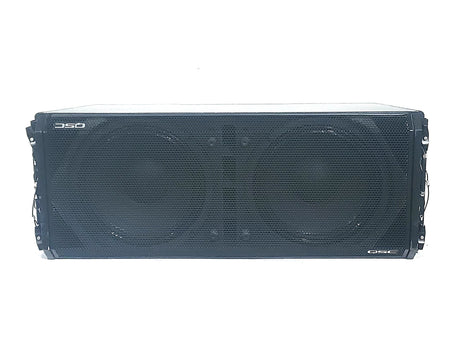

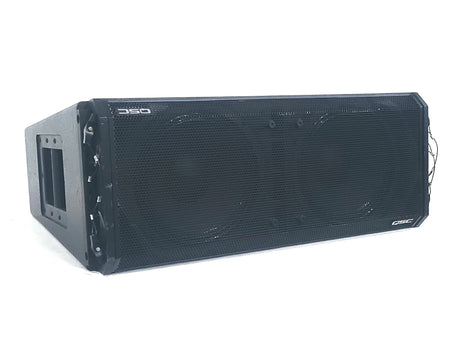

QSC WL2102 WideLine™ Line Array Speaker System

$349.00 - $699.00

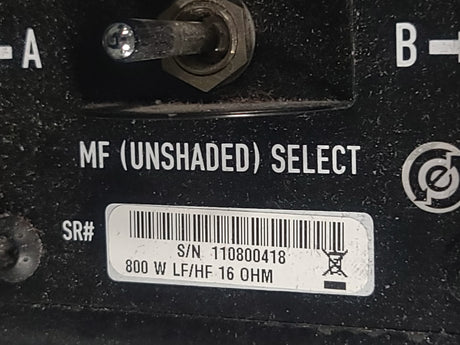

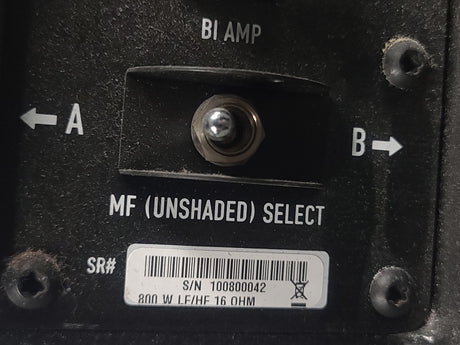

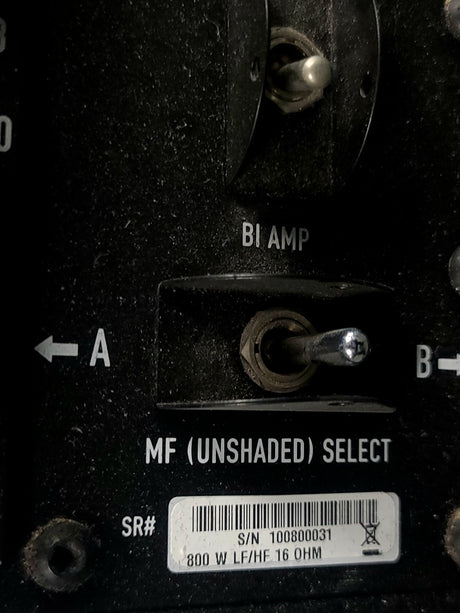

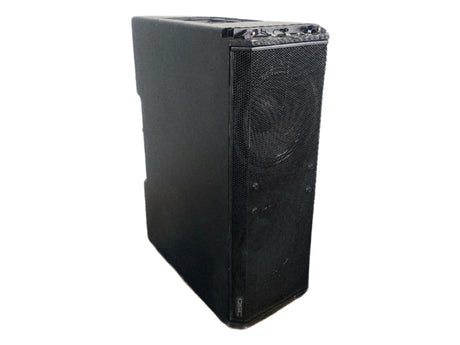

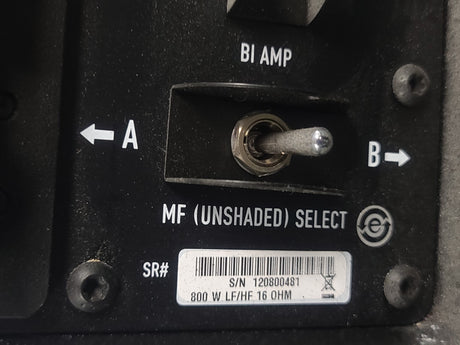

The WL2102 WideLine-10 Line Array Speaker from QSC is a full range line array loudspeaker designed for use in a wide variety of venues. The WideLine-10 features a wide 140° horizontal coverage pattern. It is a three transducer system and can be operated in either bi-amplified or tri-amplified modes. Both 10" low frequency transducers are used to cover the lowest frequency range. One driver covers only low frequencies while the range of the other extends through the mid frequencies to the mid/high crossover point. The use of a single high-frequency transducer allows the horizontal coverage pattern to remain wide and to assure smooth response both on and off axis at the transition to the diffraction slot loaded high frequency section. Bi-amplification uses passive elements to affect the required frequency response shading of the low-frequency drivers and offers reduced amplifier channel counts and simplified wiring. Tri-amplification allows the required low-frequency shading to be controlled with greater precision via active electronics and is recommended where maximum output and high sound quality are required.

View Product Features

Exceptionally high output capability in a very compact form factor.

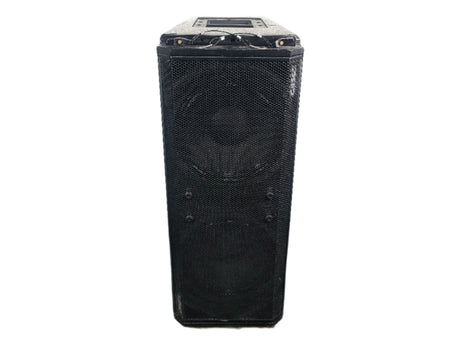

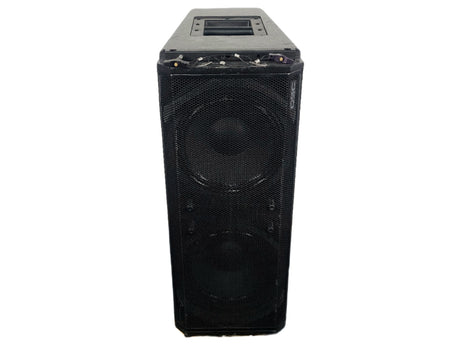

Dual 10-inch long-excursion, high-power, low-frequency transducers.
Single 3-inch diaphragm neodymium compression driver.

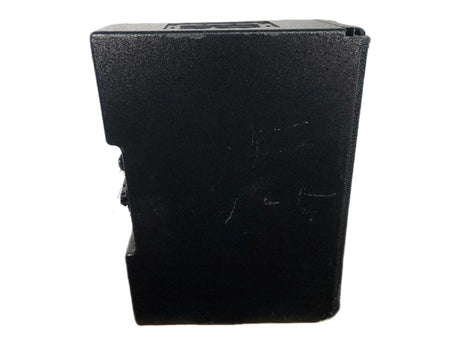

Birch ply enclosures. Available with standard finish in black.
Fully captive hardware design incorporates all components necessary for box to box rigging.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the QSC WL2102 WideLine™ Line Array Speaker System

The QSC WL2102 is a compact, high-performance, two-way line array speaker module designed for portable and permanent installations where superior sound quality, precise coverage control, and ease of deployment are required. As part of QSC's WideLine series, it utilizes advanced Constant Curvature Array technology, allowing multiple enclosures to be coupled together to form a seamless vertical array that provides consistent, predictable sound coverage over the audience area. Each module houses a 10-inch low-frequency driver and a 1.4-inch exit compression driver coupled to a rotatable, waveguide-loaded horn, delivering powerful, full-range audio with exceptional clarity and intelligibility, making it suitable for a wide range of applications from live music and corporate events to houses of worship and performing arts centers.

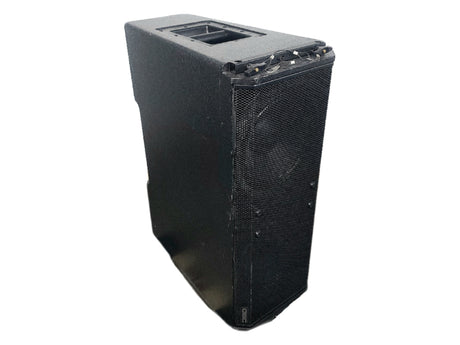

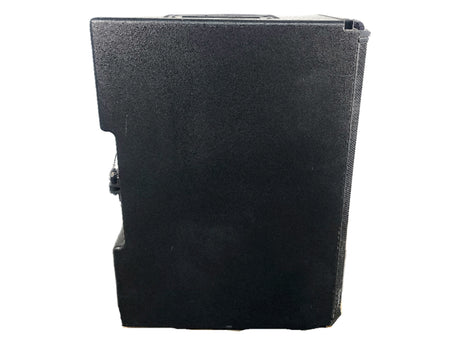

Engineered for versatility, the WL2102 features a lightweight, trapezoidal plywood enclosure with integrated rigging hardware that enables quick and safe array assembly. Its rotatable horn allows the array to be configured for either horizontal (for wider dispersion) or vertical (for tighter vertical control) orientation, providing system designers with flexibility to tailor the coverage pattern to the specific venue. The system is designed to be used with external processing and amplification, typically via QSC's dedicated DSP amplifiers which provide optimized system tuning, limiting, and alignment. Robust metal grilles and durable finish ensure the cabinet can withstand the demands of touring and frequent use.

The WL2102 represents a professional solution for sound reinforcement professionals seeking a scalable, tour-grade line array in a manageable size. Its combination of articulate high-frequency reproduction, solid low-mid punch, and sophisticated array behavior allows for the creation of uniform, high-fidelity sound fields in both small and medium-sized venues. By offering the acoustical benefits of a true line array in a package designed for practicality, it empowers audio technicians to deliver consistently excellent sound reinforcement with reduced setup complexity.

Key Features

Exceptionally high output capability in a very compact form factor.
Dual 10-inch long-excursion, high-power, low-frequency transducers.
Single 3-inch diaphragm neodymium compression driver.
Birch ply enclosures. Available with standard finish in black.
Fully captive hardware design incorporates all components necessary for box to box rigging.
