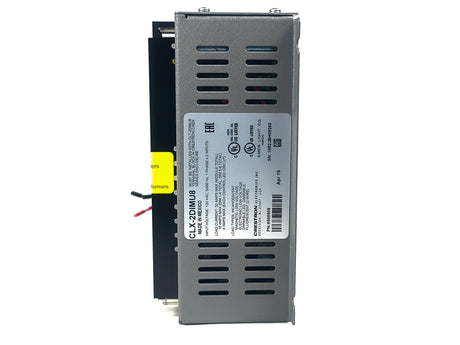

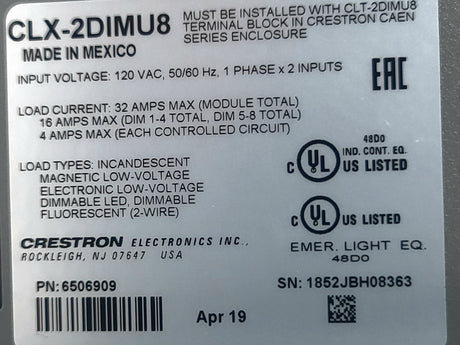

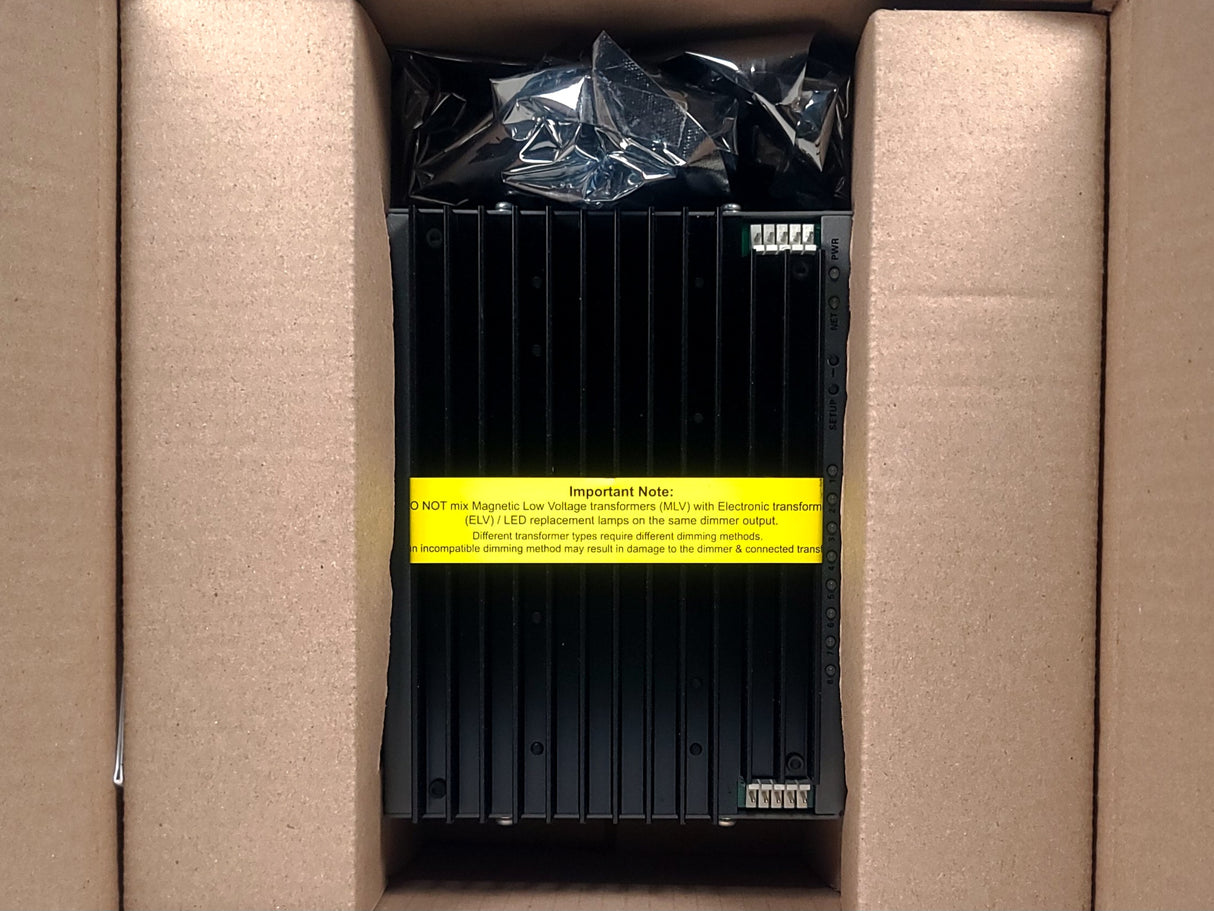

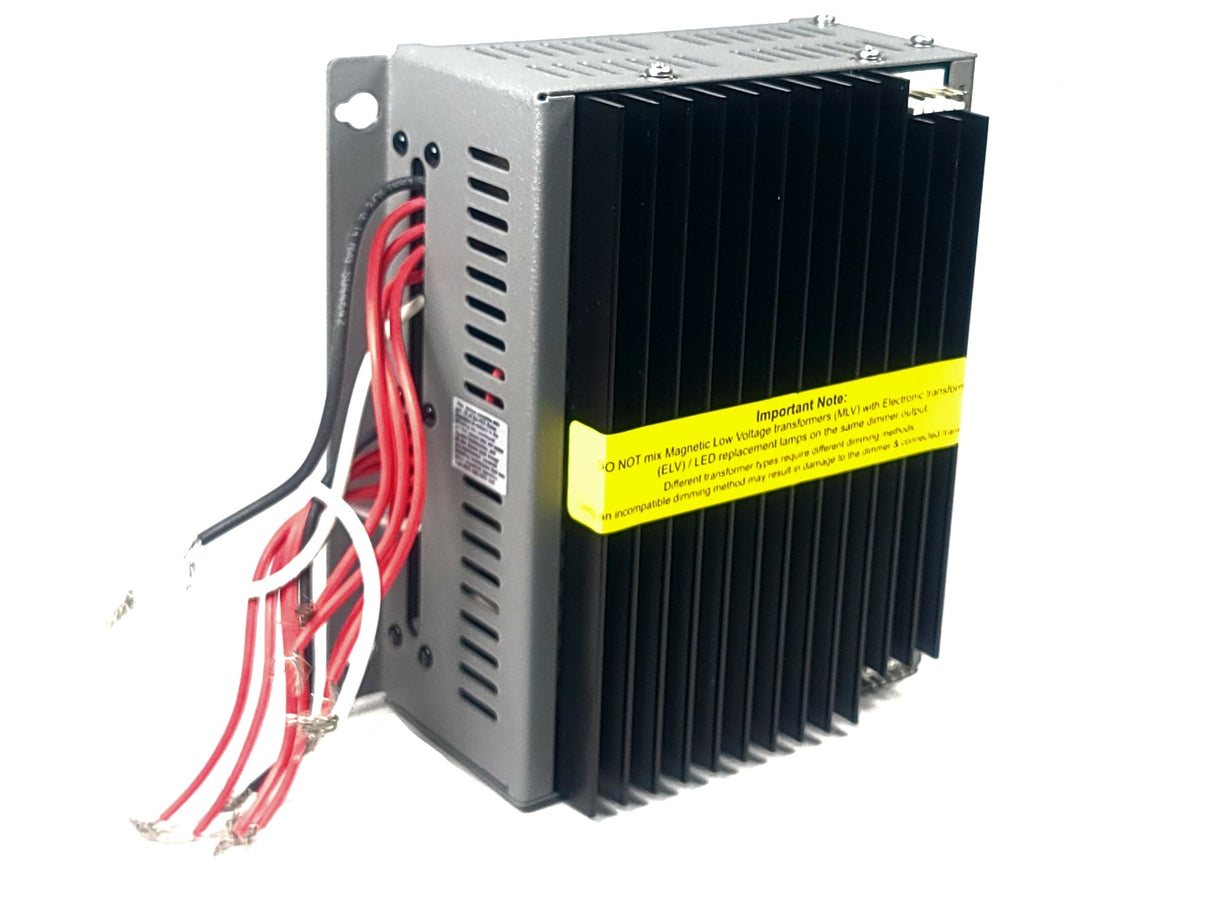

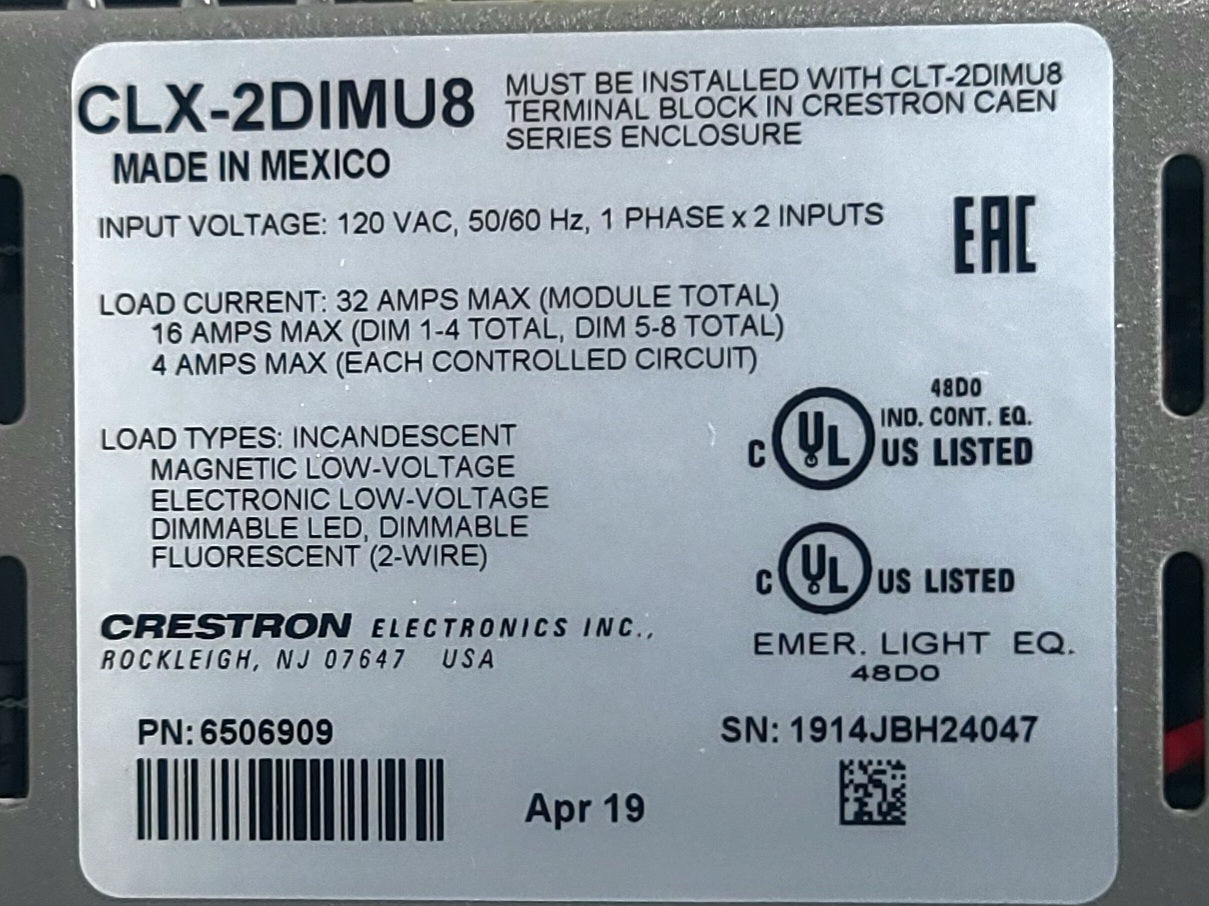

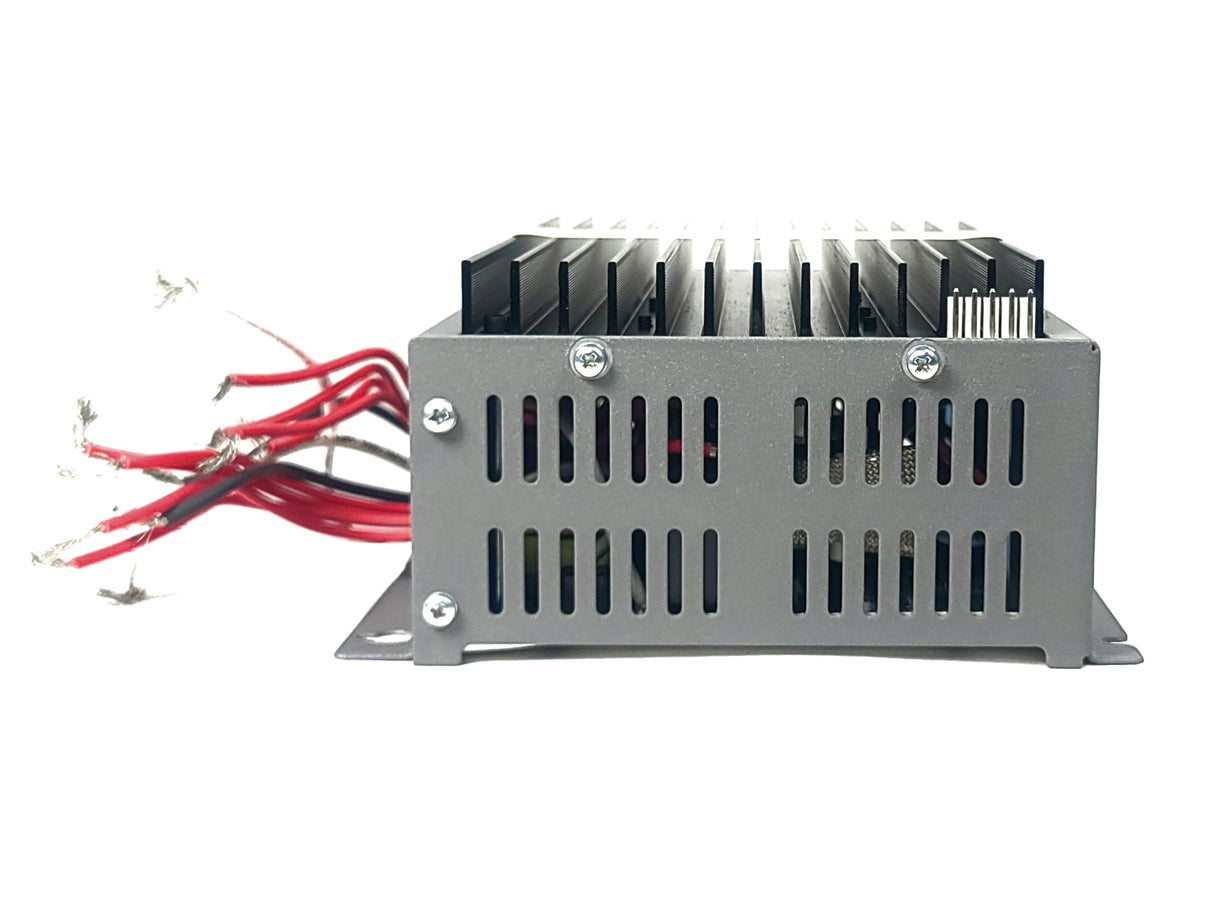

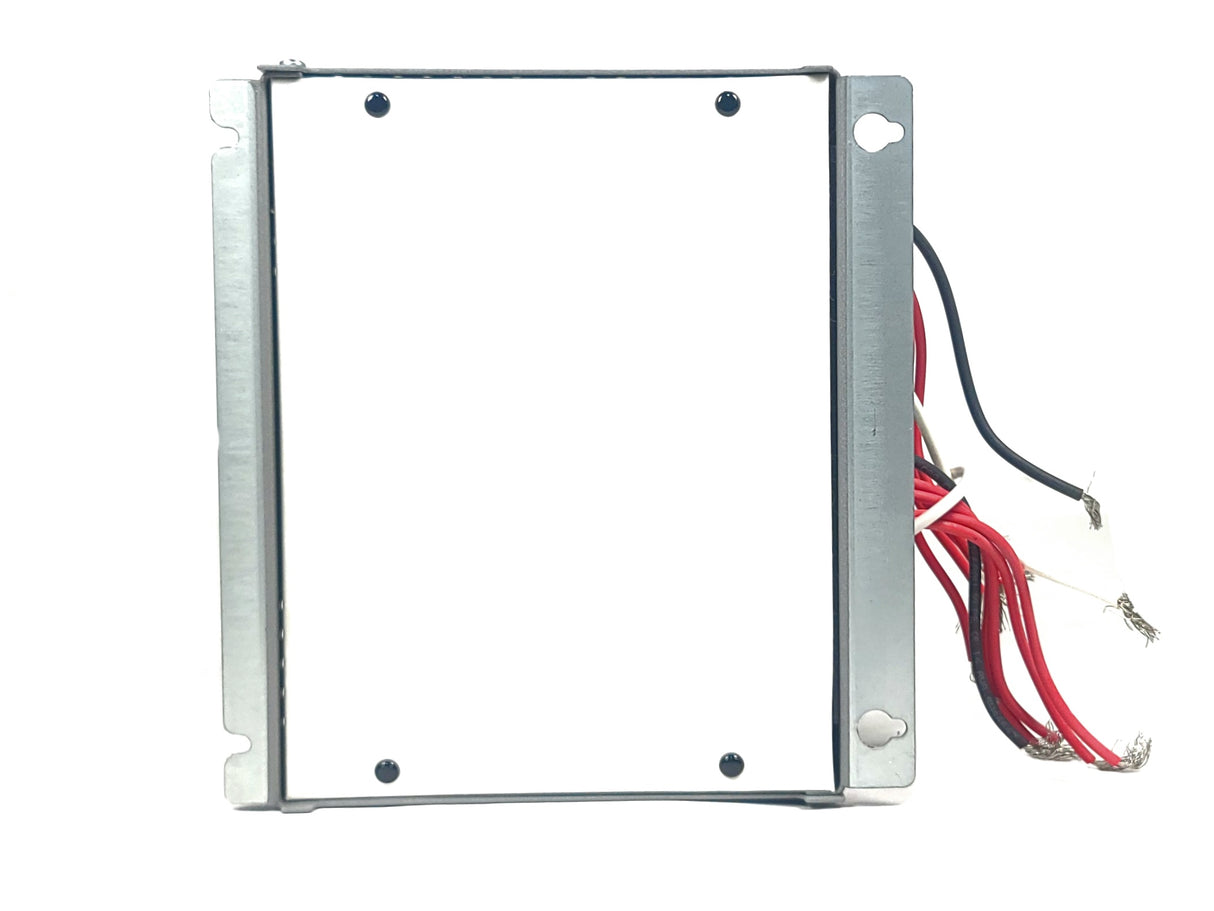

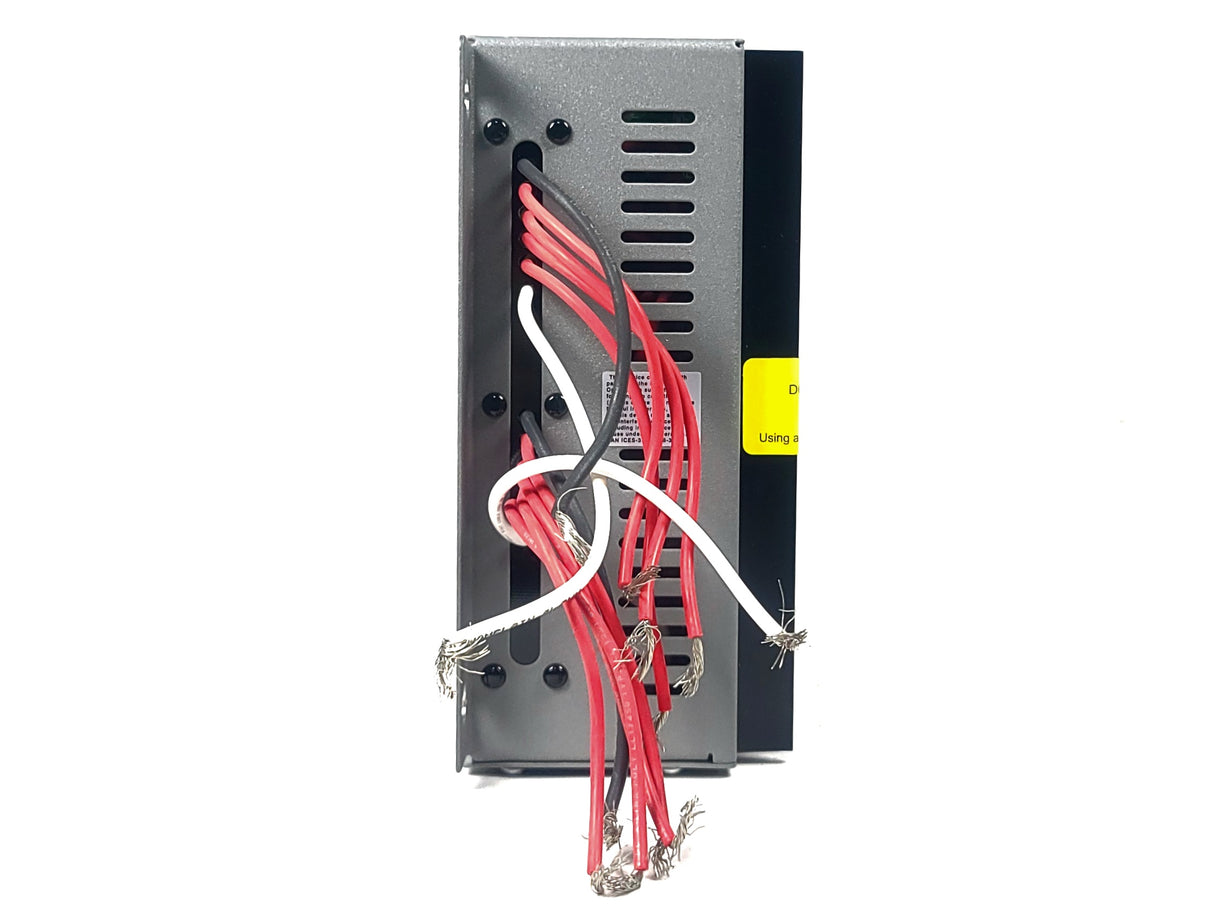

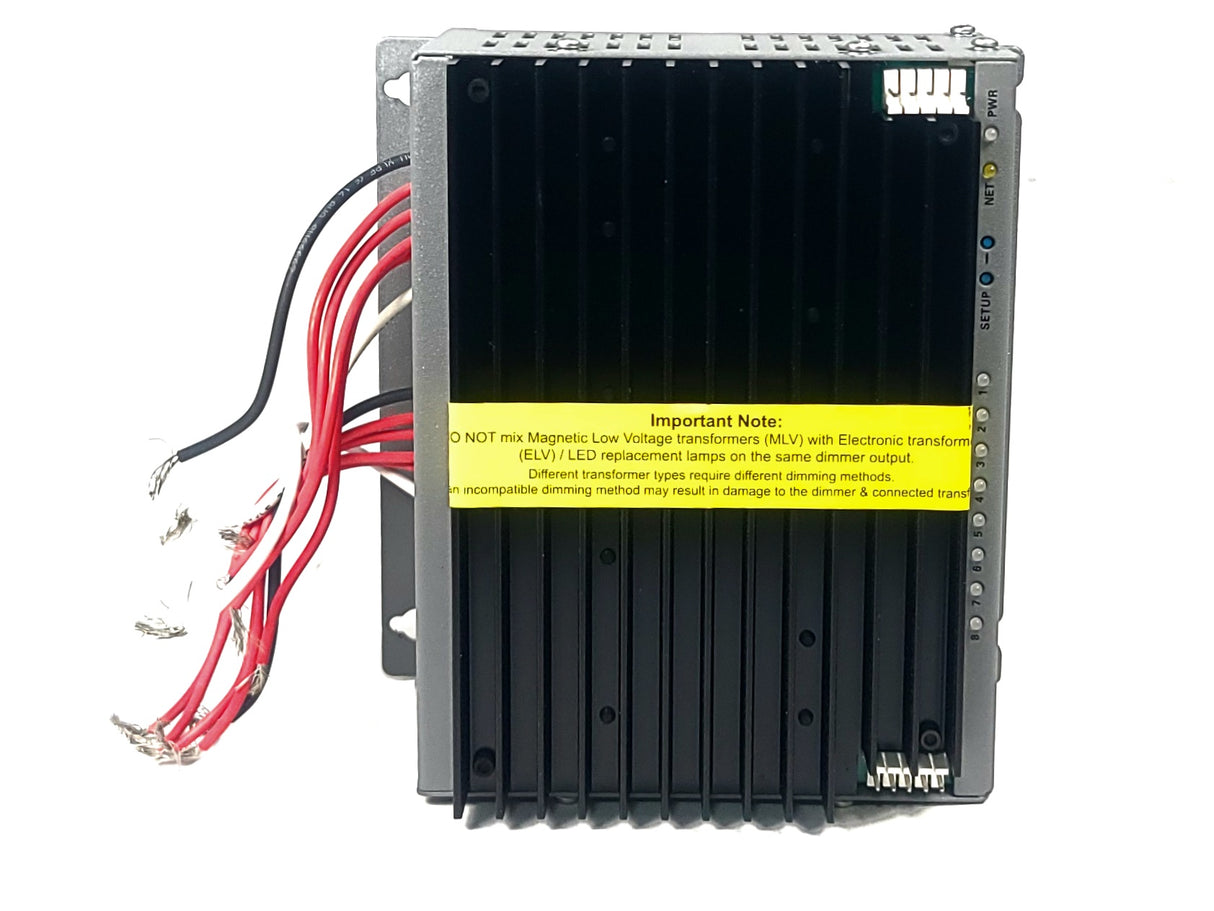

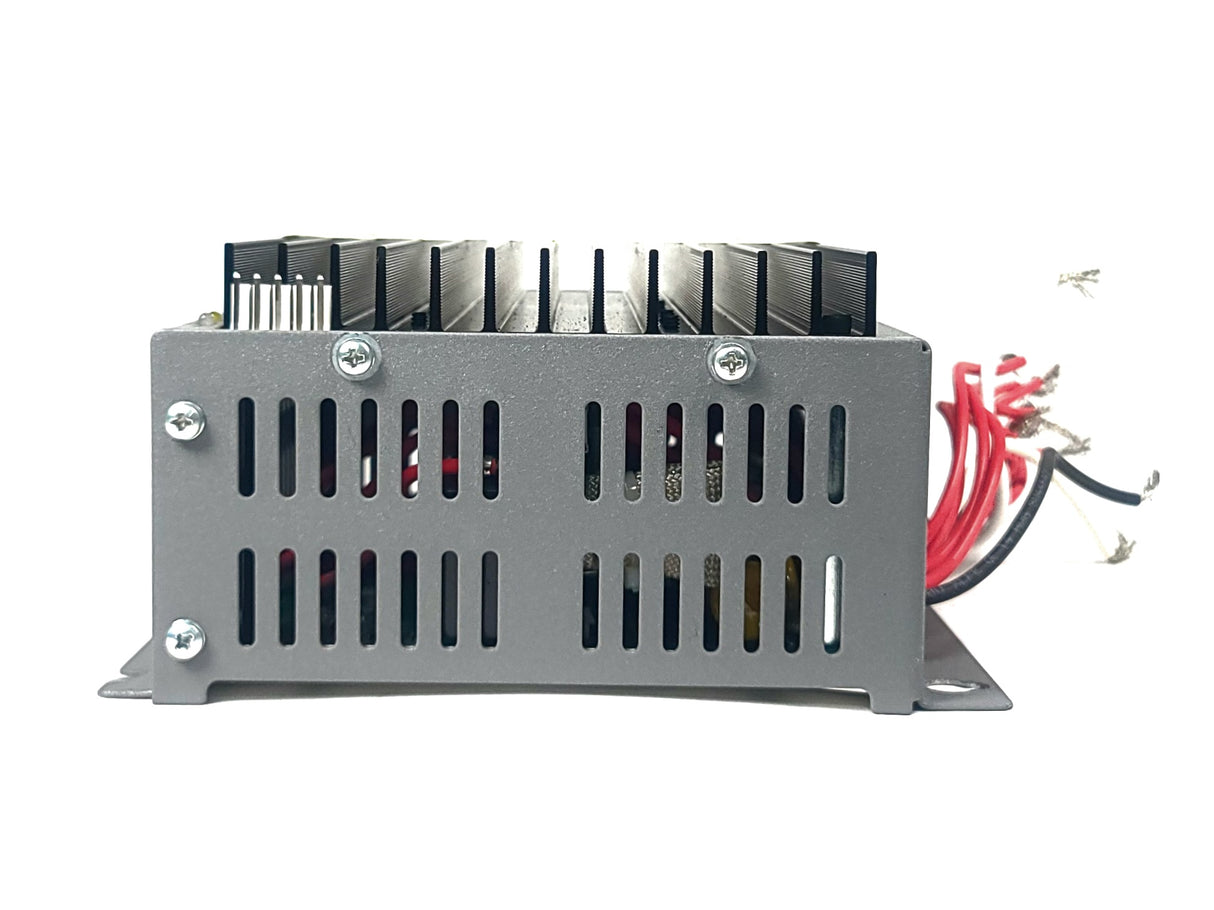

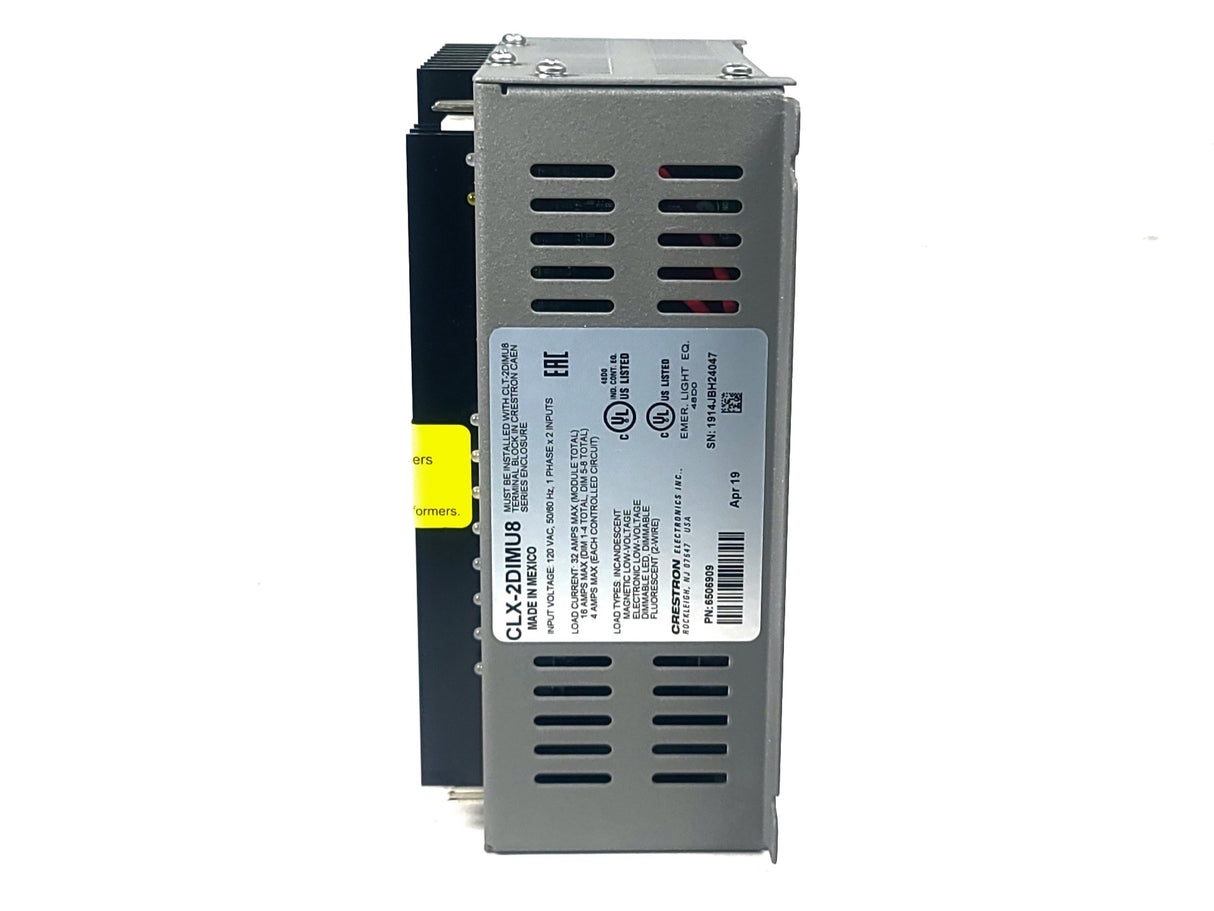

The Crestron CLX-2DIMU8 is an advanced 8-channel universal dimmer module engineered for centralized lighting control in residential and commercial automation systems. Installed in a CAEN or CAEN-MLO wall-mount enclosure, this module provides technologically sophisticated dimming for a wide range of 120-volt lighting loads including LED, incandescent, electronic low-voltage, magnetic low-voltage, and 2-wire dimmable fluorescent fixtures. The dual-feed design delivers two independent four-channel dimmers within a single module space, allowing flexible zone-based lighting design while conserving valuable enclosure capacity. Each output channel is rated for 480 watts, with a total module rating of 3,840 watts when fed from two separate 20-amp feeds.

Under normal operation, the CLX-2DIMU8 automatically detects the connected load type on each channel and selects the appropriate operating mode—reverse phase for incandescent and electronic low-voltage loads, or forward phase for magnetic low-voltage and inductive loads. This auto-detection can be overridden manually via software or programmatically through the control system. Patented Constant Power technology dramatically reduces lamp flicker and maximizes stability under noisy power line conditions by quickly adjusting the dimmer's on-time response to changes in input voltage, ensuring consistent power delivery to loads regardless of voltage sag or peak overshoot. Each channel includes a built-in air-gap relay for safe servicing of individual circuits without disabling the entire module. The combination of advanced protection circuitry, zero-cross filter technology, and silent convection cooling makes this module an exceptionally reliable solution for sophisticated lighting control environments such as home theaters, boardrooms, and luxury residences. The CLX-2DIMU8 is UL 924 and CSA C22.2 No. 141-15 listed for emergency lighting control and is fully compliant with CEC Title 24 2013 requirements.
