RME

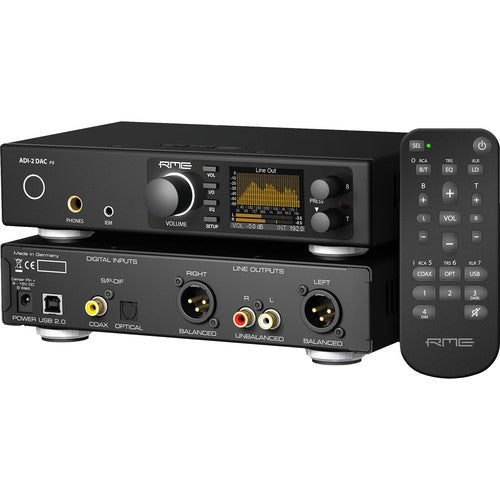

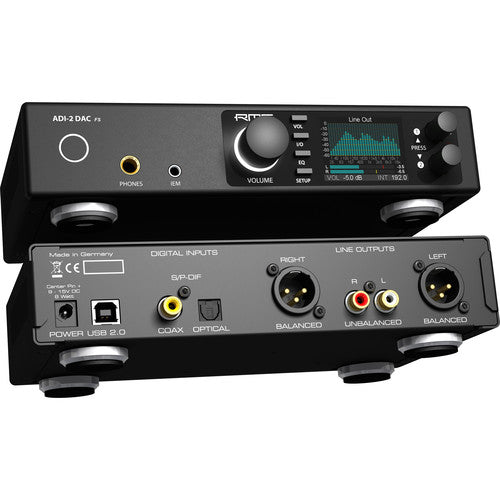

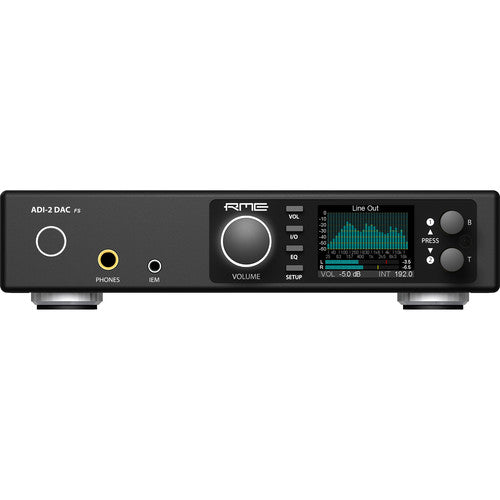

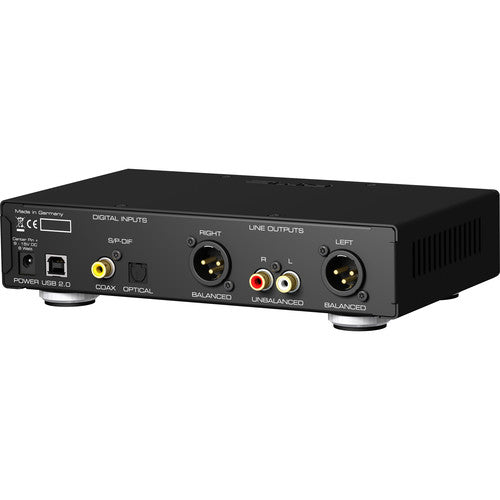

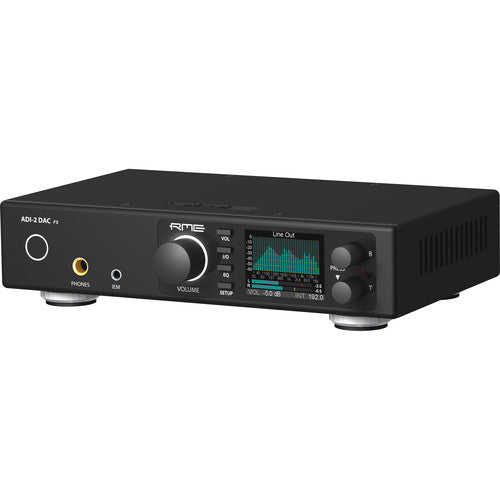

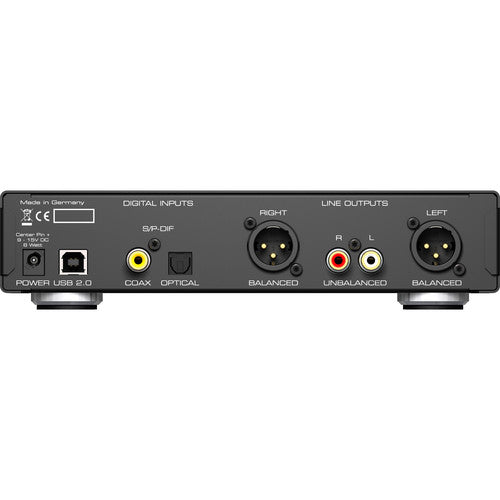

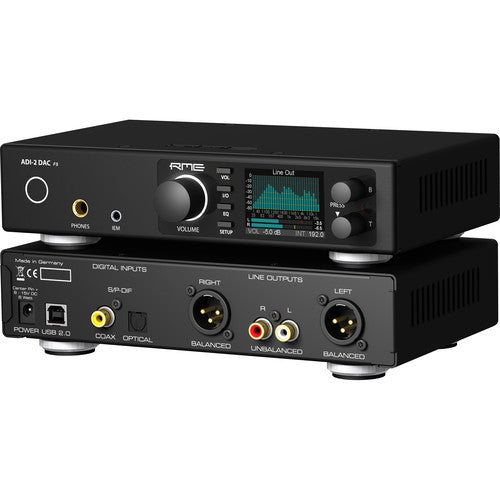

RME ADI-2 DAC FS Ultra-Fidelity PCM/DSD 768 kHz DA Converter

$1,299.00

The ADI-2 DAC includes an improved SteadyClock, a fine-tuned to perfection analog circuitry, new MRC remote control, Extreme Power headphone output and a very special IEM output. It has all the bells and whistles that made the ADI-2 Pro famous, including its perfectly transparent sound signature and full DSP processing with Bass, Treble, Loudness, 5 Band Parametric EQ, Crossfeed and much more. With its simplified operation and stunning design it is the ideal center piece from home listening up to studio reference playback.

The ADI-2 DAC is the home and hi-fi optimized version of the ADI-2 Pro, a studio AD/DA converter of the highest quality. With many fresh ideas, innovative features and numerous useful functions, the ADI-2 DAC quickly became the reference. Thanks to its combination of high-end DA conversion with two exceptional headphone IEM outputs and a remote control, it has received countless enthusiastic reviews for its sound, flexibility, and technical capabilities.

The current version of the ADI-2 DAC comes with an extended remote control, a further improved DA conversion and an adapted analog output stage for even better noise and distortion values. To address the home and HiFi users, RME exchanged some of the Pro's studio features with typical home and HiFi ones. With an adapted feature set and much simplified operation RME proudly presents the ADI-2 DAC. Built on the technology, concept and features of the ADI-2 Pro, the DAC concentrates on DA conversion in top high-end quality, along with two exceptional headphone and IEM outputs.

View Product Features
  • Studio-Quality 2-Channel USB DAC
  • High-End Headphone Amplifier
  • S/PDIF & ADAT Playback
  • DSD up to 768 kHz / DSD256
  • High-End Amplifier for iOS Devices
  • 32-Bit / 768 kHz Converters
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the RME ADI-2 DAC FS Ultra-Fidelity PCM/DSD 768 kHz DA Converter

The ADI-2 DAC is the home and hi-fi optimized version of the ADI-2 Pro, a studio AD/DA converter of the highest quality. With many fresh ideas, innovative features and numerous useful functions, the ADI-2 DAC quickly became the reference. Thanks to its combination of high-end DA conversion with two exceptional headphone IEM outputs and a remote control, it has received countless enthusiastic reviews for its sound, flexibility, and technical capabilities.

The current version of the ADI-2 DAC comes with an extended remote control, a further improved DA conversion and an adapted analog output stage for even better noise and distortion values. To address the home and HiFi users, RME exchanged some of the Pro's studio features with typical home and HiFi ones. With an adapted feature set and much simplified operation RME proudly presents the ADI-2 DAC. Built on the technology, concept and features of the ADI-2 Pro, the DAC concentrates on DA conversion in top high-end quality, along with two exceptional headphone and IEM outputs.

Key Features

  • Studio-Quality 2-Channel USB DAC
  • High-End Headphone Amplifier
  • S/PDIF & ADAT Playback
  • DSD up to 768 kHz / DSD256
  • High-End Amplifier for iOS Devices
  • 32-Bit / 768 kHz Converters

RME ADI-2 DAC FS Ultra-Fidelity PCM/DSD 768 kHz DA Converter Specs

General
Lock Range
28 kHz – 200 kHz
Jitter suppression
> 50 dB (2.4 kHz)
Jitter when synced to input signal
< 1 ns
Accepts Consumer and Professional format
SPDIF coaxial
1 x RCA, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
SPDIF optical
1 x optical, according to IEC 60958
ADAT compatible
XLR
Output level
switchable +19 dBu, +13 dBu, +7 dBu, +1 dBu @ 0 dBFS
Signal-to-noise ratio (SNR) @ +7/+13/+19 dBu
120 dB RMS unweighted, 123 dBA
Signal-to-noise ratio (SNR) @ +1 dBu
117 dB RMS unweighted, 120 dBA
Frequency response @ 44.1 kHz, -0.1 dB
0 Hz – 20.2 kHz
Frequency response @ 96 kHz, -0.5 dB
0 Hz – 44.9 kHz
Frequency response @ 192 kHz, -1 dB
0 Hz – 88 kHz
Frequency response @ 384 kHz, -1 dB
0 Hz – 115 kHz
Frequency response @ 768 kHz, -3 dB
0 Hz – 109 kHz
THD @ 0 dBFS
< -120 dB, 0.0001 %
THD+N @ 0 dBFS
-116 dB, 0.00016 %
Channel separation
> 120 dB
Output impedance
200 Ohm
RCA
Output
6.3 mm TS jack, unbalanced
Output level 6 dB lower than XLR (-5 dBu to +13 dBu @ 0 dBFS)
Signal-to-noise ratio (SNR) @ +13 dBu
120 dB RMS unweighted, 123 dBA
Signal-to-noise ratio (SNR) @ +1/+7 dBu
116/119 dB RMS unw., 119/122 dBA
Signal-to-noise ratio (SNR) @ -5 dBu
112 dB RMS unweighted, 114 dBA
Output impedance
100 Ohm
Phones
Output
6.3 mm TRS jack, unbalanced, stereo
Output impedance
0.1 Ohm
Signal-to-noise ratio (SNR) @ +22 dBu
120 dB RMS unweighted, 123 dBA
Signal-to-noise ratio (SNR) @ +7 dBu
118 dB RMS unweighted, 121 dBA
Output level at 0 dBFS, High Power, load 100 Ohm or up
+22 dBu (10 V)
Output level at 0 dBFS, Low Power, load 8 Ohm or up
+7 dBu (1.73 V)
THD @ +18 dBu, 32 ohm load, 1.2 watts
-120 dB, 0.0001 %
THD+N @ + 18 dBu, 32 Ohm Load
-114 dB, 0.0002 %
THD @ +14 dBu, 16 Ohm load, 0.94 Watt
-110 dB, 0.0003 %
Max power @ 0.001% THD
1.5 W per channel
IEM
Output level at 0 dBFS
-3 dBu, 0.55 V
Signal-to-noise ratio (SNR) @ -3 dBu
118 dB RMS unweighted, 121 dBA
Max power, 8 Ohm, 0.001% THD
40 mW per channel
Digital
Clocks
Internal, SPDIF In
Jitter suppression of external clocks
> 50 dB (2.4 kHz)
Effective clock jitter influence on DA conversion
near zero
PLL ensures zero dropout, even at more than 100 ns jitter
Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates for external clocks
28 kHz up to 200 kHz
Internally supported sample rates
44.1 kHz up to 768 kHz

Key Features

  • Studio-Quality 2-Channel USB DAC
  • High-End Headphone Amplifier
  • S/PDIF & ADAT Playback
  • DSD up to 768 kHz / DSD256
  • High-End Amplifier for iOS Devices
  • 32-Bit / 768 kHz Converters
