SKU: ADI 2 FS

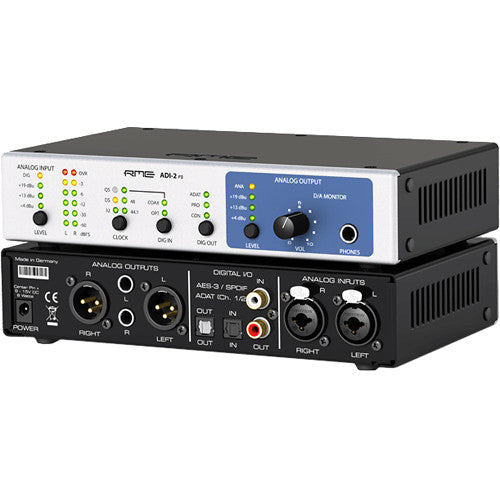

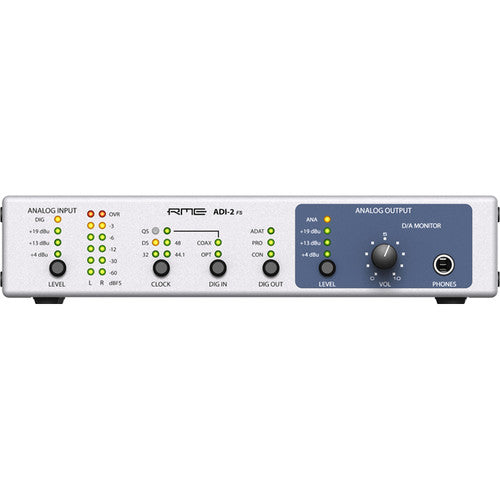

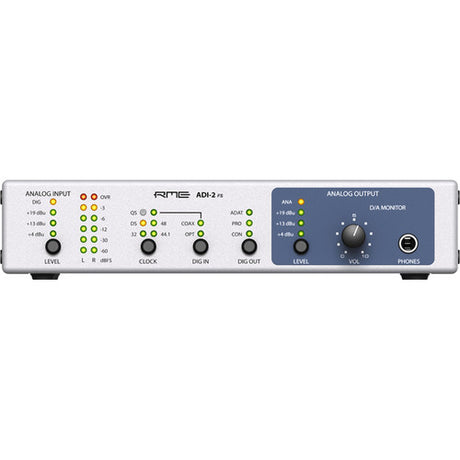

RME ADI-2 FS High-Precision 2-Channel AD-DA Converter

$949.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The ADI-2 FS is a compact and extremely flexible 2-channel Hi-End AD/DA-converter. The small 9.5" unit offers first-class AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz. Its ability to use SPDIF, AES and ADAT format provides outstanding compatibility. Balanced analog inputs and outputs, monitoring via headphone output, SteadyClock FS for optimal conversion quality, 3-stage hardware input and output level control and the additional modes D-D and A-A turn the ADI-2 FS into a universal tool and a flexible problem solver. Its pro-class sound qualifies it also as extension for other premium converters. The ADI-2 FS is equipped with two servo-balanced analog line inputs via XLR/phones combo jacks, simultaneously usable balanced XLR and unbalanced phone jacks, an adjustable High Power headphone output on the front, an ADAT compatible optical SPDIF I/O, and a coaxial SPDIF I/O (RCA, AES/EBU compatible). These extensive connectivity options provide most flexible and uncompromised signal transmission. Read more

Features

  • 2-Channel AD/DA Converter
  • Balanced to Unbalanced and Vice Versa
  • 24-Bit / 192 kHz Audio Conversion
  • 1 x High-Power Headphone Output
  • Supports ADAT, S/PDIF, AES/EBU

Business Financing Options Avaiable

The ADI-2 FS is a compact and extremely flexible 2-channel Hi-End AD/DA-converter. The small 9.5" unit offers first-class AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz. Its ability to use SPDIF, AES and ADAT format provides outstanding compatibility. Balanced analog inputs and outputs, monitoring via headphone output, SteadyClock FS for optimal conversion quality, 3-stage hardware input and output level control and the additional modes D-D and A-A turn the ADI-2 FS into a universal tool and a flexible problem solver. Its pro-class sound qualifies it also as extension for other premium converters. The ADI-2 FS is equipped with two servo-balanced analog line inputs via XLR/phones combo jacks, simultaneously usable balanced XLR and unbalanced phone jacks, an adjustable High Power headphone output on the front, an ADAT compatible optical SPDIF I/O, and a coaxial SPDIF I/O (RCA, AES/EBU compatible). These extensive connectivity options provide most flexible and uncompromised signal transmission. Read more

Features

  • 2-Channel AD/DA Converter
  • Balanced to Unbalanced and Vice Versa
  • 24-Bit / 192 kHz Audio Conversion
  • 1 x High-Power Headphone Output
  • Supports ADAT, S/PDIF, AES/EBU

About the RME ADI-2 FS High-Precision 2-Channel AD-DA Converter

Balanced analog inputs and outputs, monitoring via headphone output, SteadyClock FS for optimal conversion quality, 3-stage hardware input and output level control and the additional modes D-D and A-A turn the ADI-2 FS into a universal tool and a flexible problem solver. Its pro-class sound qualifies it also as extension for other premium converters.

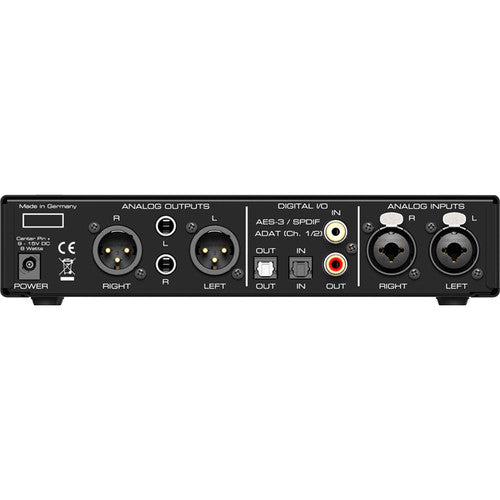

The ADI-2 FS is equipped with two servo-balanced analog line inputs via XLR/phones combo jacks, simultaneously usable balanced XLR and unbalanced phone jacks, an adjustable High Power headphone output on the front, an ADAT compatible optical SPDIF I/O, and a coaxial SPDIF I/O (RCA, AES/EBU compatible). These extensive connectivity options provide most flexible and uncompromised signal transmission.

Key Features

  • 2-Channel AD/DA Converter
  • Balanced to Unbalanced and Vice Versa
  • 24-Bit / 192 kHz Audio Conversion
  • 1 x High-Power Headphone Output
  • Supports ADAT, S/PDIF, AES/EBU

RME ADI-2 FS High-Precision 2-Channel AD-DA Converter Specs

Signal to Noise ratio (SNR) @ +19 dBu
117 dB RMS unweighted, 121 dBA
Frequency response @ 44.1 kHz, -0.1 dB
5 Hz – 20.5 kHz
Frequency response @ 96 kHz, -0.5 dB
3 Hz – 45.5 kHz
Frequency response @ 192 kHz, -1 dB
2 Hz – 92.7 kHz
THD @ -1 dBFS
-114 dB, 0.00015 %
THD+N @ -1 dBFS
-112 dB, 0.00025 %
Channel separation
> 110 dB
Max Input Level AD
+19 dBu
Input: XLR or 1/4" TRS, electronically balanced
Input impedance balanced
36 kOhm, unbalanced: 18 kOhm
Input sensitivity switchable
+4 dBu, +13 dBu, +19 dBu @ 0 dBFS

Key Features

  • 2-Channel AD/DA Converter
  • Balanced to Unbalanced and Vice Versa
  • 24-Bit / 192 kHz Audio Conversion
  • 1 x High-Power Headphone Output
  • Supports ADAT, S/PDIF, AES/EBU
