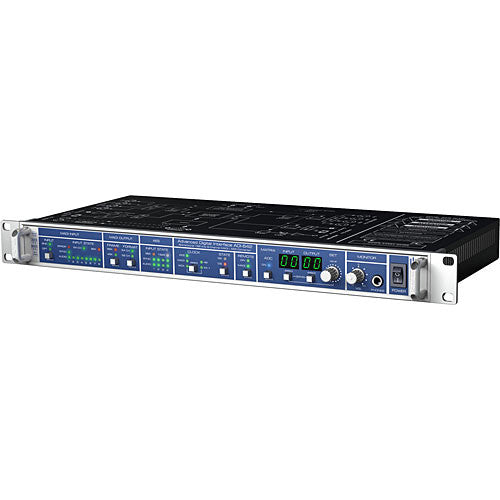

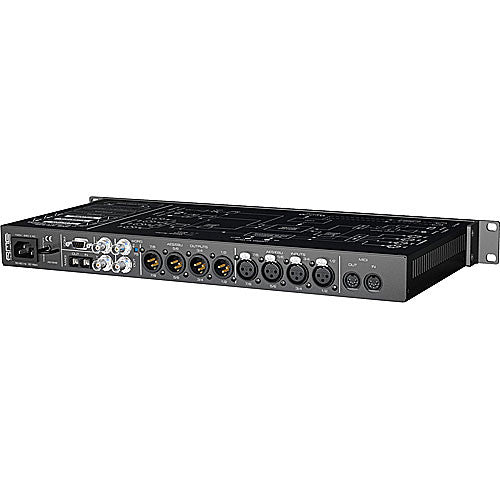

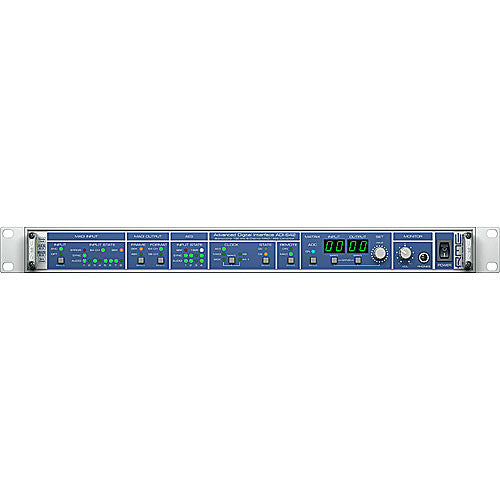

RME ADI-642 MADI/AES Format Converter
$2,749.00
Unit price
/
The ADI-642, an 8-Channel format converter from MADI to AES and vice versa, is the latest addition to RMEs successful MADI series. Amongst other applications, the unit can serve as ideal AES/EBU frontend for the Hammerfall DSP MADI PCI card. Up to 192 kHz at 24-Bit are supported. Its most outstanding feature is an easy-to-use 72 x 74 routing matrix, which can assign an individual input channel to every single output channel, allowing free configuration of all 64 MADI channels and the 8 AES channels.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
About the RME ADI-642 MADI/AES Format Converter
Key Features
RME ADI-642 MADI/AES Format Converter Specs
Conversion & Processing
MADI Channel Capacity (48 kHz)
64 channels
MADI Channel Capacity (96 kHz)
32 channels (Double Wire)
MADI Channel Capacity (192 kHz)
16 channels (Quad Wire)
Automatic Delay Compensation
Yes (for multi-unit stacking)
MADI Interface
Coaxial Input
1 x BNC (75 Ω)
Coaxial Output
1 x BNC (75 Ω)
Optical Input
1 x (SC duplex, network standard)
Optical Output
1 x (SC duplex, network standard)
Max Coaxial Cable Length
> 100 meters
Max Optical Cable Length
> 100 meters
Input Format Support
56-channel, 64-channel, 96k Frame
Redundancy Mode
Automatic input switching (optical/coaxial)
AES/EBU Interface
Input Connectors
4 x XLR (electrically isolated)
Output Connectors
4 x XLR (transformer balanced)
Input Sensitivity
Highly sensitive (< 0.3 Vpp), SPDIF compatible
Output Level
5 Vpp
Channel Count per Connector
2 channels (stereo pair)
Total AES Channels
8 inputs / 8 outputs
Analog Monitor Output
Connector Type
1 x Stereo (low impedance)
Function
Line output or headphone output
Maximum Sample Rate
192 kHz
Signal-to-Noise Ratio
112 dBA (at 192 kHz)
Routing Assignment
Any of the 36 stereo input pairs via matrix
