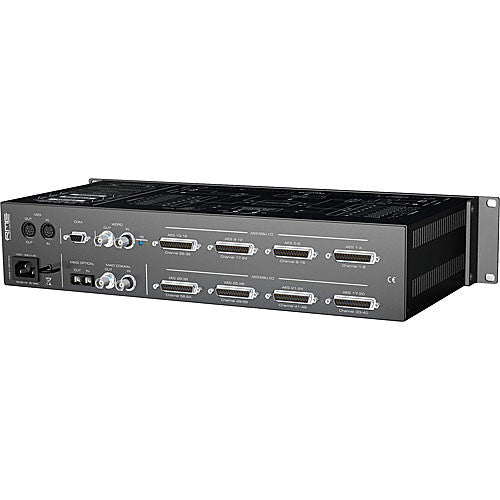

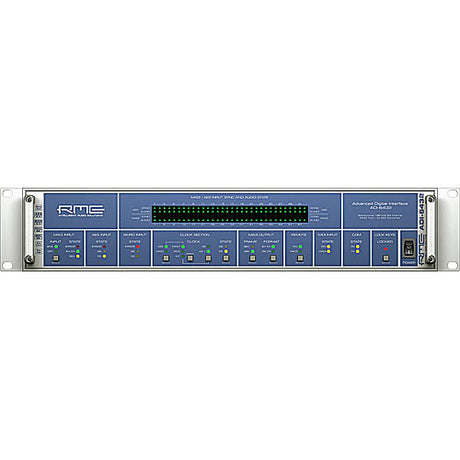

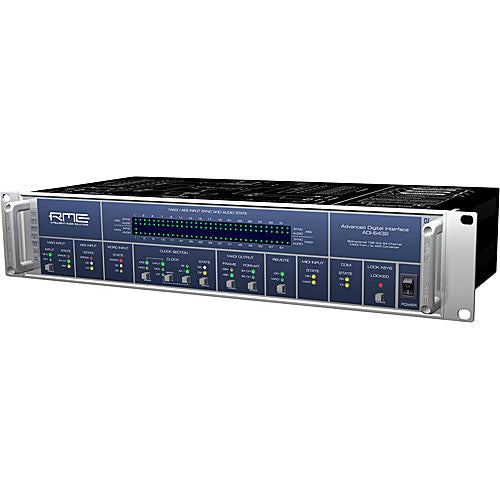

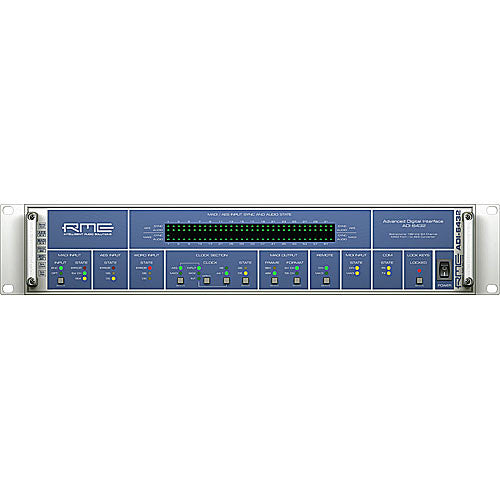

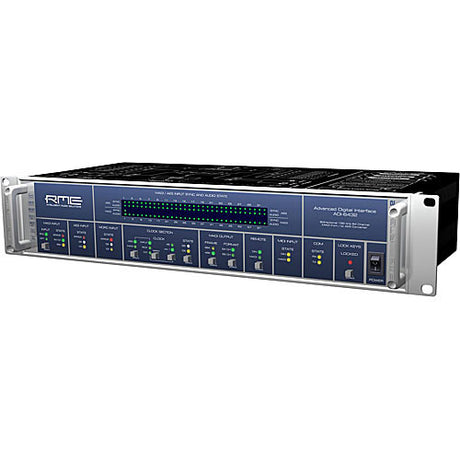

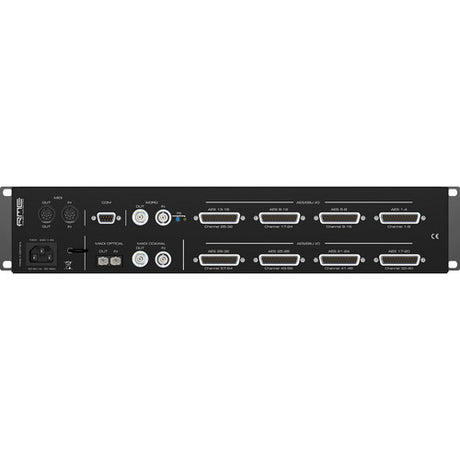

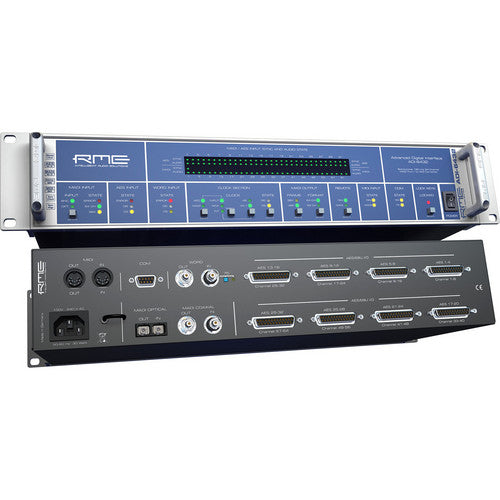

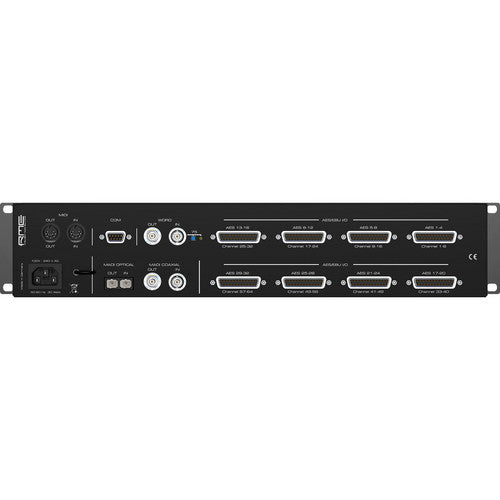

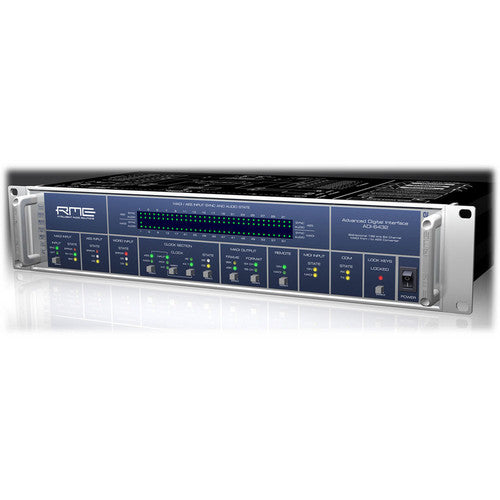

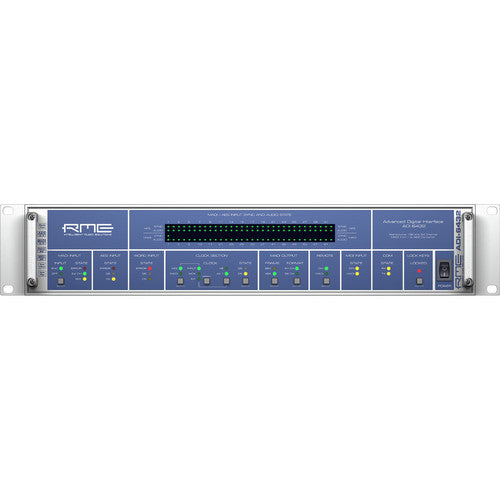

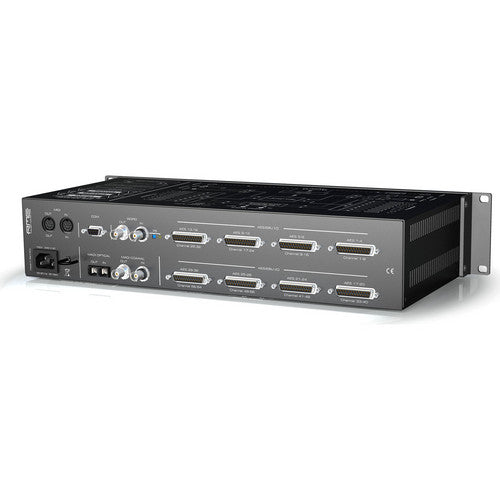

RME ADI-6432 MADI/AES Format Converter
$4,099.00
-
$6,199.00
Unit price
/
The ADI-6432 converts all 64 channels of a single MADI stream to 32 AES/EBU ports and vice versa. Thus it supports all 64 channels of the MADI format at up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Connected to the HDSP(e) MADI interface, the ADI-6432 turns into a powerful external 32-port AES/EBU interface. Two units will build a perfect digital multicore solution without any computer needed.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
-
New
-
-
New
ADI 6432 R BNC SINGLE

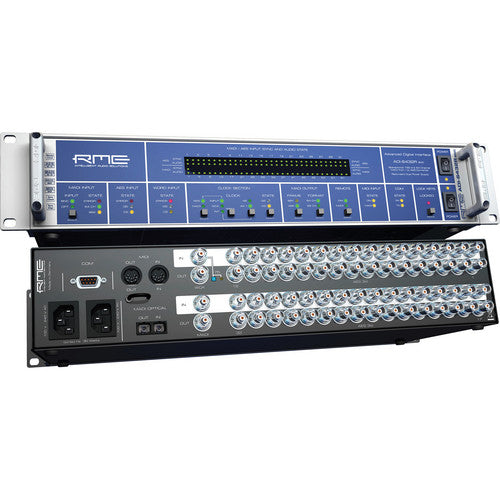

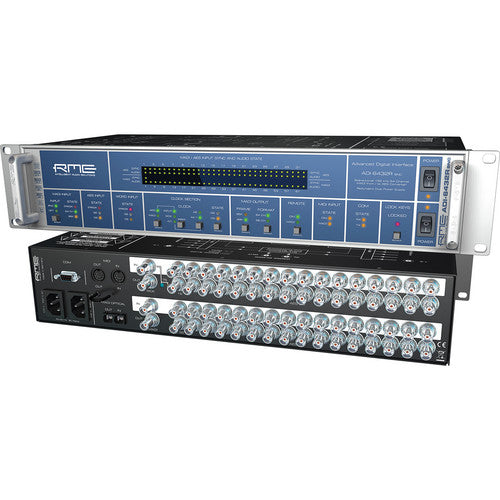

RME ADI-6432R BNC 64-Channel 192 kHz MADI/AES Format Converter (Single-Mode)
$6,199.00Unit price /View Product -
About the RME ADI-6432 MADI/AES Format Converter
Key Features
RME ADI-6432 MADI/AES Format Converter Specs
Input MADI
1 x BNC, 1 x optical
Input AES/EBU
32 x, 4 x per D-sub connector, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible
Output AES/EBU
32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp
Input word clock
BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
Output word clock
BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output
via two 5-pin DIN jacks
COM port
RS232 via 9-pin D-sub, 9600/19200/115200 Baud
Sync sources
MADI, AES, word clock, internal
Varipitch
by input signal or word clock
Sample frequencies
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
Sample rate range
MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
Jitter
Internal Clock < 1 ns, Word Clock In < 2 ns, AES/EBU In < 2 ns
Jitter suppression
>30 dB (2.4 kHz)
Jitter sensitivity
all PLLs operate error-free even at 100 ns
Power supply
Internal switching mode PS, 100V - 240V AC, 20 Watt
