RME

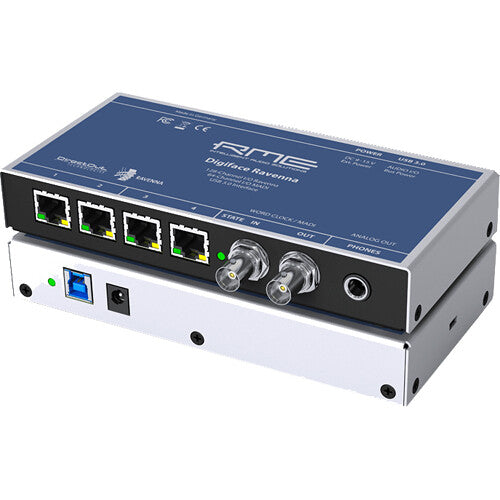

RME Digiface Ravenna 256-Channel USB Audio Interface

$2,099.00

The RME Digiface Ravenna 256-Channel USB Audio Interface is a portable, high-channel-count device designed to bridge the gap between computer audio systems and professional Ravenna and MADI audio networks, offering flexible connectivity and robust performance.

The RME Digiface Ravenna is a lightweight and portable audio interface developed in collaboration with DirectOut, based on the proven Digiface Dante design. It provides up to 128 channels of Ravenna audio via four RJ45 Ethernet ports and 64 channels of MADI I/O via two BNC coaxial ports, all simultaneously transferable via a single USB 3.0 connection to a computer. This interface supports a full Ravenna stack with compatibility for industry standards like AES67, ST 2110-30/31, and ST 2022-7, ensuring seamless interoperability in broadcast and professional A/V environments.

View Product Features
  • 128 inputs and 128 outputs for network audio

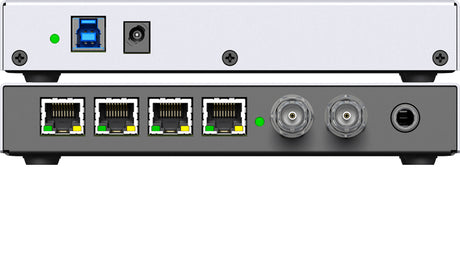

  • Four RJ45 Ethernet and two BNC MADI/Word Clock ports
  • AES67 and ST 2110-30/31 compatibility for interoperability
  • TotalMix FX for zero-latency routing and submixes
  • Standalone 64-channel converter without computer connection
  • USB 3.0 high-bandwidth with low-latency drivers
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Digiface Ravenna

    RME Digiface Ravenna 256-Channel USB Audio Interface

    $2,099.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME Digiface Ravenna 256-Channel USB Audio Interface

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

Key Features

  • 128 inputs and 128 outputs for network audio
  • Four RJ45 Ethernet and two BNC MADI/Word Clock ports
  • AES67 and ST 2110-30/31 compatibility for interoperability
  • TotalMix FX for zero-latency routing and submixes
  • Standalone 64-channel converter without computer connection
  • USB 3.0 high-bandwidth with low-latency drivers

RME Digiface Ravenna 256-Channel USB Audio Interface Specs

Gigabit Ethernet Port
RJ45
100 Mbit/s, 1 Gbit/s
Standard port LEDs
yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)
RAVENNA Modul
Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes
Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources
PTP, Internal
Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing
Channel-based routing matrix
Configuration
Browser GUI, globcon control, NMOS IS-04 / IS-05
MADI Input
Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard
up to 64 channels 24 bit 48 kHz
S/MUX
up to 32 channels 24 bit 96 kHz
S/MUX4
up to 16 channels 24 bit 192 kHz
Lock range
25 kHz – 54 kHz
MADI Output
Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length
up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard
up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame
up to 32 channels 24 bit 96 kHz
S/MUX4
up to 16 channels 24 bit 192 kHz
Output Analog Phones 129/130
Dynamic range (DR)
110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB
0 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB
0 Hz – 45 kHz
Frequency response @ 192 kHz, -1 dB
0 Hz - 89 kHz
THD @ -1 dBFS
- 96 dB, 0.0016 %
THD+N @ -1 dBFS
-95 dB, 0.0017 %
Channel separation
> 100 dB
Output
6.3 mm TRS jack, unbalanced
Output impedance
2 Ohm
Output level at 0 dBFS, 1 kOhm load
+9.5 dBu
Max power @ 0.1% THD
50 mW
Word Clock In
BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed
Word Clock Out
BNC
Max level
5 Vss
Level with termination 75 Ohm
4.0 Vss
Internal impedance
10 Ohm
Digital
Clocks
Internal, RAVENNA (PTP), word, MADI
Supported sample rates
44.1 kHz up to 192 kHz
