RME

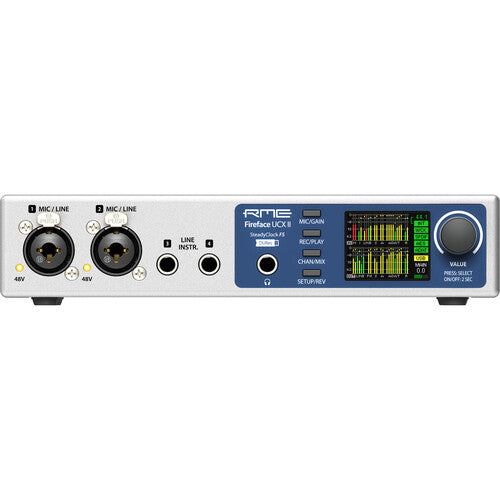

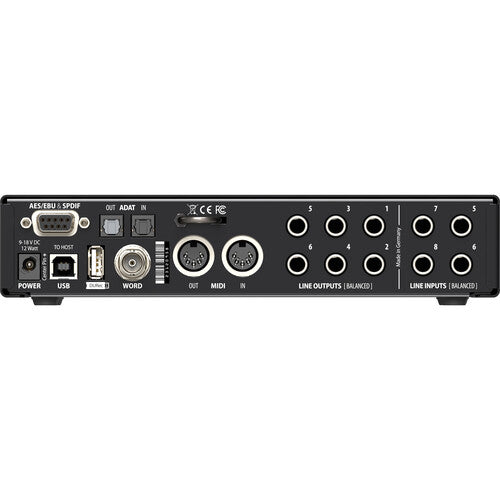

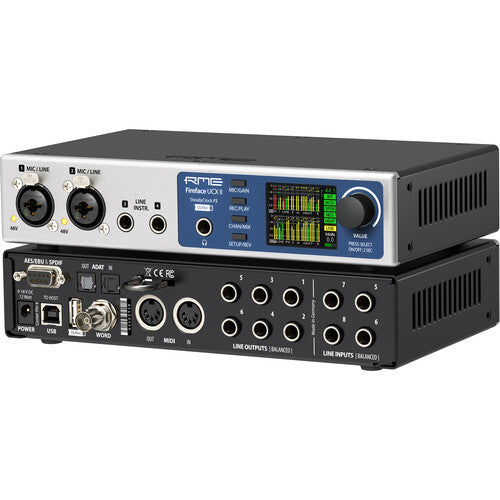

RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface

$1,699.00

The RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface is a powerful and portable half-rack professional audio solution, offering 20 inputs and 20 outputs with high-quality conversion and extensive connectivity options. It is well-regarded for its exceptional sound quality and stable, low-latency performance.

The RME Fireface UCX II is a highly integrated, ultra-compact pro audio solution designed for both studio and mobile recording environments. It packs a wide array of analog and digital I/O options into a half-rack chassis, a feature typically found in much larger interfaces. Key to its performance is the inclusion of RME's latest SteadyClock FS technology, which employs a femtosecond clock to reduce jitter to incredibly low levels, ensuring pristine audio and rock-solid synchronization across all digital formats.

The interface also boasts a powerful, DSP-based TotalMix FX mixer, providing latency-free monitoring and a full suite of effects (EQ, dynamics, reverb, delay) for every channel, which can even be controlled remotely via Ethernet or WiFi using the TotalMix Remote application. For added flexibility, the unit offers full standalone operation via a color display and front-panel controls, as well as a DURec port for direct recording/playback to external USB drives without a computer.

View Product Features

  • 20 inputs and 20 outputs for extensive routing
  • Two digitally controlled mic/line preamps for reference recording
  • SteadyClock FS circuit for minimal jitter clocking
  • Latency-free monitoring with full effects suite
  • DURec captures audio directly to external drives
  • DC-coupled outputs send CV/gate to modular synths
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface

This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II.

Key Features

  • 20 inputs and 20 outputs for extensive routing
  • Two digitally controlled mic/line preamps for reference recording
  • SteadyClock FS circuit for minimal jitter clocking
  • Latency-free monitoring with full effects suite
  • DURec captures audio directly to external drives
  • DC-coupled outputs send CV/gate to modular synths

RME Fireface UCX II 40-Channel USB-B Audio/MIDI Interface Specs

Resolution AD
24 bit
Signal to Noise ratio (SNR)
112 dB RMS unweighted, 115 dBA
Frequency response @ 44.1 kHz, -0.1 dB
5 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB
3 Hz – 45.8 kHz
Frequency response @ 192 kHz, -1 dB
2 Hz – 92 kHz
THD
< -110 dB, < 0.00032 %
THD+N
< -104 dB, < 0.00063 %
Channel separation
> 110 dB
Input
6.3 mm TRS jack, electronically balanced
Input impedance
8 kOhm unbalanced, 12 kOhm balanced
Input sensitivity switchable to +19 dBu and +13 dBu
Variable gain
0 to +12 dB
Minimum level for 0 dBFS
+1 dBu, -1.2 dBV

Key Features

  • 20 inputs and 20 outputs for extensive routing
  • Two digitally controlled mic/line preamps for reference recording
  • SteadyClock FS circuit for minimal jitter clocking
  • Latency-free monitoring with full effects suite
  • DURec captures audio directly to external drives
  • DC-coupled outputs send CV/gate to modular synths
