RME

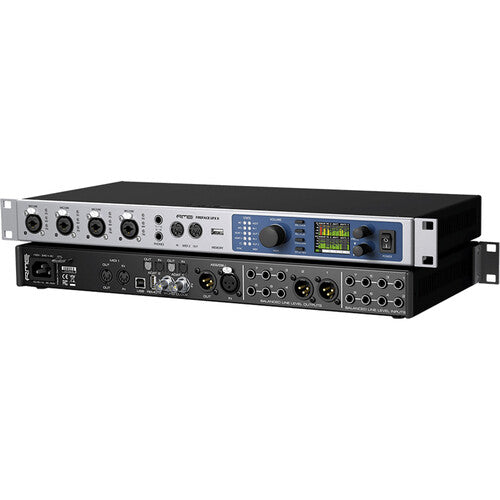

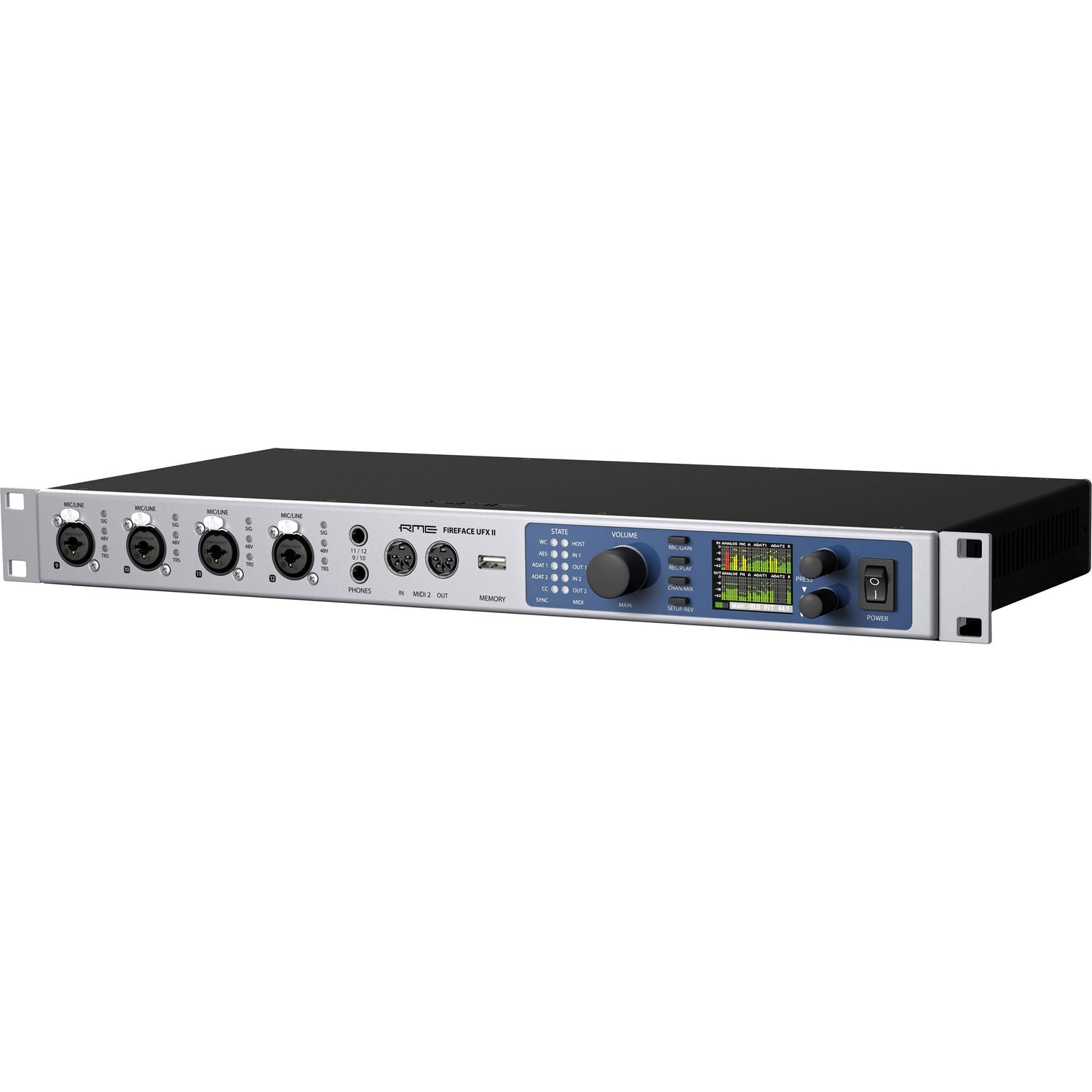

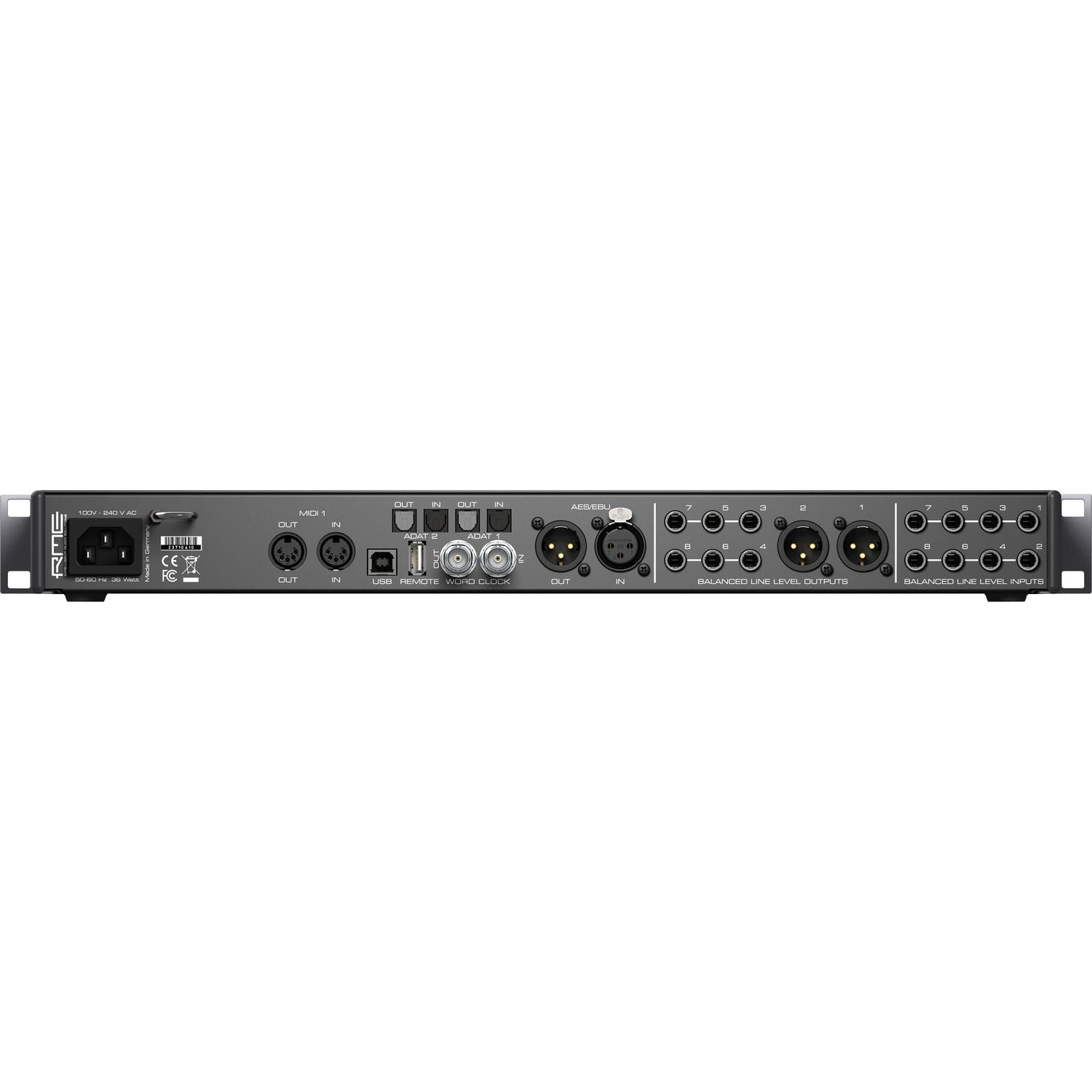

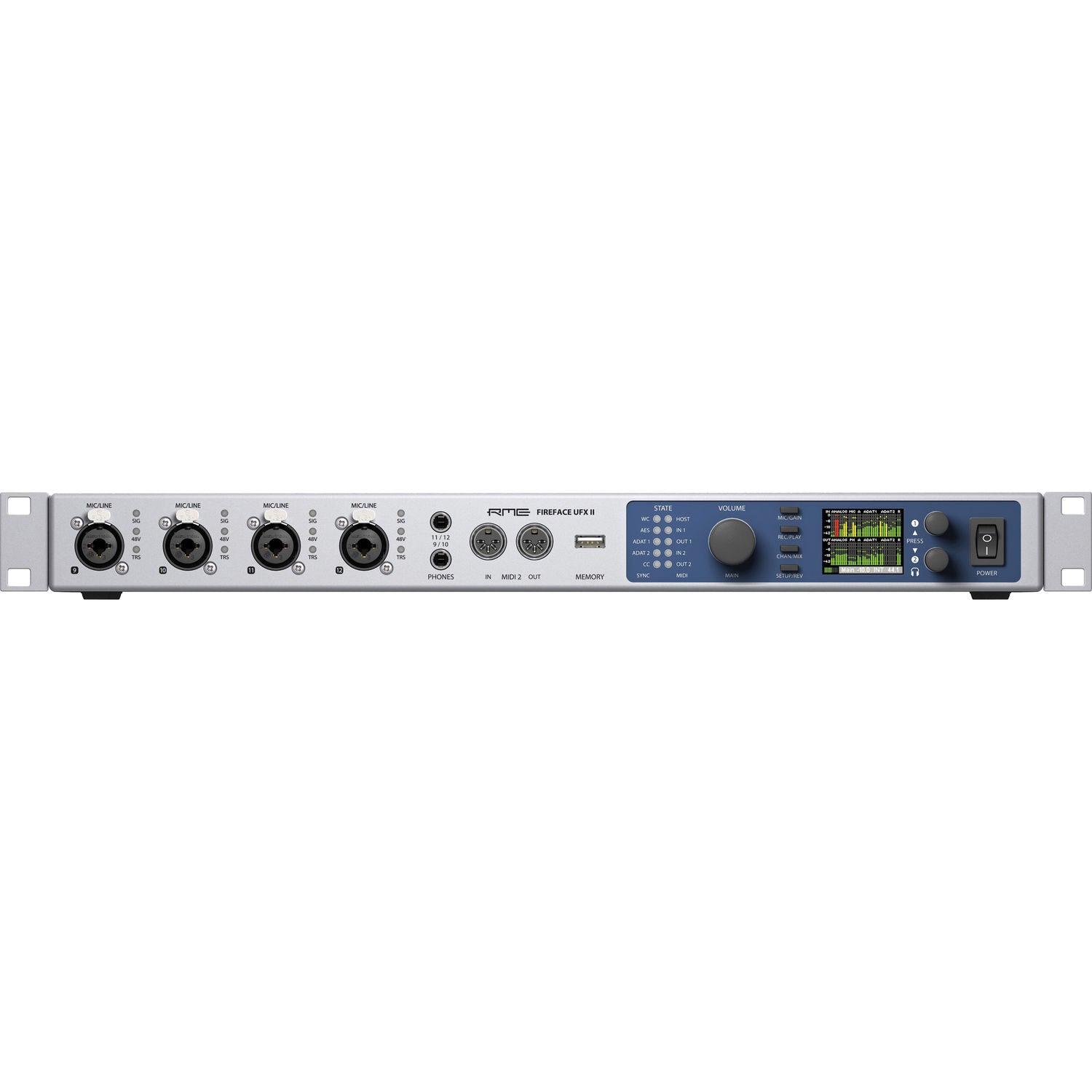

RME Fireface UFX II 60-Channel USB-B Audio/MIDI Interface with SteadyClock FS

$2,799.00

The RME Fireface UFX II serves as a robust solution for transferring analog and digital audio data directly to a computer from virtually any source. It provides 30 input and 30 output channels with support for sampling frequencies up to 192 kHz. The interface features premium AD/DA converters, optimized analog I/O circuits, and RME's SteadyClock FS technology for superior jitter rejection and transparent audio. A key standalone feature is DURec (Direct USB Recording), which allows direct recording of all inputs and outputs to a USB storage device connected to the front panel, without the need for a computer. The powerful, DSP-based TotalMix FX mixer provides comprehensive routing and monitoring solutions, complete with integrated effects like EQ, dynamics, reverb, and delay for creating latency-free monitor mixes.

View Product Features

  • 30 input & 30 output channels for varied applications
  • Premium AD/DA converters for crystal clear sound
  • DURec records audio directly to USB drives
  • SteadyClock FS for super low jitter sync
  • Analog ADAT AES S/PDIF and MIDI I/O
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the RME Fireface UFX II 60-Channel USB-B Audio/MIDI Interface with SteadyClock FS

With exceptional flexibility and compatibility, the inclusion of DURec (Direct USB Recording), and RME’s famous low latency hardware and driver designs, the Fireface UFX II delivers a rich feature set that will appeal to users in both high end home studios and commercial audio production facilities.

With capacity for 60 audio channels (30 input and 30 output), support for sampling frequencies upward of 192 kHz, and the flexibility provided by USB connectivity, the new Fireface UFX II is an ideal solution to a wide range of recording, mixing, and monitoring applications.

Key Features

  • 30 input & 30 output channels for varied applications
  • Premium AD/DA converters for crystal clear sound
  • DURec records audio directly to USB drives
  • SteadyClock FS for super low jitter sync
  • Analog ADAT AES S/PDIF and MIDI I/O

RME Fireface UFX II 60-Channel USB-B Audio/MIDI Interface with SteadyClock FS Specs

Input
6.3 mm TRS, electronically balanced
Signal to Noise ratio (SNR) @ LoGain
116 dB (AES17), 118 dBA
Signal to Noise ratio (SNR) @ +4 dBu
115 dB (AES17), 117 dBA
Frequency response @ 44.1 kHz, -0.1 dB
8.9 Hz – 20.4 kHz
Frequency response @ 96 kHz, -0.5 dB
4.3 Hz – 45.2 kHz
Frequency response @ 192 kHz, -1 dB
3 Hz – 89 kHz
Filter
Short Delay Sharp, 5 / 5 / 6 samples delay
THD @ -1 dBFS
< -120 dB, < 0.0001 %
THD+N @ -1 dBFS
< -110 dB, < 0.00032 %
Channel separation
> 110 dB
Maximum input level
+19 dBu
Input impedance @ 1 kHz
10 kOhm unbalanced, 10.6 kOhm balanced Input sensitivity switchable between Lo Gain and +4 dBu
Input level for 0 dBFS @ Lo Gain
+19 dBu
Input level for 0 dBFS @ +4 dBu
+13 dBu
Variable digital gain
0 to +12 dB
Minimum level for 0 dBFS
+1 dBu, -1.2 dBV

Key Features

  • 30 input & 30 output channels for varied applications
  • Premium AD/DA converters for crystal clear sound
  • DURec records audio directly to USB drives
  • SteadyClock FS for super low jitter sync
  • Analog ADAT AES S/PDIF and MIDI I/O
