RME

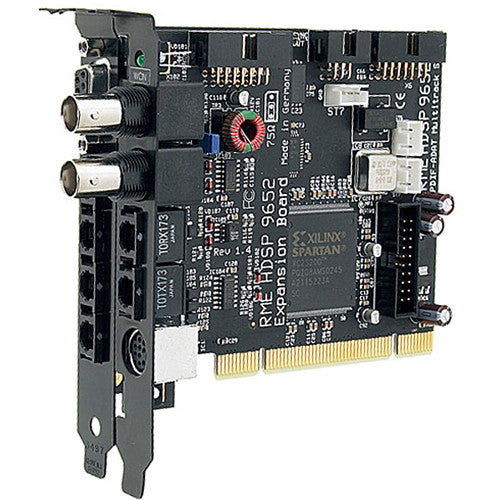

RME HDSP 9652 PCI Card

$699.00

The HDSP 9652 from RME is a digital I/O PCI card for use with both Windows and Mac OS based computers. It offers three sets of ADAT optical I/O, ADAT-Sync In, SPDIF I/O and word clock I/O. Also included are two MIDI inputs and outputs (for a total of thirty-two channel) and TotalMix, a DSP-based real-time software mixer/router.

A clear structured and easy to understand set-up window plus an informative status windows for input signal, clock mode, sample rate and time code make working with the HDSP 9652 a real pleasure. When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RME's SyncCheck function checks all input signals and displays their actual state.

View Product Features
  • 3 x ADAT digital I/O, based on RME's reliable Bitclock PLL
  • 1 x SPDIF digital I/O, based on RME's reliable DIGI96 technology
  • 1 x Breakout cable for coaxial SPDIF operation
  • 1 x ADAT Sync In (9-pin D-type) for sample accurate transfers
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  • New

    HDSP 96/52

    RME HDSP 9652 PCI Card

    $699.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME HDSP 9652 PCI Card

The HDSP 9652 also supports Expansion Boards (EXB). Two internal ADAT inputs and two internal ADAT outputs allow you to realize up to 16 analog inputs, 16 analog outputs, or up to two TDIF ports directly inside the computer.

Thanks to its unique Zero CPU Load technology Hammerfall DSP guarantees highest performance and lowest latency together with full flexibility!

The HDSP 9652's Secure BIOS Technology allows to perform hardware updates via software/driver without any risk.

Key Features

  • 3 x ADAT digital I/O, based on RME's reliable Bitclock PLL
  • 1 x SPDIF digital I/O, based on RME's reliable DIGI96 technology
  • 1 x Breakout cable for coaxial SPDIF operation
  • 1 x ADAT Sync In (9-pin D-type) for sample accurate transfers
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable

RME HDSP 9652 PCI Card Specs

Supported sample rates
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable
8 buffer sizes/latencies available
1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
ASIO zero CPU load technology
0 (zero!)% CPU load when using ALL 52 channels!
All settings changeable in real-time
Clock modes slave and master
Automatic and intelligent master/slave clock control
Enhanced Mixed mode
All inputs and outputs simultaneously operational
Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring
DIGICheck, the ultimate measurement, analysis and test tool
Input
3 x optical (TOSLINK), 1 x coaxial (RCA), 2 x MIDI, word clock (BNC)
Input format
SPDIF, AES/EBU (Consumer, Professional), ADAT® optical
Output
3 x optical (TOSLINK), coaxial (RCA), 2 x MIDI, word clock (BNC)
Output Format
SPDIF, AES/EBU (Consumer/Professional), ADAT® optical
Supported sample rates
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable
8 buffer sizes/latencies available
1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
ASIO zero CPU load technology
0 (zero!)% CPU load when using ALL 52 channels!
All settings changeable in real-time
Clock modes slave and master
Automatic and intelligent master/slave clock control
Enhanced Mixed mode
All inputs and outputs simultaneously operational
Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring
DIGICheck, the ultimate measurement, analysis and test tool

Key Features

  • 3 x ADAT digital I/O, based on RME's reliable Bitclock PLL
  • 1 x SPDIF digital I/O, based on RME's reliable DIGI96 technology
  • 1 x Breakout cable for coaxial SPDIF operation
  • 1 x ADAT Sync In (9-pin D-type) for sample accurate transfers
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
