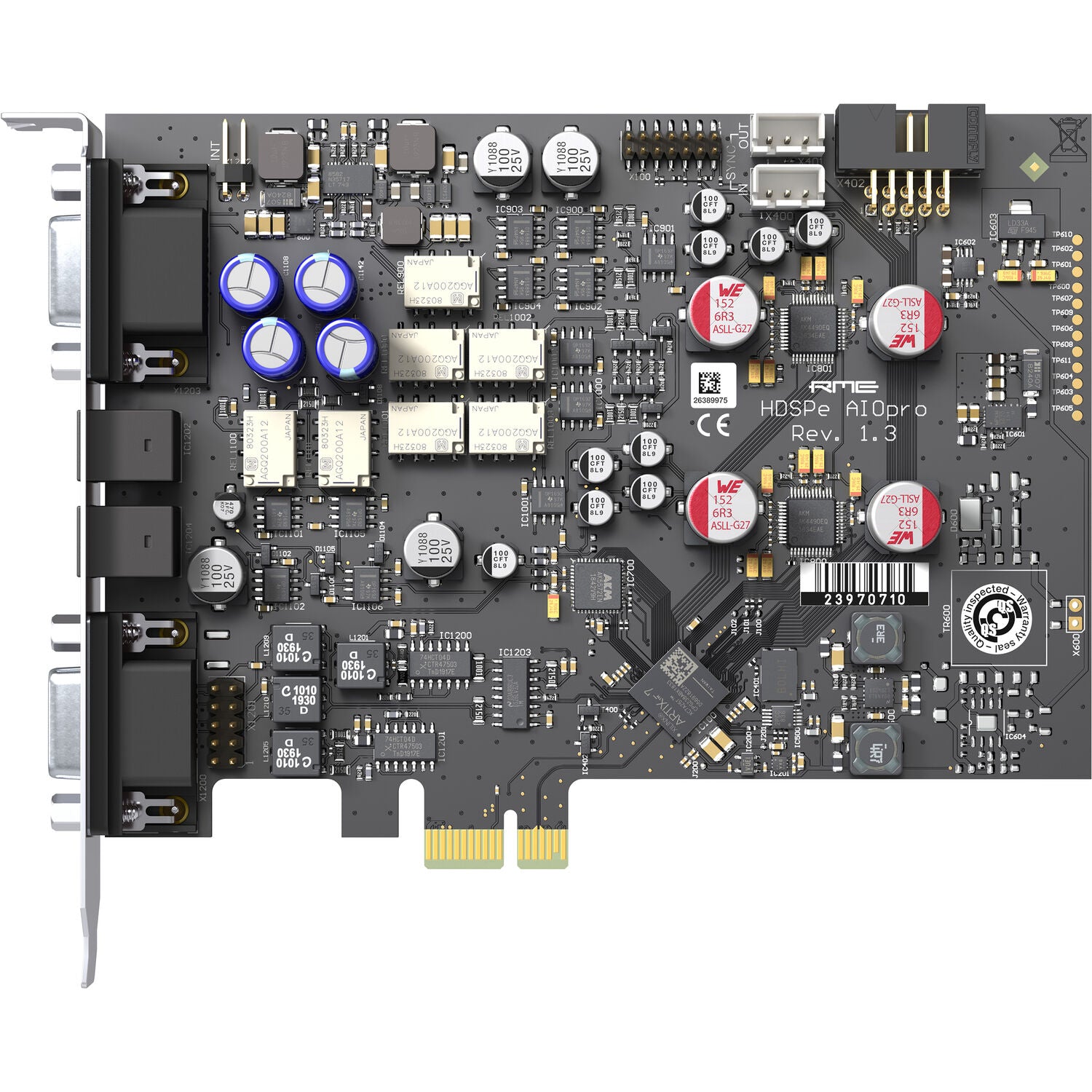

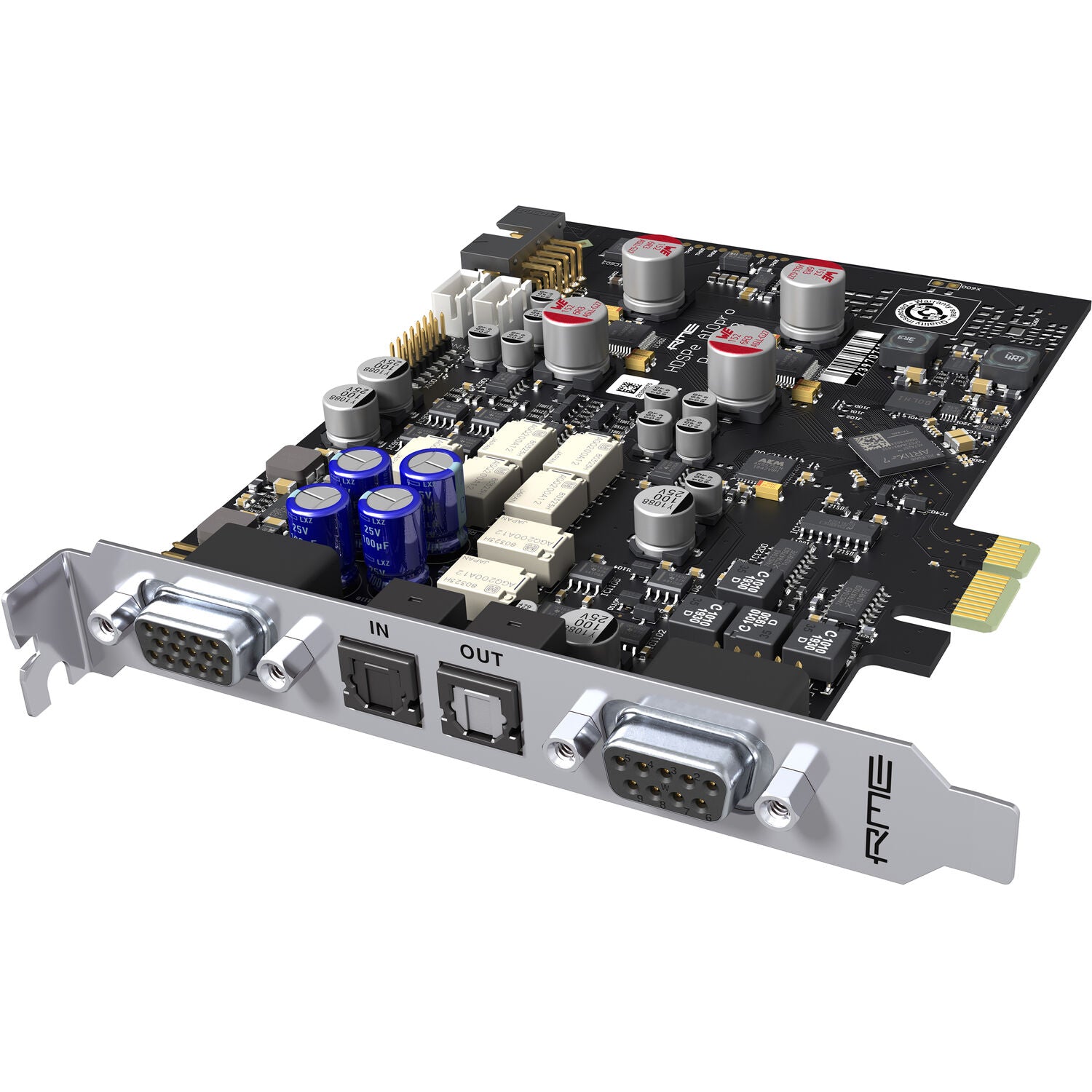

RME HDSPe AIO Pro PCI Express Audio Interface Card
$999.00
Unit price
/
RME introduces the HDSPe AIO Pro PCI Express interface card, the successor of the popular HDSPe AIO. The Pro version provides professional users in the fields of studio and broadcast with the same high channel count as well as analog/digital input and output variety of the HDSPe AIO. In terms of technical features RME has completely reworked the HDSPe AIO Pro, defining the current state-of-the-art in PCI Express cards.
A further highlight of the HDSPe AIO Pro is the newly developed, powerful and extremely transparent headphone output. Thanks to mute relay including switchable output levels, there is no unwanted crackling noise at the headphone output and the analog XLR and RCA outputs when switching on the computer.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
About the RME HDSPe AIO Pro PCI Express Audio Interface Card
Key Features
RME HDSPe AIO Pro PCI Express Audio Interface Card Specs
Analog Inputs
RCA (Standard D-Sub Breakout cable)
Input
Cinch (RCA), unbalanced
Input impedance
18 kOhm
Input sensitivity switchable
+24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Signal to Noise ratio (SNR) @ +19/24 dBu
117 dB RMS unweighted, 120 dBA
Signal to Noise ratio (SNR) @ +13 dBu
116 dB RMSu nweighted, 118 dBA
Signal to Noise ratio (SNR) @ +4 dBu
112 dB RMSu nweighted, 114 dBA
Frequency response @ 44,1 kHz, -0,1 dB
7 Hz – 20.5 kHz
Frequency response @ 96 kHz, -0,5 dB
3 Hz – 45,5 kHz
Frequency response @ 192 kHz, -1 dB
2 Hz – 92 kHz
THD @ -1 dBFS
-114 dB, 0,0002 %
THD+N @ -1 dBFS
-110 dB, 0,0003 %
Channel separation
> 110 dB
XLR (optional D-Sub Breakout cable)
as RCA, except:
Input
XLR, servo-balanced
Input impedance balanced
36 kOhm, unbalanced: 18 kOhm
Signal to Noise ratio(SNR) @ +4 dBu
116 dB RMS unweighted, 118 dBA
Analog Outputs
RCA (Standard D-Sub Breakout cable)
Output
Cinch (RCA), unbalanced
Output impedance+19/+13 dBu
75 Ohm. +4/-2 dBu: 80 Ohm
Output impedance switchable
+19, +13 dBu, +4 dBu, -2 dBu @ 0 dBFS
Signal to Noise ratio (SNR) @ +19 dBu
117 dB RMS unweighted, 119 dBA
Signal to Noise ratio (SNR) @ +13 dBu
116 dB RMS unweighted, 118 dBA
Signal to Noise ratio (SNR) @ +4 dBu
114 dB RMS unweighted, 116 dBA
Signal to Noise ratio (SNR) @ -2 dBu
110 dB RMS unweighted, 112 dBA
Frequency response @ 44.1 kHz, -0,1 dB
10 Hz – 20,2 kHz
Frequency response @ 96 kHz, -0,5 dB
4 Hz – 44,6 kHz
Frequency response @ 192 kHz, -1 dB
3 Hz – 83 kHz
THD @ 0 dBFS
< -107 dB, 0,0005 %
THD+N @ 0 dBFS
-105 dB, 0,0006 %
Channel separation
> 110 dB
XLR (optionales D-Sub Breakout cable)
as RCA, except:
Output: XLR
Output impedance +24/+19 dBu
150 Ohm, +13/+4 dBu: 160 Ohm
Output level switchable
+24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Signal to Noise ratio (SNR) @ +24 dBu
117 dB RMS unweighted, 120 dBA
Phones
as RCA, except:
Output
6.3 mm TRS jack, unbalanced, stereo
Output impedance
0.1 Ohm
Signal to Noise ratio (SNR) @ +19 dBu (Hi-Power)
117 dB RMS unweighted, 119 dBA
Signal to Noise ratio (SNR) @ +7 dBu (Lo-Power)
113 dB RMS unweighted, 115 dBA
Output level at 0 dBFS, Hi-Power, load 150 Ohm or up
+19 dBu (6.9 V)
Output level at 0 dBFS, Lo-Power, load 16 Ohm or up
+7 dBu (1.73 V)
THD+N @ + 15 dBu, 32 Ohm load, 590 mW
-97 dB, 0.0016 %
Max power @ 0.1% THD 32 Ohm
730 mW per channel
Digital Inputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
High-sensitivity input stage (< 0,3 Vss)
SPDIF compatible (IEC 60958)
Accepts Consumer and Professional format, copy protection will be ignored
Lock Range
28 kHz – 200 kHz
SPDIF
1 x RCA, transformer-balanced, according to IEC 60958
High-sensitivity input stage (< 0,3 Vss)
AES/EBU compatible (AES3-1992)
Accepts Consumer and Professional format, copy protection will be ignored
Lock Range
28 kHz – 200 kHz
ADAT Optical
1 x TOSLINK, format according to Alesis specification
Standard
8 channels 24 bit, up to 48 kHz
Double Speed (S/MUX)
4 channels 24 bit 96 kHz
Quad Speed (S/MUX4)
2 channels 24 bit 192 kHz
Bitclock PLL ensures perfect synchronisation even in varispeed operation
Lock range
31.5 kHz – 50 kHz
Digital Outputs
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Output level 4,0 Vss
Format Professional according to AES3-1992 Amendment 4
Single Wire mode, sample rate 28 kHz up to 200 kHz
SPDIF
1 x RCA, transformer-balanced, according to IEC 60958
Output level Professional 2.3 Vpp, Consumer 1.0 Vpp
Format Professional according to AES3-1992 Amendment 4
Format Consumer SPDIF according to IEC 60958
Single Wire mode, sample rate 28 kHz up to 200 kHz
ADAT
1 x TOSLINK, format according to Alesis specification
Standard
8 channels 24 bit, up to 48 kHz
Double Speed (S/MUX)
4 channels 24 bit 96 kHz
Quad Speed (S/MUX4)
2 channels 24 bit 192 kHz
Digital
Clocks
Intern, ADAT In, SPDIF In, Sync In, optional Word clock In / LTC in
Jitter suppression of external clocks
> 50 dB (2,4 kHz)
Effective clock jitter influence on AD and DA conversion: near zero
PLL ensures zero dropout, even at more than 100 ns jitter
Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates
28 kHz up to 200 kHz
MIDI
1 x MIDI I/O via 5-pin DIN jacks
Galvanically isolated by optocoupled input
Hi-speed mode
Jitter and response time typically below 1 ms
Separate 128 byte FIFOs for input and output
