RME

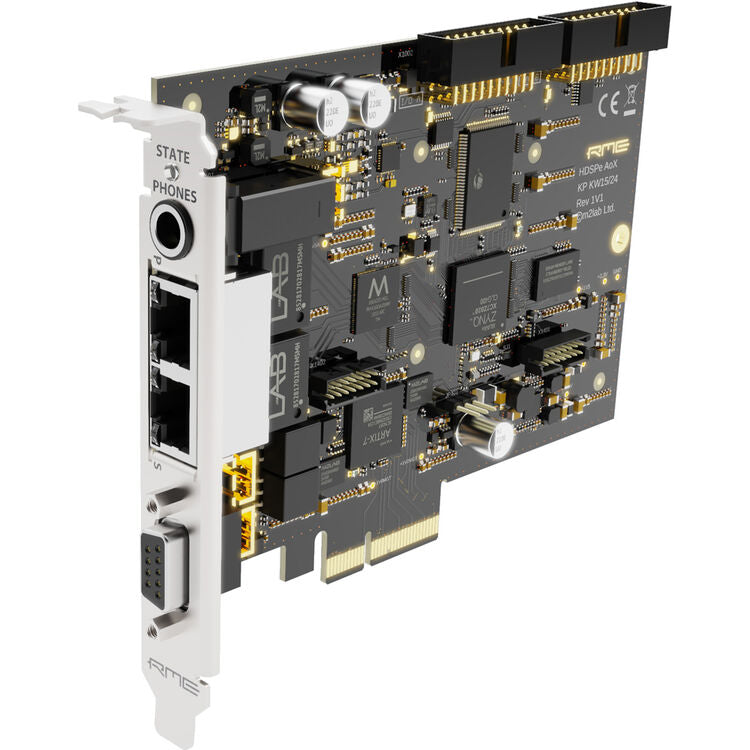

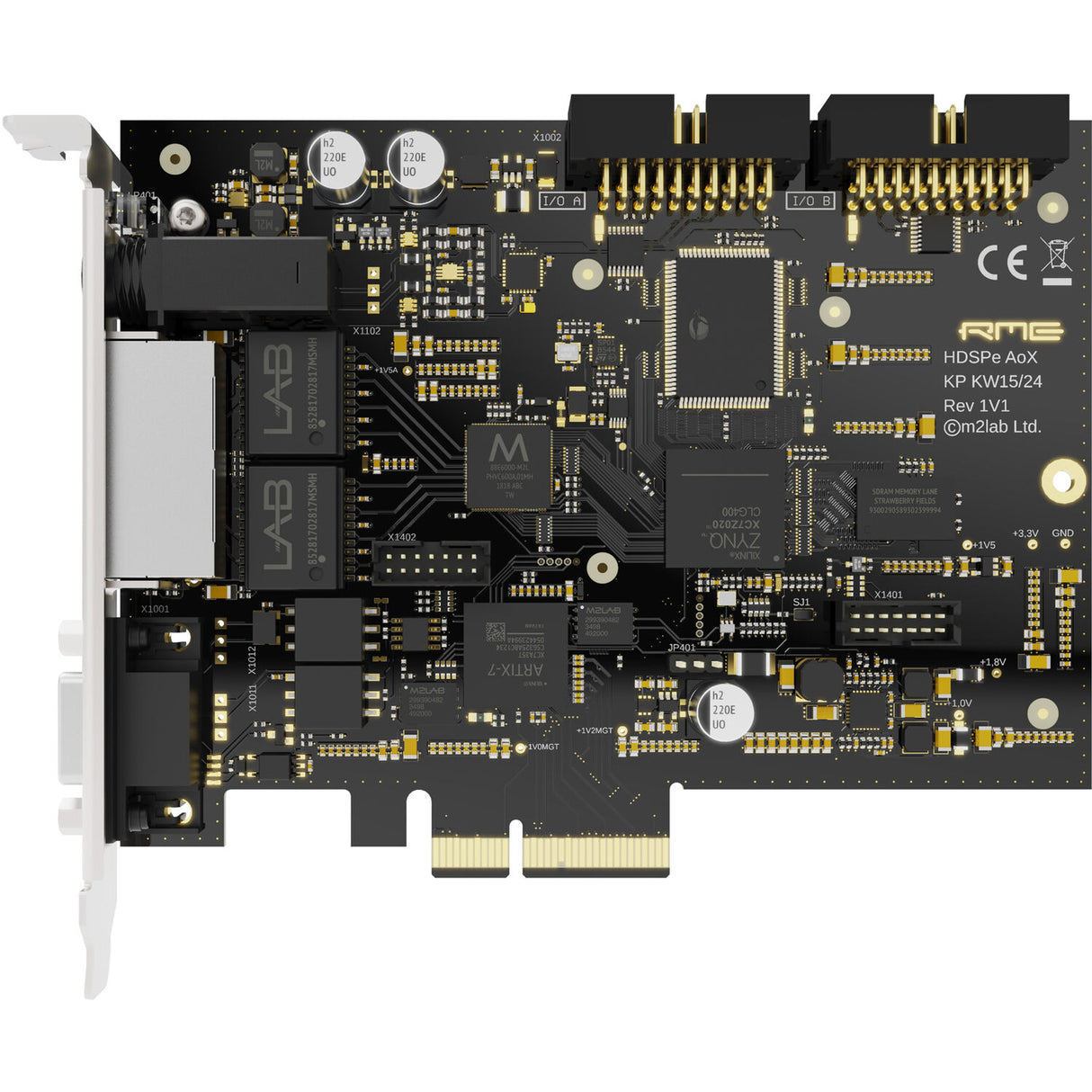

RME HDSPe AoX-M 512-Channel PCI Express Card AVB/Milan and MADI

$1,499.00

Deliver high-channel AVB/Milan and MADI counts to any Mac/Windows digital audio workstation with the RME HDSPe AoX-M 512-Channel PCI Express Card. Occupying a single slot, this PCIe interface transmits and receives up to 128 channels of AVB/Milan audio signals on two separate RJ45 gigabit Ethernet ports.

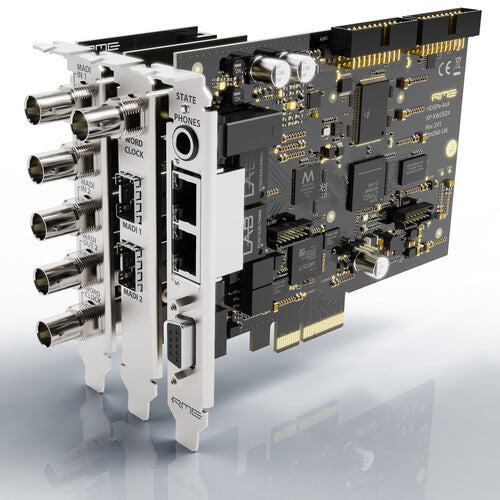

The network audio channels can partially be replaced with MADI signals by adding up to two optional dual-optical SFP (AOX MADI Coax) or dual-coaxial (AoX MADI Optical) extension cards, making it possible to integrate four MADI I/O signals, plus up to 256 network audio channels per direction, within a single audio interface.

View Product Features
  • 128x128 channels of AVB/Milan audio
  • Up to 128x128 channels of MADI audio (with optional expansion boards)
  • 2 x Gigabit Ethernet (802.3 compliant)
  • 1 x stereo AES/EBU I/O
  • 1 x MIDI I/O
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    HDSPe AoX-M

    RME HDSPe AoX-M 512-Channel PCI Express Card AVB/Milan and MADI

    $1,499.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME HDSPe AoX-M 512-Channel PCI Express Card AVB/Milan and MADI

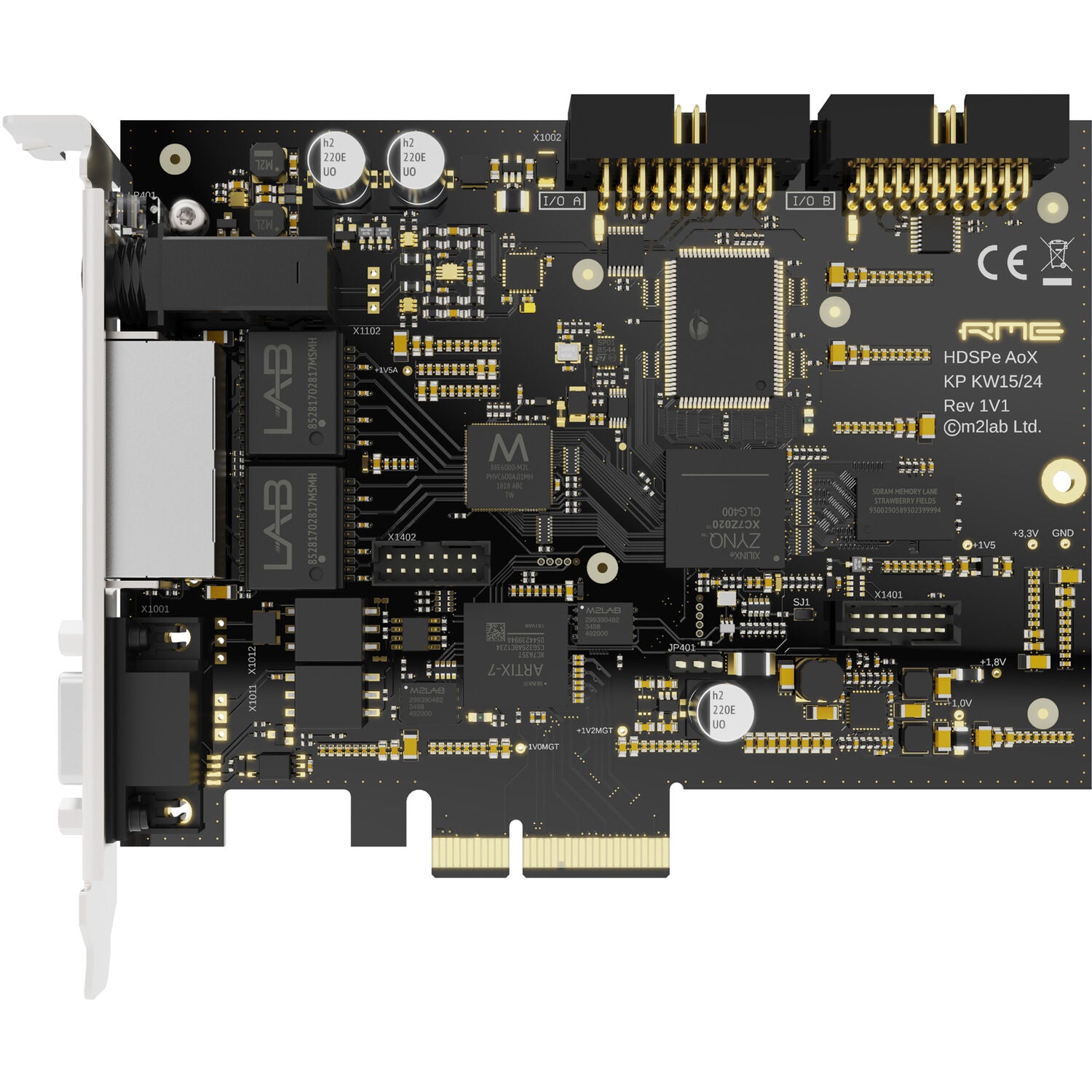

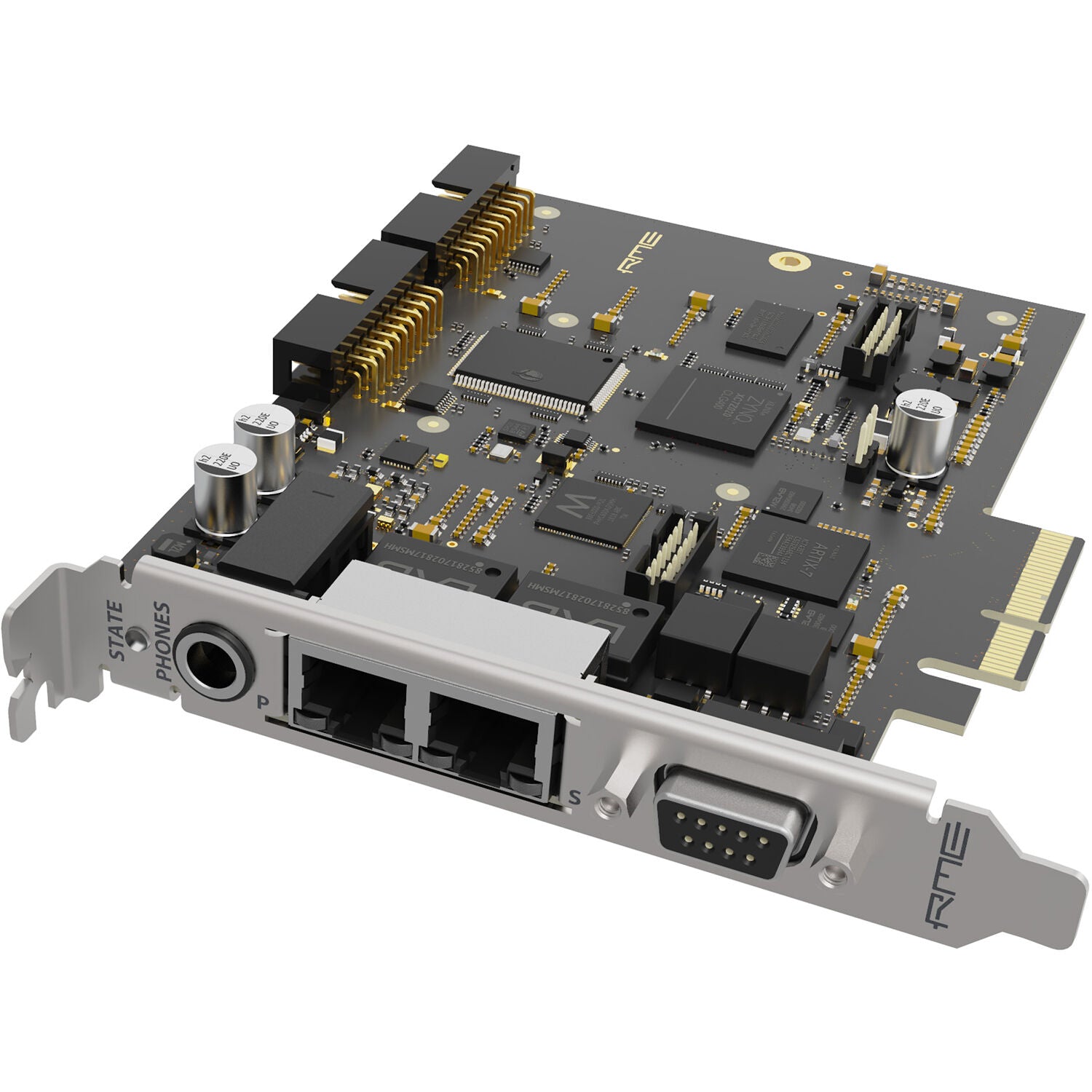

The HDSPe AoX PCIe x4 audio interface cards combine dual network ports with headphone output, AES3, MIDI, and internal expansion headers for up to four MADI ports. Whether used in a Thunderbolt™ expansion chassis or built into DAWs or audio processors, these cards send and receive up to 512 channels of audio and provide numerous mixing and routing capabilities.

Key Features

  • 128x128 channels of AVB/Milan audio
  • Up to 128x128 channels of MADI audio (with optional expansion boards)
  • 2 x Gigabit Ethernet (802.3 compliant)
  • 1 x stereo AES/EBU I/O
  • 1 x MIDI I/O

RME HDSPe AoX-M 512-Channel PCI Express Card AVB/Milan and MADI Specs

128 channels in MILAN compliant 8 channel AVB stream format at any sampling rate
512 channels 48 kHz/24 bit record/playback
256 channels 96 kHz/24 bit record/playback
128 channels 192 kHz/24 bit record/playback
TotalMix 256 x 256 channel mixer with 46 bit internal resolution for latency-free submixes
SyncAlign guarantees sample alignment and no channel swaps
SyncCheck tests and reports the synchronization status of input signals
1 x MIDI I/O, 16 channels high-speed MIDI
1 x AES-3 I/O, 2 channels at up to 192 kHz
DIGICheck DSP
Level meter in hardware, peak- and RMS calculation
Optional expansion boards for MADI and Word Clock I/O

Key Features

  • 128x128 channels of AVB/Milan audio
  • Up to 128x128 channels of MADI audio (with optional expansion boards)
  • 2 x Gigabit Ethernet (802.3 compliant)
  • 1 x stereo AES/EBU I/O
  • 1 x MIDI I/O
