RME

RME HDSPe MADI FX - 390 Channel PCIe Audio Card

$1,999.00

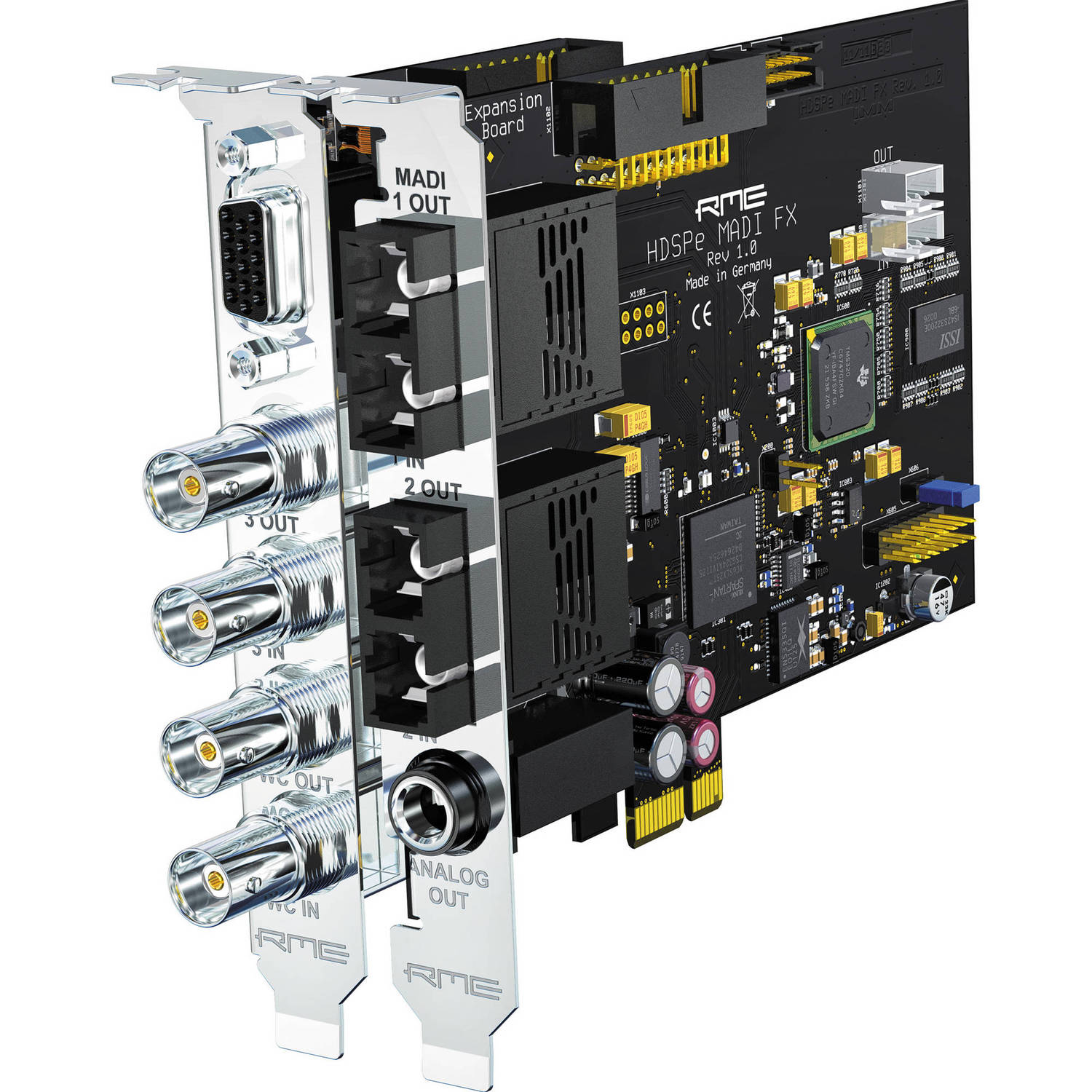

The HDSPe MADI FX from RME is a two-card, compact PCIe solution for transmitting a huge number of audio channels using the MADI protocol. Utilizing two optical and one coaxial set of inputs and outputs, the cards are capable of delivering 194 input and 196 output channels when used in conjunction with the two-channel AES/EBU I/O and the analog monitor output. Wordclock connection and four MIDI I/Os are also available, and only a single PCIe slot is required on the motherboard, plus one free slot opening on the case.

Not only does the system provide an impressive input and output count, but the included TotalMix FX software features a 4,096-channel mixer with a 192 kHz effects engine that allows latency-free monitoring with numerous effects like EQs, compressors, reverb, and echo, rendered directly on the hardware of the card and independent of the DAW software being used. MIDI is integrated and provides comprehensive remote control, while Wordclock I/O includes switchable termination.

View Product Features
  • PCI Express Interface for MADI Systems
  • 194 Input/196 Output Channels
  • 3 x MADI I/O
  • AES/EBU I/O
  • 3 x Virtual MIDI I/O Over MADI
  • 1 x MIDI I/O via 5-Pin DIN
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    HDSPe MADI FX

    RME HDSPe MADI FX - 390 Channel PCIe Audio Card

    $1,999.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME HDSPe MADI FX - 390 Channel PCIe Audio Card

The HDSPe MADI FX marks a new milestone both in the history of audio interface cards in the past two decades and within the long series of outstanding RME devices. Never before has such a high-performance multi-channel audio system existed.The HDSPe MADI FX features 390 audio channels.

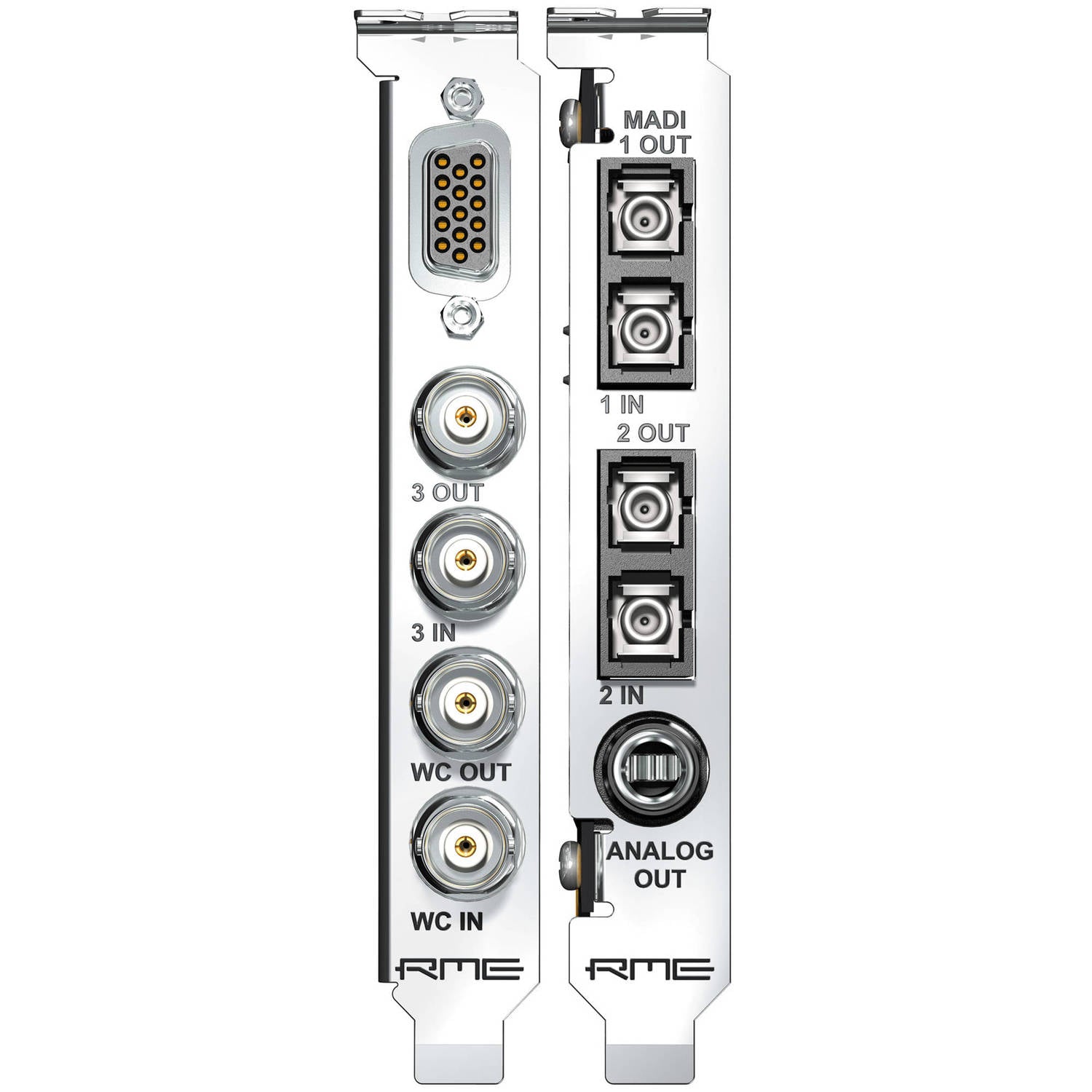

Three MADI I/Os - two optical and one coaxial are accompanied by one AES/EBU I/O and one analog monitoring output. To complete the feature set, a Word Clock connection and four MIDI I/Os were added. The complete technology and connectivity are highly integrated into the smallest possible amount of space - typical for RME. Only one PCIe slot is required on the motherboard, plus one free slot opening on the case.

To guarantee RME’s unique low latency performance with such a huge amount of audio channels, the HDPSe MADI FX introduces a newly developed modular Hammerfall Pro Audio Core. The high-tech core will process three times as many channels as the channel count of the previous MADI flagship, while actually reducing the system load and enabling ultra-low latencies down to 32 samples on modern computers.

Key Features

  • PCI Express Interface for MADI Systems
  • 194 Input/196 Output Channels
  • 3 x MADI I/O
  • AES/EBU I/O
  • 3 x Virtual MIDI I/O Over MADI
  • 1 x MIDI I/O via 5-Pin DIN

RME HDSPe MADI FX - 390 Channel PCIe Audio Card Specs

1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
2.5 Gbps line speed
Packet-based full-duplex communication (up to 500 MB/s transfer rate)
All settings changeable in real-time
Automatic and intelligent master/slave clock control
Sync sources
MADI coaxial, MADI optical, AES/EBU, word clock, internal
Varipitch
by input signal or word clock
Sample rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)
Sample rate range
MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz
Jitter
< 1 ns, internal and all inputs
Jitter sensitivity
PLL operates even at 100 ns Jitter without problems
Comes with DIGICheck
the ultimate measurement, analysis and test tool
Input word clock
Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination
Output word clock
BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output
via two 5-pin DIN jacks
Stereo Monitor Output (Phones):
Signal-to-Noise (DR)
110 dB RMS unweighted, 113 dBA @ 44.1 kHz
Channel separation
> 100 dB
Output
6.3 mm TRS
Output impedance
75 Ohm
Output level at 0 dBFS
+13 dBu

Key Features

  • PCI Express Interface for MADI Systems
  • 194 Input/196 Output Channels
  • 3 x MADI I/O
  • AES/EBU I/O
  • 3 x Virtual MIDI I/O Over MADI
  • 1 x MIDI I/O via 5-Pin DIN
