RME

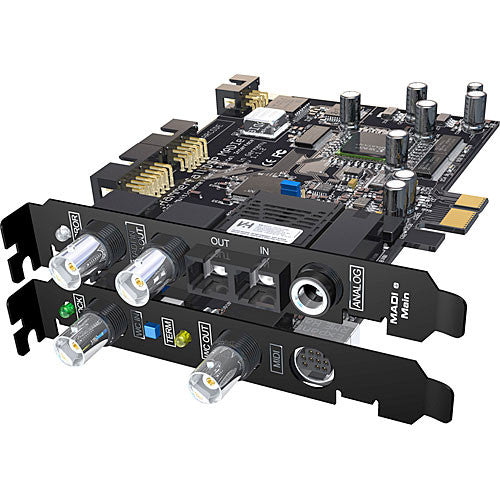

RME HDSPe MADI - PCIe (Express) Card

$1,799.00

The HDSPe MADI from RME is an inexpensive PCIe Card card that features a MADI interface. The audio system is capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Installation is simple, even for the inexperienced user, thanks to the latest "plug and play" technology.

MADI, a multi-channel audio interface, offers full support for 56 and 64 channels of 24-bit audio at a sample rate of up to 48kHz 32 channels at up to 96kHz and 16 at 192kHz. Transmission is done via a single line, either coaxial with BNC plugs or with fiber cable. In both cases more than 100m cable length can be achieved.

RME's high-performance philosophy guarantees maximum system performance by executing as many functions as possible directly within the audio hardware and not in the driver/CPU.

View Product Features
  • 128-channel MADI Input/Output PCI(x) card
  • 8 buffer size available (0.7, 1.5, 3, 6, 12, 23, 46 and 93 mS)
  • Slave and master clock modes with automatic and intelligent master/slave clock control
  • MADI coaxial, MADI optical, word clock and internal sync sources
  • TotalMix real-time software mixer for latency-free submixes and perfect ASIO Direct Monitoring
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  • New

    HDSPe MADI

    RME HDSPe MADI - PCIe (Express) Card

    $1,799.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME HDSPe MADI - PCIe (Express) Card

The PCI Express card consequently uses all advantages of the MADI format, the professionals' multi-Channel audio interface, offering 64 channels of 24-bit audio at a sample rate of up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Transmission is done via a single line, either coaxial with BNC plugs or by fiber cable. In both cases more than 100 m cable length can be achieved.

Compared with the HDSP MADI (Standard PCI version), the express card offers some new features: Support of higher sample rates than 96 kHz, more features in TotalMix (phase and internal loopback per channel, +6 dB gain for the hardware outputs), and the direct support of the Time Code Option. HDSPe MADI provides even lower latencies, making the card the perfect partner for live recording and live mixing applications. The analog monitor output is equipped with the low-latency converter technology of the ADI-8 QS, thus guaranteeing stunning SNR and THD values too.

HDSPe MADI is fully compatible to all devices with MADI interface. In combination with the ADI-648 an 8 x ADAT optical PC interface is realized, unbeatable in price and performance. With the ADI-6432 a bidirectional AES/EBU frontend with 64 channels is available.

On a powerful PC/Mac three HDSPe MADI can be used in a combination, providing 192 inputs and 192 outputs on a single workstation simultaneously.

Key Features

  • 128-channel MADI Input/Output PCI(x) card
  • 8 buffer size available (0.7, 1.5, 3, 6, 12, 23, 46 and 93 mS)
  • Slave and master clock modes with automatic and intelligent master/slave clock control
  • MADI coaxial, MADI optical, word clock and internal sync sources
  • TotalMix real-time software mixer for latency-free submixes and perfect ASIO Direct Monitoring

RME HDSPe MADI - PCIe (Express) Card Specs

1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
2.5 Gbps line speed
Packet-based full-duplex communication (up to 500 MB/s transfer rate)
All settings changeable in real-time
Automatic and intelligent master/slave clock control
Sync sources
MADI coaxial, MADI optical, word clock, internal
Varipitch
by input signal or word clock
Sample rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)
Sample rate range
MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz
Jitter
< 1 ns, internal and all inputs
Jitter sensitivity
PLL operates even at 100 ns Jitter without problems
Comes with DIGICheck: the ultimate measurement, analysis and test tool
Input
MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC)
Output
MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC), stereo analog line/phones
Input word clock
BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination
Output word clock
BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output
via four 5-pin DIN jacks

Key Features

  • 128-channel MADI Input/Output PCI(x) card
  • 8 buffer size available (0.7, 1.5, 3, 6, 12, 23, 46 and 93 mS)
  • Slave and master clock modes with automatic and intelligent master/slave clock control
  • MADI coaxial, MADI optical, word clock and internal sync sources
  • TotalMix real-time software mixer for latency-free submixes and perfect ASIO Direct Monitoring
