RME

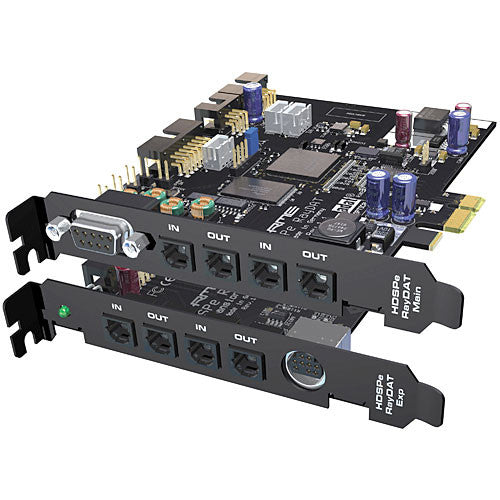

RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System

$949.00

The HDSPe RayDAT from RME is a PCI express card system for Mac and Windows computers that's capable of handling 36 inputs and 36 outputs simultaneously. It provides 4 optical ADAT inputs and outputs, which support S/MUX technology making high-resolution 192 kHz recording and playback possible. It also features simultaneous operation of S/PDIF and AES/EBU ports, and two MIDI inputs and outputs on included breakout cables.

The HDSPe RayDAT includes the powerful real-time software mixer TotalMix, which allows any input and output routing and mixing configurations, provides zero-latency monitoring, enables you to create up to 18 independent stereo submixes, and much more. Also included is DIGICheck software, which is a high-quality spectral analyzer, level meter (for 2, 8, or 36 channels), a vector audio scope, and various other useful analysis tools. The HDSPe RayDAT equips you with an impressive amount of I/O, as well as giving you the flexibility of TotalMix technology and the ultra high-quality audio performance RME is famous for.

View Product Features
  • 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
  • 1 x S/PDIF digital I/O, 192 kHz capable
  • 1 x AES/EBU digital I/O, 192 kHz capable
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
  • Up to 36 inputs and 36 outputs can be used simultaneously
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  • New

    HDSPe RayDAT

    RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System

    $949.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System

For the first time, even SPDIF (phono) and AES/EBU (XLR) are simultaneously operational due to separated hardware and record/playback devices. RayDAT offers no less than 4 x ADAT optical I/O, SPDIF I/O and AES/EBU I/O. That's a whopping 36 channels of inputs and outputs. On top, there are 2 MIDI I/Os and TotalMix, RME's unsurpassed DSP-based real-time mixer/router, with hardware-calculated level metering and complete MIDI remote capability. HDSPe RayDAT also supports the optional TCO for synchronization to timecode (LTC/video).

Internal ADAT inputs and outputs allow to add up to two TDIF ports directly inside the computer via RME's optional expansion boards.

HDSPe RayDAT is the newly developed PCI Express version of the HDSP 9652. A genuine PCI Express core consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio. Thanks to RME's secure flash update technology, firmware improvements, adjustments, and bugfixes can be installed easily at any time.

Key Features

  • 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
  • 1 x S/PDIF digital I/O, 192 kHz capable
  • 1 x AES/EBU digital I/O, 192 kHz capable
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
  • Up to 36 inputs and 36 outputs can be used simultaneously

RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System Specs

Supported sample frequencies
Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz.
8 buffer sizes/latencies available
0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
All settings changeable in realtime
Automatic and intelligent master/slave clock control
Enhanced Mixed mode
All inputs and outputs simultaneously operational
Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
TMS (Track Marker Support)
Supports CD/DAT start-IDs and the read out of CD subcode
DIGICheck, RME's ultimate measurement, analysis and test tool
Unique status windows for record and playback, showing mode and sample
Super low jitter design
< 1 ns in all clock modes

Key Features

  • 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
  • 1 x S/PDIF digital I/O, 192 kHz capable
  • 1 x AES/EBU digital I/O, 192 kHz capable
  • 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
  • Up to 36 inputs and 36 outputs can be used simultaneously
