RME

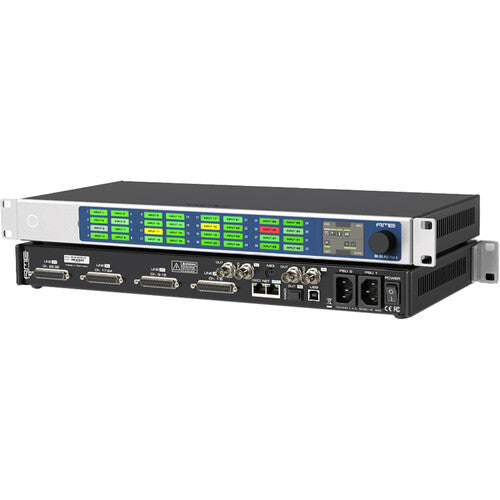

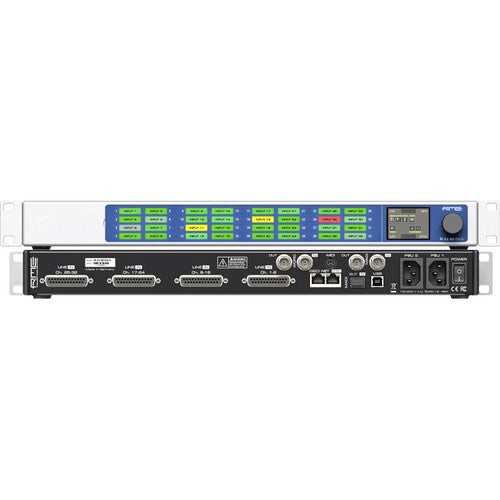

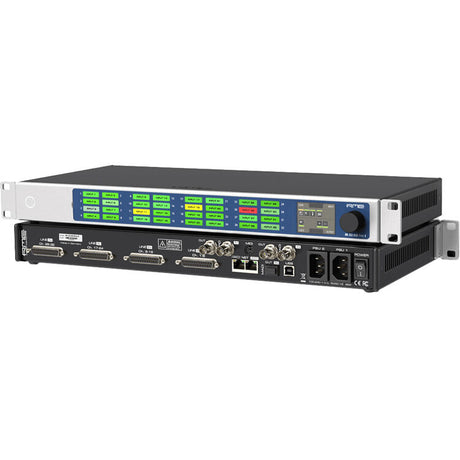

RME M-32 AD Pro II AVB + MADI 32-Channel A/D Converter

$3,999.00

The RME M-32 AD Pro II AVB + MADI 32-Channel A/D Converter is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for reference-class A/D conversion with high-end MILAN-compatible AVB and MADI network audio processing.

While it offers the same outstanding analog performance as its predecessor (with high-resolution converter components and fully balanced signal routing), the M-32 AD Pro II delivers an extremely low THD of -111 dB and optimizes the impulse response at sampling rates of 88.2 kHz and higher to minimize ringing artifacts in the conversion process and achieve 120 dB(A) of dynamic range with very low latencies.

View Product Features
  • 32 Analog Line Inputs on DB-25
  • 192 kHz / 24-Bit A/D Conversion
  • 2 Redundant AVB Network Port (128 x 128)
  • 2 MADI Coaxial & Optical I/O (128 x 128)
  • Word Clock I/O, MIDI I/O
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    M-32 AD Pro II

    RME M-32 AD Pro II AVB + MADI 32-Channel A/D Converter

    $3,999.00
    View Product
  • New

    M-32 DA Pro II

    RME M-32 DA Pro II AVB + MADI 32-Channel D/A Converter

    $3,999.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the RME M-32 AD Pro II AVB + MADI 32-Channel A/D Converter

The latest 32-channel M-32 Pro II is based on state-of-the-art, high-resolution converter components and a fully balanced analog circuit design that offer signal-to-noise ratios of 120 dB(A) with very low latencies — placing the converters in the reference class. While the M-32 AD Pro II offers the same outstanding analog performance as its predecessor, the DA-Converter has even improved the THD+N to -111 dB. All models benefit from impulse response optimization at sampling rates of 88.2 kHz and higher to minimize ringing artifacts in the conversion process.

Key Features

  • 32 Analog Line Inputs on DB-25
  • 192 kHz / 24-Bit A/D Conversion
  • 2 Redundant AVB Network Port (128 x 128)
  • 2 MADI Coaxial & Optical I/O (128 x 128)
  • Word Clock I/O, MIDI I/O

RME M-32 AD Pro II AVB + MADI 32-Channel A/D Converter Specs

32 x Analog In/Out (25-pin D-sub, up to +24 dBu)
2 x MADI I/O (via optional available optical SFP and coaxial BNC, up to 128 Ch.)
2 x RJ45 1 GigE AVB, four streams with 4/8/12/16 Ch. each
(optional) MIDI I/O for legacy MIDI Remote
Word Clock I/O (BNC)
USB 2.0 (for remote control)
2 x monitored fully redundant internal PSUs
32-channel AD converter, fully symmetrical design, 120 dBa
19” enclosure 1 unit height
Large, tri-color backlit channel indicators with Peak/RMS metering
Magnetic cover with customizable channel labels
SyncCheck® and ICC® - detects when a clock source is not in sync and falls back to other available signals
MADI Auto-Input - seamless redundancy
2” display with control knob for full device control
15 Preset storage, firmware upgrade persistent
Lock (optional code) and dark mode
Internal single channel routing of up to 288x256 (M-32 AD Pro II) / 256x288 (M-32 DA Pro II) channels (32 x Analog, 64 x MADI Opt, 64 x MADI Coax, and 128 x AVB)
Remote control via HTTP, JSON, IEEE 1722.1 ATDECC, MIDI over MADI and optional MIDI

Key Features

  • 32 Analog Line Inputs on DB-25
  • 192 kHz / 24-Bit A/D Conversion
  • 2 Redundant AVB Network Port (128 x 128)
  • 2 MADI Coaxial & Optical I/O (128 x 128)
  • Word Clock I/O, MIDI I/O
