SKU: M-16 AD

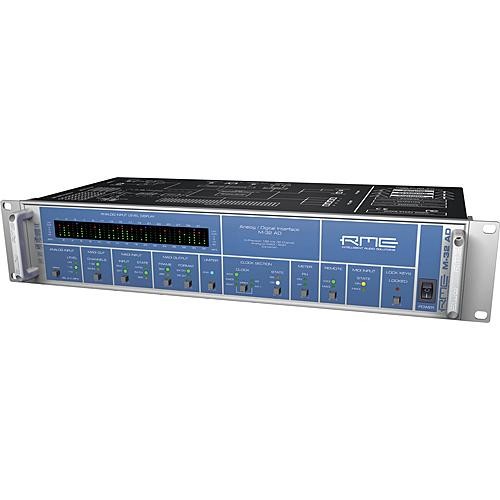

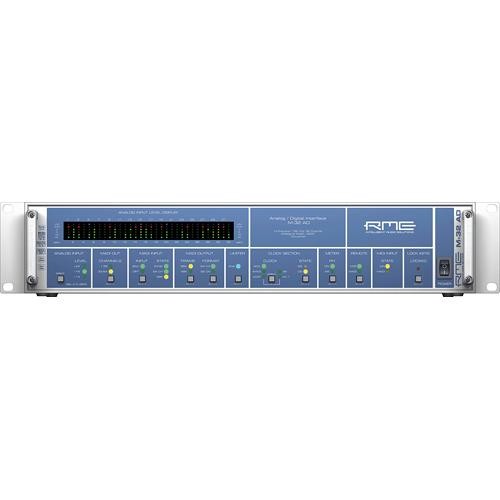

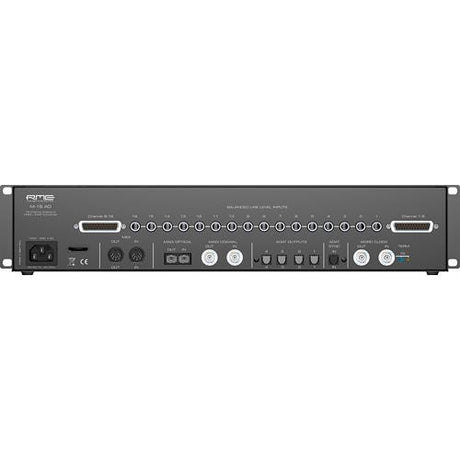

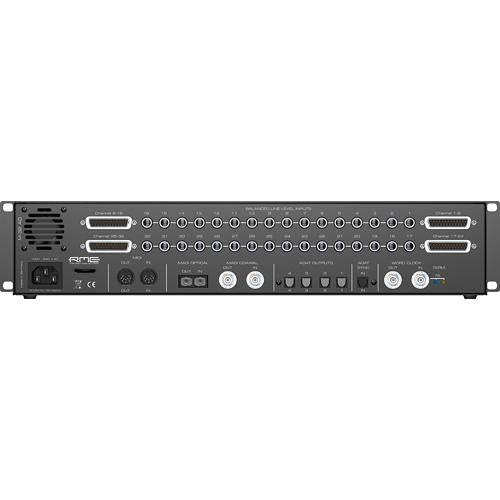

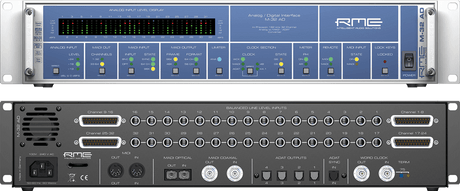

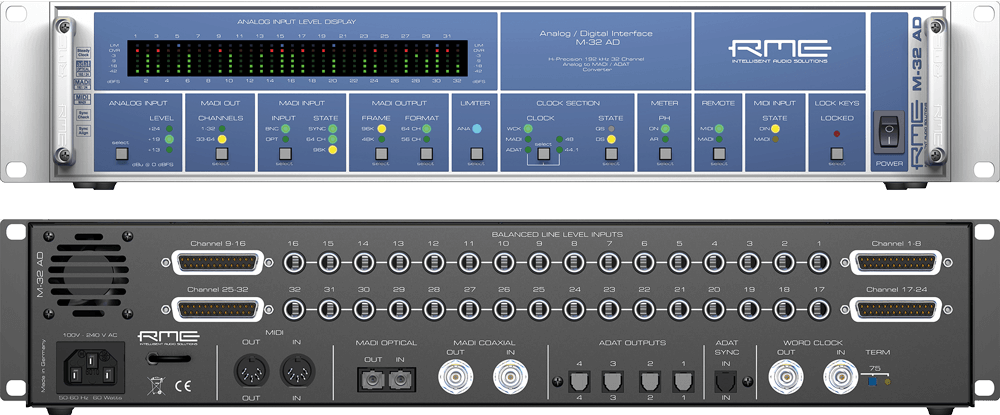

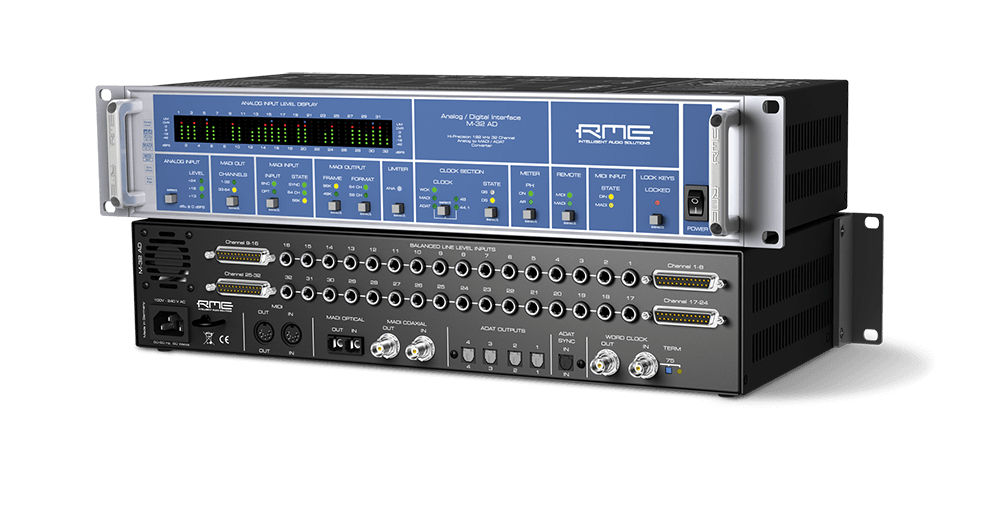

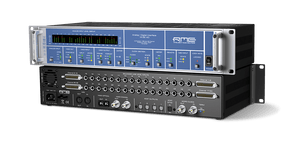

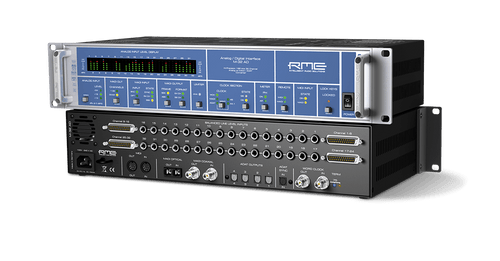

RME M-32 / M-16 AD 32/16-Channel High-End Analog to MADI/ADAT Converter

$3,999.00 - $5,099.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The M-32 AD from RME is an extremely high-quality 32-channel A/D converter. It utilizes MADI (Multi-channel Audio Digital Interface) technology, which allows up to 64 channels of audio to flow freely without the shortcomings of multi-core cable-based digital audio technology. Not only does the M-32 AD provide pristine audio circuitry, the great converters, and RME's famous SteadyClock technology, but the MADI protocol also enables incredibly long cable runs of over 1 mile (2000 meters) Read more

Features

  • Capable of Extremely Long Cable Runs
  • Excellent Converters, Circuitry, & Clock
  • Easy Operation with Extensive Features
  • MADI Technology Capable of 64 Channels
  • 32 LED Meters, 6-Segments Each

Business Financing Options Avaiable

View Available Financing

The M-32 AD from RME is an extremely high-quality 32-channel A/D converter. It utilizes MADI (Multi-channel Audio Digital Interface) technology, which allows up to 64 channels of audio to flow freely without the shortcomings of multi-core cable-based digital audio technology. Not only does the M-32 AD provide pristine audio circuitry, the great converters, and RME's famous SteadyClock technology, but the MADI protocol also enables incredibly long cable runs of over 1 mile (2000 meters) Read more

Features

  • Capable of Extremely Long Cable Runs
  • Excellent Converters, Circuitry, & Clock
  • Easy Operation with Extensive Features
  • MADI Technology Capable of 64 Channels
  • 32 LED Meters, 6-Segments Each

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the RME M-32 / M-16 AD 32/16-Channel High-End Analog to MADI/ADAT Converter

RME's M-32 AD is a 32-channel high-end AD converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art AD conversion - 32 times!

The unit's unique set of features includes analog limiters, three hardware reference levels up to +24 dBu, MADI and ADAT I/O up to 192 kHz, 6.3 mm TRS and D-sub inputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure. An extraordinary limiter, conceived and optimised for professional studio, stage, and broadcast applications, offers essential operational safety with its capability to limit an input's overload of up to 17 dB without audible distortion (max. input level + 30 dBu).

The M-32 provides multichannel conversion in reference quality - at an unbeatable price/performance ratio!

Key Features

  • Capable of Extremely Long Cable Runs
  • Excellent Converters, Circuitry, & Clock
  • Easy Operation with Extensive Features
  • MADI Technology Capable of 64 Channels
  • 32 LED Meters, 6-Segments Each

Already own this item and want to sell it?

Click here to sell your item

RME M-32 / M-16 AD 32/16-Channel High-End Analog to MADI/ADAT Converter Specs

Input AD
1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
Output AD
4 x ADAT optical, 1 x MADI optical/coaxial
Dynamic Range AD
113 dB RMS unweighted, 116 dBA
THD AD
< -110 dB (< 0.00032 %)
THD+N AD
< -104 dB (< 0.00063 %)
Crosstalk AD
> 130 dB
Input level for 0 dBFS
+24 dBu, +19 dBu, +13 dBu
Frequency response AD, -0.1 dB
10 Hz - 23.2 kHz (sf 48 kHz)
Frequency response AD, -0.5 dB
< 5 Hz - 45 kHz (sf 96 kHz)
Frequency response AD, -1 dB
< 5 Hz - 80 kHz (sf 192 kHz)
Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
Jitter
Typical < 1 ns for internal, Word Clock, ADAT and MADI input
Jitter sensitivity
all PLLs operate error-free even at 100 ns
Jitter suppression
> 30 dB (2.4 kHz)
Power supply
Internal switching mode PS, 100V - 240V AC, 60 Watt

Key Features

  • Capable of Extremely Long Cable Runs
  • Excellent Converters, Circuitry, & Clock
  • Easy Operation with Extensive Features
  • MADI Technology Capable of 64 Channels
  • 32 LED Meters, 6-Segments Each
