SKU: M-16 DA

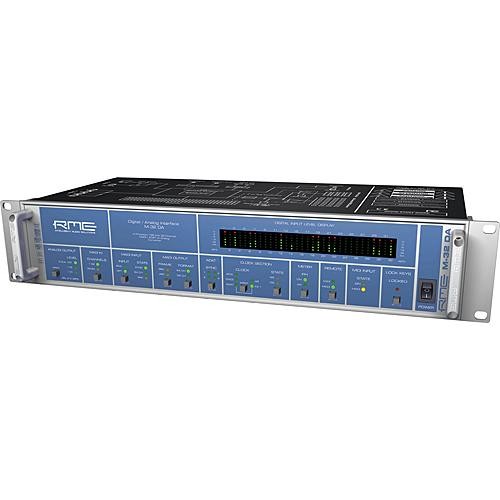

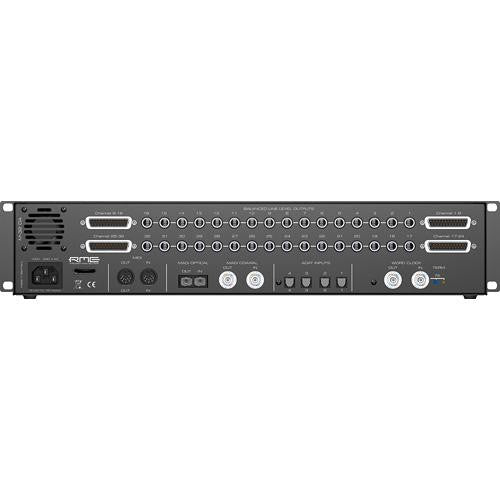

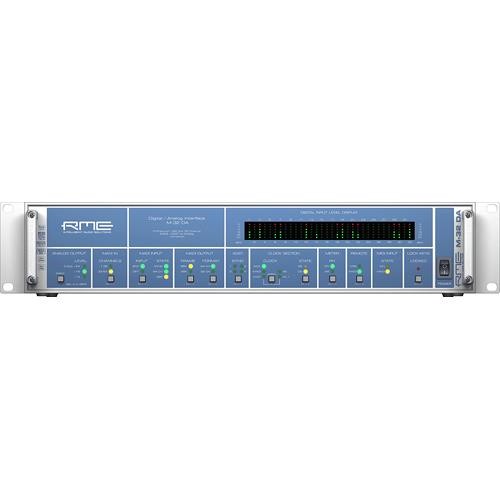

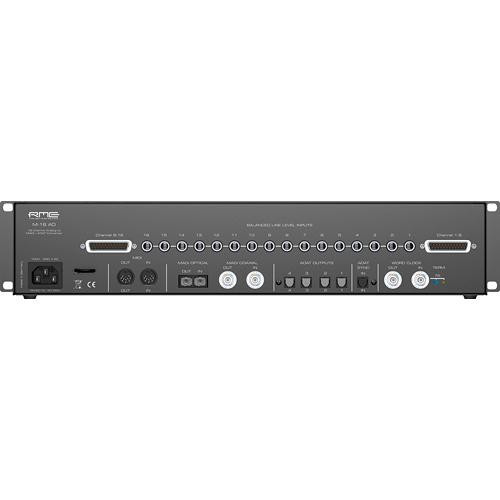

RME M-32 / M-16 DA - 32/16-Channel High-End MADI/ADAT to Analog Converter

$3,999.00 - $5,099.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The M-32 DA is a 32-channel hi-end DA-converter in reference quality, fully remote controllable. In a standard 19" box with 2 unit height the device offers numerous extraordinary features like Intelligent Clock Control (ICC), SyncCheck® , SteadyClock, three hardware reference levels up to +24 dBu, MADI I/O and ADAT In, 192 kHz sample rate, MIDI remote control  via MIDI and MADI, and a digital thru-mode for simplified cascading.  Read more

Features

  • 32-channel DA-converter
  • Double balanced output stages
  • 3 hardware-based reference levels
  • Signal to Noise Ratio 118 dBA on all 32 channels
  • 4 x ADAT In, 16 channels @ 96 kHz
  • MADI I/O with thru-mode for all channels

Business Financing Options Avaiable

View Available Financing

The M-32 DA is a 32-channel hi-end DA-converter in reference quality, fully remote controllable. In a standard 19" box with 2 unit height the device offers numerous extraordinary features like Intelligent Clock Control (ICC), SyncCheck® , SteadyClock, three hardware reference levels up to +24 dBu, MADI I/O and ADAT In, 192 kHz sample rate, MIDI remote control  via MIDI and MADI, and a digital thru-mode for simplified cascading.  Read more

Features

  • 32-channel DA-converter
  • Double balanced output stages
  • 3 hardware-based reference levels
  • Signal to Noise Ratio 118 dBA on all 32 channels
  • 4 x ADAT In, 16 channels @ 96 kHz
  • MADI I/O with thru-mode for all channels

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the RME M-32 / M-16 DA - 32/16-Channel High-End MADI/ADAT to Analog Converter

RME's M-32 DA is a 32-channel high-end DA converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art DA conversion - not less than 32 times!

The M-series converters have been conceived and optimised for professional studio, stage, and broadcast applications. Combinations of the M-16 DA and M-32 DA converters allow for setups with 16, 32, 48, or 64 channels, according to your individual application or budget. The unit's unique set of features includes three hardware reference levels up to +24 dBu, MADI I/O and ADAT input up to 192 kHz, 6.3mm TRS and D-sub outputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure.

Key Features

  • 32-channel DA-converter
  • Double balanced output stages
  • 3 hardware-based reference levels
  • Signal to Noise Ratio 118 dBA on all 32 channels
  • 4 x ADAT In, 16 channels @ 96 kHz
  • MADI I/O with thru-mode for all channels

Already own this item and want to sell it?

Click here to sell your item

RME M-32 / M-16 DA - 32/16-Channel High-End MADI/ADAT to Analog Converter Specs

Input DA
4 x ADAT optical, 1 x MADI optical/coaxial
Output DA
1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu
Dynamic Range DA (SNR)
114 dB RMS unweighted, 118 dBA
THD DA
< -104 dB (< 0.00063%)
THD+N DA
< -100 dB (< 0.001%)
Crosstalk DA
> 110 dB
Frequency response DA, -0.5 dB
5 Hz - 22 kHz (sf 48 kHz)
Frequency response DA, -0.5 dB
< 5 Hz - 34 kHz (sf 96 kHz)
Frequency response DA, -1 dB
< 5 Hz - 50 kHz (sf 192 kHz)
Input level for 0 dBFS
+24 dBu, +19 dBu, +13 dBu
Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
Jitter
Typical < 1 ns for internal, Word Clock, ADAT and MADI input
Jitter suppression
>30 dB (2.4 kHz)
Jitter sensitivity
all PLLs operate error-free even at 100 ns
Power supply
Internal switching mode PS, 100V - 240V AC, 60 Watt

Key Features

  • 32-channel DA-converter
  • Double balanced output stages
  • 3 hardware-based reference levels
  • Signal to Noise Ratio 118 dBA on all 32 channels
  • 4 x ADAT In, 16 channels @ 96 kHz
  • MADI I/O with thru-mode for all channels
