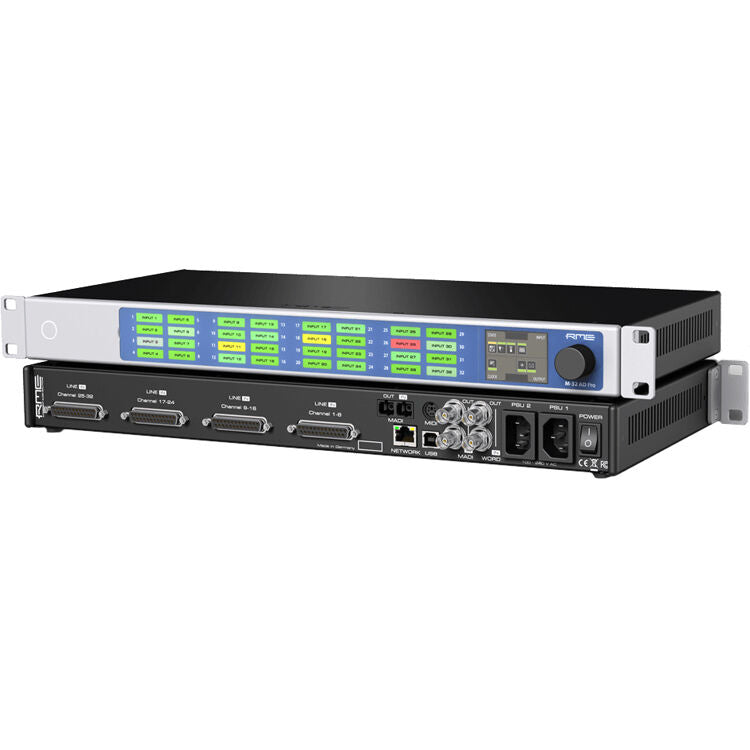

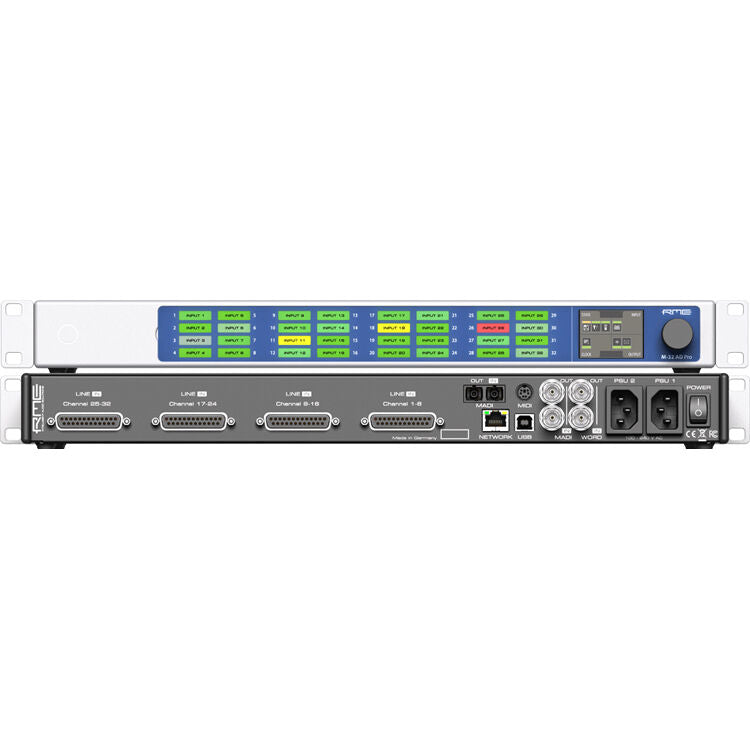

RME M-32 Pro AVB AD 32-Channel Analog to MADI & AVB/TSN Converter
$3,999.00
Unit price
/
The M-32 Pro AVB AD is a 192 kHz, 32-channel analog to MADI and AVB/TSN AD converter in a 1 RU design from RME. Featuring a fully balanced analog circuit design and high-resolution converter components, the converter offers a signal-to-noise ratio of 120 dB(A) with extremely low THD values. The AVB interface is based on open network standards IEEE 802.1 and 1722.1, enabling transmission of the 32 analog channels at a maximum 192 kHz sampling rate via a single Ethernet cable.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
M-32 Pro AVB AD
RME M-32 Pro AVB AD 32-Channel Analog to MADI & AVB/TSN Converter
$3,999.00Unit price /View Product -
About the RME M-32 Pro AVB AD 32-Channel Analog to MADI & AVB/TSN Converter
Key Features
RME M-32 Pro AVB AD 32-Channel Analog to MADI & AVB/TSN Converter Specs
Analog Inputs
Analog Input Connectors
4 x DB-25 (TASCAM pinout)
Number of Analog Inputs
32 balanced
Input Impedance
9.5 kΩ balanced
Input Type
AC coupled, fully symmetrical (servo-balanced)
Per-Channel Level Switching
+24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Resolution
24 bit
Analog Performance (44.1 kHz, +24 dBu)
Signal-to-Noise Ratio (SNR - RMS unweighted)
117.0 dB
Signal-to-Noise Ratio (SNR - dBA)
120.7 dBA
Frequency Response (-0.1 dB)
5 Hz – 20.5 kHz
Total Harmonic Distortion (THD) @ -1 dBFS
< -111 dB (< 0.00029%)
THD+N @ -1 dBFS
< -108 dB (< 0.00039%)
Channel Separation
> 110 dB
Analog Performance (44.1 kHz, +19 dBu)
SNR (RMS unweighted)
116.3 dB
SNR (dBA)
119.9 dBA
Analog Performance (44.1 kHz, +13 dBu)
SNR (RMS unweighted)
114.7 dB
SNR (dBA)
118.3 dBA
Digital Audio - MADI
Coaxial MADI I/O
1 x BNC (75 Ω, up to 128 channels)
Optical MADI I/O
1 x SFP slot (optional module)
Coaxial Output Level
900 mVpp
Coaxial Cable Length
Up to 100 meters
Optical Cable Length
Up to 2000 meters
MADI Modes
56-channel, 64-channel, 96k Frame
Single Wire (48 kHz)
Up to 64 channels @ 24-bit
Double Wire / 96k Frame
Up to 32 channels @ 24-bit / 96 kHz
Quad Wire
Up to 16 channels @ 24-bit / 192 kHz
MADI Auto-Input
Seamless redundancy switching
Digital Audio - AVB/TSN
Network Ports
1 x RJ45 Gigabit Ethernet (AVB/TSN)
Protocol Standards
IEEE 802.1, IEEE 1722.1
AVB Streams
4 streams (up to 8/12/16 channels each)
Channel Capacity (48 kHz)
Up to 128 channels
Channel Capacity (96 kHz)
Up to 96 channels
Channel Capacity (192 kHz)
Up to 64 channels
Network Speed
1 Gb/s
Cable Type
Cat 5e or higher
Cable Length
Up to 100 meters
MILAN Certification
MILAN-recommended implementation
Stream Format
AM-824, AAF, CRF
