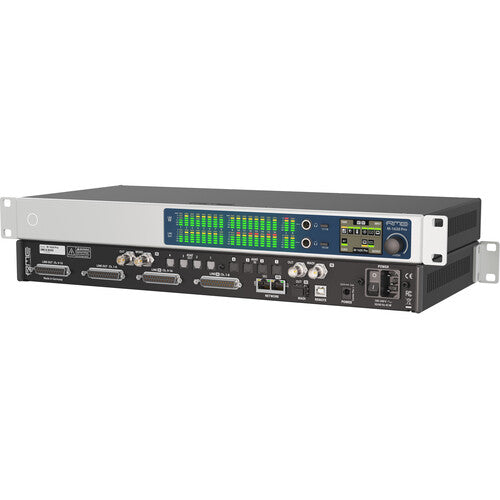

RME M1620 Pro 16x20 AD/DA Converter with AVB/Milan, ADAT, and MADI
$2,999.00
-
$3,399.00
Unit price
/

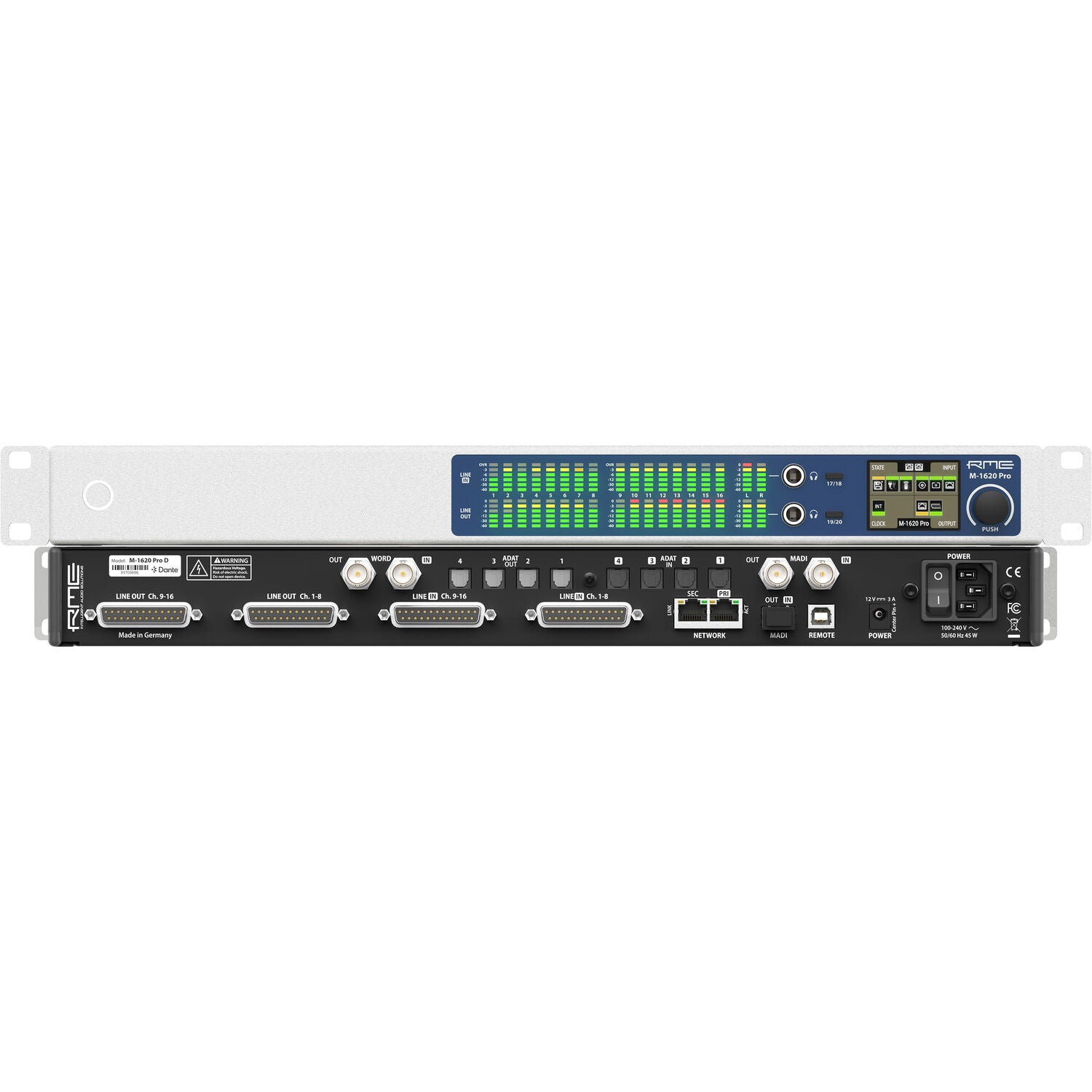

The RME M-1620 Pro converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Milan network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
M-1620 Pro
RME M1620 Pro 16x20 AD/DA Converter with AVB/Milan, ADAT, and MADI
$2,999.00Unit price /View Product -
-
New
M-1620 Pro D
RME M1620 PRO-D 16x20 AD/DA Converter with Dante, ADAT, and MADI
$3,399.00Unit price /View Product -
About the RME M1620 Pro 16x20 AD/DA Converter with AVB/Milan, ADAT, and MADI
Key Features
RME M1620 Pro 16x20 AD/DA Converter with AVB/Milan, ADAT, and MADI Specs
Line In 1-16:
Resolution
24 bit
Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Inputs AC coupled, fully symmetrical signal path (servo-balanced)
Input Impedance 9.5 kΩ
Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz
117.0 dB RMS unweighted, 120.7 dBA
Signal to Noise ratio (SNR) @ +19 dBu
116.3 dB RMS unweighted, 119.9 dBA
Signal to Noise ratio (SNR) @ +13 dBu
114.7 dB RMS unweighted, 118.3 dBA
Frequency response @ 44.1 kHz, -0.1 dB
5 Hz – 20.5 kHz
THD @ -1 dBFS
< -111 dB, < 0.00029%
THD+N @ -1 dBFS
< -108 dB, < 0.00039 %
Channel separation
> 110 dB
Line Out 1-16:
Resolution
24 bit
Output level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Outputs DC coupled, fully symmetrical signal path ("truly balanced")
Output impedance
200 Ohm balanced, 100 Ohm unbalanced
Signal to Noise Ratio (SNR) @ 13 dBu
119.2 dB RMS unweighted
Signal to Noise Ratio (SNR) @ 19 dBu
119.7 dB RMS unweighted
Signal to Noise Ratio (SNR) @ 24 dBu
119.9 dB RMS unweighted
Frequency response @ 44.1 kHz, -0.1 dB
0 Hz – 20.3 kHz (Sharp Filter, default)
Frequency response @ 96 kHz, -0.1 dB
0 Hz – 30 kHz (Slow Filter, default)
Frequency response @ 96 kHz, -0.1 dB
0 Hz – 44.1 kHz (Sharp Filter)
Frequency response @ 192 kHz, -0.1 dB
0 Hz – 60.5 kHz (Slow Filter, default)
Frequency response @ 192 kHz, -0.1 dB
0 Hz – 85 kHz (Sharp Filter)
THD @ 19 dBu
< -120 dB, < 0.0001 %
THD+N @ 19 dBu
< -113 dB, < 0.0002 %
Channel separation
> 110 dB
Phones 1/2, 3/4
Resolution
24 Bit
Output
6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
Maximum output level +4 dBu / +19 dBu (+10 dBu / +25 dBu in balanced mode)
Output level switchable separately for each TRS connector
Signal to Noise Ratio (SNR) @ 19 dBu
> 109 dB RMS unweighted, > 111 dB(A)
Frequency response @ 44.1 kHz, -0.1 dB
0 Hz – 20.0 kHz (Sharp Filter, default)
Frequency response @ 96 kHz, -0.1 dB
0 Hz – 20.0 kHz (Slow Filter, default)
Frequency response @ 96 kHz, -0.1 dB
0 Hz – 44.3 kHz (Sharp Filter)
Frequency response @ 192 kHz, -0.1 dB
0 Hz – 43 kHz (Slow Filter, default)
Frequency response @ 192 kHz, -0.1 dB
0 Hz – 85 kHz (Sharp Filter)
THD+N @ 4 dBu, 32 Ohms load
< -100 dB, < 0.001 %
THD+N @ 19 dBu, 100 Ohms load
< -100 dB, < 0.001 %
