SKU: Octamic II

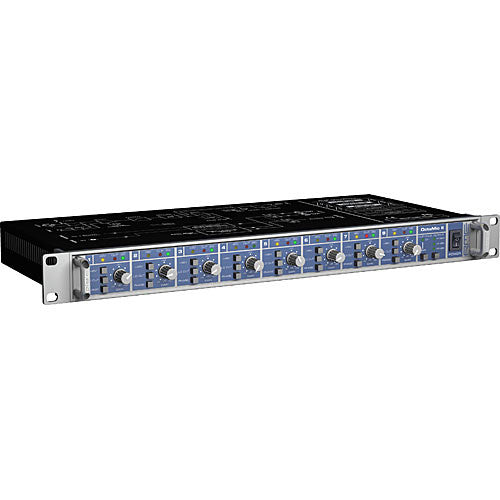

RME OctaMic II - Microphone/Line Preamp with ADC

$1,799.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The OctaMic II provides 8-Channel 192 kHz / 24 bit AD conversion with eight hi-class microphone and line pre-amplification channels, featuring a combination of sophisticated components and approved RME technology. OctaMic II offers 8 balanced XLR mic / line inputs via Neutrik XLR/TRS combo jacks. Each channel contains switches for 48V phantom power, a low cut filter and phase reversal. Amplification can be set between 6 and 60 dB. LEDs for signal, clip, and activated phantom power give a complete overview on the unit's status. When the special Clip Hold mode is activated, any detected clip-state will cause the corresponding LED to flash once per second. With this, the user gets a long-term peak detection, and no longer needs to constantly watch the LEDs. At the same time momentary overloads are still displayed correctly. Read more

Features

  • 8-Channel
  • Analog-to-Digital Converter
  • ADAT (with S/MUX)
  • AES
  • 24-bit/192kHz

Business Financing Options Avaiable

The OctaMic II provides 8-Channel 192 kHz / 24 bit AD conversion with eight hi-class microphone and line pre-amplification channels, featuring a combination of sophisticated components and approved RME technology. OctaMic II offers 8 balanced XLR mic / line inputs via Neutrik XLR/TRS combo jacks. Each channel contains switches for 48V phantom power, a low cut filter and phase reversal. Amplification can be set between 6 and 60 dB. LEDs for signal, clip, and activated phantom power give a complete overview on the unit's status. When the special Clip Hold mode is activated, any detected clip-state will cause the corresponding LED to flash once per second. With this, the user gets a long-term peak detection, and no longer needs to constantly watch the LEDs. At the same time momentary overloads are still displayed correctly. Read more

Features

  • 8-Channel
  • Analog-to-Digital Converter
  • ADAT (with S/MUX)
  • AES
  • 24-bit/192kHz

About the RME OctaMic II - Microphone/Line Preamp with ADC

OctaMic II offers 8 balanced XLR mic / line inputs via Neutrik XLR/TRS combo jacks. Each channel contains switches for 48V phantom power, a low cut filter and phase reversal. Amplification can be set between 6 and 60 dB. LEDs for signal, clip, and activated phantom power give a complete overview on the unit's status. When the special Clip Hold mode is activated, any detected clip-state will cause the corresponding LED to flash once per second. With this, the user gets a long-term peak detection, and no longer needs to constantly watch the LEDs. At the same time momentary overloads are still displayed correctly.

Key Features

  • 8-Channel
  • Analog-to-Digital Converter
  • ADAT (with S/MUX)
  • AES
  • 24-bit/192kHz

RME OctaMic II - Microphone/Line Preamp with ADC Specs

8 balanced XLR/TRS mic/line inputs
54 dB gain range
Input impedance
XLR 2 kOhm, TRS 5 kOhm
Analog input level
from -40 dBu up to +21 dBu
Maximum output level
+21 dBu
Output impedance
75 Ohm
Output level switchable Hi Gain / +4 dBu / -10 dBV
Signal to noise ratio (SNR)
129 dB EIN @ 150 Ohm
THD
< 0.0005 % @ 30 dB Gain
Large frequency range (200 kHz) with special EMI input filtering
Frequency response -0.5 dB
5 Hz - 200 kHz
Hi-pass filter
80 Hz, 18 dB/oct.
Line Out
1/4" TRS (6.3 mm stereo jack), servo-balanced
Phantom power
+48 Volt switchable per channel
Internal wide range switching power supply 100-240 Volt AC
Unbeatable price/performance ratio!
AD conversion
SNR
>110 dB(A)
Supported sample rates
28 kHz - 200 kHz
THD
< 0.0003 %, < -110 dB
Sync Sources
AES/EBU (also SPDIF coaxial), wordclock, internal
SteadyClock(TM) ensures best sound quality even with jittery external clocks

Key Features

  • 8-Channel
  • Analog-to-Digital Converter
  • ADAT (with S/MUX)
  • AES
  • 24-bit/192kHz
