Roland

Roland SRV-3030D 24-Bit Digital Reverb

$0.00

The Roland SRV-3030D is a 1U rackmount, 24-bit digital reverb processor that served as a high-quality effects unit in studios and live sound rigs. As a successor to older Roland reverb units, it features two independent reverb engines that can be used in series or parallel. A standout feature is Roland's proprietary Dynamic Separation Algorithm, which intelligently processes different sonic elements of an incoming signal, like percussive and sustained sounds, through separate reverb engines for more complex and dynamic effects.

View Product Features

  • Dual reverb engines: Two independent reverbs for flexible processing.
  • Dynamic separation algorithm: Separates audio for more dynamic, complex reverb.
  • RSS 3D spatial effect: Expands the stereo image for added depth.
  • Coaxial digital I/O: Offers pristine 24-bit audio connectivity.
  • Three editing modes: Provides quick, intuitive, and in-depth parameter control.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Roland SRV-3030D 24-Bit Digital Reverb

The Roland SRV-3030D is a professional-grade, dual-channel digital reverberation processor that became a staple in studio and broadcast environments for its high-quality algorithms and versatile sound shaping capabilities. Based on Roland's acclaimed RSS (Roland Sound Space) technology, it provides 24-bit digital processing and conversion, delivering a pristine signal path with a wide dynamic range and low noise floor. The unit is celebrated for its rich, natural-sounding reverb tails and its ability to emulate a vast array of acoustic spaces, from intimate rooms and halls to expansive plates and nonlinear effects. Each of its two independent channels can run different algorithms simultaneously, allowing engineers to apply distinct reverberation characteristics to two separate signals or to blend multiple types of reverb on a single source for complex, textured ambience.

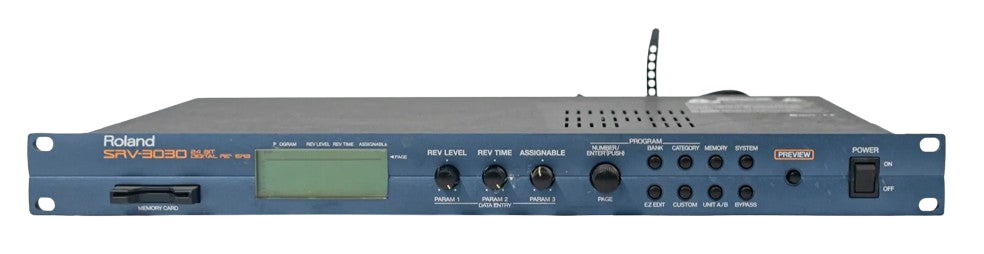

Featuring an intuitive front panel with dedicated knobs for critical parameters like pre-delay, decay time, high and low-frequency damping, and diffusion, the SRV-3030D offers immediate, tactile control over the reverb character without the need for deep menu diving. It includes a comprehensive library of preset programs—spanning halls, rooms, plates, gates, and special effects—that serve as excellent starting points, all of which are fully user-editable and storable in memory locations. The rear panel provides balanced XLR and unbalanced 1/4-inch inputs and outputs for each channel, along with digital I/O (AES/EBU and S/PDIF) for seamless integration into both analog mixing consoles and digital audio workstations, preserving audio quality throughout the signal chain.

Built into a rugged, single-rack-space metal chassis, the SRV-3030D is designed for reliability in continuous operation. Its sonic signature, characterized by smooth, dense tails and musical modulation, made it a go-to choice for adding depth and dimension to vocals, drums, and instruments across a wide range of music production, post-production for film and television, and live broadcast applications. By combining accessible operation with studio-quality sound, it secured its reputation as a classic outboard effect processor that continues to be valued for its musicality and reliability long after its initial release.

Key Features

  • Dual reverb engines: Two independent reverbs for flexible processing.
  • Dynamic separation algorithm: Separates audio for more dynamic, complex reverb.
  • RSS 3D spatial effect: Expands the stereo image for added depth.
  • Coaxial digital I/O: Offers pristine 24-bit audio connectivity.
  • Three editing modes: Provides quick, intuitive, and in-depth parameter control.

Roland SRV-3030D 24-Bit Digital Reverb Specs

Audio Performance
A/D, D/A Conversion
24-bit, 64x oversampling
Dynamic Range
105 dB
Frequency Response
20 Hz - 20 kHz, +0/-1 dB
THD+N
<0.02%
Reverb Processing
Reverb Algorithms
99 Programs (Hall, Room, Plate, etc.)
Max Decay Time
99 seconds
Predelay Range
0 - 500 ms
Modulation Depth
0 - 99
Inputs & Outputs
Analog Inputs
2 x XLR, 2 x 1/4" TRS
Analog Outputs
4 x XLR, 4 x 1/4" TRS
Digital I/O
AES/EBU XLR, Coaxial S/PDIF
Sample Rate
44.1 kHz, 48 kHz selectable
Memory & Control
User Memory
99 locations
MIDI
In, Out/Thru
Parameter Control
Real-time via MIDI
Display
2-digit 7-segment LED
Physical & Electrical
Rack Units
1U
Power Requirements
120V AC, 60Hz (230V AC, 50Hz)
Power Consumption
18 W
Dimensions (WxDxH)
480 mm x 285 mm x 44 mm
Weight
4.5 kg

Key Features

  • Dual reverb engines: Two independent reverbs for flexible processing.
  • Dynamic separation algorithm: Separates audio for more dynamic, complex reverb.
  • RSS 3D spatial effect: Expands the stereo image for added depth.
  • Coaxial digital I/O: Offers pristine 24-bit audio connectivity.
  • Three editing modes: Provides quick, intuitive, and in-depth parameter control.
