Roland V-1200-HDR Controller Surface

The Roland V-1200-HDR Controller Surface is the dedicated hardware control panel for the Roland V-1200HD (or V-1200HDR) video switcher, providing tactile, hands-on control over all major production functions of the connected main processing unit. This surface is designed to offer broadcast-style ergonomics and intuitive operation for live video production, giving directors and technical directors immediate access to source selection, transitions, digital video effects (DVE), keying, and audio mixing. The layout typically includes multiple banks of buttons for selecting preview and program sources, a dedicated transition section with T-bars or fader bars for manual dissolves and wipes, and numerous assignable keys for triggering macros, still stores, and user-defined effects. This physical interface is crucial for fast-paced live production, where muscle memory and instant access are more effective than navigating software menus.

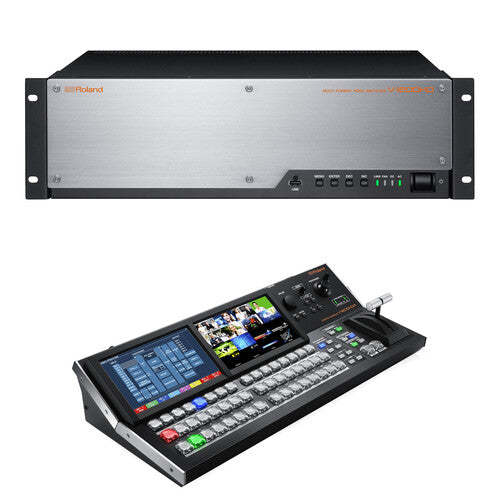

The controller connects to the main V-1200HD processing unit via a single cable (often CAT5e/Cat6 using a proprietary protocol like REAC), creating a clean separation between the noisy production environment where the operator sits and the equipment rack where the main frame is housed. This setup allows for flexible placement of the control surface in an optimal ergonomic position, such as on a production desk, while the main frame is mounted securely in a rack. The surface often includes a high-resolution LCD screen or multiple displays that provide essential feedback, such as source labels, transition status, and menu settings, keeping the operator fully informed without looking away from the controls.

Built to professional broadcast standards, the V-1200-HDR Controller Surface features a robust metal and plastic construction designed to withstand the demands of daily use in touring, broadcast, and fixed installation environments. Its comprehensive control set empowers operators to execute complex multi-camera productions, live graphics insertion, and sophisticated effects with confidence and precision. By providing a dedicated, ergonomic, and responsive hardware interface, this control surface transforms the powerful capabilities of the V-1200HD system into an efficient and creative production workflow.
