Roland

Roland V-1HD PLUS STR Compact 4 x HDMI Video Switcher & UVC-01 USB Capture Device Kit

$799.99

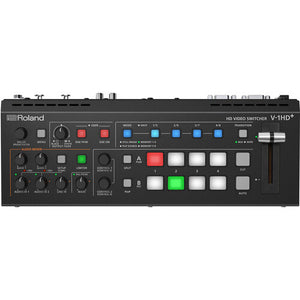

The Roland V-1HD+ video switcher is a standalone unit that can be operated manually or remotely. It features four HDMI inputs with built-in frame rate converters and scaling on one input, allowing for seamless mixing of various sources like cameras, computers, and tablets. A standout feature is the integrated 14-channel digital audio mixer, which can de-embed and re-embed audio from the HDMI streams while also accepting dedicated analog audio inputs, including two XLR ports with phantom power. It includes advanced audio processing like EQ, compression, and effects. The switcher's four-layer effects engine allows for professional compositing, such as picture-in-picture, keying, and graphics overlays.
The included UVC-01 USB video capture device is a simple, high-quality HDMI-to-USB 3.0 encoder. It converts the HDMI output from the V-1HD+ into a plug-and-play webcam signal for your computer, enabling livestreaming on popular platforms like YouTube and Facebook Live with uncompressed 1080p video at 60 FPS. This process offloads the conversion burden from your computer, ensuring smooth, high-quality streaming without the need for additional drivers.

View Product Features
  • Comprehensive I/O: The kit offers four HDMI video inputs for mixing multiple sources and two independent HDMI outputs that can be assigned for program, multiview, or other display purposes.
  • Integrated Audio Mixing: Features a 14-channel audio mixer with professional inputs like dual XLR ports with phantom power, along with powerful audio effects such as EQ, compression, and reverb.
  • Professional Video Effects: A four-layer effects engine enables advanced visual capabilities, including picture-in-picture (PiP), graphics overlays, and keying effects.
  • Seamless Livestreaming: The UVC-01 device provides uncompressed 1080p at 60 FPS streaming via USB 3.0, making the switcher immediately recognizable as a webcam by most streaming software.
  • Intuitive Control: A familiar interface with backlit buttons, a T-bar, and a multiviewer display makes for smooth and easy manual operation, even for single operators.
  • Onboard Scaling and Syncing: Includes a scaler on one HDMI input to handle misbehaving sources and frame rate conversion on all inputs, eliminating the need for external video timing correction.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Roland V-1HD PLUS STR Compact 4 x HDMI Video Switcher & UVC-01 USB Capture Device Kit

The Roland V-1HD PLUS STR Kit is a complete, integrated hardware solution designed to enable professional, multi-camera live production and direct-to-computer streaming with exceptional ease and reliability. The core of the system is the V-1HD PLUS compact video switcher, a four-channel HDMI mixer that allows for seamless live switching between sources such as cameras, computers, and media players. It features an intuitive control surface with dedicated buttons for each input, a professional T-bar for executing smooth fades and transitions, and built-in production tools like picture-in-picture and a downstream keyer for overlaying titles and logos. This hardware-based operation ensures ultra-low latency and unwavering stability, free from the glitches or software crashes that can affect computer-only solutions, making it ideal for mission-critical live events.

A pivotal component of this STR (Streaming) kit is the inclusion of the UVC-01 USB Video Class capture device. This unit elegantly bridges the hardware switcher to any modern computer, taking the final, fully produced program output—complete with switched video, graphics, and mixed audio—and transmitting it via a single USB cable. The computer recognizes this signal as a standard webcam and microphone input, requiring no specialized drivers or complex configuration. This allows the high-quality feed to be used instantly in any streaming, recording, or conferencing software that accepts a USB video device, such as OBS Studio, Zoom, Microsoft Teams, or YouTube Live, dramatically simplifying the workflow for live streaming to the internet or conducting multi-participant video conferences.

The system is further enhanced by a professional audio integration. The V-1HD PLUS includes a built-in two-channel audio mixer with combo XLR/TRS inputs that provide switchable phantom power, enabling the direct connection of microphones or line-level sources. This audio is perfectly synchronized with the video and mixed with the embedded audio from HDMI sources, all controllable from the switcher's panel. By combining robust hardware-based video switching, professional audio mixing, and plug-and-play USB streaming connectivity in one ready-to-use package, the V-1HD PLUS STR Kit provides content creators, educators, corporate communicators, and houses of worship with a powerful, reliable, and accessible all-in-one system for producing polished live video for both local presentation and global online audiences.

Key Features

  • Comprehensive I/O: The kit offers four HDMI video inputs for mixing multiple sources and two independent HDMI outputs that can be assigned for program, multiview, or other display purposes.
  • Integrated Audio Mixing: Features a 14-channel audio mixer with professional inputs like dual XLR ports with phantom power, along with powerful audio effects such as EQ, compression, and reverb.
  • Professional Video Effects: A four-layer effects engine enables advanced visual capabilities, including picture-in-picture (PiP), graphics overlays, and keying effects.
  • Seamless Livestreaming: The UVC-01 device provides uncompressed 1080p at 60 FPS streaming via USB 3.0, making the switcher immediately recognizable as a webcam by most streaming software.
  • Intuitive Control: A familiar interface with backlit buttons, a T-bar, and a multiviewer display makes for smooth and easy manual operation, even for single operators.
  • Onboard Scaling and Syncing: Includes a scaler on one HDMI input to handle misbehaving sources and frame rate conversion on all inputs, eliminating the need for external video timing correction.

Roland V-1HD PLUS STR Compact 4 x HDMI Video Switcher & UVC-01 USB Capture Device Kit Specs

Video Switcher
Model
V-1HD PLUS
Video Inputs
4 x HDMI
Maximum Resolution
1080p60
Program Output
1 x HDMI
Preview Output
1 x HDMI
Key Features
T-Bar Fader, Picture-in-Picture, Downstream Keyer (DSK)
Audio Features
Audio Inputs
2 x XLR/TRS combo jacks (with +48V phantom power)
Audio Mixer
Built-in 6-channel mixer
Headphone Output
1 x 1/4-inch stereo jack
Streaming Component
Device Type
USB Video and Audio Class (UVC/UAC) Interface
Computer Interface
USB 3.0 Type-B
Function
Converts HDMI program output to USB webcam signal
Bundle Contents
Primary Use
Live production and direct USB streaming/recording
General Specifications
Power Supply
External 12V DC adapters
Switcher Dimensions (W x D x H)
Approx. 280 mm x 186 mm x 58 mm
Switcher Weight
Approx. 1.2 kg
Operating Temperature
5°C to 40°C

Key Features

  • Comprehensive I/O: The kit offers four HDMI video inputs for mixing multiple sources and two independent HDMI outputs that can be assigned for program, multiview, or other display purposes.
  • Integrated Audio Mixing: Features a 14-channel audio mixer with professional inputs like dual XLR ports with phantom power, along with powerful audio effects such as EQ, compression, and reverb.
  • Professional Video Effects: A four-layer effects engine enables advanced visual capabilities, including picture-in-picture (PiP), graphics overlays, and keying effects.
  • Seamless Livestreaming: The UVC-01 device provides uncompressed 1080p at 60 FPS streaming via USB 3.0, making the switcher immediately recognizable as a webcam by most streaming software.
  • Intuitive Control: A familiar interface with backlit buttons, a T-bar, and a multiviewer display makes for smooth and easy manual operation, even for single operators.
  • Onboard Scaling and Syncing: Includes a scaler on one HDMI input to handle misbehaving sources and frame rate conversion on all inputs, eliminating the need for external video timing correction.
