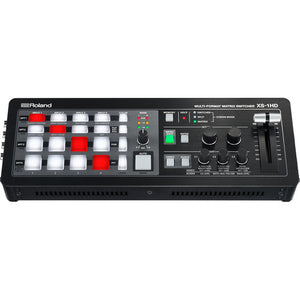

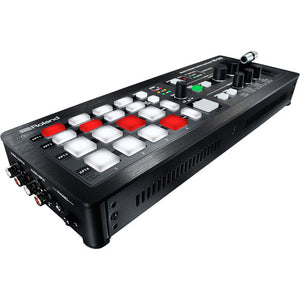

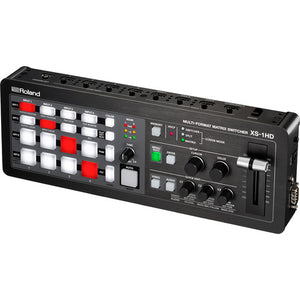

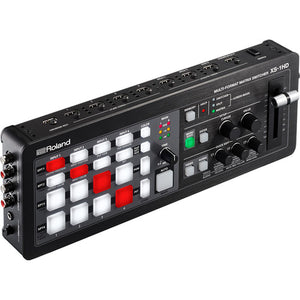

Roland XS-1 HD Multi-Format Matrix Switcher

The Roland XS-1 HD is a professional multi-format matrix switcher designed to serve as the central routing and distribution hub for complex audio and video systems in live production, broadcast, and installed AV environments. This versatile unit allows any input source to be routed to any output destination independently, providing unparalleled flexibility in managing signals from a diverse array of equipment. It supports a wide range of video formats including HDMI, SDI, and potentially VGA or DVI, alongside embedded digital audio, making it capable of handling hybrid systems where different devices operate on different standards. The matrix architecture is essential for environments like broadcast trucks, large houses of worship, command and control centers, and event production where multiple sources (cameras, media servers, graphics PCs) need to be sent simultaneously to various displays, recording devices, and streaming encoders.

The switcher excels in signal management and integrity. It performs essential functions such as format conversion and scaling, allowing a source in one resolution and format to be seamlessly output in another, ensuring compatibility across all connected devices. Advanced features typically include frame synchronization on all inputs to eliminate glitches when switching, and audio de-embedding/embedding to manage sound separately from video if needed. Control is comprehensive, offered via front panel buttons, an included remote, RS-232, and Ethernet for integration into larger control systems or software-based interfaces, allowing for presets and automated switching sequences.

Built with reliability for mission-critical applications, the XS-1 HD features a robust metal chassis designed for rackmount installation. Its extensive input and output banks are clearly laid out, and the internal processing is designed for low latency to maintain audio-video synchronization. By consolidating routing, conversion, and distribution into a single, intelligent unit, the Roland XS-1 HD simplifies system design, reduces cable clutter and converter boxes, and provides a future-proof foundation for professional AV systems that require flexible, reliable, and high-quality signal management.
