SKU: C1978-22

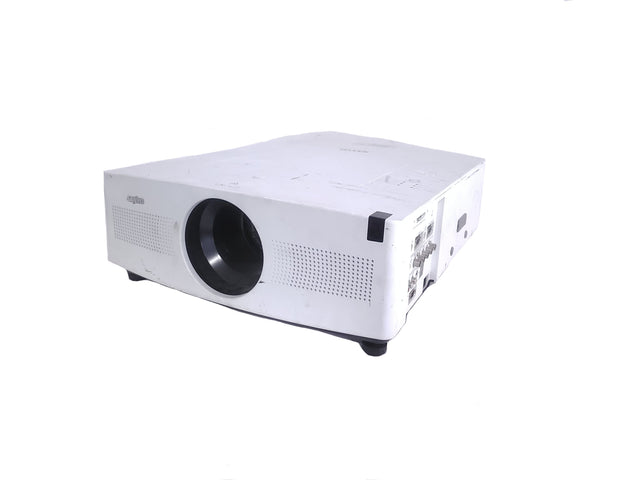

Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote

Name: Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote
Brand: AVGear.com
SKU: C1978-22
Price: 250.00 USD
Availability: InStock

$250.00

Items Included

Item Notes

Lamp1, 1383 & 2, 208 Hours

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Sanyo PLC-WTC500AL is a professional large-venue projector engineered to deliver 5,000 ANSI lumens of brightness and WXGA (1280 x 800) native resolution for demanding corporate, educational, and house of worship applications. Featuring 3LCD technology with three 0.95-inch p-Si TFT active matrix panels, this projector produces vibrant, high-definition images with a 3000:1 contrast ratio suitable for screen sizes up to 300 inches diagonal. The unit incorporates an advanced dual-lamp system with automatic lamp selection, allowing uninterrupted presentations by instantly switching between lamps when one reaches the end of its life, with individual lamp life rated at 2500 hours in standard mode and 3000 hours in Eco mode. Please note this specific unit is offered without a lens, providing an opportunity to configure the projector with an optional lens matched to specific installation requirements. Designed for flexible installation, the PLC-WTC500AL incorporates motorized lens shift with vertical adjustment (+50% to 0%) and horizontal adjustment (±15%), enabling precise image alignment without physically moving the projector. Professional installation features include motorized zoom and focus when equipped with optional powered lenses, perpendicular omnidirectional projection capability, and an automatic filter replacement system that monitors filter condition and replaces it automatically when clogging is detected. The comprehensive connectivity suite includes DVI-D, HDMI, 5BNC RGBHV, VGA in/out, component video, S-Video, composite video, RS-232, USB, and RJ-45 Ethernet for networked control via optional Network Manager. The included remote control supports both wired and wireless operation with PC mouse functionality, laser pointer, and eight selectable remote codes to prevent interference in multi-projector installations. Read more

Features

5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses

Business Financing Options Avaiable

View Available Financing

Features

5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses

No products currently in stock

About the Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote

The Sanyo PLC-WTC500AL is a professional-grade, large venue multimedia projector engineered to deliver exceptional brightness and long-term reliability in demanding environments like lecture halls, boardrooms, and houses of worship. Utilizing a high-performance 3LCD 3-chip display system, it generates a powerful 5,000 ANSI lumens of brightness paired with a 3,000:1 contrast ratio, ensuring vivid, color-accurate images even in rooms with high ambient light. Note that while some historical product titles mistakenly reference WUXGA or 5K phrasing, the hardware natively features a widescreen WXGA (1280 x 800) resolution with a 16:10 aspect ratio. Sold without a standard lens, it grants integration flexibility by allowing professionals to select from multiple optional short-throw or long-range bayonet lenses to match their specific throw distance requirements.

This projector is highly regarded for its low-maintenance, industrial architecture, notably featuring a fail-safe dual-lamp system and an Automated Filter Replacement (AMF) design. The dual-lamp setup houses two 330W NSHA lamps that can operate sequentially; if the primary lamp fails, the projector automatically switches to the secondary onboard spare, ensuring uninterrupted 24/7 operation for digital signage or high-stakes events. Simultaneously, its internal AMF system automatically scrolls to a fresh section of a ten-filter cartridge whenever it detects air blockage, minimizing manual upkeep. To streamline physical positioning, the unit includes motorized horizontal and vertical lens shift alongside powered zoom and focus, allowing installers to easily dial in settings from the ground using the multi-use remote control.

Key Features

5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses

Already own this item and want to sell it?

Click here to sell your item

Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote Specs

Display System

Three 0.95" TFT Active Matrix P-Si LCD panels

Native Resolution

WXGA 1280 x 800 pixels (Total of 3,072,000 pixels)

Aspect Ratio

Brightness

5,000 ANSI Lumens

Contrast Ratio

3,000

Uniformity

90% corner-to-center illumination

Lens Shift Range

Vertical (U/D) 10

Digital Keystone Correction

Vertical

Diagonal Image Size Range

30 to 300 inches

Compatible Lenses

Optional bayonet mount system (Supports LNS-S11 standard zoom, LNS-W11, LNS-W10, LNS-T10, and LNS-T11)

Lamp Configuration

Dual-lamp safety switching infrastructure

Lamp Type

330W NSHA light source

Maintenance Filter

Automated Maintenance Filter (AMF) featuring a 10-filter scroll cartridge

Audible Fan Noise

31 dB in Eco mode

Video Inputs

1x HDMI Standard

1x 5-BNC input (RGB / Component)

1x D-Sub 15-pin (VGA/SVGA input)

1x S-Video input

1x Composite Video (RCA) [1]

Control & Networking

1x LAN (RJ-45), 1x Serial RS-232 (DB-9pin), and 1x USB Type-B port

Onboard Audio

Dual 3W + 3W built-in stereo speakers

HDTV Signals Supported

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Computer Resolutions Compatibility

UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, and Mac

Key Features

5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses
