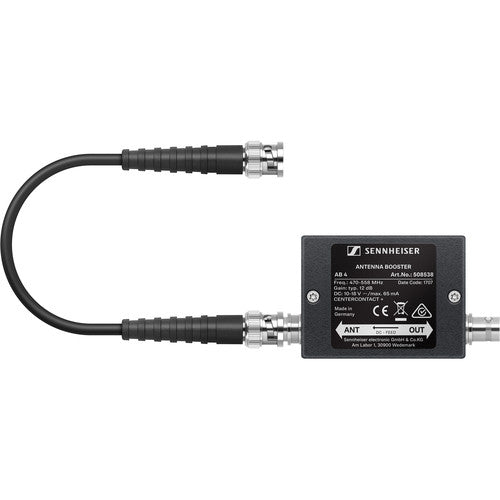

The Sennheiser AB 4-GW is a professional-grade, active antenna booster designed to extend the range and improve the signal reliability of Sennheiser G3 and G4 series 500/516 MHz band wireless microphone and in-ear monitor systems. It functions as an inline signal amplifier, placed between the receiver's antenna output and an external, passive antenna. Its primary role is to compensate for the signal loss incurred over long coaxial cable runs, which is a common challenge in large venues, broadcast studios, or complex stage setups where the receiver rack is located far from the performance area. By injecting clean, low-noise gain into the antenna signal path, the AB 4-GW ensures a stronger RF signal reaches the receiver, thereby maximizing reception sensitivity and minimizing the risk of dropouts.

The device is engineered with a focus on signal integrity. It features a very low-noise figure amplifier circuit that boosts the UHF signal without significantly degrading the signal-to-noise ratio or introducing intermodulation products that could interfere with other wireless channels. It derives its power directly from the receiver via the coaxial cable, utilizing a phantom powering system, which eliminates the need for a separate external power supply and simplifies installation. The booster is housed in a rugged, compact metal casing with BNC input and output connectors, making it easy to integrate into existing antenna distribution systems or to use as a dedicated single-channel solution. A clear LED indicator provides instant visual confirmation of operational status and power.

For system technicians and audio engineers, the Sennheiser AB 4-GW is a critical tool for optimizing wireless performance in challenging RF environments. It is particularly effective when used with directional antennas, such as paddles or Yagis, placed at optimal locations, as it allows the benefits of those antennas to be fully realized at the distant receiver. By effectively "extending" the reach of the antenna system, this booster helps maintain a robust and stable wireless link, ensuring consistent audio quality and transmission reliability for performers and presenters, which is essential for professional live sound and broadcast applications.
