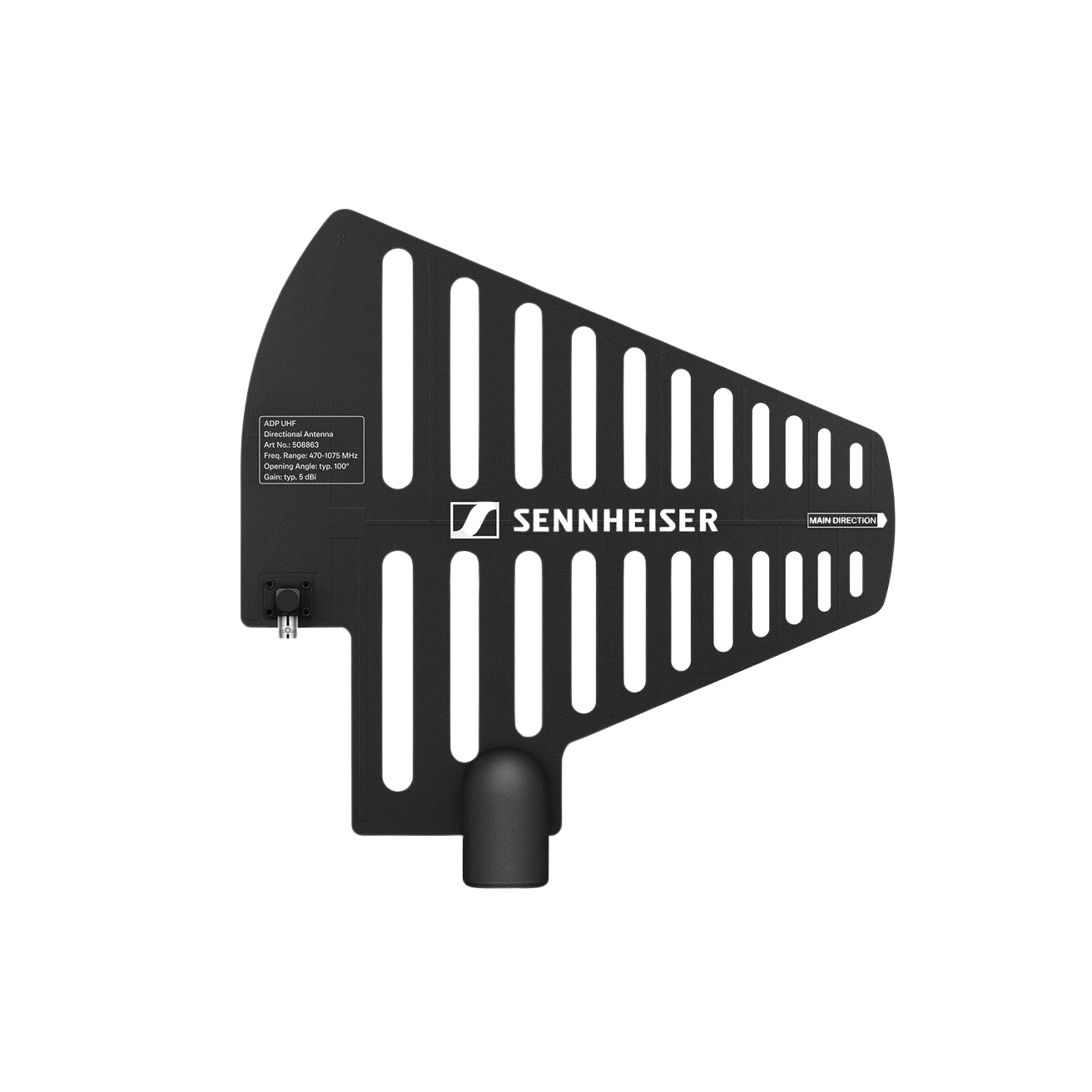

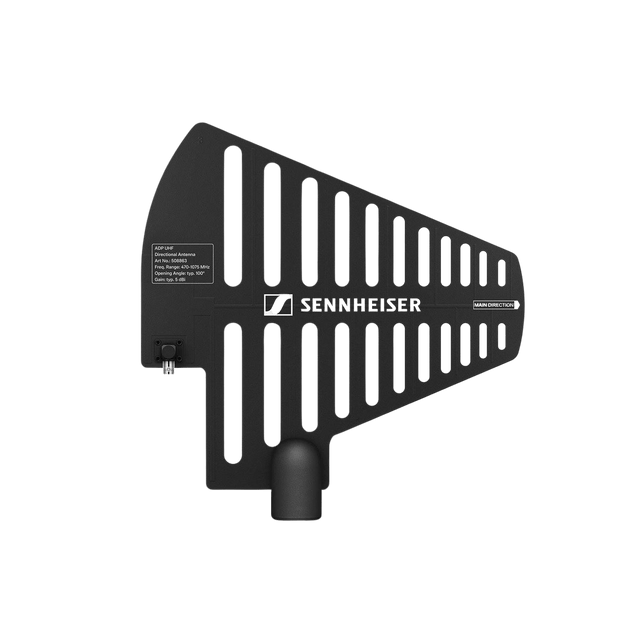

The Sennheiser ADP UHF is a passive, directional log-periodic dipole array (LPDA) antenna designed for professional UHF wireless microphone and monitoring systems operating between 470 and 1075 MHz. Its directional characteristic allows it to focus its reception in a specific direction, providing increased gain (typically 6-8 dBi) and superior rejection of interfering signals coming from other directions compared to an omnidirectional antenna. This makes it ideal for situations where the transmitter locations are known and fixed, such as on a stage, allowing for longer range and more reliable signal reception, especially in challenging RF environments.

The antenna is constructed with a robust housing and features a wide bandwidth that covers most professional wireless system frequency blocks. It is typically mounted on a stand or truss and connected to a receiver or antenna distribution system via its BNC connector using low-loss coaxial cable. By using a pair of these antennas in a true diversity receiver setup, technicians can create a highly robust wireless system with excellent range and signal stability. The Sennheiser ADP UHF antenna is a critical component for maximizing the performance of wireless systems in large venues, arena tours, and complex multi-system installations.
