SKU: C2085-151

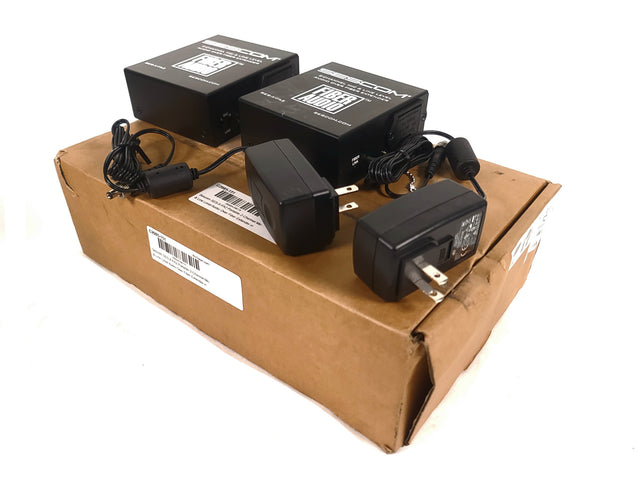

Sescom SES-X-FA2 Portable 2-Channel Mic & Line Level Audio Over Fiber Extender in Box

$199.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The Sescom SES-X-FA2 is a professional, portable 2-channel audio extender designed to send balanced microphone or line-level signals over long distances via fiber optic cable. This complete kit includes both a transmitter and a receiver unit, enabling high-quality analog audio transmission up to an impressive 12.4 miles (20 km) over a single-mode fiber or 984 feet (300 m) over multi-mode fiber. Each unit features two balanced XLR connectors—inputs on the transmitter and outputs on the receiver—and a simplex ST connector for fiber attachment. A key feature for field use is the per-channel switch on the transmitter, allowing each input to be set independently for microphone or line level, accommodating various source types without external pads or adapters. Engineered for maximum flexibility in broadcast, live event, and installed sound applications, the system provides 24-bit, 48 kHz audio encoding with a signal-to-noise ratio greater than 85 dB, ensuring clean, crosstalk-free transmission. A major advantage for remote use is its versatile powering option: each of the compact units can be powered either by the included AC adapters or by a standard 9V battery, providing approximately four hours of operation for true field portability. This complete package comes in its original box, offering a reliable, adjustment-free solution for sending professional audio over vast distances with immunity to hum and RF interference. Read more

Features

  • Exceptional Transmission Distance: Extends balanced audio up to 12.4 miles (20 km) over single-mode fiber or 984 feet (300 m) over multi-mode fiber.
  • Flexible Input Levels: Features a per-channel switch on the transmitter to select between microphone or line level for each of the two XLR inputs.
  • Dual Power Supply Options: Each unit can be powered by an included 12V AC adapter or a standard 9V battery for approximately four hours of field operation.
  • High-Quality Digital Audio: Utilizes 24-bit, 48 kHz encoding with a signal-to-noise ratio >85 dB for clean, professional-grade audio.
  • Professional Connectivity: Equipped with balanced XLR audio connectors on both units and simplex ST connectors for secure fiber optic attachment.
  • Plug-and-Play Operation: Requires no optical adjustments and features LED indicators on each unit to monitor power and fiber link status.

Business Financing Options Avaiable

The Sescom SES-X-FA2 is a professional, portable 2-channel audio extender designed to send balanced microphone or line-level signals over long distances via fiber optic cable. This complete kit includes both a transmitter and a receiver unit, enabling high-quality analog audio transmission up to an impressive 12.4 miles (20 km) over a single-mode fiber or 984 feet (300 m) over multi-mode fiber. Each unit features two balanced XLR connectors—inputs on the transmitter and outputs on the receiver—and a simplex ST connector for fiber attachment. A key feature for field use is the per-channel switch on the transmitter, allowing each input to be set independently for microphone or line level, accommodating various source types without external pads or adapters. Engineered for maximum flexibility in broadcast, live event, and installed sound applications, the system provides 24-bit, 48 kHz audio encoding with a signal-to-noise ratio greater than 85 dB, ensuring clean, crosstalk-free transmission. A major advantage for remote use is its versatile powering option: each of the compact units can be powered either by the included AC adapters or by a standard 9V battery, providing approximately four hours of operation for true field portability. This complete package comes in its original box, offering a reliable, adjustment-free solution for sending professional audio over vast distances with immunity to hum and RF interference. Read more

Features

  • Exceptional Transmission Distance: Extends balanced audio up to 12.4 miles (20 km) over single-mode fiber or 984 feet (300 m) over multi-mode fiber.
  • Flexible Input Levels: Features a per-channel switch on the transmitter to select between microphone or line level for each of the two XLR inputs.
  • Dual Power Supply Options: Each unit can be powered by an included 12V AC adapter or a standard 9V battery for approximately four hours of field operation.
  • High-Quality Digital Audio: Utilizes 24-bit, 48 kHz encoding with a signal-to-noise ratio >85 dB for clean, professional-grade audio.
  • Professional Connectivity: Equipped with balanced XLR audio connectors on both units and simplex ST connectors for secure fiber optic attachment.
  • Plug-and-Play Operation: Requires no optical adjustments and features LED indicators on each unit to monitor power and fiber link status.

About the Sescom SES-X-FA2 Portable 2-Channel Mic & Line Level Audio Over Fiber Extender in Box

The Sescom SES-X-FA2 Portable 2-Channel Mic & Line Level Audio Over Fiber Extender is a robust, two-unit transmitter and receiver hardware kit engineered to deliver high-fidelity field audio over expansive deployment areas. Designed by Sescom for environments like stadiums, broadcast trucks, and live event staging, this kit converts dual-channel analog audio signals into a 24-bit digital stream. This stream is transmitted across optical fiber infrastructure using professional bayonet-style ST simplex fiber connectors to maintain an interference-free connection.

Its portable design features a dual-power topology that can operate via standard 9V batteries or the included AC wall power adapters. Each input channel on the transmitter unit integrates an independent mic- and line-level selection toggle switch, giving field production engineers the flexibility to interface directly with dynamic microphones or line-level console feeds without extra line-matching transformers. This system operates with a wide dynamic optical range that functions natively upon connection, eliminating the need for manual attenuation or complex software calibrations

Key Features

  • Exceptional Transmission Distance: Extends balanced audio up to 12.4 miles (20 km) over single-mode fiber or 984 feet (300 m) over multi-mode fiber.
  • Flexible Input Levels: Features a per-channel switch on the transmitter to select between microphone or line level for each of the two XLR inputs.
  • Dual Power Supply Options: Each unit can be powered by an included 12V AC adapter or a standard 9V battery for approximately four hours of field operation.
  • High-Quality Digital Audio: Utilizes 24-bit, 48 kHz encoding with a signal-to-noise ratio >85 dB for clean, professional-grade audio.
  • Professional Connectivity: Equipped with balanced XLR audio connectors on both units and simplex ST connectors for secure fiber optic attachment.
  • Plug-and-Play Operation: Requires no optical adjustments and features LED indicators on each unit to monitor power and fiber link status.

Sescom SES-X-FA2 Portable 2-Channel Mic & Line Level Audio Over Fiber Extender in Box Specs

Audio Sampling Rate
24-bit / 48 kHz
Signal to Noise Ratio
> 85 dB
Frequency Response
20 Hz to 20 kHz
Fiber Connector Type
Simplex ST Connector
Input/Output Connectors
Transmitter: 2 x Balanced XLR inputs
Power Requirements
1 x 9V Battery per unit or 5–14.4 VDC Operation
Dimensions (Each Unit)
4.33 x 3.62 x 1.65 inches (11 x 9.2 x 4.2 cm)
Weight (Each Unit)
7.9 oz (224 g)

Key Features

  • Exceptional Transmission Distance: Extends balanced audio up to 12.4 miles (20 km) over single-mode fiber or 984 feet (300 m) over multi-mode fiber.
  • Flexible Input Levels: Features a per-channel switch on the transmitter to select between microphone or line level for each of the two XLR inputs.
  • Dual Power Supply Options: Each unit can be powered by an included 12V AC adapter or a standard 9V battery for approximately four hours of field operation.
  • High-Quality Digital Audio: Utilizes 24-bit, 48 kHz encoding with a signal-to-noise ratio >85 dB for clean, professional-grade audio.
  • Professional Connectivity: Equipped with balanced XLR audio connectors on both units and simplex ST connectors for secure fiber optic attachment.
  • Plug-and-Play Operation: Requires no optical adjustments and features LED indicators on each unit to monitor power and fiber link status.
