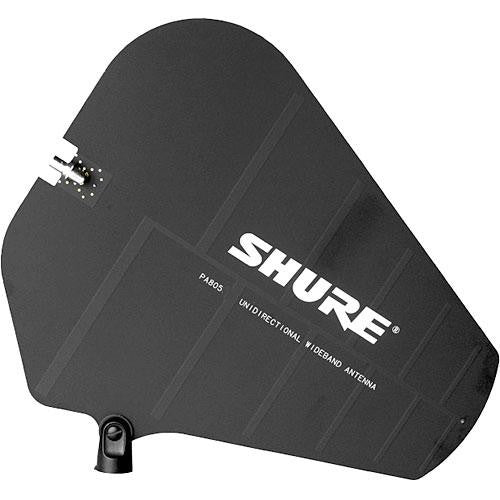

Shure PA805X Directional Antenna for PSM Systems (944-952MHz)

The Shure PA805 is a professional directional (log-periodic) wideband UHF antenna designed to provide superior gain and range for wireless microphone systems in challenging RF environments. Unlike omnidirectional antennas, the PA805 features a directional polar pattern that focuses its receiving sensitivity in a specific forward-facing direction, allowing it to pick up weaker signals from a distance while rejecting unwanted interference arriving from the sides and rear. This makes it an ideal solution for situations where wireless transmitters are consistently located in one general area relative to the receiver rack, such as on a stage, and where long throw distances or poor signal conditions are a concern. Its wideband design covers a broad portion of the UHF spectrum, making it versatile for systems operating across different frequency bands.

Engineered for durability and professional touring use, the PA805 is housed in a rugged, water-resistant radome that protects the internal dipole array from physical damage and environmental factors. It includes an integrated mounting bracket for easy attachment to a mic stand, lighting truss, or wall, and its directional nature requires careful aiming toward the area of transmitter activity for optimal performance. The antenna requires phantom power (9-15 V DC) supplied via the coaxial cable from a compatible Shure antenna distribution system (like the UA844 or UA845) or an inline power inserter, which powers an internal low-noise amplifier to boost the received signal before sending it down the cable, thereby overcoming cable loss over long runs.

The Shure PA805 is a critical tool for maximizing the reliability and range of large, multi-channel wireless systems in major concert tours, broadcast television, and large fixed installations. By providing increased gain and focused reception, it helps audio engineers overcome signal path obstacles, reduce dropout zones, and maintain a cleaner RF environment, ensuring that every wireless microphone channel performs at its maximum potential even under demanding conditions.
