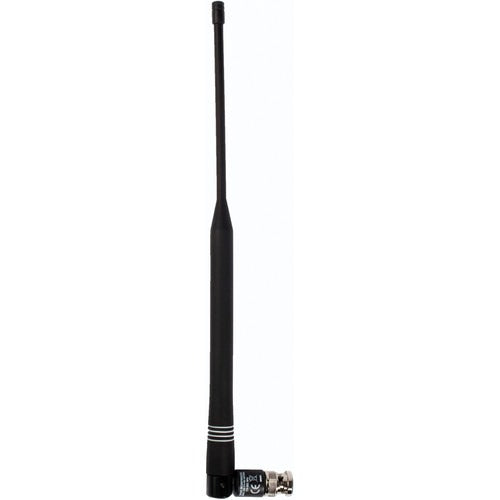

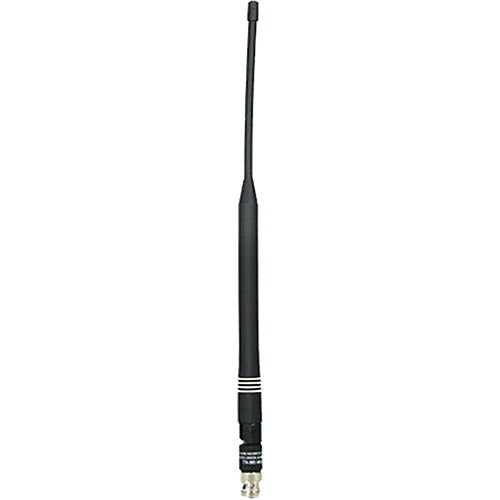

Shure UA8-554-590 1/2 Wave Omnidirectional Receiver Antenna

The Shure UA8-554-590 is a replacement 1/2-wave omnidirectional whip antenna designed for Shure UHF wireless receivers and antenna distribution systems. Tuned specifically for the 554–590 MHz UHF frequency sub-band, it provides 360-degree wireless signal reception without requiring a separate metal ground plane.

It works with any Shure wireless receiver, antenna splitter, or distribution unit featuring standard BNC antenna jacks operating within the 554–590 MHz spectrum. Compatible systems include ULX, SLX, BLX4R, QLX-D, ULX-D, UHF-R, Axient Digital receivers (operating in overlapping bands such as J50, J50A, G50, H50, or J1), as well as the UA844+ and UA845UWB antenna distribution systems.

Shure manufactures the UA8-series 1/2-wave whips in tightly tuned sub-bands (such as 554–590 MHz) to optimize impedance matching and antenna efficiency across that specific slice of UHF spectrum. Tighter tuning minimizes VSWR (Voltage Standing Wave Ratio) and maximizes RF reception sensitivity compared to ultra-wideband whips.

Unlike a 1/4-wave antenna that relies on the receiver's metal chassis as a counterpoise ground plane to function properly, a 1/2-wave antenna is electrically self-contained. This allows the UA8-554-590 to perform consistently whether mounted directly to a receiver's rear/front BNC port or remote-mounted on a stand or wall via coaxial cable.

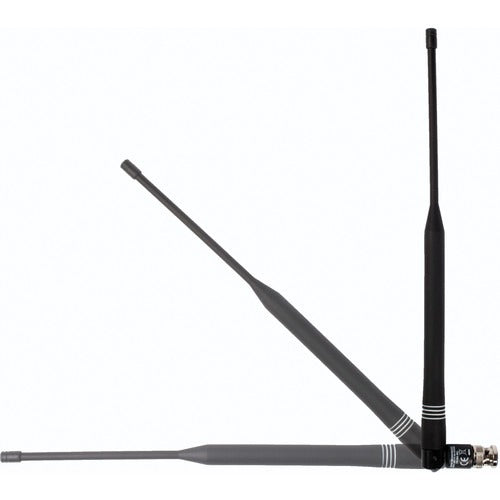

The antenna terminates in a standard male BNC twist-lock connector for fast, secure attachment to receiver chassis or front-panel bulkhead adapters. Its base includes an articulated hinged knuckle joint that allows the whip to swivel upright or angle outward in a "V" formation for diversity reception.

Yes. Because it is a self-contained 1/2-wave design, you can mount it outside an RF-shielding metal rack using low-loss 50-ohm coaxial cable (such as Shure UA825 or UA850) and a remote mounting bracket (such as the Shure UA505). Keep cable runs short (typically under 25 feet without amplification) to avoid excessive coaxial signal loss.

Using the antenna significantly outside its 554–590 MHz passband causes impedance mismatch and signal attenuation. While it will not damage a receiver, out-of-band operation reduces effective RF signal gain, shortens reliable wireless operating range, and increases vulnerability to audio dropouts.

It captures RF signals evenly across a 360-degree horizontal plane around the antenna shaft, with a natural signal null directly off the top tip. This makes it ideal for stages or rooms where performers move all around the receiver's position, though it picks up ambient RF equally from all directions rather than rejecting rear noise like a directional paddle (e.g., UA874).
