The Shure UA844+ is an advanced active antenna distribution system designed to optimize the performance and scalability of professional UHF wireless microphone and in-ear monitor systems. This rack-mountable unit allows a single pair of high-quality, remotely mounted antennas to be shared among up to four wireless receivers, eliminating the need for each receiver to use its own less effective antennas. It incorporates a built-in low-noise amplifier (LNA) that provides active gain to overcome signal loss in long cable runs, ensuring that the RF signal delivered to each receiver output is strong and clean. This active design significantly improves overall system range, reduces the likelihood of dropouts, and minimizes intermodulation distortion in multi-channel setups.

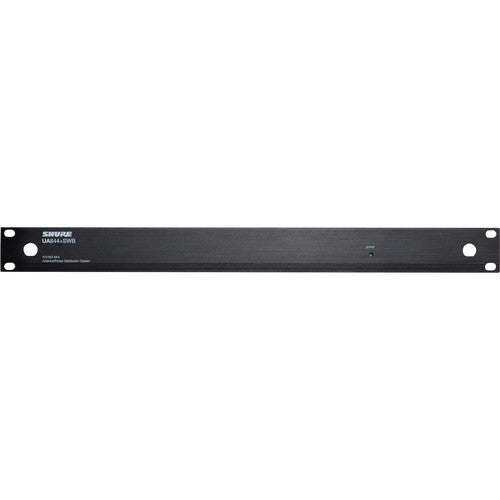

The system requires external 12-18V DC power and distributes this phantom power to the connected antennas via the coaxial cables, simplifying installation. It features front-panel LED indicators for power and status, and uses standard BNC connectors for all antenna and receiver connections. By enabling optimal antenna placement (e.g., above a stage or in the center of a venue's ceiling) and distributing an amplified, clean signal to multiple receivers, the UA844+ solves common problems of RF signal degradation and interference. It is a critical component for major touring productions, broadcast facilities, and large installed venues where dozens of wireless channels must operate simultaneously with absolute reliability.

For RF system engineers, the Shure UA844+ is a foundational tool for building robust and professional wireless infrastructure. It maximizes the performance of wireless systems by ensuring all receivers benefit from the best possible antenna signal, directly contributing to greater operating range, improved signal-to-noise ratio, and enhanced overall system stability in the most demanding RF environments.
