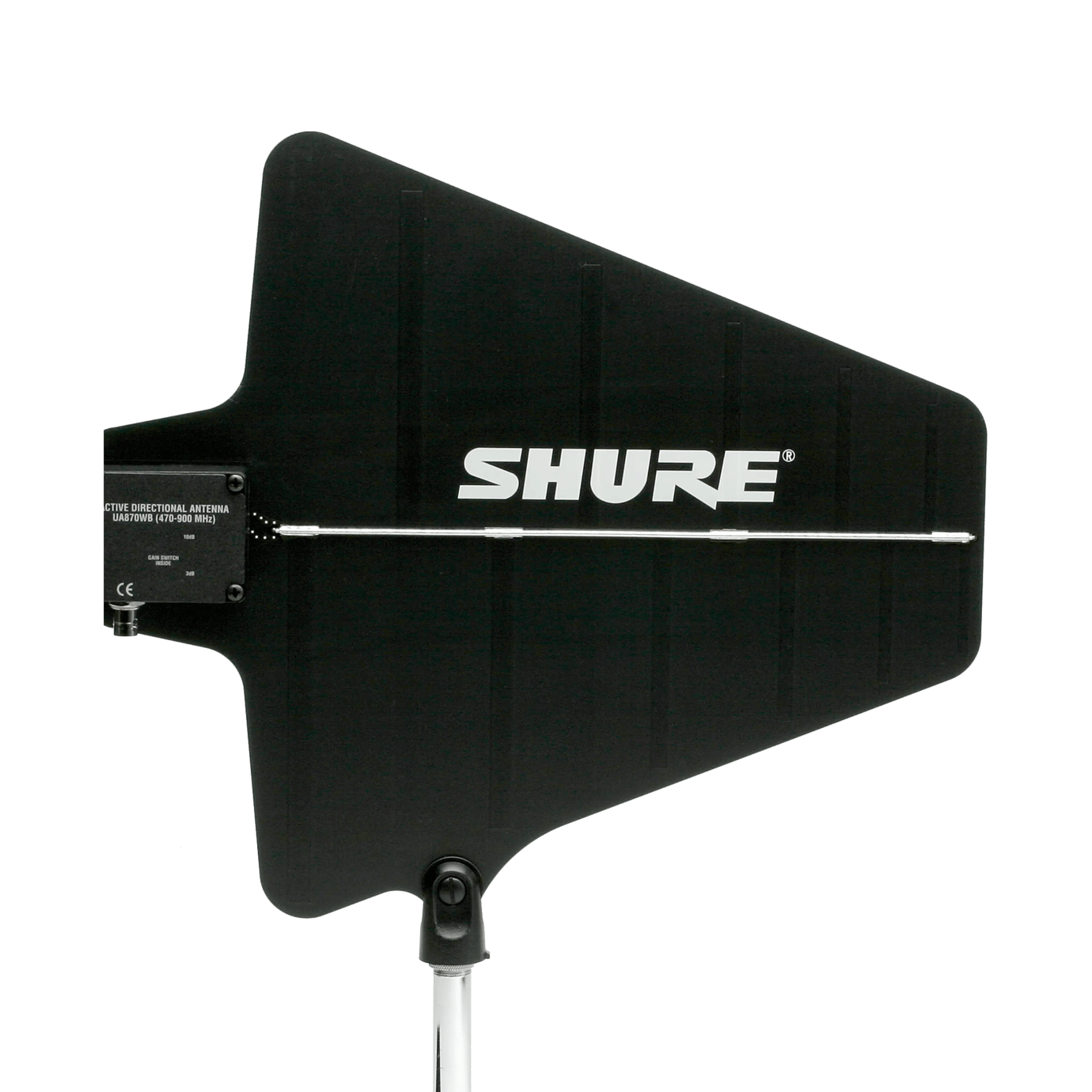

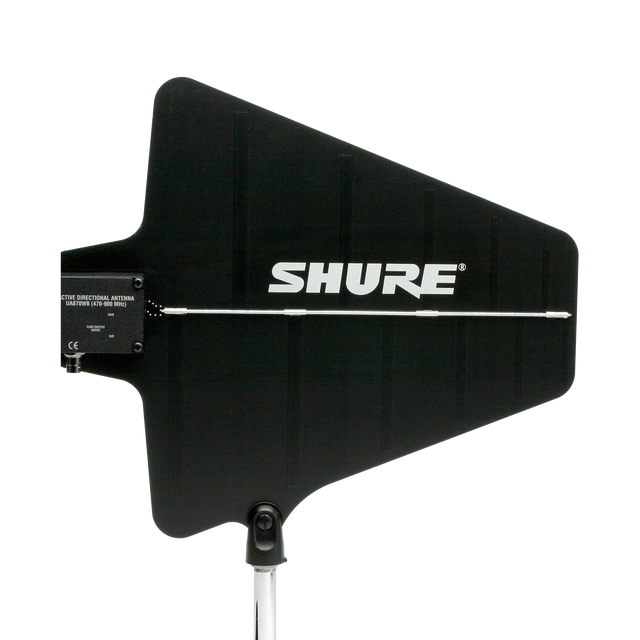

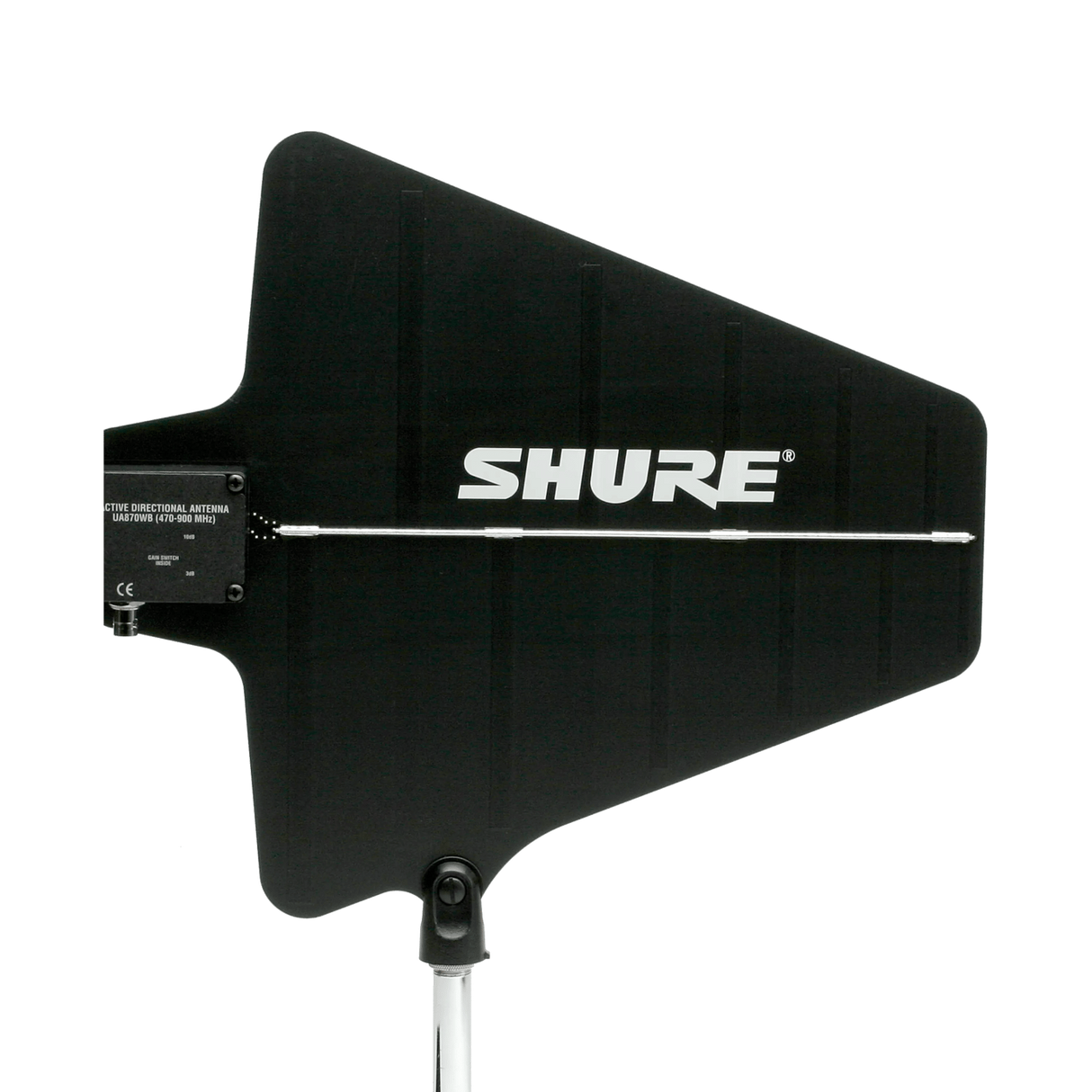

Shure UA870UB Active Directional Antenna

The Shure UA870UB is an active directional antenna system engineered to significantly enhance the performance and reliability of professional wireless microphone and in-ear monitor systems. This unit is designed to address the challenges of long-range signal transmission, dense RF environments, and complex venue architectures where reliable wireless operation is critical. It functions as a high-gain, low-noise amplifier (LNA) combined with a directional log-periodic antenna element, allowing it to selectively receive signals from a specific direction while rejecting interference from others. This focused reception pattern is invaluable for isolating transmitters on stage, minimizing dropouts, and extending the effective operating range of wireless systems in large venues or when signal paths are obstructed.

The system's core technology integrates a precision-tuned antenna with an integrated low-noise amplifier that provides clean signal gain to overcome cable loss. This is a crucial feature, as long cable runs from remote antenna positions to a receiver rack can severely attenuate RF signals; the active amplification compensates for this loss before the signal degrades, ensuring a strong, clean signal reaches the receivers. The antenna's directional characteristics allow system technicians to precisely aim the main lobe of reception toward the area of transmitter activity, such as a stage, while nullifying unwanted signals from the rear and sides. This results in a more robust RF link with a higher signal-to-noise ratio, greater channel capacity, and improved overall system stability.

Constructed for permanent installation or portable use, the UA870UB features a rugged housing with an integrated swivel mounting bracket for easy positioning on a mic stand, truss, or wall. It operates on standard AC power via an included adapter and provides a grounded through-line for daisy-chaining multiple units or connecting a secondary passive antenna. The unit is designed for seamless integration with Shure and other professional UHF wireless systems operating within compatible frequency bands. For large-scale productions, touring events, or challenging fixed installations, the Shure UA870UB active directional antenna system is a powerful tool for optimizing wireless system performance, ensuring consistent audio transmission free from dropouts and interference.
