SmallRig Magic Arm & Magnetic Suction Cup Mounting Support Kit for Action Cameras

$14.99

Items Included

SmallRig Magic Arm & Magnetic Suction Cup Mounting Support Kit for Action Cameras
Suction Cup
Action Camera Mount
Suction Cup Dust Cover

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

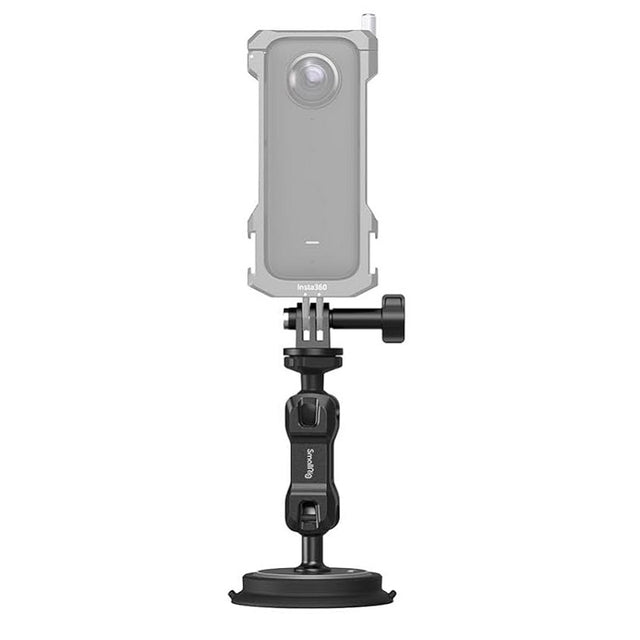

The Magic Arm & Magnetic Suction Cup Mounting Support Kit from SmallRig attaches action cameras to flat, metal surfaces using a durable magnetic suction cup, and on top is an adjustable magic arm. The mount is designed to be used with moving vehicles going less than 74 mph. This is particularly useful for vloggers, reality television productions, and other low-impact applications. Action cameras equipped with a standard three-prong mounting platform are fastened to an included adapter, which sports a 1/4"-20 threaded receiver. This screws into the dual ball magic arm that is integrated into a bar connecting the suction cups, providing nearly 360° of pan, tilt, and roll. A simple push allows action cameras of up to 12.3 oz to be securely attached to clean, flat surfaces. The integrated magnets provide added security on metal surfaces such as aluminum, iron, or steel. Read more

Features

12.3 oz Max Load Capacity
Double-Layer Magnet-Suction Cup
Built-In Dual Ball Head Magic Arm
Included Action Camera Mount
For Metal Surfaces Only
Can Travel up to 74 mph on Vehicle

Business Financing Options Avaiable

View Available Financing

Features

12.3 oz Max Load Capacity
Double-Layer Magnet-Suction Cup
Built-In Dual Ball Head Magic Arm
Included Action Camera Mount
For Metal Surfaces Only
Can Travel up to 74 mph on Vehicle

No products currently in stock

About the SmallRig Magic Arm & Magnetic Suction Cup Mounting Support Kit for Action Cameras

The SmallRig Magic Arm & Magnetic Suction Cup Mounting Support Kit for Action Cameras is a compact professional mounting solution designed to secure compatible action cameras to flat, magnetic metal surfaces. The system combines a magnetic suction cup with a 360° adjustable dual-ball magic arm, providing flexible positioning for vehicle-mounted shooting, production work, travel documentation, and other low-impact action-camera applications. The integrated magnetic and vacuum-suction design provides additional retention in the event of suction loss.

The mounting system uses a 1/4"-20 mounting screw and includes an action-camera adapter with a 3-prong interface. It is compatible with a broad range of action-camera configurations, including GoPro, Insta360, DJI Osmo Action, and AKASO systems when used with the appropriate camera cage or frame. The dual-ball magic arm permits 360° adjustment, allowing the camera to be positioned at the desired shooting angle before securely locking the arm in place.

The magnetic suction cup is constructed with silicone contact material and incorporates magnets together with vacuum suction to provide stable attachment on suitable flat iron or magnetic metal surfaces. SmallRig specifies a dynamic load capacity of 0.35 kg (0.8 lb) for vehicle shooting on a flat road at speeds not exceeding 120 km/h (74 mph). The manufacturer recommends using a safety rope for high-speed vehicle applications and checking the mounting security before use and at regular intervals.

Constructed from aluminum alloy, plastic, and silicone, the 4466 kit weighs approximately 196 g and measures approximately 134.5 x 75 mm. It is intended for dry, controlled applications and should only be mounted to appropriate flat magnetic surfaces; it is not designed for glass, carbon fiber, painted surfaces, rough surfaces, prolonged water exposure, or high-impact sports. The kit includes the magnetic suction cup, magic arm, action-camera mount, and suction-cup dust cover.

Key Features

12.3 oz Max Load Capacity
Double-Layer Magnet-Suction Cup
Built-In Dual Ball Head Magic Arm
Included Action Camera Mount
For Metal Surfaces Only
Can Travel up to 74 mph on Vehicle

Already own this item and want to sell it?

Click here to sell your item

SmallRig Magic Arm & Magnetic Suction Cup Mounting Support Kit for Action Cameras Specs

Mounting

Camera Mount

1/4"-20 Male Screw

Adapter Mount

3-Prong

Surface Mount

Magnetic Suction Cup

Pan Adjustment

360°

Arm Type

Dual-Ball Magic Arm

Construction

Primary Material

Aluminum Alloy

Secondary Material

ABS Plastic

Contact Material

Silicone

Color

Black

Environmental

Operating Temperature

-20 to 60 °C

Operating Temperature

-4 to 140 °F

Recommended Surface

Flat Magnetic Metal

Water Resistance

Not Rated

Compatibility

GoPro Compatibility

Hero 5–12

Insta360 Compatibility

X3 / ONE RS / X

DJI Compatibility

Osmo Action 3 / 4

AKASO Compatibility

Supported

Included

Magnetic Suction Cup

Magic Arm

Action Camera Mount

Suction Cup Dust Cover

Key Features

12.3 oz Max Load Capacity
Double-Layer Magnet-Suction Cup
Built-In Dual Ball Head Magic Arm
Included Action Camera Mount
For Metal Surfaces Only
Can Travel up to 74 mph on Vehicle
