Soundcraft

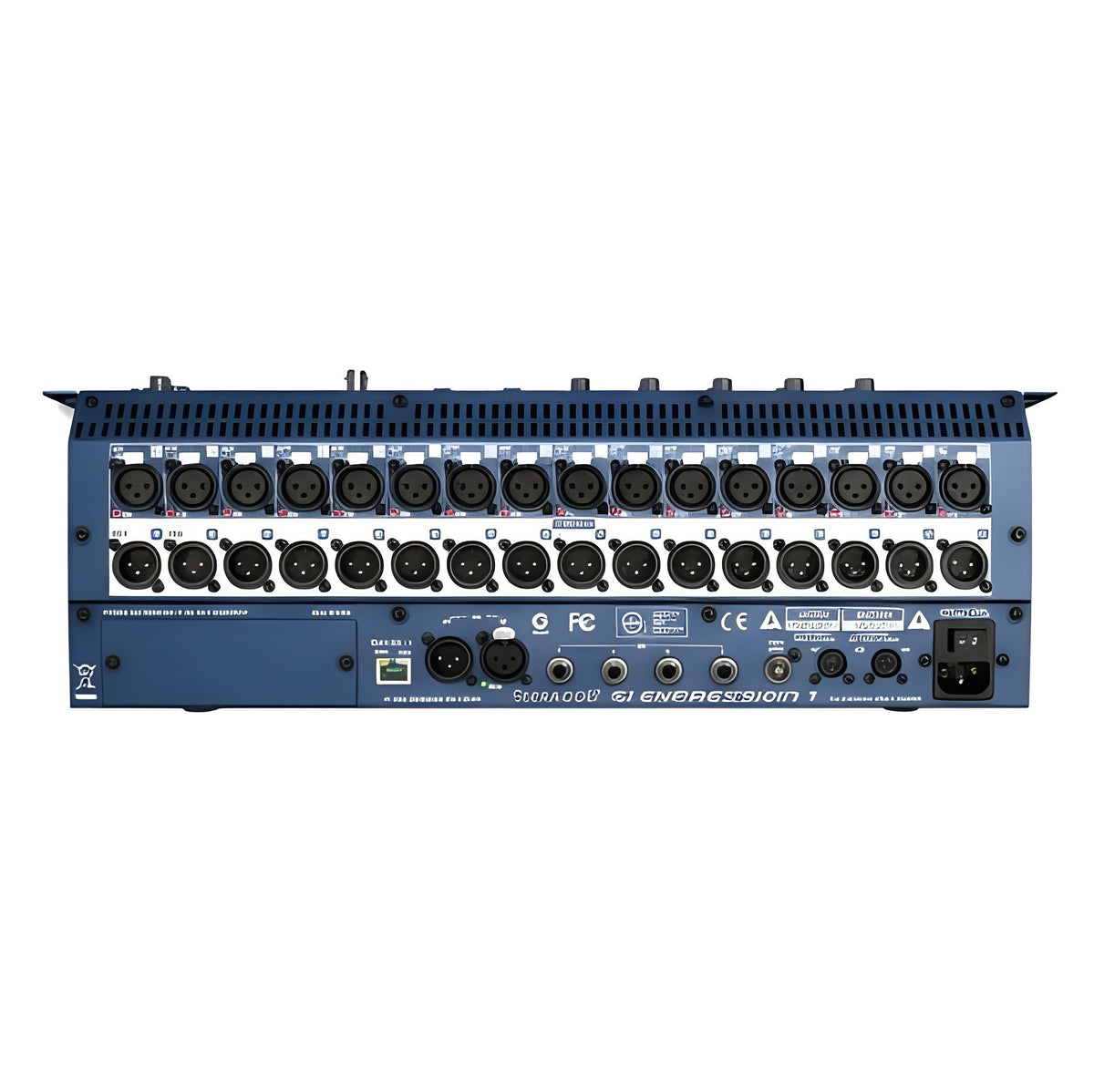

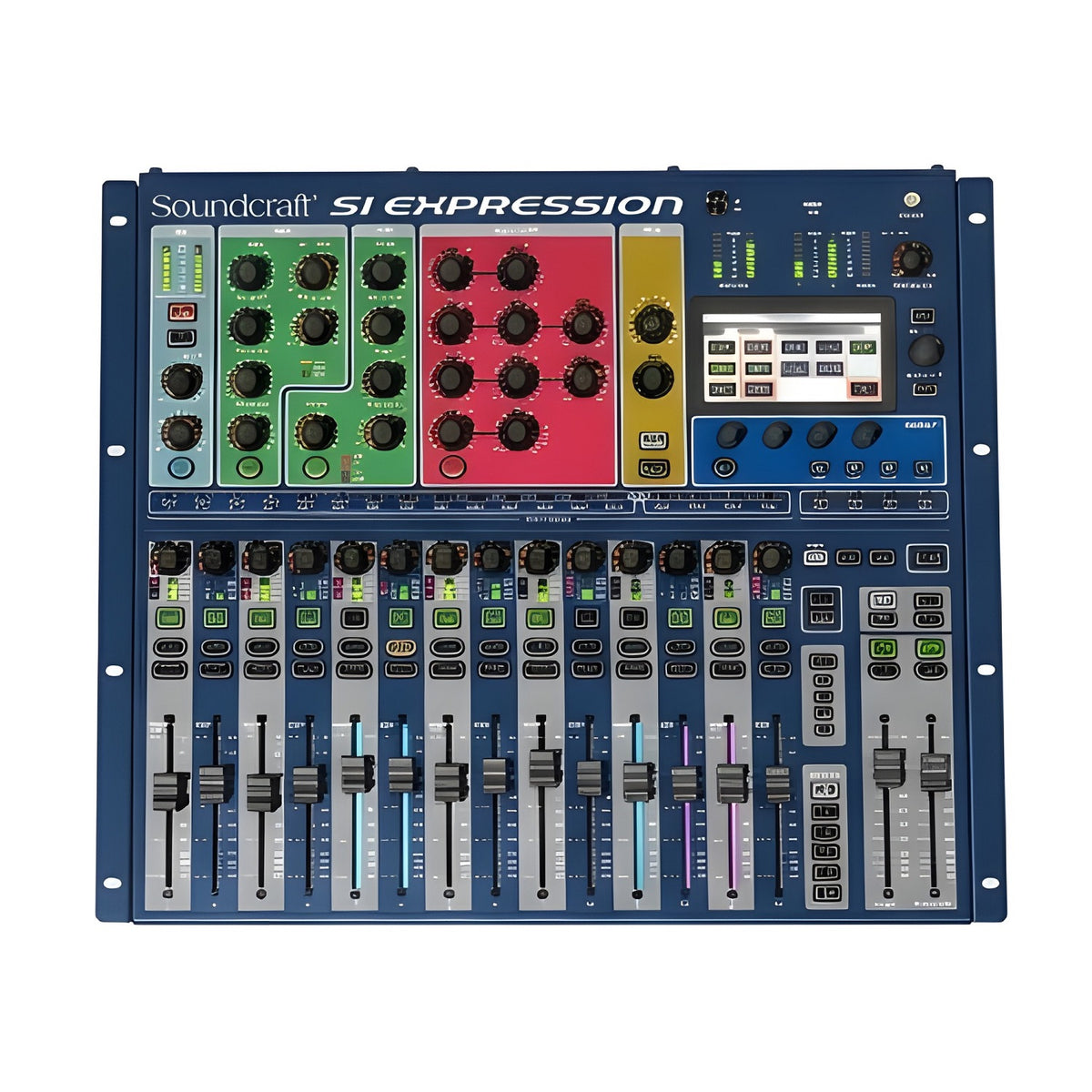

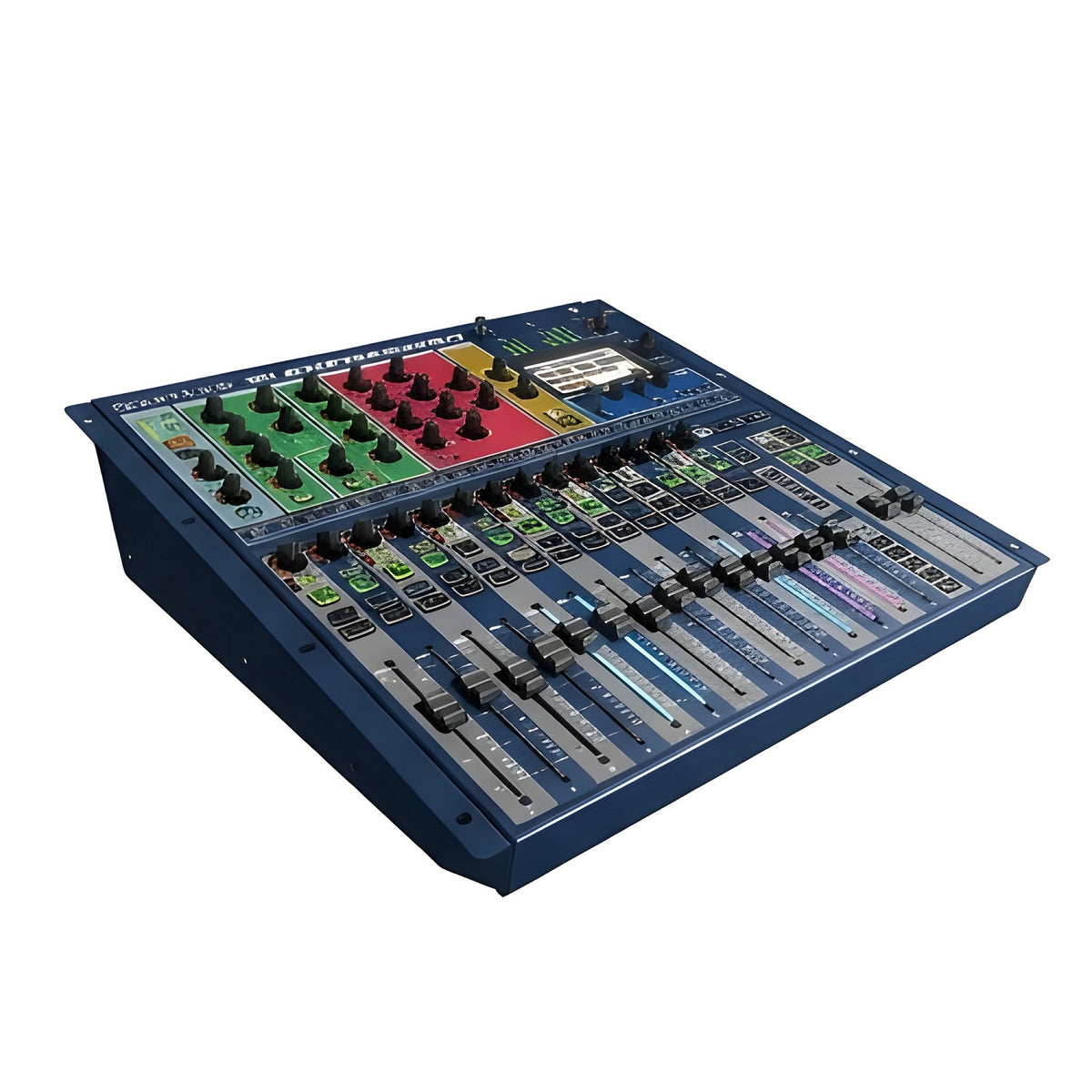

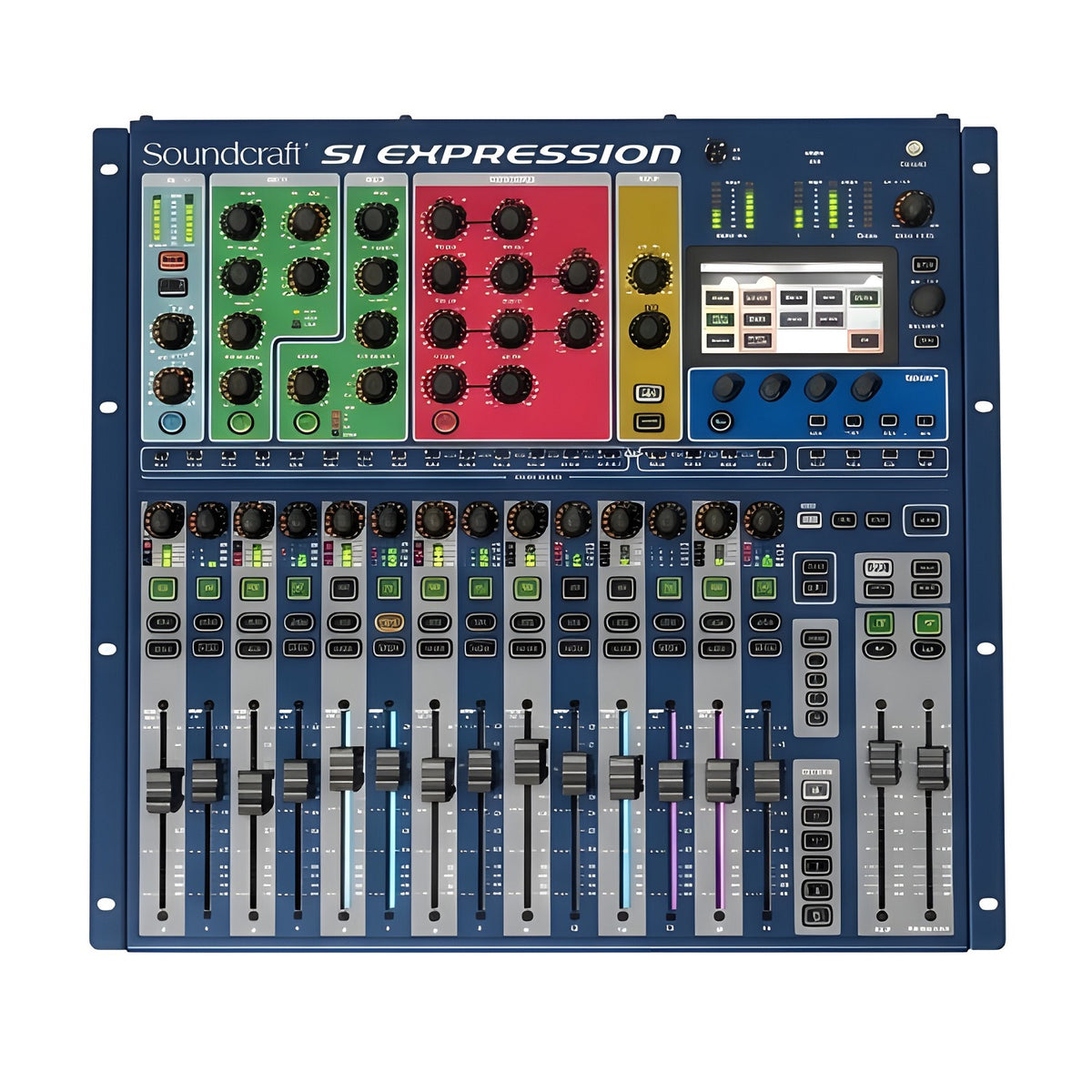

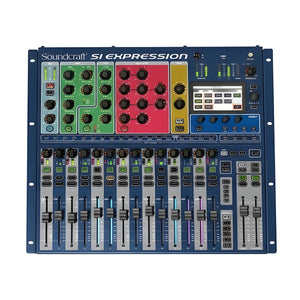

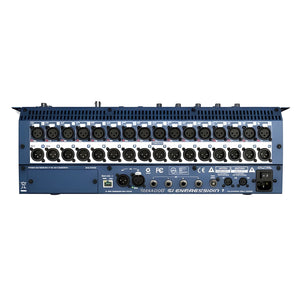

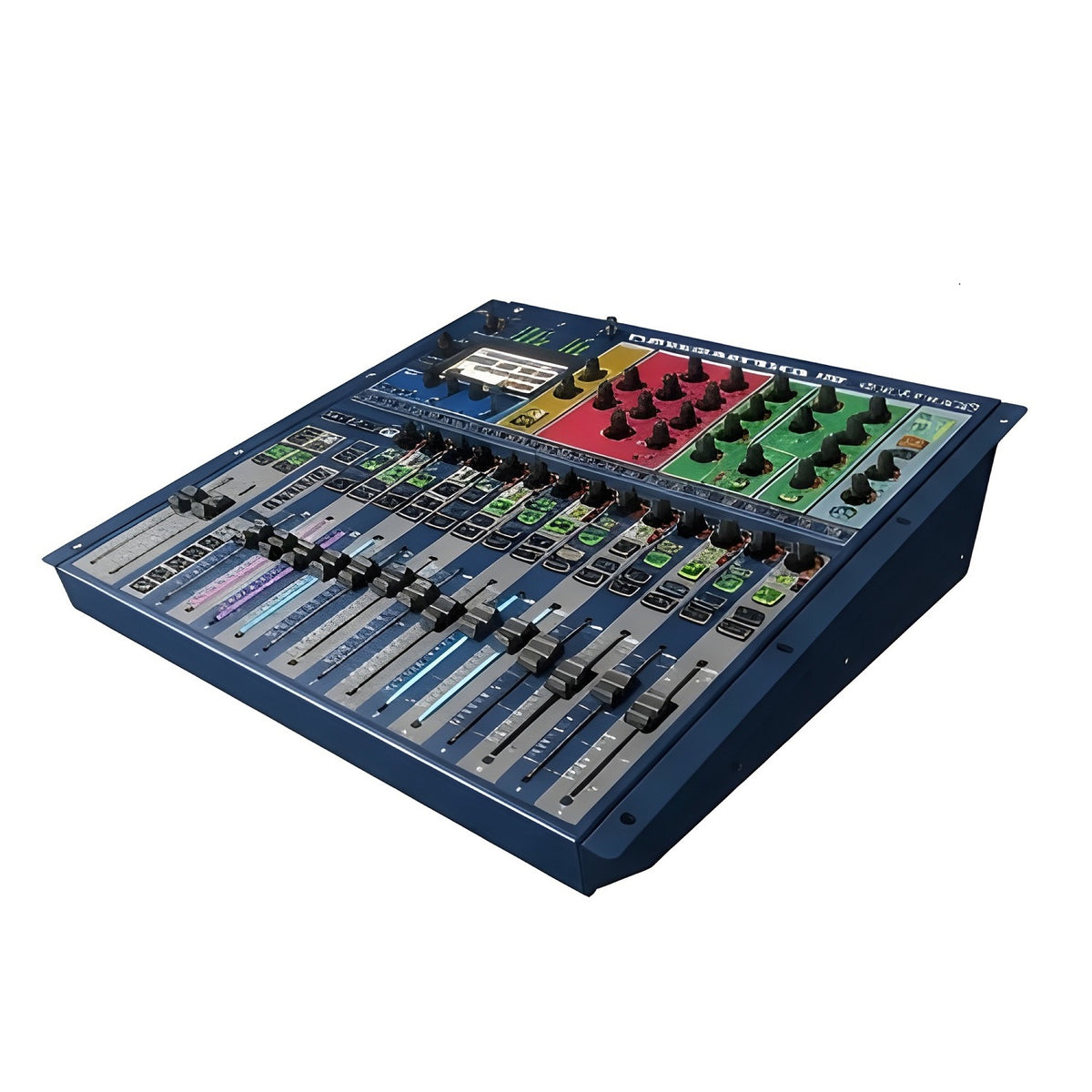

Soundcraft 5035677 Si Expression Series 20 Channel Digital Mixer

$4,000.00

The Soundcraft Si Expression 20 is a compact digital mixer featuring 16 recallable mic preamps and 4 line inputs, with a total mixing capacity of 66 channels. It provides intuitive control with a color touchscreen, dedicated controls for every parameter, and motorized faders with FaderGlow™ illumination, which changes colors to indicate fader function. Powered by the latest EMMA™ DSP processor, it offers extensive features including a four-band British EQ on all channels, comprehensive dynamics processing, and four stereo Lexicon effects engines. The mixer is optimized for live sound applications and includes a 64x64 expansion slot for adding optional ViSi Connect cards for MADI, Dante, and other digital formats.

View Product Features

• 16 recallable preamps: For consistent and reliable setup performance.
• FaderGlow™ illuminated faders: Provides instant visual feedback on fader functions.
• Four Lexicon effects engines: Offers studio-grade reverbs, delays, and modulation effects.
• 64x64 channel expansion slot: Supports optional digital cards for flexible I/O.
• Color touchscreen interface: Ensures quick, intuitive access to all mixing parameters.
• Comprehensive channel processing: Includes EQ, dynamics, and delay on every channel and bus.

In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Soundcraft 5035677 Si Expression Series 20 Channel Digital Mixer

The Soundcraft 5035677 Si Expression 2 is a compact digital mixing console that brings professional digital mixing capabilities to a wider range of users, including mobile engineers, fixed installations, and mid-sized performance spaces. It provides 20 fully processed input channels in a streamlined, single-unit chassis, maintaining the core audio quality and workflow of the larger Expression series. The console is built around the same high-performance SuperAnalogue™ microphone preamplifiers found in its larger siblings, delivering transparent, low-noise gain structure that captures the full detail and dynamics of any source. This focus on foundational audio quality ensures that every mix starts with a superior signal.

Operationally, the Si Expression 2 offers a user-friendly interface characterized by its dedicated channel strip controls and a central color touchscreen. Each input channel features a full suite of digital processing tools, including a 4-band parametric EQ, a compressor, and a noise gate, all accessible via clearly labeled buttons and rotary encoders. The integrated Lexicon effects provide professional-grade reverb, delay, and modulation to enhance vocals and instruments. Flexible routing allows users to configure auxiliary sends for monitors and assign outputs to multiple mix buses, making it capable of handling both front-of-house and monitor mixing duties from a single surface.

Connectivity and expansion are key strengths, with built-in digital snake capability via an optional stage box, allowing the mixer to be placed at the front of house while all microphone connections remain on stage. A comprehensive 18x18 USB audio interface is integrated for direct multitrack recording and playback. With its robust construction, intuitive control scheme, and scalable design, the Si Expression 2 stands as a versatile and powerful solution for applications that require the advantages of digital mixing—recallable scenes, sophisticated processing, and networked audio—without the physical footprint or complexity of a much larger console.

Key Features

• 16 recallable preamps: For consistent and reliable setup performance.
• FaderGlow™ illuminated faders: Provides instant visual feedback on fader functions.
• Four Lexicon effects engines: Offers studio-grade reverbs, delays, and modulation effects.
• 64x64 channel expansion slot: Supports optional digital cards for flexible I/O.
• Color touchscreen interface: Ensures quick, intuitive access to all mixing parameters.
• Comprehensive channel processing: Includes EQ, dynamics, and delay on every channel and bus.

Soundcraft 5035677 Si Expression Series 20 Channel Digital Mixer Specs

Console Format
Input Processing
20 Mono + 4 Stereo
Motorized Faders
10 x 100mm
User Interface
12-inch Touchscreen
Channel Processing
Equalizer
4-Band Parametric
Dynamics
Compressor/Gate per Ch
Delay
Per Channel
Effects & Routing
Effects Processors
Dual Lexicon
Auxiliary Buses
12 Mix Minus
Matrix Outputs
6
Connectivity
Local XLR Inputs
8
Local Outputs
8 XLR
Digital Snake Port
Ethernet AVB
Computer Integration
USB Interface
18-in, 18-out
DAW Control
HUI/Mackie Protocol
Scene Memories
100

Key Features

• 16 recallable preamps: For consistent and reliable setup performance.
• FaderGlow™ illuminated faders: Provides instant visual feedback on fader functions.
• Four Lexicon effects engines: Offers studio-grade reverbs, delays, and modulation effects.
• 64x64 channel expansion slot: Supports optional digital cards for flexible I/O.
• Color touchscreen interface: Ensures quick, intuitive access to all mixing parameters.
• Comprehensive channel processing: Includes EQ, dynamics, and delay on every channel and bus.
