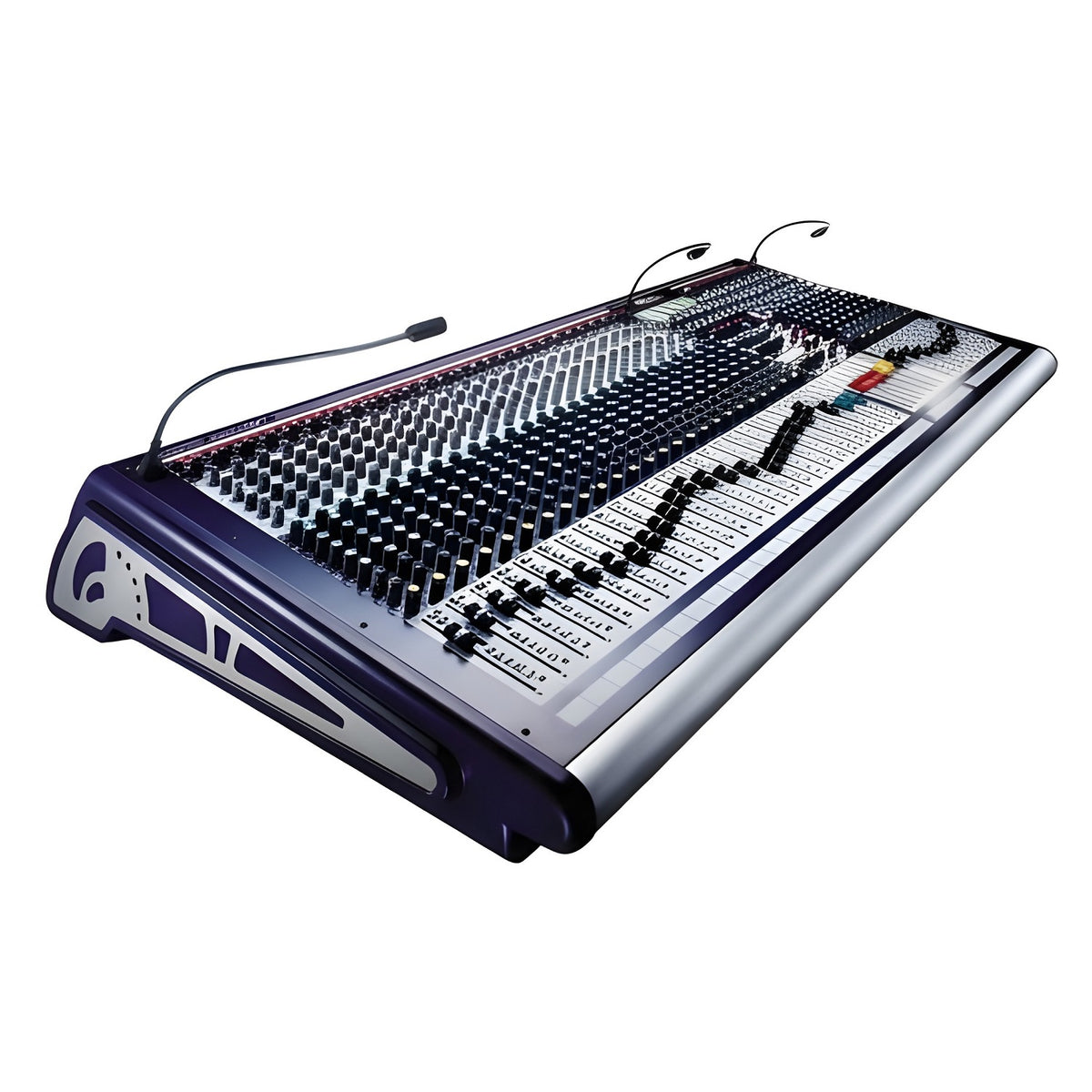

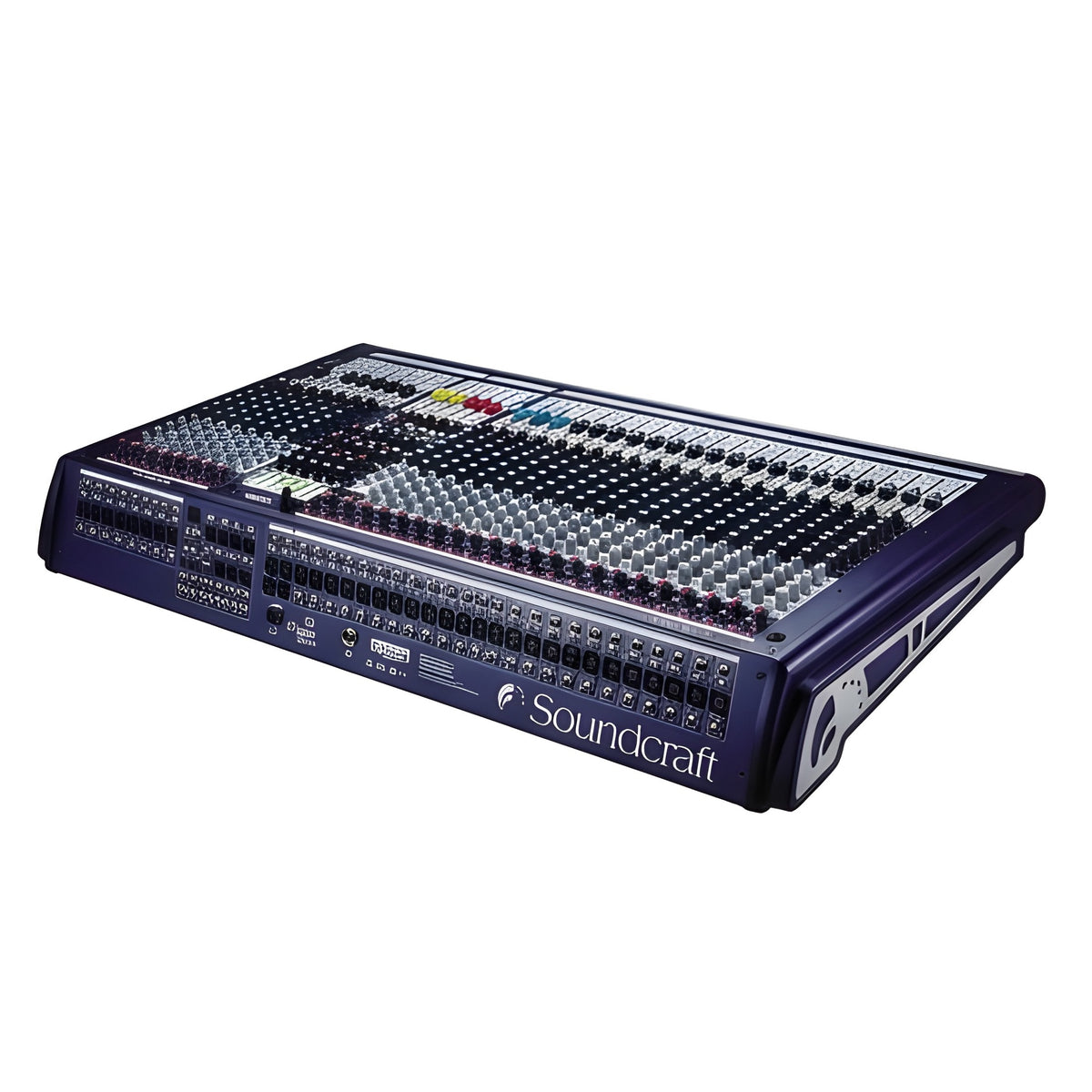

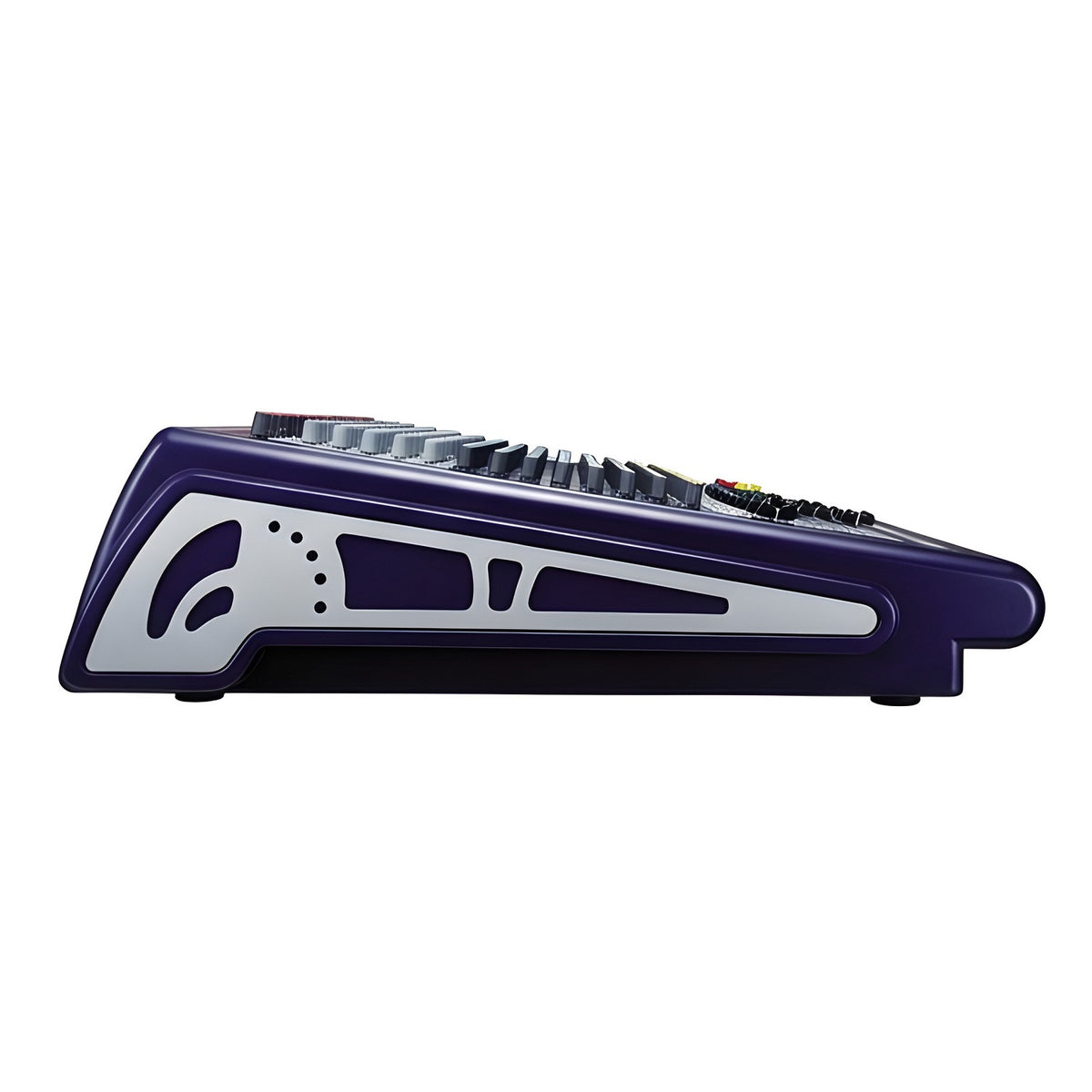

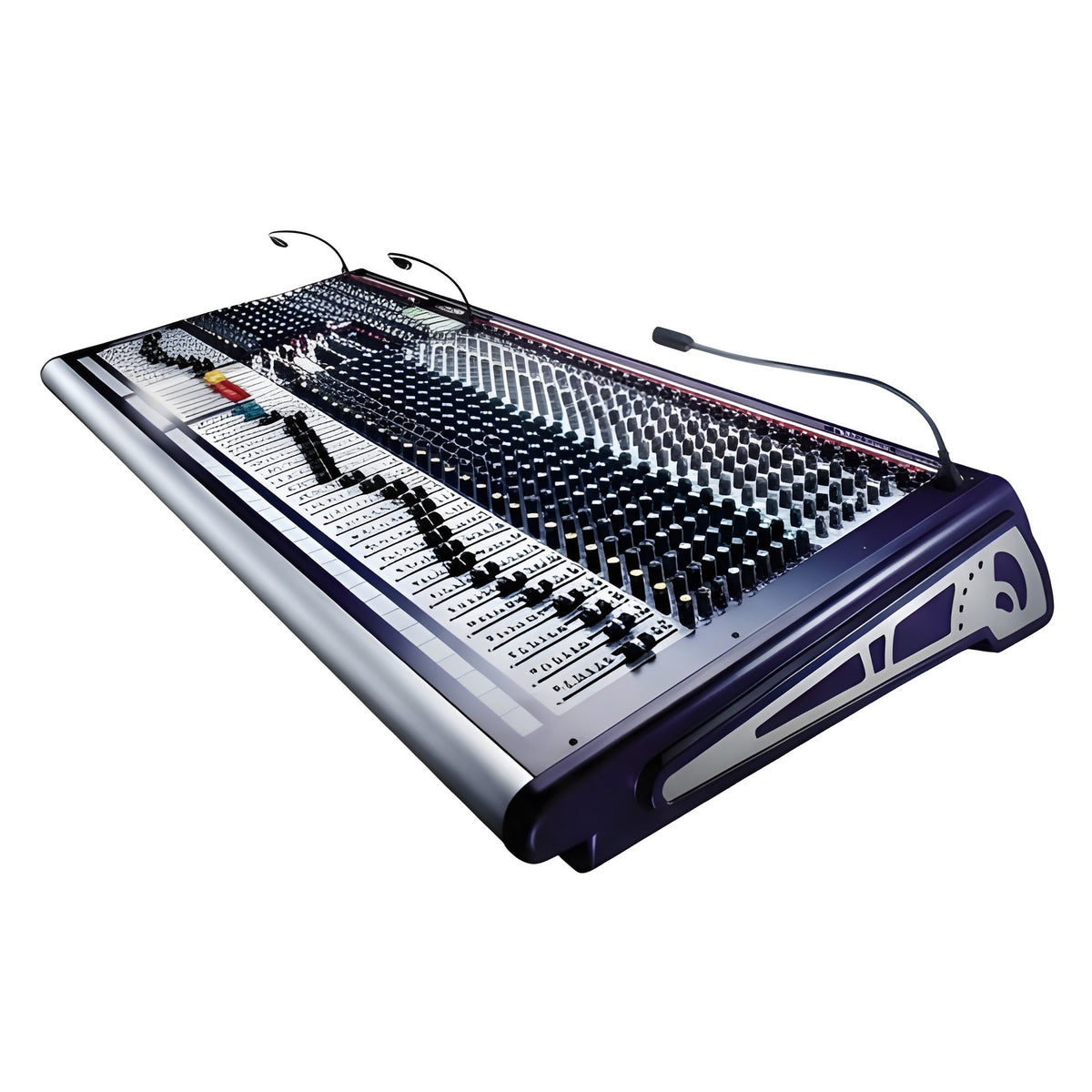

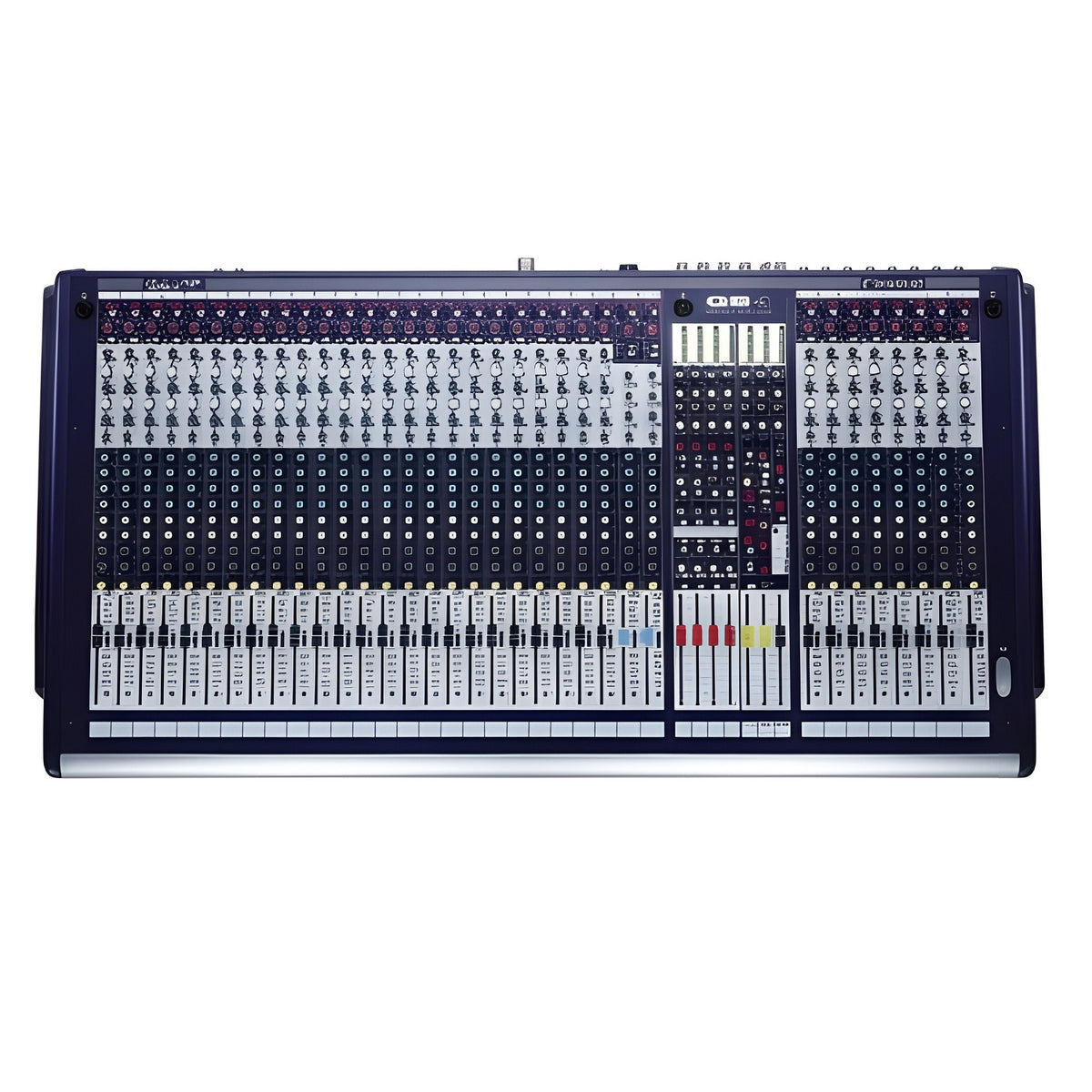

The Soundcraft GB4 Series 40-channel console is a substantial analog workhorse designed for demanding live sound applications in large venues, major touring monitors, and complex fixed installations. Its "40x4/4/2" specification outlines a powerful routing structure: 40 input channels, 4 subgroup buses, 4 auxiliary sends, and a stereo main output, supplemented by a 2-band matrix. This architecture provides immense control for engineers, allowing for logical subgrouping of large ensembles (like full drum kits, backing vocals, or string sections), the creation of multiple independent monitor or effects mixes, and separate management of front fill or delay speaker zones via the matrix outputs.

Audio quality is driven by Soundcraft's respected low-noise, discrete microphone preamplifiers and a robust internal power supply. Each input channel features a comprehensive 4-band equalizer with two swept mid-frequency controls, offering surgical precision for tonal shaping and feedback elimination—a professional feature critical for managing large channel counts. The four auxiliary sends are configured as two pre-fader (typically for monitors) and two post-fader (ideal for effects), all with stereo-linking capability. The console's layout is logically segmented, with clear metering and a flexible solo system, facilitating a fast and confident workflow even during complex productions.

Housed in a rugged steel chassis, the GB4 40-channel is built for reliability under the rigors of touring and 24/7 installed use. Its comprehensive connectivity, including direct outputs on every channel, makes it a capable centerpiece for large-scale sound systems, delivering professional-grade analog sound and flexible routing in a robust and dependable package.
