Tannoy

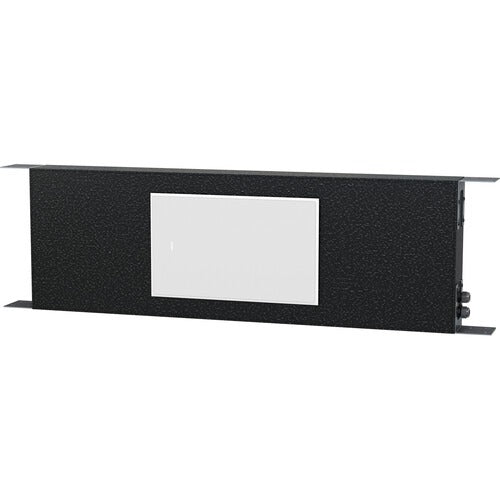

Tannoy BACK CAN PCI 7DC IW Steel Back Can Kit for PCI 7DC IW Wall-Mount Speakers
$699.00
Unit price
/
The PCI 7DC IW Back Can is an acoustically enhanced wood back can designed for the pre-installation of PCI 7DC IW wall-mount loudspeakers. Early installation of the low profile back can is fast and simple and significantly reduces the amount of time required for project finalization. Two cable glands mounted on the side of the back can are provided for input and link output.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
BACK CAN PCI 7DC IW
Tannoy BACK CAN PCI 7DC IW Steel Back Can Kit for PCI 7DC IW Wall-Mount Speakers
$699.00Unit price /View Product -
About the Tannoy BACK CAN PCI 7DC IW Steel Back Can Kit for PCI 7DC IW Wall-Mount Speakers
Key Features
Tannoy BACK CAN PCI 7DC IW Steel Back Can Kit for PCI 7DC IW Wall-Mount Speakers Specs
Performance
Frequency response ( ± 3dB)
50 Hz – 20 kHz
Frequency response(-10dB)
30 Hz – 20 kHz
Sensitivity(1 W @ 1m)
86dB
Directivity factor (Q)
4.4averaged 1 kHz to10 kHz
Directivity index(D I)
6.4averaged 1 kHz to10 kHz
Power handling (I EC)
Average
80 W
Programme
160 W
Peak
320 W
Recommendedamp lifierpower
240 W @ 8 Ω
Nominal Impedance(LoZ)
8 Ω
Rated maximum SPL(1 m,LoZ)
108dB
Average
105dB
Peak
111dB
Crossoverpoint
1.6 k H z
Coverage angles
500 Hz
180° horizontal ,152° vertical
1 kHz
132° horizontal ,136° vertical
2 kHz
118° horizontal ,130° vertical
Transducers
Low frequency diameter/material/type
201 mm ( 7")
High frequency diameter/material/type
25.4 mm (1")
Physical
Back can
Wood, with spraypainting
Baffle
Reflex loaded UL94 V-0rated ABS
Grille
Steel ,with weather resistant coating
Connectors
Replacement Plug Housing
