Tannoy

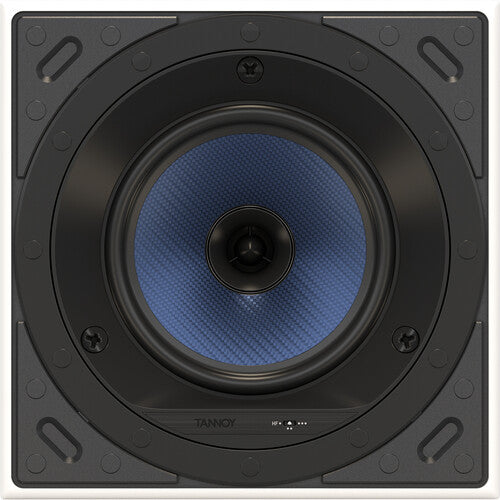

Tannoy PCI 6DC LP Premium Low Profile 6" Dual Concentric Ceiling-Mount Loudspeaker for Installation Applications

$0.00

Using the same standards from their flagship hi-fi and pro loudspeakers, the white PCI 6DC LP Low Profile 6" Dual Concentric In-Ceiling Loudspeaker from Tannoy features 70W of output from a dual concentric driver system. A 6" bass/mid-range driver and 1" centrally-located tweeter is joined by a blue Kevlar cone to emit reference-quality sound in a discrete in-ceiling solution. This low-profile version of the PCI 6DC can be installed into tight spaces, while providing an omnimagnet configuration for improved driver integration and time alignment. The drivers of the 6DC LP Low Profile offers realistic and balanced audio playback for music and movie content, with crisp highs, deep bass, and a delicate mid-range with easy-to-understand vocals. Installation can be seamless, with a powder-coated perforated UV/dust-resistant steel mesh grille that can be painted to match your decor.

View Product Features

  • Up to 70W of Audio Output
  • 6" Bass/Mid-Range Driver
  • 1" Centerally-Located Tweeter
  • Blue Kevlar Cone
  • Low-Profile Design for Tight Spaces
  • Torus Ogive Waveguide
  • Paintable Powder-Coated Steel Grille
  • Mesh Grille is UV & Dust-Resistant
  • Thin Bezel for Unobtrusive Installation
  • Self-Aligning Clamping System
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Tannoy PCI 6DC LP Premium Low Profile 6" Dual Concentric Ceiling-Mount Loudspeaker for Installation Applications

The Tannoy PCI 6DC LP is a premium low-profile, 6-inch dual concentric ceiling-mount loudspeaker engineered for high-fidelity sound reproduction in sophisticated residential and commercial installation projects where depth constraints are a critical factor. Utilizing Tannoy's renowned Dual Concentric technology, this loudspeaker features a co-axial driver design where a 1-inch titanium dome compression driver is mounted concentrically within a 6-inch treated paper cone woofer. This true point-source configuration ensures perfect phase coherence and time alignment, resulting in exceptionally clear, detailed sound with a wide and uniform dispersion pattern. The "Low Profile" designation refers to its shallow mounting depth, allowing for installation in ceiling cavities where standard full-depth speakers cannot fit, such as in spaces with concrete slabs, tight joist spacing, or retrofit applications without compromising on sonic performance.

The loudspeaker's design prioritizes both acoustic excellence and installation flexibility. It is built into a rigid, shallow enclosure that minimizes unwanted resonance and provides a solid foundation for the Dual Concentric driver. The system offers versatile impedance matching, supporting both 100V/70V constant-voltage operation and low-impedance (8-ohm) modes, with multiple power tap settings allowing installers to precisely calibrate the output level for uniform coverage. The paintable, magnetic grille sits nearly flush with the ceiling surface, creating a discreet and aesthetically pleasing installation that blends seamlessly into interior design. This makes the PCI 6DC LP an ideal choice for high-end home theaters, distributed audio systems, boardrooms, and luxury hospitality venues where space is limited but audio quality cannot be compromised.

Constructed with high-quality materials for long-term reliability and consistent performance, the PCI 6DC LP incorporates a sophisticated crossover network and moisture-resistant components. For custom installers and audio consultants seeking a ceiling speaker solution that delivers the legendary sonic heritage of Tannoy's Dual Concentric technology in a form factor designed for challenging installations, the PCI 6DC LP represents a benchmark. It combines unparalleled audio clarity, detail, and dispersion control with the practical advantage of a low-profile design, elevating the listening experience in any space where depth is at a premium.

Key Features

  • Up to 70W of Audio Output
  • 6" Bass/Mid-Range Driver
  • 1" Centerally-Located Tweeter
  • Blue Kevlar Cone
  • Low-Profile Design for Tight Spaces
  • Torus Ogive Waveguide
  • Paintable Powder-Coated Steel Grille
  • Mesh Grille is UV & Dust-Resistant
  • Thin Bezel for Unobtrusive Installation
  • Self-Aligning Clamping System

Tannoy PCI 6DC LP Premium Low Profile 6" Dual Concentric Ceiling-Mount Loudspeaker for Installation Applications Specs

Enclosure & Design
Mounting Type
Flush In-Ceiling (Low Profile)
Profile Depth
Shallow Design for Limited Cavities
Grille
Paintable Magnetic
Enclosure Construction
Rigid, Damped
Transducer Technology
Driver Size
6 inches
Technology
Dual Concentric Co-axial
High-Frequency Driver
1" Titanium Dome Compression Driver
Low-Frequency Driver
Treated Paper Cone Woofer
Electrical Specifications
Power Handling
60W RMS, 120W Peak
Impedance Options
100V / 70V / 8Ω
Power Taps
100V/70V: 30W, 15W, 7.5W, 3.75W
Sensitivity (1W/1m)
89 dB
Acoustic Performance
Frequency Response
75 Hz - 25 kHz (±3 dB)
Maximum SPL
112 dB (Peak)
Dispersion
90° Conical
Crossover Frequency
2.2 kHz
Installation & Physical
Cut-Out Diameter
214 mm
Mounting Depth
Approx. 95 mm
Terminals
Euroblock Connector
Mounting Hardware
Dog-leg Clamps

Key Features

  • Up to 70W of Audio Output
  • 6" Bass/Mid-Range Driver
  • 1" Centerally-Located Tweeter
  • Blue Kevlar Cone
  • Low-Profile Design for Tight Spaces
  • Torus Ogive Waveguide
  • Paintable Powder-Coated Steel Grille
  • Mesh Grille is UV & Dust-Resistant
  • Thin Bezel for Unobtrusive Installation
  • Self-Aligning Clamping System
