Tannoy

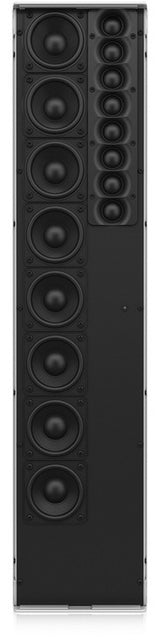

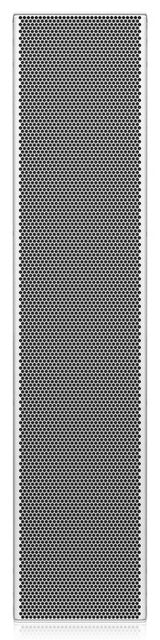

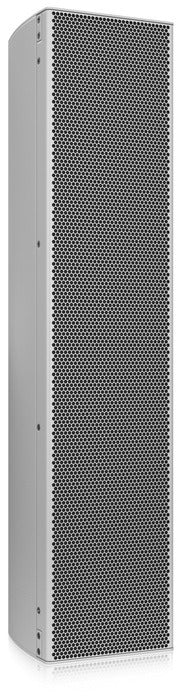

Tannoy QFLEX 16-WP Digitally Steerable Powered Column Array Loudspeaker with 16 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications (Weather Protected)

$4,999.00

The QFLEX 16-WP is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centers, conference facilities, shopping malls, performing arts centers and museums. Certified for water and dust ingress protection to IP54 standard, QFLEX 16-WP is an exceptional choice for indoor swimming pools or work areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.

This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment.

View Product Features
  • Digitally steerable column array speaker system provides high intelligibility speech and music reproduction
  • 8 3" low frequency drivers and 8 1" high frequency drivers with individual 100 Watt Class D amplifiers
  • Class leading ±70° steering control with 16 channels of integrated DSP and amplification
  • Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
  • High density array of transducers with proportional frequency spacing prevents aliasing artefacts
  • Ideal for the most challenging acoustic environments due to extended frequency range steering control
  • For installation applications with coverage distances up to 25 m (82')
  • Fully PA/VA compliant
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the Tannoy QFLEX 16-WP Digitally Steerable Powered Column Array Loudspeaker with 16 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications (Weather Protected)

The QFLEX 16-WP is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. Certified for water and dust ingress protection to IP54 standard, QFLEX 16-WP is an exceptional choice for indoor swimming pools or work areas with unusually high levels of dust or moisture, as well as outdoor applications where weather conditions are moderate. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.

Key Features

  • Digitally steerable column array speaker system provides high intelligibility speech and music reproduction
  • 8 3" low frequency drivers and 8 1" high frequency drivers with individual 100 Watt Class D amplifiers
  • Class leading ±70° steering control with 16 channels of integrated DSP and amplification
  • Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
  • High density array of transducers with proportional frequency spacing prevents aliasing artefacts
  • Ideal for the most challenging acoustic environments due to extended frequency range steering control
  • For installation applications with coverage distances up to 25 m (82')
  • Fully PA/VA compliant

Tannoy QFLEX 16-WP Digitally Steerable Powered Column Array Loudspeaker with 16 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications (Weather Protected) Specs

Loudspeaker Configuration
Driver Configuration
8 x 3-inch LF drivers + 8 x 1-inch HF drivers
Total Drivers
16 independently controlled drivers
Amplifier Channels
16 x 100W RMS @ 4 Ohms (Class D)
Maximum Power Requirement
280 watts
Acoustical Performance
Operating Frequency Range
130 Hz – 20 kHz
Horizontal Coverage Angle
120 degrees
Vertical Coverage Range
10 – 100 degrees (digitally steerable)
Maximum SPL @ 30 meters
94 dB
Recommended Listening Distance
25 meters
Steering Control Range
+/- 70 degrees
LF Beam Control Limit Frequency
700 Hz
Environmental Protection
Weather Protection Rating
IP54
Protective Grille
Painted aluminum
Ingress Protection
Water and dust resistant
Audio Inputs
Analog Audio Input
Balanced, 4-pin detachable terminal block (IN/LINK)
Digital Audio Input
AES/EBU with AES3 Break-In Interface
Network Connectors
Neutrik Ethercon (CAT5 compatible)
Network Protocol
VNET (proprietary monitoring and control)
Control Connector
4-pin detachable terminal block
Digital Signal Processing
Control Software
BeamEngine GUI + VNET/Podware
Sampling Rate
96 kHz
Steering Capability
Asymmetric pattern creation
System Monitoring
Real-time drive unit and electronics diagnostics
Safety Feature
Pilot Tone Detection

Key Features

  • Digitally steerable column array speaker system provides high intelligibility speech and music reproduction
  • 8 3" low frequency drivers and 8 1" high frequency drivers with individual 100 Watt Class D amplifiers
  • Class leading ±70° steering control with 16 channels of integrated DSP and amplification
  • Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
  • High density array of transducers with proportional frequency spacing prevents aliasing artefacts
  • Ideal for the most challenging acoustic environments due to extended frequency range steering control
  • For installation applications with coverage distances up to 25 m (82')
  • Fully PA/VA compliant
