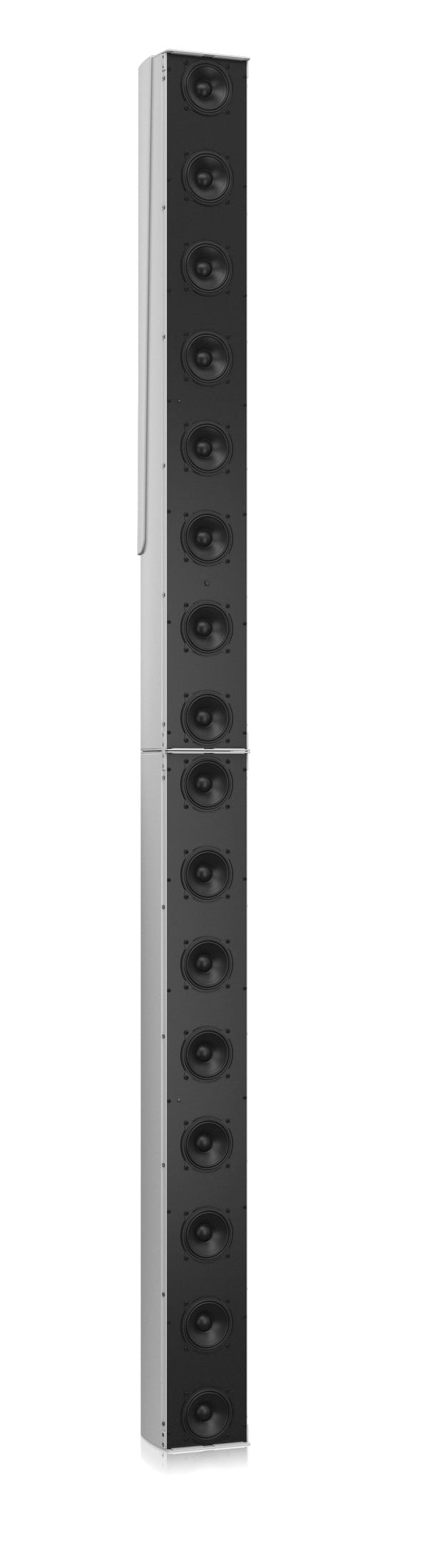

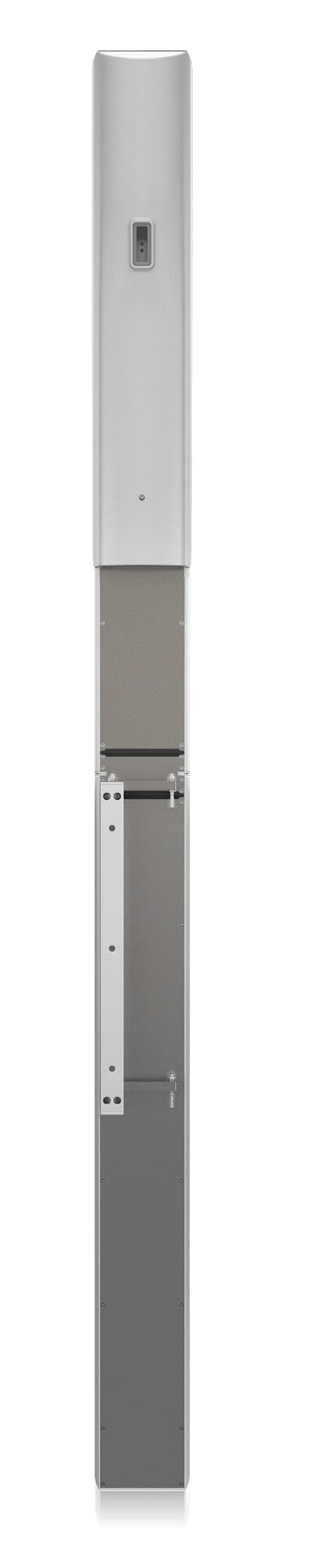

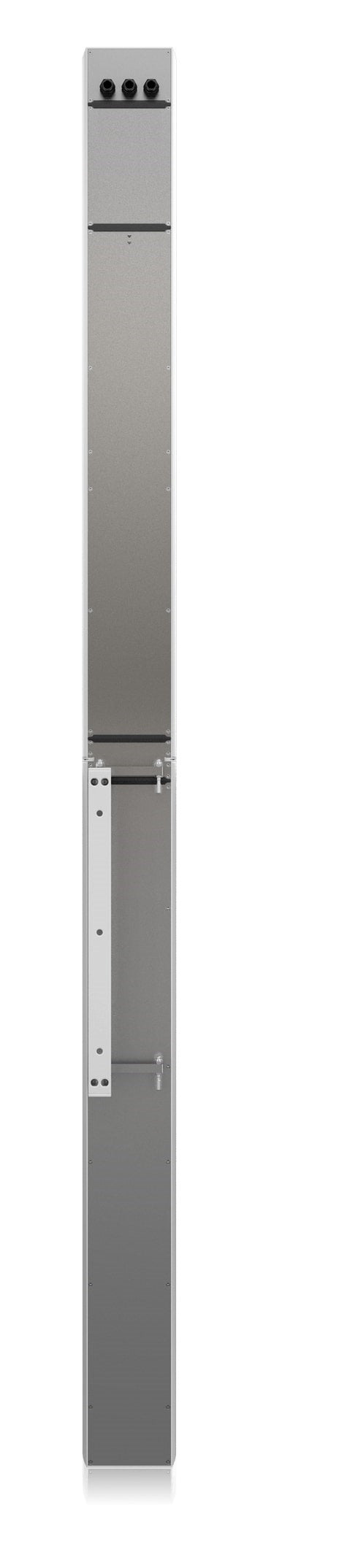

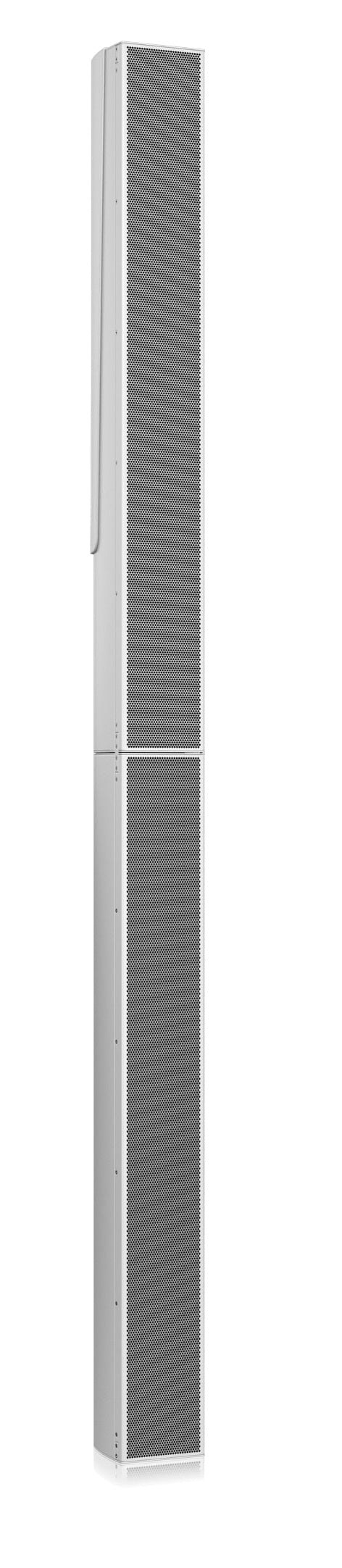

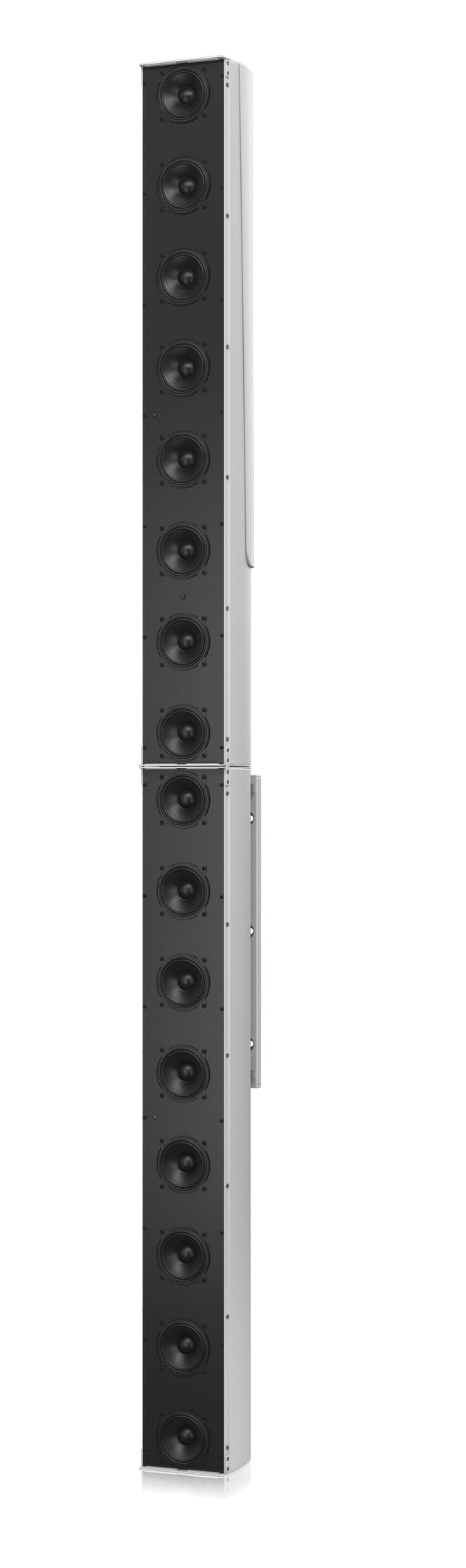

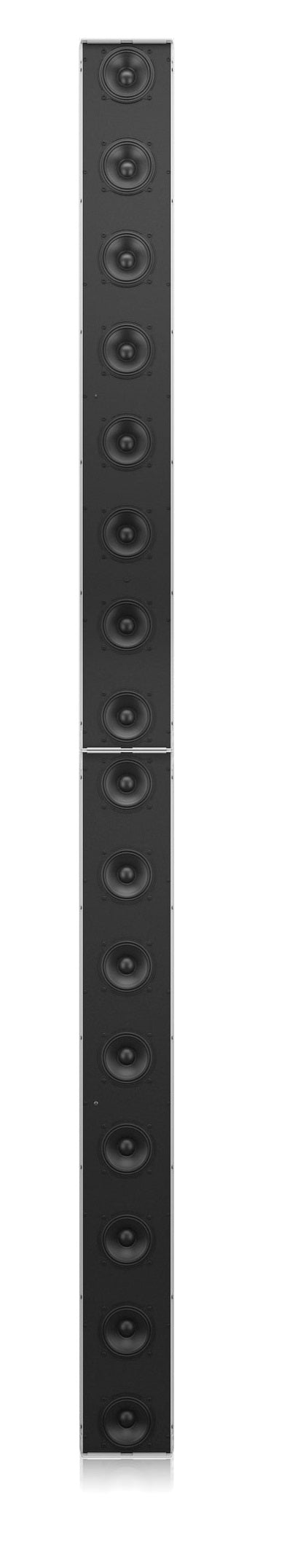

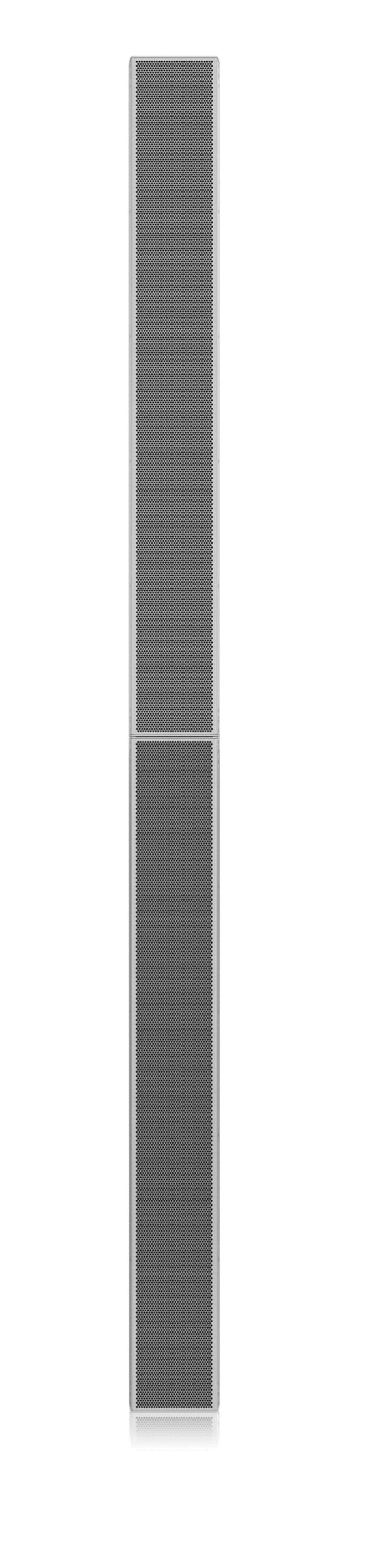

The Tannoy QFLEX 16LS-WP is an advanced, digitally steerable powered column array loudspeaker engineered for critical life safety and voice evacuation applications in challenging indoor and semi-protected outdoor environments. This system combines 16 individually controlled full-range drivers, integrated high-power amplification, and sophisticated digital signal processing (DSP) into a single, weather-protected (WP) enclosure. Its primary function is to deliver intelligible voice announcements with precision and authority, directing sound energy exactly where it is needed while minimizing spill into acoustically sensitive or non-target areas. This capability is vital for compliance with modern life safety codes that require clear, intelligible speech in complex architectural spaces such as atriums, transit hubs, sports stadiums, and large retail complexes. The weather-protected design ensures reliable operation in locations subject to humidity, condensation, or indirect moisture exposure.

The core of the QFLEX system is its BeamEngine control software, which allows system designers to create and deploy multiple, independent audio beams from the same array. Using the GUI, engineers can digitally shape the vertical dispersion pattern of each beam, steering them to specific zones—such as a concourse level, a mezzanine, or an exterior walkway—and control their frequency response and delay. This enables a single column to address multiple audience planes or cover irregularly shaped areas with consistent sound pressure levels, dramatically improving speech intelligibility compared to conventional loudspeakers. The integrated DSP also provides essential system processing, including equalization, limiting, and delay, all managed from a central computer via a standard network connection.

For consultants and integrators designing life safety and voice evacuation systems for large, complex venues, the Tannoy QFLEX 16LS-WP represents a state-of-the-art solution that addresses both acoustic and regulatory challenges. Its ability to provide controlled, directional coverage reduces the number of loudspeakers required, simplifies installation, and ensures that emergency instructions are heard clearly in their intended zones. The combination of robust construction, networked control, and advanced beamforming technology makes this system a powerful and future-proof tool for safeguarding lives through clear communication.
