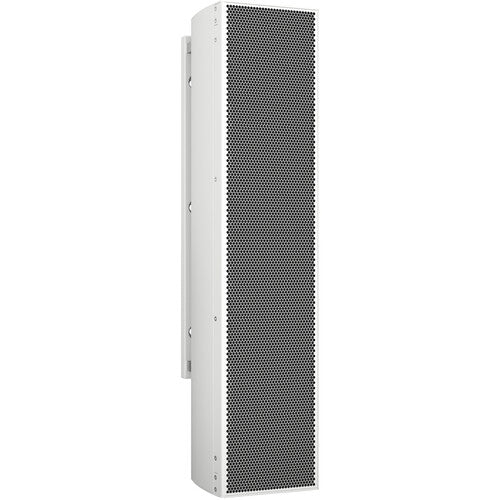

The QFLEX16 is a compact, digitally steerable column array loudspeaker that harnesses advanced beamforming technology to deliver precise audio coverage in challenging acoustic environments. As a member of the QFLEX series, it incorporates 16 individually controlled full-range drivers, each powered by its own dedicated Class-D amplifier channel and managed by sophisticated onboard digital signal processing (DSP). The core functionality of the system lies in its ability to electronically shape and steer the vertical dispersion pattern of the sound beam. This allows system designers to direct audio energy specifically towards the audience area, such as seating in a reverberant worship space or a concourse level in an airport, while minimizing sound spill onto reflective ceilings, walls, or empty areas, thereby significantly enhancing speech intelligibility and musical clarity.

Control and configuration are managed through the intuitive BeamEngine graphical user interface software. By inputting the physical dimensions of the room and defining the desired coverage zones within a simple on-screen diagram, the software automatically calculates the complex matrix of delays, levels, and EQ settings required for each of the 16 drivers to create the optimal beam pattern. This process eliminates the traditional trial-and-error approach of aiming physical cabinets and setting delay towers, streamlining installation and ensuring predictable, repeatable results. The self-powered, all-in-one design integrates amplifiers, processing, and network control into a single, slender enclosure, reducing rack space, cabling complexity, and overall system footprint.

This loudspeaker is particularly effective in spaces where visual intrusion must be minimized and acoustic challenges are paramount. Applications include historic buildings with preservation orders, modern architectural spaces with abundant glass and hard surfaces, transportation terminals, and corporate atriums. By confining sound to the listening zone, the QFLEX16 reduces excitation of room reverberation, lowers the potential for feedback, and decreases noise pollution in adjacent areas. It represents a modern solution for integrators seeking to overcome the limitations of conventional loudspeakers, providing a discreet, powerful, and intelligent tool for ensuring consistent, high-quality audio reproduction where it is needed most.
