Tannoy

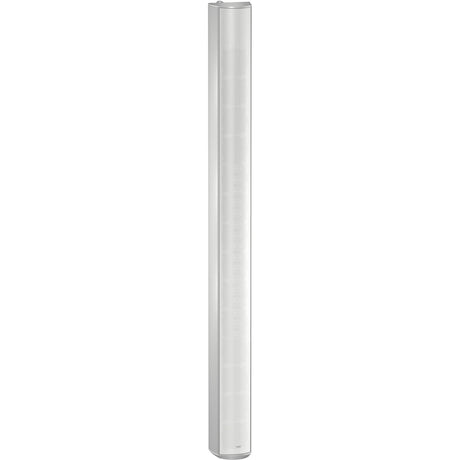

Tannoy VLS 30 Passive Column Array Loudspeaker with 30 Drivers and FAST Dispersion Control for Installation Applications

$1,949.00

The Tannoy VLS 30 is a passive column array loudspeaker with 30 drivers and Focused Asymmetrical Shaping Technology (FAST) for exceptional sound reinforcement in challenging and architecturally sensitive spaces. It is designed for applications like airports, conference centers, houses of worship, and stadiums, and is suitable for both indoor and moderate outdoor use thanks to its IP65 weather-resistant rating.

View Product Features

  • Passive column array for indoor and outdoor installations.
  • FAST technology creates targeted asymmetric vertical dispersion.
  • 30 drivers ensure high-intelligibility speech and music.
  • IP65-rated enclosure protects against water and dust.
  • Multiple transformer taps for 70V, 100V, or low-impedance systems.
  • Slender, weather-resistant aluminum and stainless steel chassis.
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Tannoy VLS 30 Passive Column Array Loudspeaker with 30 Drivers and FAST Dispersion Control for Installation Applications

The Tannoy VLS 30 is a sophisticated passive column array loudspeaker engineered to deliver exceptionally wide, even horizontal coverage and precise vertical control for demanding installation environments. The system incorporates an array of thirty meticulously aligned 2-inch full-range drivers within a sleek, low-profile enclosure. This multi-driver column design leverages constructive and destructive interference principles to shape the sound dispersion pattern, providing a very wide horizontal dispersion of up to 160 degrees while tightly controlling the vertical output to minimize energy waste on ceilings and floors. The result is a remarkably uniform sound field with consistent tonal balance and intelligibility across a broad listening area, making it ideal for spaces where traditional point-source speakers would create hot spots and dead zones, such as long corridors, atrium lobbies, houses of worship, and large retail spaces.

A defining feature of the VLS 30 is its FAST (Focused Array Sound Technology) waveguide system. This integrated acoustic lens, positioned in front of the driver array, further refines the dispersion characteristics, enhancing high-frequency clarity and projection while maintaining the system's coherent wavefront. The loudspeaker operates in a passive configuration, requiring only a single amplifier channel per column, which simplifies system design and reduces overall cost and complexity compared to active or powered array solutions. The enclosure is constructed from rigid, durable materials with a discreet, low-visual-impact profile that can be surface-mounted or suspended, allowing it to blend into architectural features seamlessly.

The VLS 30 is designed for high-SPL applications with excellent speech intelligibility and musical fidelity. Its column array design naturally provides superior rejection of problematic room reflections and offers significant gain before feedback, which is crucial when used in conjunction with microphones. With robust power handling and high sensitivity, a single column can cover a very large area effectively. For installers and consultants, the Tannoy VLS 30 represents a powerful tool for solving complex acoustic challenges, providing a combination of wide coverage, precise control, and elegant design that is purpose-built for modern architectural audio.

Key Features

  • Passive column array for indoor and outdoor installations.
  • FAST technology creates targeted asymmetric vertical dispersion.
  • 30 drivers ensure high-intelligibility speech and music.
  • IP65-rated enclosure protects against water and dust.
  • Multiple transformer taps for 70V, 100V, or low-impedance systems.
  • Slender, weather-resistant aluminum and stainless steel chassis.

Tannoy VLS 30 Passive Column Array Loudspeaker with 30 Drivers and FAST Dispersion Control for Installation Applications Specs

System Design
Product Type
Passive column array loudspeaker
Array Configuration
30 x 2-inch full-range drivers
Technology
FAST (Focused Array Sound Technology) waveguide
Operation Mode
Passive (requires external amplifier)
Acoustic Performance
Frequency Response
120 Hz - 20 kHz
Horizontal Dispersion
160 degrees
Vertical Dispersion
Controlled, adjustable via mounting angle
Sensitivity (1W @ 1m)
92 dB
Maximum SPL
118 dB
Nominal Impedance
8 Ohms
Recommended Amplifier Power
100 - 400 Watts
Physical Specifications
Enclosure Type
Sealed column array
Enclosure Finish
Black or white, textured paint
Grille
Powder-coated perforated steel
Height
47.2 inches (1200 mm)
Width
5.9 inches (150 mm)
Depth
5.9 inches (150 mm)
Net Weight
44.1 lbs (20.0 kg)
Installation & Features
Mounting Options
Surface mount, suspension
Connection
Dual SpeakON NL4 connectors
Application
Wide-area coverage for speech and music
Environment
Indoor

Key Features

  • Passive column array for indoor and outdoor installations.
  • FAST technology creates targeted asymmetric vertical dispersion.
  • 30 drivers ensure high-intelligibility speech and music.
  • IP65-rated enclosure protects against water and dust.
  • Multiple transformer taps for 70V, 100V, or low-impedance systems.
  • Slender, weather-resistant aluminum and stainless steel chassis.
