SKU: VSX 12.2BP

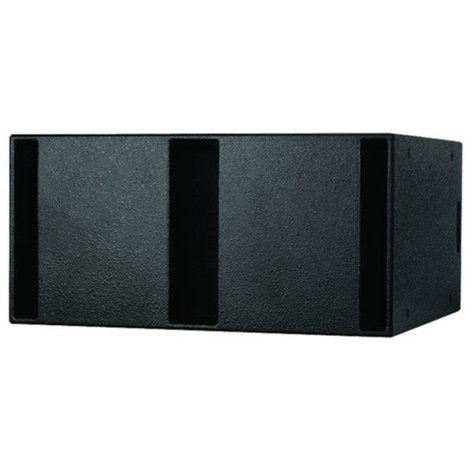

Tannoy VSX 12.2BP Twin 12" Compact Band Pass Passive Subwoofer for Portable and Installation Applications

$1,799.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The VSX 12.2BP is a compact dual 12" 3,200-Watt passive band pass subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX 12.2BP’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications. This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment. Read more

Features

  • Compact band pass subwoofer for portable and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Twin 12" bass drivers for extended low-frequency system response to below 40 Hz
  • Low distortion dual port design for maximum sound pressure levels
  • Ideal for background music playback in clubs, bars, theatres and AV applications
  • Internally braced plywood enclosure
  • Finished with a hard wearing semi-matte black paint finish
  • Rugged powder-coated perforated steel mesh grille

Business Financing Options Avaiable

View Available Financing

The VSX 12.2BP is a compact dual 12" 3,200-Watt passive band pass subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX 12.2BP’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications. This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment. Read more

Features

  • Compact band pass subwoofer for portable and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Twin 12" bass drivers for extended low-frequency system response to below 40 Hz
  • Low distortion dual port design for maximum sound pressure levels
  • Ideal for background music playback in clubs, bars, theatres and AV applications
  • Internally braced plywood enclosure
  • Finished with a hard wearing semi-matte black paint finish
  • Rugged powder-coated perforated steel mesh grille

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Tannoy VSX 12.2BP Twin 12" Compact Band Pass Passive Subwoofer for Portable and Installation Applications

The VSX 12.2BP is a compact dual 12" 3,200-Watt passive band pass subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX 12.2BP’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

A dual ported band pass system, the VSX 12.2BP features twin 12" low frequency drivers that provide extended low frequency response to well below 40 Hz – for chest-pounding bass. Fast and accurate transient response enables the VSX 12.2BP Subwoofer to generate copious quantities of tight low end output that is virtually distortion-free.

Key Features

  • Compact band pass subwoofer for portable and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Twin 12" bass drivers for extended low-frequency system response to below 40 Hz
  • Low distortion dual port design for maximum sound pressure levels
  • Ideal for background music playback in clubs, bars, theatres and AV applications
  • Internally braced plywood enclosure
  • Finished with a hard wearing semi-matte black paint finish
  • Rugged powder-coated perforated steel mesh grille

Already own this item and want to sell it?

Click here to sell your item

Tannoy VSX 12.2BP Twin 12" Compact Band Pass Passive Subwoofer for Portable and Installation Applications Specs

Performance
System Type
Subwoofer - Band pass
Frequency Response (-3 dB) (1)
40 Hz - 160 Hz
Frequency Response (-10 dB) (1)
35 Hz - 200 Hz
System Sensitivity (1 W @ 1 m) (2)
100 dB (1 W = 2 V for 4 ohms)
Power Handling
Average
800 W
Programme
1600 W
Peak (10 ms)
3200 W
Recommended Amplifier Power
1600 W @ 4 Ohms
Rated Maximum SPL (2)
Average
129 dB
Peak
135 dB
Nominal Impedance
4 Ohms
Driver Complement
2 x 300 mm (12") Bass drivers
Recommended Crossover
80 Hz - 150 Hz, 24 dB / octave
Recommended Crossover
Recommended High-pass filter - 38 Hz, 24 dB / octave
Distortion
10% Full Power (28.3 V)
2nd Harmonic 50 Hz: 1.38%, 100 Hz: 1.29% 3rd Harmonic 50 Hz: 0.62%, 100 Hz: 0.14%
1% Full Power (8.9 V)
2nd Harmonic 50 Hz: 0.32%, 100 Hz: 0.29% 3rd Harmonic 50 Hz: 0.18%, 100 Hz: 0.16%
Construction
Enclosure
194 litres, 15 mm birch plywood, internally braced
Connectors
2 x speakON NL4MP and Barrier strip
Fittings
12 x M10 Flying inserts (portrait or landscape mounting)
Fittings
2 x Integrip carrying handles
Dimensions (H x W x D)
400 x 830 x 720 mm (15.7 x 32.7 x 28.3")
Finish
Color

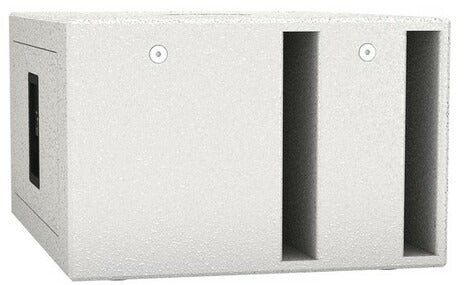

White (Ral 9003) or Black (Ral 9004)

Key Features

  • Compact band pass subwoofer for portable and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Twin 12" bass drivers for extended low-frequency system response to below 40 Hz
  • Low distortion dual port design for maximum sound pressure levels
  • Ideal for background music playback in clubs, bars, theatres and AV applications
  • Internally braced plywood enclosure
  • Finished with a hard wearing semi-matte black paint finish
  • Rugged powder-coated perforated steel mesh grille
