SKU: VX 12.2Q-WH

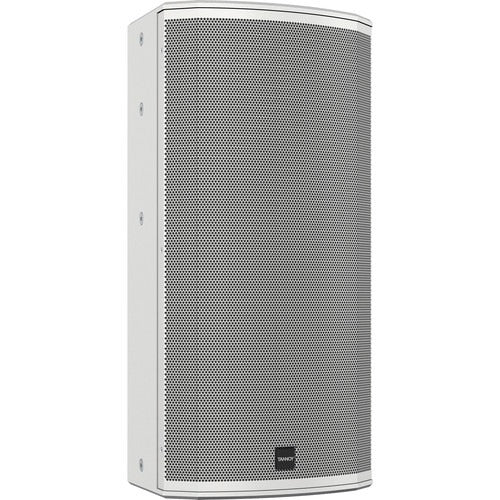

Tannoy VX 12.2Q-WH 12" PowerDual Full Range Loudspeaker with Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications (White)

$1,649.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The VX 12.2Q-WH PowerDual Full Range Loudspeaker boasts an exceptional performance-to-size ratio, and can also be configured for bi-amp operation. VX 12.2Q-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12.2Q-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment. Read more

Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille

Business Financing Options Avaiable

View Available Financing

The VX 12.2Q-WH PowerDual Full Range Loudspeaker boasts an exceptional performance-to-size ratio, and can also be configured for bi-amp operation. VX 12.2Q-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12.2Q-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment. Read more

Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Tannoy VX 12.2Q-WH 12" PowerDual Full Range Loudspeaker with Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications (White)

Conceived, engineered and built with precision in the United Kingdom, the VX Series represents the latest evolution of Tannoy's core philosophies in professional loudspeaker design. VX 12.2Q is an entirely new class of device that delivers high SPL, low distortion and audio coverage in a complete high performance loudspeaker cabinet. It provides a higher impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for mid-scale portable/live PA applications.

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille

Already own this item and want to sell it?

Click here to sell your item

Tannoy VX 12.2Q-WH 12" PowerDual Full Range Loudspeaker with Low Frequency Driver and Q-Centric Waveguide for Portable and Installation Applications (White) Specs

Acoustical Performance
Frequency Response (±3 dB)
70 Hz – 25 kHz
Frequency Range (-10 dB)
55 Hz – 30 kHz
System Sensitivity (1W @ 1m)
99 dB
Maximum Continuous SPL
126 dB
Maximum Peak SPL
132 dB
Nominal Dispersion
75° H x 40° V (-6 dB points)
Directivity Factor (Q)
13.0 (averaged 1 kHz – 8 kHz)
Directivity Index (DI)
11.1 (averaged 1 kHz – 8 kHz)
Crossover Frequencies
300 Hz and 1.5 kHz
Nominal Impedance
8 Ohms
Driver Complement
PowerDual Driver
1 x 12-inch (305 mm) with Q-Centric waveguide
Low-Frequency Driver
1 x 12-inch (305 mm) bass driver
Waveguide Type
Q-Centric (field-rotatable for H or V orientation)
Power Handling (Passive Mode)
Continuous Power (IEC)
500 W
Program Power
1000 W
Peak Power
2000 W
Power Handling (Bi-Amp Mode)
LF Continuous Power
350 W
LF Peak Power
1400 W
HF Continuous Power
350 W
HF Peak Power
1400 W
Sensitivity (Bi-Amp Mode)
Bi-Amp LF Sensitivity
98 dB
Bi-Amp HF Sensitivity
102 dB
Maximum SPL (Bi-Amp Mode)
Bi-Amp LF Continuous SPL
123 dB
Bi-Amp LF Peak SPL
129 dB
Bi-Amp HF Continuous SPL
127 dB
Bi-Amp HF Peak SPL
133 dB
Connectivity
Input Connectors
2 x Neutrik speakON NL4
Terminal Block
Covered 4-pin screw terminal
Mode Switch
Passive / Bi-amp (rear-panel selectable)

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • 12" low frequency driver for extended bass response
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75° H x 40° V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
