4033653105903

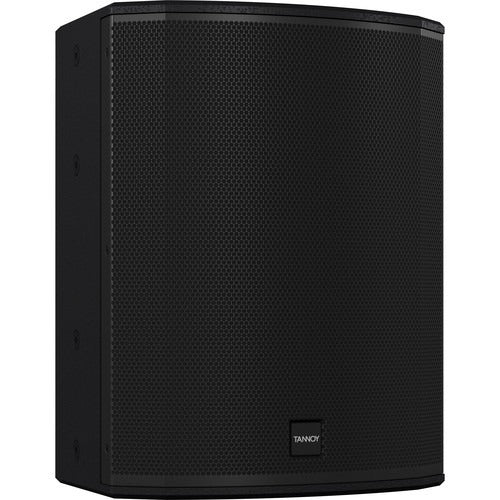

Tannoy VX 12Q 12" PowerDual Full Range Loudspeaker with Q-Centric Waveguide for Portable and Installation Applications

$1,149.00

The VX 12Q is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for midscale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 12Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12Q can also be configured for bi-amp operation.

This product is fulfilled and shipped by a third-party supplier. Delivery timelines are estimated and may vary. Please allow up to 10–14 business days for order processing and fulfillment.

View Product Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 350 Watts continuous, 1,400 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75º H x 40º V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Tannoy VX 12Q 12" PowerDual Full Range Loudspeaker with Q-Centric Waveguide for Portable and Installation Applications

Conceived, engineered and built with precision in the United Kingdom, VX Series represents the latest evolution of Tannoy’s core philosophies in professional loudspeaker design. VX 12Q is a new class of device that adds more versatility and performance capabilities. It provides a higher impact solution for medium scale sound reinforcement for high-SPL applications such as bars and clubs as well as being well suited for portable PA applications.

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 350 Watts continuous, 1,400 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75º H x 40º V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount

Tannoy VX 12Q 12" PowerDual Full Range Loudspeaker with Q-Centric Waveguide for Portable and Installation Applications Specs

System
Frequency Response (-3 dB)
80 Hz - 25 kHz
Frequency Range (-10 dB)
60 Hz - 30 kHz
System Sensitivity (1 W @1 m)
Passive - Full Range 97 dB (1 W = 2.83 V for 8 ohms) Biamp (LF) 98 dB Biamp (HF) 108 dB
Dispersion (-6 dB)
75 degrees (H) x 40 degrees (V)
Driver Complement
1 x 300 mm (12.00”) PowerDual™ with Q-Centric waveguide
Crossover Passive
1.5 kHz
Directivity Factor (Q)
13.0 (averaged 1 kHz to 8 kHz)
Directivity Index (DI)
11.1 dB (averaged 1 kHz to 8 kHz)
Rated Maximum SPL
Passive - Full Range 123 dB (average) 129 dB (peak) Biamp (LF) 124 dB (average) 130 dB (peak) Biamp (HF) 127 dB (average) 132 dB (peak)
Power Handling
Passive - Full Range 350 W 700 W 1400 W Biamp (LF) 350 W 700 W 1400 W Biamp (HF) 80 W 160 W 320 W
Recommended Amplifier Power
Passive - Full Range 700 W @ 8 ohms Biamp (LF) 700 W @ 8 ohms Biamp (HF) 160 W @ 8 ohms
Nominal Impedance
Passive - Full Range 8 ohms Biamp (LF) 8 ohms Biamp (HF) 8 ohms
Construction
Enclosure
36.4 litre,15 mm (enclosure) and 18 mm (front) birch plywood, vented and internally braced.
Finish
Textured black or white paint, with custom colours on request. Powder coated perforated steel grille, Airnet cloth behind
Connectors
2 x speakON NL4MP and Barrier strip
Fittings
8 x M10 Flying inserts (portrait or landscape mounting), 8 x M10 yoke bracket inserts, 2 x Integrip carrying handles, Blanking plate for optional VTH pole mount
Dimensions
490 x 370 x 380 mm (HxWxD) 19.3 x 14.6 x 15.0” (HxWxD)

Key Features

  • Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
  • 350 Watts continuous, 1,400 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75º H x 40º V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
