Tannoy

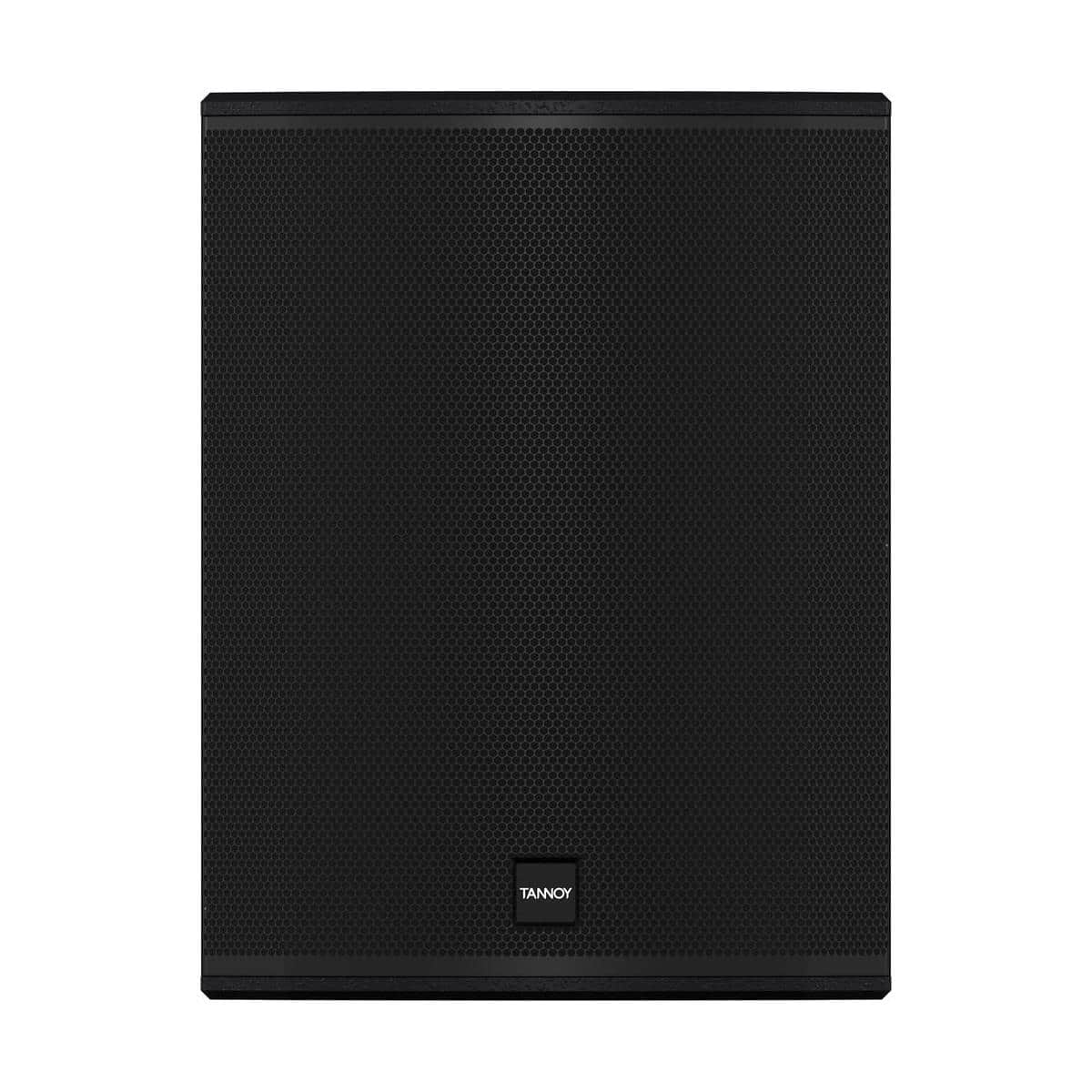

Tannoy VXQ 12Q 12" PowerDual Full Range Loudspeaker w/ Q-Centric Waveguide for Portable and Installation Applications

$0.00

The VX 12Q is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for midscale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 12Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12Q can also be configured for bi-amp operation.

View Product Features

  • 350 Watts continuous, 1,400 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75º H x 40º V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Tannoy VXQ 12Q 12" PowerDual Full Range Loudspeaker w/ Q-Centric Waveguide for Portable and Installation Applications

The Tannoy VXQ 12Q is a powered, full-range loudspeaker that integrates a 12-inch PowerDual driver and a proprietary Q-Centric waveguide, engineered for high-performance in both portable sound reinforcement and permanent installation settings. This active speaker system combines amplification, processing, and transducer technology into a single, cohesive unit, designed to deliver exceptional sonic clarity, consistent coverage, and user-friendly operation. It is particularly well-suited for live music applications, mobile DJ performances, corporate AV events, and fixed installations in clubs or houses of worship where a powerful, self-contained audio solution is required. The integrated design eliminates the need for external amplifiers and complex system tuning, providing a streamlined, reliable setup that consistently delivers optimized sound quality directly out of the box.

The core of the VXQ 12Q's performance lies in its advanced 12-inch PowerDual driver, a co-axial design where a 1.4-inch compression driver is mounted at the center of the LF cone, and the innovative Q-Centric waveguide. This specialized waveguide is engineered to work in tandem with the co-axial driver to provide a significantly broader and more uniform dispersion pattern compared to standard designs, particularly in the critical mid-high frequency range. The result is a consistent, coherent sound field with reduced "beaming" and excellent off-axis response, ensuring even coverage and tonal balance throughout the listening area. An onboard, custom-designed DSP engine actively manages crossover functions, driver protection, and system EQ, applying precise filtering to maximize headroom, control excursion, and tailor the frequency response for the enclosure's specific acoustics.

Built into a durable, multi-ply wood enclosure with a textured, road-ready finish, the VXQ 12Q is designed for professional use. It features a comprehensive rear panel with multiple input options, including XLR and 1/4-inch jacks, and balanced loop-through outputs for daisy-chaining additional cabinets. Intuitive controls allow for input level adjustment, basic EQ shaping, and selection of preset operational modes. Integrated M10 rigging points and a pole mount socket offer versatile deployment options. By merging sophisticated co-axial driver technology, active DSP optimization, and a purpose-built waveguide into a single powered enclosure, the Tannoy VXQ 12Q delivers a potent combination of sonic precision, coverage control, and operational simplicity for the demanding professional user.

Key Features

  • 350 Watts continuous, 1,400 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75º H x 40º V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount

Tannoy VXQ 12Q 12" PowerDual Full Range Loudspeaker w/ Q-Centric Waveguide for Portable and Installation Applications Specs

Amplifier & Processing
LF Amplifier Power
650 Watts RMS
HF Amplifier Power
200 Watts RMS
DSP Processing
24-bit, System-Specific Presets
Crossover Frequency
1.4 kHz
Limiter Type
Program-Dependent
Driver System
LF Driver
12-inch PowerDual (Coaxial)
HF Driver
1.4-inch Titanium Compression
Waveguide Technology
Q-Centric
Performance Data
Frequency Response (-3 dB)
52 Hz - 20 kHz
Maximum SPL (Peak)
132 dB
Input Sensitivity
0 dBu (for Full Output)
Dynamic Range
>110 dB
Input/Output & Controls
Input Connectors
XLR & 1/4-inch Combo Jack
Output Connectors
XLR Link
EQ Presets
3 (Full Range, Monitor, Sub)
Controls
Volume, EQ, Preset Select
Physical & Mounting
Enclosure Material
15 mm Plywood
Finish
Textured Black Paint
Mounting Options
35 mm Pole Socket, M10 Points
Dimensions
612 x 396 x 395 mm
Weight
21.8 kg
Power Requirements
Mains Voltage
100-240V AC, 50/60 Hz
Power Consumption
850 Watts Max
Connector Type
IEC Inlet

Key Features

  • 350 Watts continuous, 1,400 Watts peak power
  • 12" PowerDual full range driver for point source phase coherence
  • Q-Centric waveguide for tighter vertical or horizontal pattern control
  • Precise 75º H x 40º V dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor and side fill applications
  • Configurable for bi-amp operation
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
