Tascam

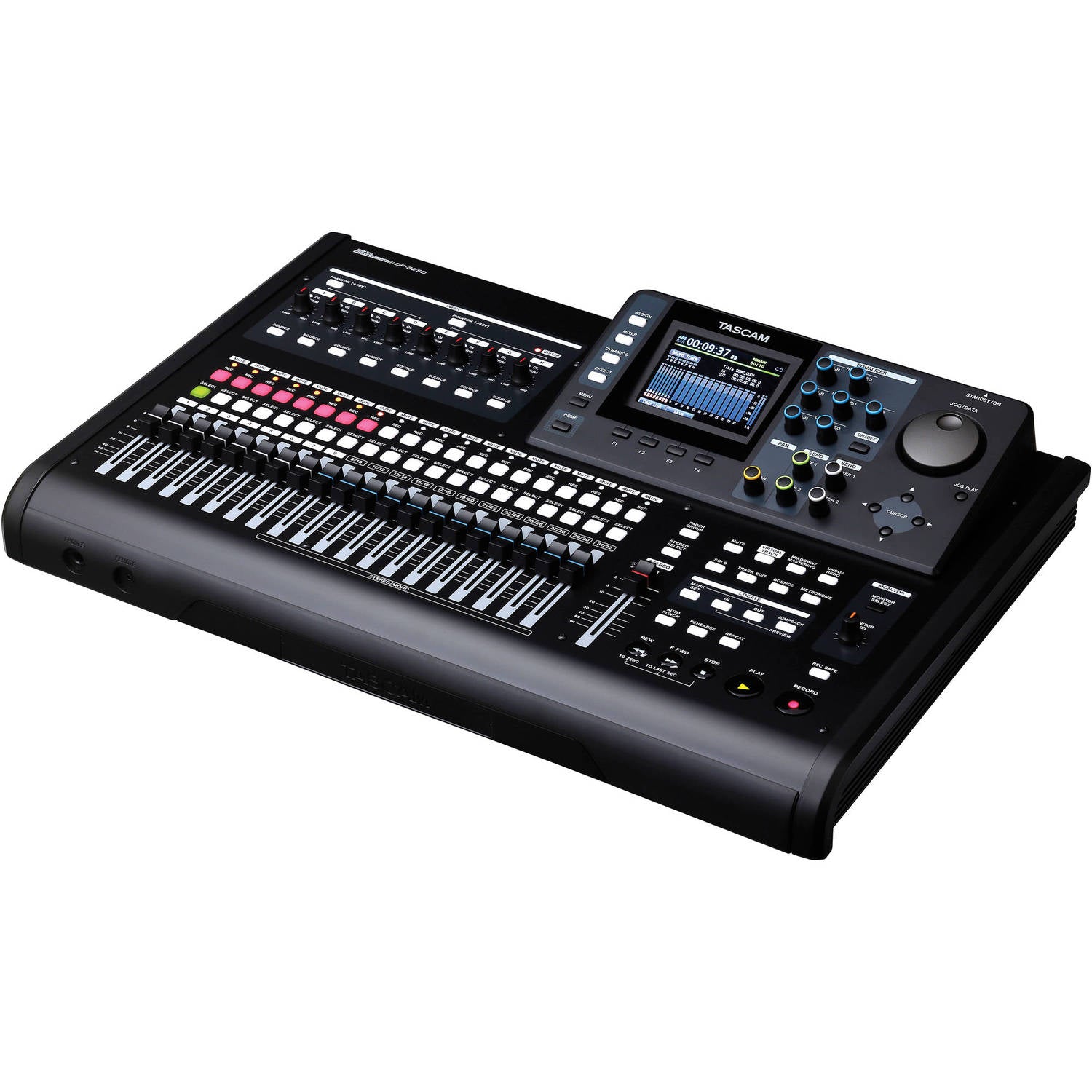

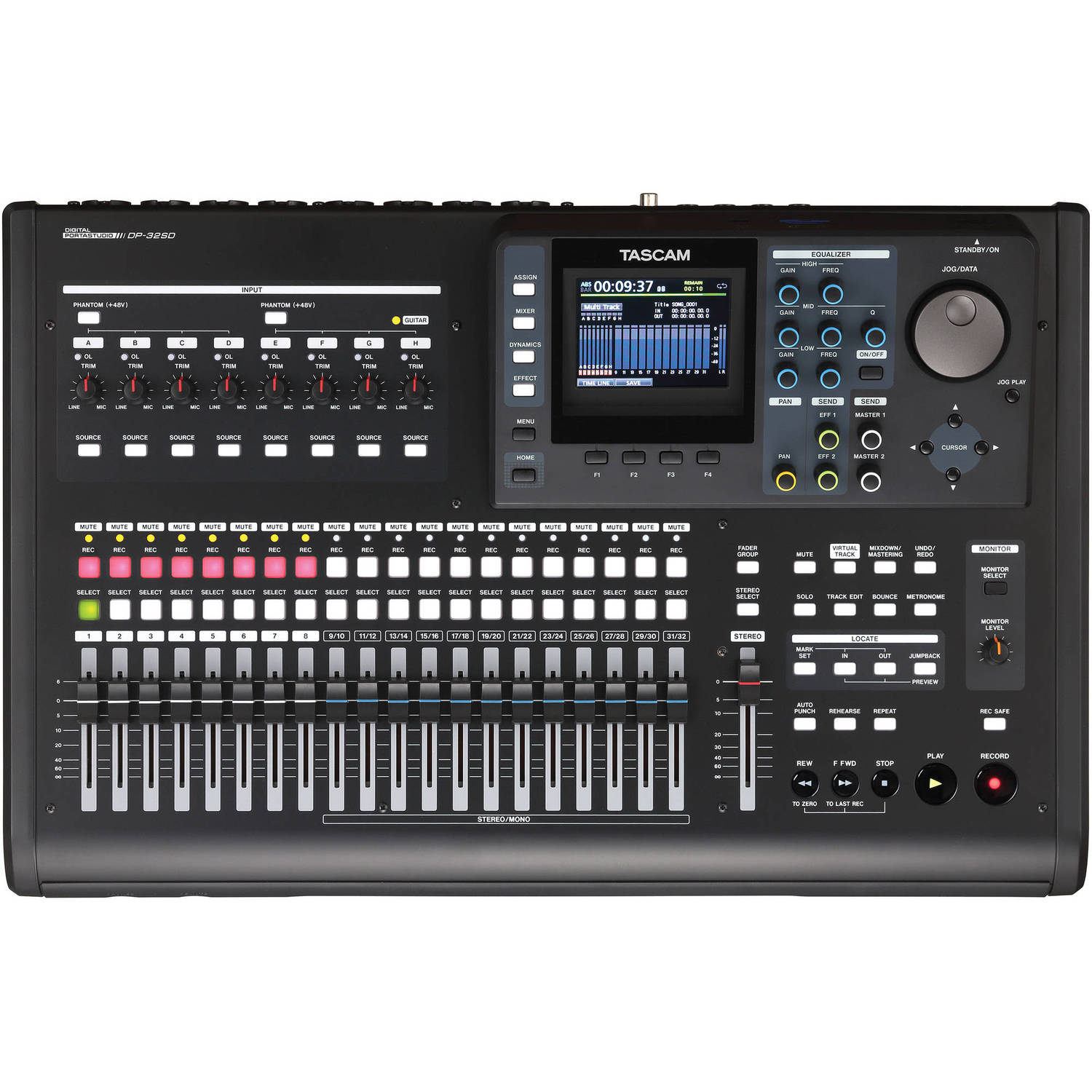

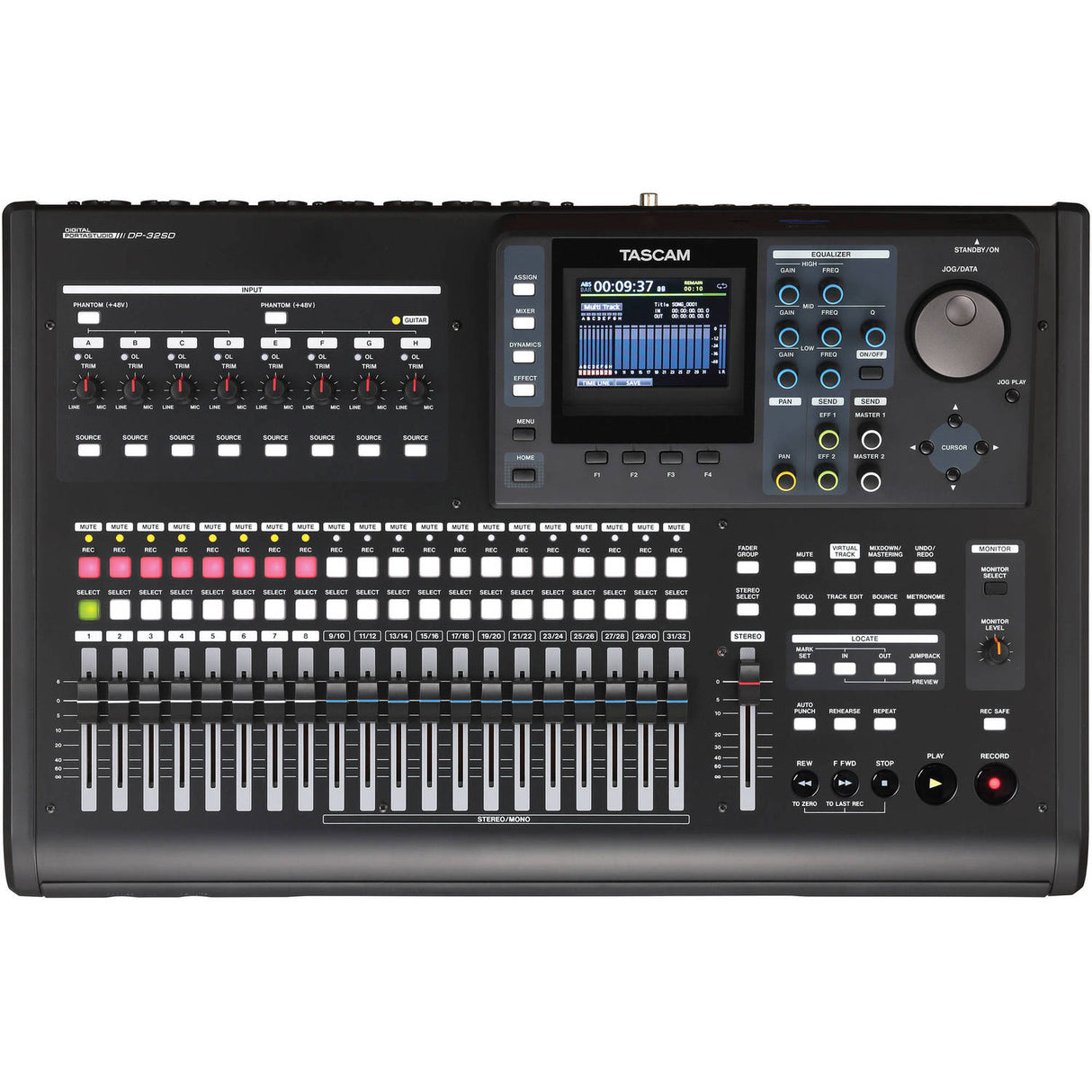

TASCAM DP-32SD 32-Track Digital Portastudio
$699.00
Unit price
/
Allowing you to record hands-on without the need for a computer, the DP-32SD 32-Track Digital Portastudio from Tascam can track up to 8 sources simultaneously with support for up to 32 tracks on playback. It features eight combo XLR-1/4" mic preamplifier inputs, with the eighth input also supporting Hi-Z sources such as guitar and bass. For hands-on control of your mix, the unit has 21 total faders (including the master) as well as a variety of EQ, compression, and guitar-based effects for tweaking your mix.
View Product Features
View Product Features
Out of Stock
0 in stock
Once stock replenishes, inventory will display below.
In-Stock Inventory
No products currently in stock
About the TASCAM DP-32SD 32-Track Digital Portastudio
Key Features
TASCAM DP-32SD 32-Track Digital Portastudio Specs
General
Form Factor
Desktop
Number of Tracks
32
Maximum Simultaneous Tracks
32x Recording
Display
1x 3.5" Color LCD
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
8
Built-In Microphone
No
Input Level Adjustment
24x Fader
Meters
24x LED
Sample Pads
No
Signal Processing
Pad
No
High-Pass Filter
No
EQ
3-Band Graphic
Dynamic Processing
Compressor
Solo/Mute
Mute per Input Channel
Built-In Effects
Auto-Wah Phaser Chorus Delay
Connectivity
Analog Audio I/O

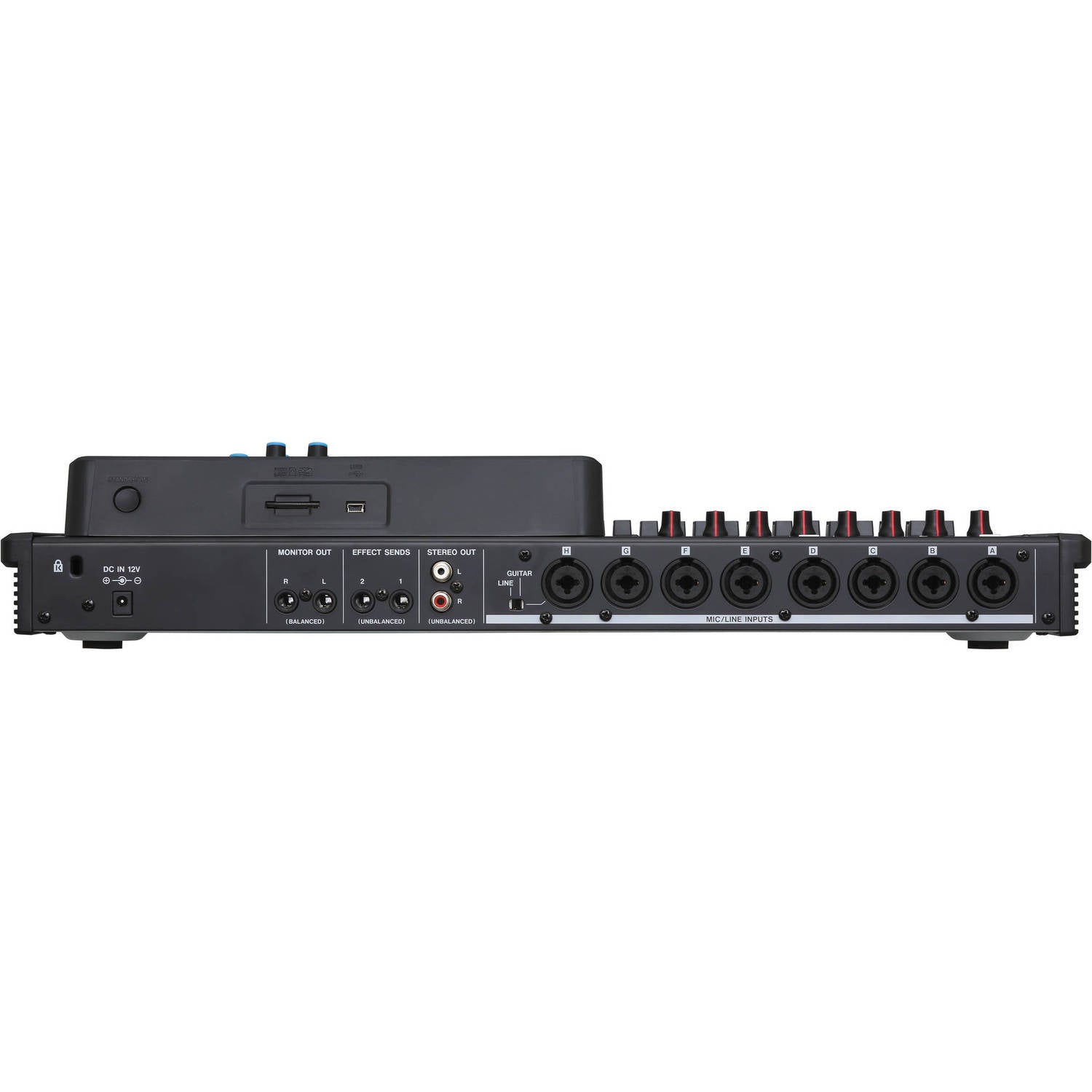

7x Combo XLR-1/4" TRS Balanced Mic/Line Input 7x Combo XLR-1/4" TRS Balanced/Unbalanced Line/Hi-Z Input 2x 1/4" TRS Headphone Output 2x 1/4" TRS Balanced Monitor Output 1x Stereo RCA Coaxial Unbalanced Line Output 2x 1/4" TS Unbalanced FX Send
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
No
Host Connection / USB
No
USB (Non-Host)
1x Mini-USB (USB 2.0, External Storage)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Other I/O
1x 2.5 mm TRS Remote Input
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB
Maximum Input Level
XLR Inputs: +2 dBu 1/4" Inputs: +20 dBu
Maximum Output Level
RCA Outputs: +6 dBV Monitor Outputs: +14 dBV FX Send: +6 dBV
Headphone Output Power
70 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance
XLR Inputs: 2.4 Kilohms 1/4" Inputs: ≥ 22 Kilohms RCA Outputs: 200 Ohms Hi-Z Inputs: 1 Megohms 1/4" FX Send: 200 Ohms Monitor Outputs: 200 Ohms (Balanced)
SNR
≥ 90 dB
THD
≤ 0.01%
Digital Audio
Audio File Formats
WAV
Sample Rates
44.1 / 48 kHz
Bit Depths
16 / 24-Bit
Audio Storage & Playback
Supported Media
SD Card
Media/Memory Card Slot
Single Slot: SD/SDHC
Supported Media Capacity
SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum
File System Support
SD: FAT16 SDHC: FAT32
Compatibility
OS Compatibility
Windows 7 or Later / macOS 10.6 or Later
Processor Requirement
PC: 300 MHz Intel Pentium or Better Mac: 266 MHz PowerPC G3 or Better
RAM Requirements
PC: 128 MB Mac: 64 MB
Required Hardware
Available USB 2.0 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
No
Power Consumption
12 W
Physical
Storage Conditions
32 to 100°F / 0 to 37°C
Certifications
ICES
Dimensions
20.2 x 13.4 x 4.1" / 513.1 x 340.4 x 104.1 mm
Weight
13.7 lb / 6.2 kg
